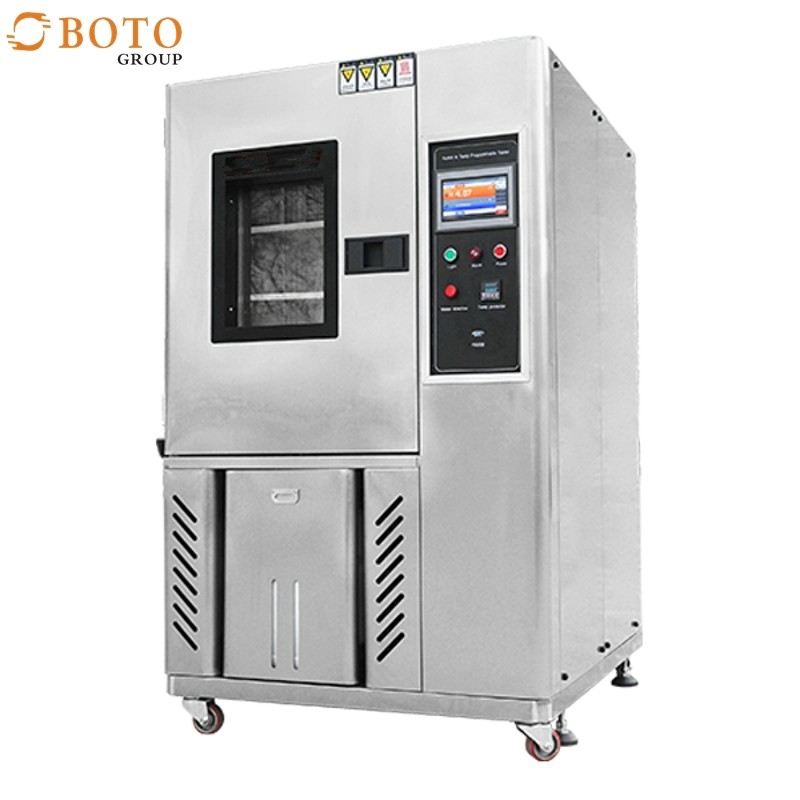

CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 1-15 days,to be negotiated
Payment Terms: T/T
Supply Ability: 100 Set/Sets per Month
Internal Dimension (W*D*H):: 400*500*500mm External Dimension (W*D*H):: 900*1070*1400mm
Temperature Fluctuation:: ±0.5℃ Temperature Range:: -40~+150℃
Temperature Uniformity:: 2℃ Humidity Range:: 20~98%RH (Refer Image Below)
Humidity Fluctuation:: ±2.5%RH Humidity Uniformity:: 3%RH
High Light:

CE Temperature and Humidity Test Chamber

,

Battery Testing Temperature Humidity Chamber

,

Air cooling Temperature And Humidity Chamber

CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test



Details Images
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 0
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 1
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 2
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 3
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 4
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 5
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 6
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 7
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 8
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 9
Application
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 10
Vehicle
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 11
Electronic
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 12
Parts
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 13
Plastic
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 14
Foods
CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 15
Chemistry
Product Paramenters
Model
BT-E702-150
Internal dimension (W*D*H)
500*500*600mm
External dimension (W*D*H)
700*1080*1480mm
Temperature range
-40~+150℃ (can be customized)
Temperature fluctuation
±0.5℃
Temperature uniformity
2℃
Humidity range
20~98%RH (Refer Image below)
Humidity fluctuation
±2.5%RH
Humidity uniformity
3%RH
Cooling speed
1℃/min in average (without loading)
Heating speed
3℃/min in average (without loading)
Internal chamber material
SUS#304 stainless steel, mirror finished
External chamber material
Stainless steel
Cooling method
Air cooling
Controller
LCD touch screen, programmable control temperature and humidity
Can set different parameter for cyclic test
Insulation material
50mm high density rigid Polyurethane foam
Heater
Explosion-proof type SUS#304 stainless steel fins radiator pipe heater
Compressor
France Tecumseh compressor
Lighting
Heat resistance
Temperature sensor
PT-100 dry and wet bulb sensor
Observation window
Tempered glass
Testing hole
Diameter 50mm, for cable routing
Sample tray
SUS#304 stainless steel, 2pcs
Safety protection device
Protection for leakage
Over-temperature
Compressor overvoltage and overload
Heater short circuit
Water shortage

Function

1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect

Design Features

1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy maintain

Programmable Controller

1. PLC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output





Company introduction



BOTO GROUP Ltd. is a private enterprise integrating r&d, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments.



CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 16



The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



CE Programmable Touch Screen Temperature and Humidity Test Chamber for Battery Test 17



In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.



The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.
