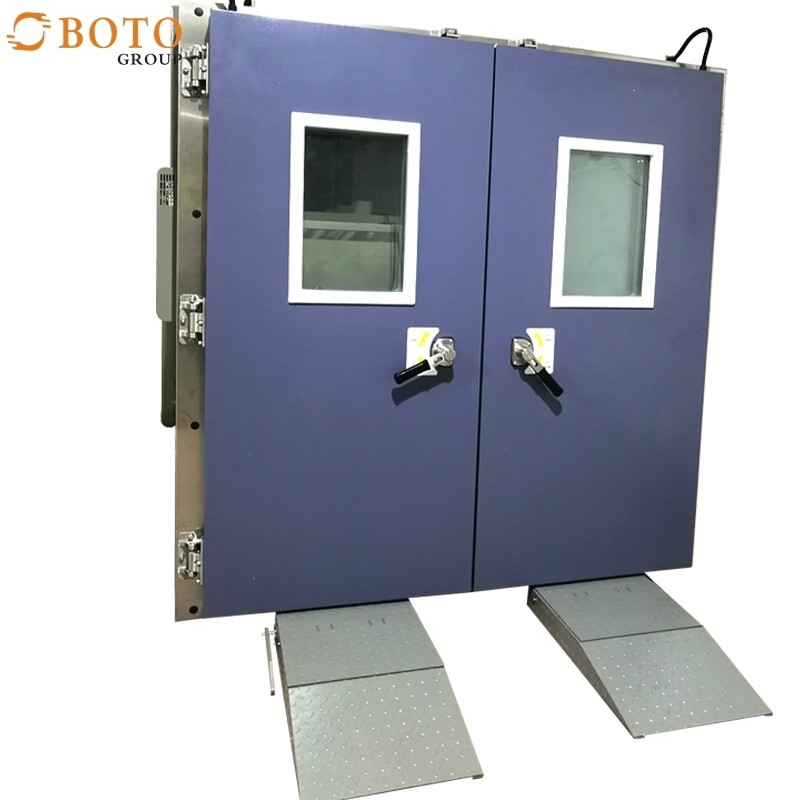

Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room

Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room
Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 1-15 days,to be negotiated
Payment Terms: T/T
Supply Ability: 100 Set/Sets per Month
Contact Now
Internal Box Volume (m³): 4.2, 8.4, 12.6, 16.8, 25.2, 33.6, 40, 54 Temperature And Humidity Fluctuation Range: ±0.3℃（-40~+85℃）
Humidity Fluctuation Range: ±2.5%rh Temperature Homogeneity: ±2℃(-70~150℃)
Humidity Uniformity: ±5.0%rh Power Source: 380VAC3φ4W50/60HZ
Calorifier: Nickel-chromium Alloy Electric Hot Wire Type Heater Refrigerator: Fully Enclosed Taikang Compressor Or Semi-enclosed Bisell Compressor
High Light:

380V High And Low Temperature Test Chamber

,

OEM Walk In Temperature Test Chamber

Large High and Low Temperature Test Chamber Walk-in High Temperature Aging Room



Product Parameter
More specifications, allow you to choose, special requirements of non-standard can be customizable
The optional temperature range of this series test box is as follows
Standard 0~80℃, -20~85℃, -40~85℃, -60~85℃, -70~85℃ (maximum temperature up to + 100℃ or + 150℃)
The sizes of this series can be as follows
Internal box volume (m³)
Inner box size (width * deep * high mm) Outer box size (width * deep * high mm)
4.2
1980*1020*2100
8.4
2000*2000*2100
12.6
2000*3000*2100
16.8
2000*4000*2100
25.2
3000*4000*2100
33.6
4000*4000*2100
40
4000*4800*2100
54
4000*6000*2250
Humidity range
20%~98%rh
Temperature and humidity fluctuation range
±0.3℃(-40~+85℃)
Humidity fluctuation range
±2.5%rh
temperature homogeneity
±2℃(-70~150℃)
humidity uniformity
±5.0%rh
sheathing material
Antirust treatment of cold-rolled steel plate powder coating
Endosomal materials
Stainless steel plate (SUS30CP type, 2B polishing treatment)
insulation material
Hard polyurethane foam plastic (for box body) glass cotton (for box door)
Refrigeration method
Mechanical bipolar compression refrigeration mode (air condenser or water-cooled type)
refrigerator
Fully enclosed Taikang compressor or semi-enclosed Bisell compressor
Expansion mechanism
Electronic automatic expansion valve mode or capillary mode
calorifier
Nickel-chromium alloy electric hot wire type heater
humidifier
SUS316 condom type heater (surface evaporation type)
source
380VAC3φ4W50/60HZ
Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 0
Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 1
Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 2
Product details
Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 3
Brand compressor, low-consumption and high-energy refrigeration system

Optional touch-programmable control system in Chinese and English Intelligent programming, one-click operation, more convenient,
more efficient
Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 4
Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 5
Finnish Visara electronic sensor, no need to hang wet ball gauze, more sensitive induction, long-term more convenient operation
Increase the thickened handle, convenient and durable
Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 6
Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 7
Insulation storage board-good sealing, eliminate air leakage hidden danger antilock design, safety is more guaranteed
Design drawings independently
Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 8
Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 9
Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 10

Company introduction



BOTO GROUP Ltd. is a private enterprise integrating r&d, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments.



Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 11



The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.





Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 12



Main equipment include:

Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 13



In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.

Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 14

Main market:



Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 15

The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.



Production Details



Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 16

Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 17



Workshop machine:



Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 18



Certification



Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 19





Cooperative partners





Large High And Low Temperature Test Chamber Walk In High Temperature Aging Room 20
