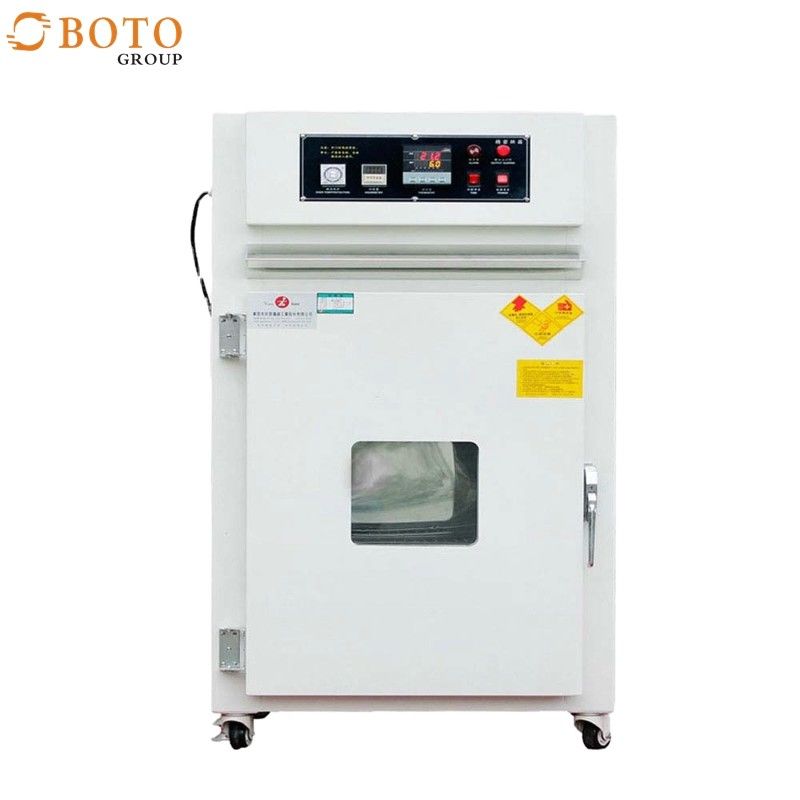

High Temperture Rubber Heat Aging Test Chamber

High Temperture Rubber Heat Aging Test Chamber
High Temperture Rubber Heat Aging Test Chamber High Temperture Rubber Heat Aging Test Chamber High Temperture Rubber Heat Aging Test Chamber High Temperture Rubber Heat Aging Test Chamber High Temperture Rubber Heat Aging Test Chamber
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-0-150L
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 1-15 days,to be negotiated
Payment Terms: T/T
Supply Ability: 200 Set/Sets per Month High Temperture Rubber Heat Aging Test Chamber have stock
Contact Now
Temperature Control Range:: RT+10°C ~500°C Temp.Resolution:: 0.1°C Units Display
Distribution Accuracy:: ±1.0°C Interior Dimension:: 40*40*40,50*60*50,80*100*60(cm)
Heating Method:: Hot-air Circulation System Certification:: Pcoc, GS, ISO9001, CE
Use:: Precision Drying Oven Packaging Details: Strong Standard Export Plywood Case For High Temperture Rubber Heat Aging Test Chamber
High Light:

ISO9001 Rubber Aging Test Chamber

High Temperture Rubber Heat Aging Test Chamber



Products Description
High Temperture Rubber Heat Aging Test Chamber 0

Introduction:

High Temperature Oven can provide a stable test space for preheating, drying, changes about physics and chemistry testing . It supplies precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.Applications:Plastic Rubber Materials,Adhesive Tape,Food,Pharm,Daily-used chemical,etc.
Product Paramenters
Product Name
High Temperature Oven
Model Number
BT-O-150L
Power
1 phase 220V 50Hz
Cable Port
External Power
Interior Size
(W*H*D)
50*60*50cm(W*H*D)
Exterior Size
(W*H*D)
69*110*64cm(W*H*D)
Customized Size
Acceptable
Control Method
PID ,PID automatically adjust the output


Advantages
1.Precision temperature controller provides accurate, stable conditions of constant temperature, in order to facilitate the test
or dry conducted.

2.The liquid expansion over-temperature power protection devices, to ensure the safety of the test article.

3.With adjustable air intake and exhaust ports, according to the test conditions of different options ,Choose to resize or switch.

4.Timing device for LED Digital constant timing, providing complete use Conditional design.

5.Machine can be designed rely on customers requirements,such as the test cable hole,casters,controller’s position ect.

6.Machine continuous running time is above three month

7.Alarm device ,when over-temperature protection action and timing is complete ,that alarm will inform and automatic shut down.
Temp Control Fluctuation
± 1.5℃
Temperature Range
RT+10℃～300℃
Accuracy
±0.5℃
Temperature Resolution
0.1
Temperature Uniformity
±2℃
Power
4.8KW
Key Set of
Data Input
Resolution 0.1 ℃
ntegration time(IT):
0～3600s
Derivative time(DT):
0～900s
Built-in timer function
Protection Device
Motor overload protection
Buzzer
Fault indicator
No fuse protection switch
Heating Up Time
(NO-load)
RT～160℃ about 28min
Temp Controller
The microcomputer automatically calculus controller


Chamber Materials
1．Inner chamber materials:SUS stainless steel plate
2．External chamber materials:Special steel, galvanized anti-rust treatment, outside with Advanced wear-resistant resin paint
coating.
3．Insulation material: aluminum silicate glass wool
4．The clapboard Material: Stainless Steel
5．Stainless steel electric heater Material: fin heat pipe type
6．Time control: 0 ~ 999H/M/S adjustable.
7．The rmometry body: T thermocouple
Air Supply Method
Galvanized wind wheel forced air circulation, the left and right into the return air to ensure uniformity of temperature, not
cause direct damage of high temperature ,when open the door.
Use of The Environment
Allowable temperature range of 0 ~ 35 ℃
Details Images
High Temperture Rubber Heat Aging Test Chamber 1
High Temperture Rubber Heat Aging Test Chamber 2
High Temperture Rubber Heat Aging Test Chamber 3
Company introduction



BOTO GROUP Ltd. is a private enterprise integrating r&d, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.



High Temperture Rubber Heat Aging Test Chamber 4



In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.





High Temperture Rubber Heat Aging Test Chamber 5



The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.
