Automatic Rain Spray Simulation Environmental Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-710
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 5-25 days
Payment Terms: T/T
Supply Ability: 300 Set/Sets per Month EN/ UL Rain test chambers
Spray Rain Radius:: 375 And 500mm Water Pipe Diameter:: 16mm
Spray Orifice Diameter:: 0.4mm Aperture Spacing:: 500mm
Water Pressure Control:: Flow Gauge Design Criteria:: GB10485-89
Water Supply System:: Booster Pump, Water Storage Safty Protection:: Leakage, Short Circuit, Motor Overheating
High Light:

500mm Rain Spray Testing Instrument


UL 1598 Rain Spray Testing Instrument


IP6 Rain Spray Testing Machine

Automatic Rain Spray Simulation Environmental Test Chamber


Product Description



Rain Spray Testing Instrument
It is design according to the standard of IP6 & UL 1598, (shell protection grade).This machine is widely used in the lamps and electrical and electronic product certification testing institutions and for testing the waterproof of electrical and electronic products of shell protection level.

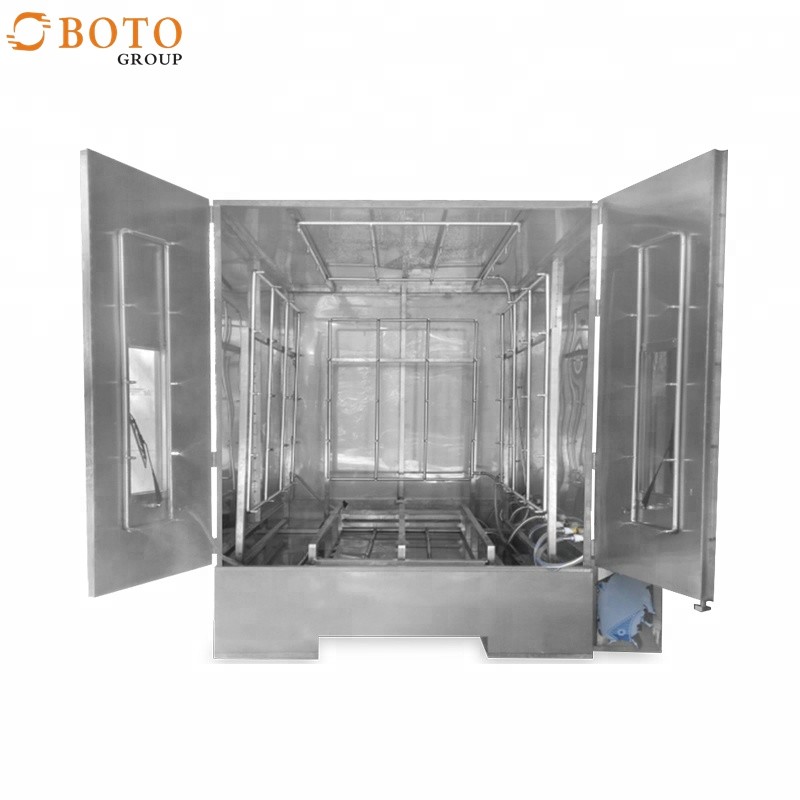

Automatic Rain Spray Simulation Environmental Test Chamber 0



1. Studio equipped with lighting equipment

2. Rain time, interval time, rainfall intensity, regulate and control apart.




The main technical parameters:

IP6 &UL1598, the external structure: a closed chamber

Inside diameter (L×W× H): 1960 x 1960 x 1900mm

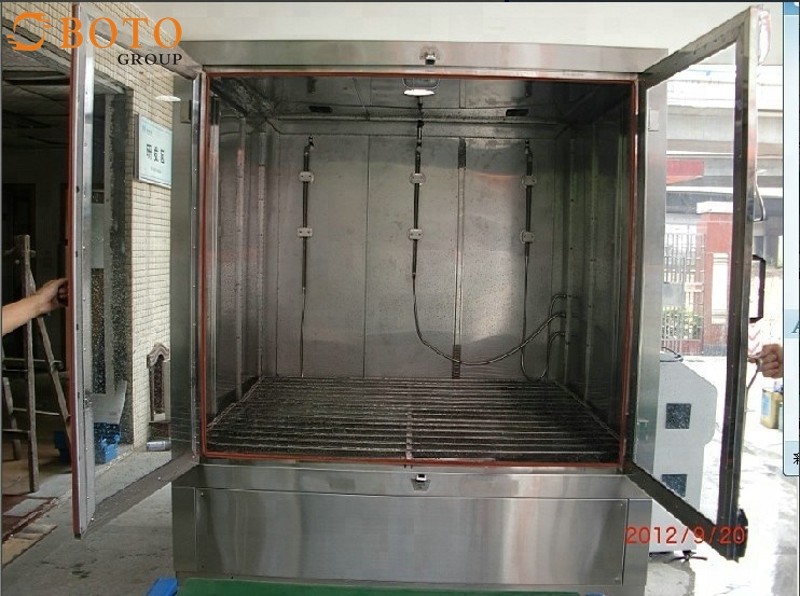

Automatic Rain Spray Simulation Environmental Test Chamber 1

Structure of EN/ UL Rain test chambers:

1,The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.

2, Large area of visible glass door, easy to observe the test specimens in the testing chamber

3,The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.

4, With 270 degree swing pipe and 360 degrees whorl pole water jet device.

5, Adjustable speed samples stage.




Features of EN/ UL Rain test chambers:


Other sizes and capabilities available upon request. Please contact us with your application.


Company profile


BOTO GROUP Ltd. is a private enterprise integrating r&d, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.

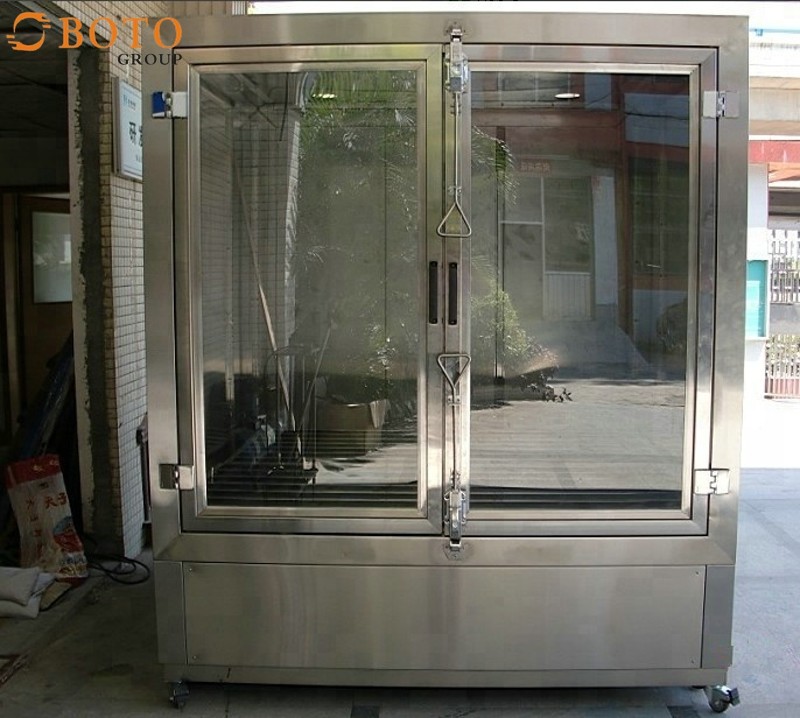

Automatic Rain Spray Simulation Environmental Test Chamber 2


In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.

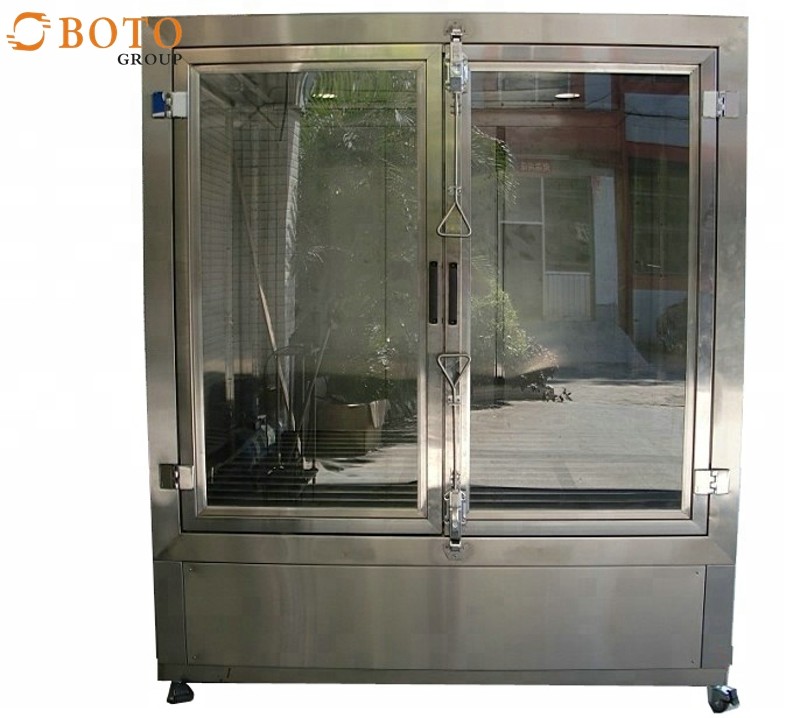

Automatic Rain Spray Simulation Environmental Test Chamber 3


The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.
