|Material::||#SUS 304 Stainless Steel||Controller::||Touch Screen Programmable Controller|
|Refrigerater::||French Tecumseh||Temperature Range::||-70~150C|
|Humidity Range::||20%~98%||Fluctuation::||±0.5C ±2.5%RH|
|Controller Accuracy::||±0.3C ±2.5%RH||Cooling Time::||5.0 °C /minute|
|Cooling System::||Water-cooled / Two-stage Compressor||Certification::||ISO, CE|
SUS 304 Temperature Humidity Controlled Chamber,
ISO Certification Walk In Climate Chamber,
IEC60068-2-38 Walk In Environmental Chamber
Environmental Humedad Constante Del Termostato Temperature Humidity Test Chamber Walk In Climate Chamber

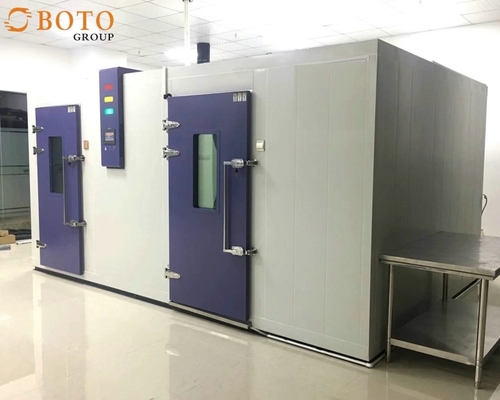

Walk-In Chamber serves as a test site for large components, assemblies, and finished products in electrical and electronics, aerospace, batteries and automobiles, etc. Liyi manufactures both Static Walk-In Chambers and Dynamic Walk-In Chambers and can be configured as a temperature chamber or a temperature humidity chamber.
Walk-in temperature and climate test chambers are especially developed for large test specimens. Size and design are optimal loading of test specimens. The modular construction and variability in size and equipment is ideally forspecific application.
Standard Met and Implemented:
|IEC60068-2-1 low temperature test method|
|IEC60068-2-38 temperature cycle|
|IEC60068-2-78 constant humidity temperature|
|Volume||10m3 , 15m3 , 20m3, 30m3, 50m3, 100m3 , as per customer Requirements|
|Accuracy/Uniformity||±0.1 °C , ±0.1%R.H. / ±1.5 °C ,±5.0%R.H.|
|Accuracy/Volatility||±1.0 °C , ±2.0%R.H./±0.5 °C , ±3.0%R.H.|
|Cooling Time||5.0 °C /minute|
|Inside Material||SUS#304 Stainless Steel|
|Insulation Material||High-temperature high-density amino acid ethyl ester foam insulation materials|
|Cooling System||Water-cooled / two-stage compressor|
|Protection||No fuse switch, compressor overload switch, high and low pressure protective switch, over-humidity-temperature protective switches, fuses, warning system|
|Accessories||Recorder(option), view window, 50mm diameter testing hole, PL lamp, clapboard, Dry and wet gauze ball|
|Controller||Touch screen programmable controller|
|Compressor||France's Tecumseh Brand or Germany Bitzer|
|Power||1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz|
BOTO GROUP Ltd. is a private enterprise integrating r&d, production, OEM and sales of scientific and technological equipment manufacturing. Proficient in the production, development and upgrading of various non-standard instruments and automatic instruments. The factory covers an area of 26,666 square meters, headquartered in Shanghai, has several offices in China, the factory annual output of about 2000 sets of equipment. Since the establishment of the company, the company is committed to providing customers with quality products and services, and has been praised by customers.
In the domestic market, we have many end customers, third-party testing institutions, research institutes, leading enterprises in different industries, and some agents. For the overseas market, we hope to find more general agents, distributors and importers to cooperate together.
The factory has the ability to calibrate, and the customer can also designate a third party organization to calibrate and issue a calibration report.
