Constant High-Low Temperature And Humidity Climatic Test Chamber Price

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: wooden case
Delivery Time: 1-15 days,to be negotiated
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Unit/Units per Month
Customized Support:: OEM, ODM, OBM Temperature Control Range:: -40°C ~ +150 °C
Warranty:: 14 Months Color:: Request
Refrigerant:: Environmental Friendly R23/R404A Body Materials:: SUS#304 Stainless Steel Plate
Compressor:: Original France Tecumseh Humidity Range:: 10%~98% RH
Temperature Accuracy:: 0.5°C Application:: Electronic,Auto,plastic,Instrument And Other Industry
High Light:

Stainless Steel Climatic Test Chamber 98%RH

,

Constant Humidity Climatic Test Chamber 380V

,

380V Temperature Humidity Chamber

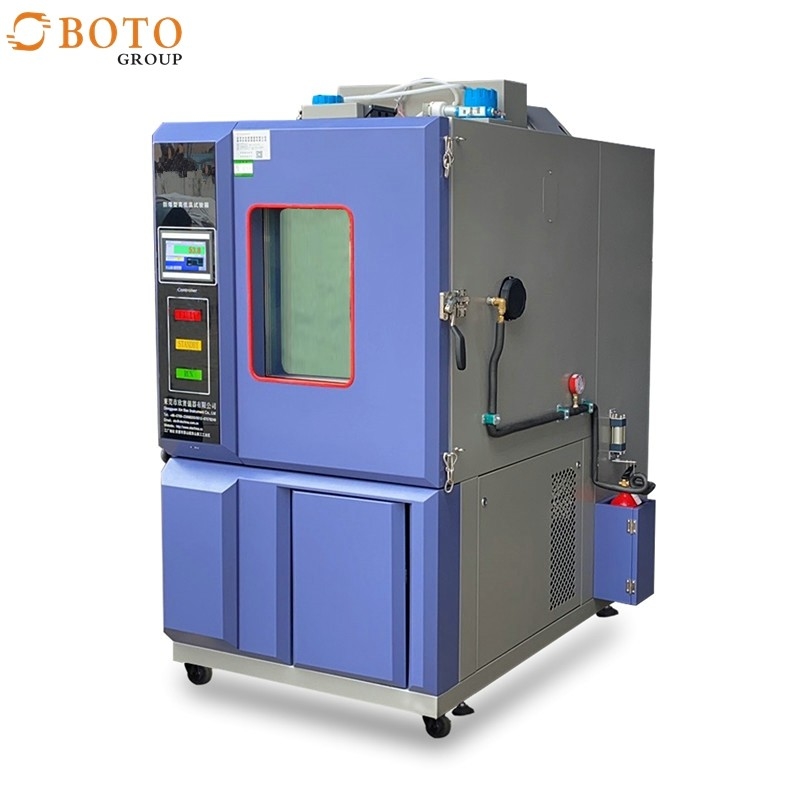

Constant High-Low Temperature And Humidity Climatic Test Chamber



Temperature humidity test chamber is use to test material heat,cold,dry resistance, humidity resistance.Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.
Model
BT-150
BT-225
BT-408
BT-800
BT-1000
Inner size
WHD (cm)
50*60*50
60*75*50
80*85*60
100*100*80
100*100*100
External size
WHD (cm)
70*162.5*153
80*177.5*153
100*192.5*163
120*209*183
120*209*203
Window Size
WH (mm)
500*600
600*750
800*850
100*100
100*100
Test Hole Size
Diameter (mm)
2 holes
50mm of each
2 holes
100mm of each
2 holes
100mm of each
2 holes
100mm of each

Weight
320KG
370KG
460KG
560KG
590KG



Appication





Constant High-Low Temperature And Humidity Climatic Test Chamber Price 0

Product parameters



Voltage
1Ø 220V 50Hz/ 3Ø 380V 60Hz/Customized
Temperature range
-70℃ ~180℃
Humidity range
10% ~98%RH
(5%~98% R.H. customized)
Temp.& humidity control fluctuation
≤±0.5℃, ≤ ±2.5%RH
Indication resolution
0.01℃, 0.1 %RH
Temp.&humidity Uniformity
≤±1.5℃,≤±2.5% RH
Heat up&Cool down time
≤5℃/min for heating; ≤ 1.2℃/min for cooling
Cooling type
Air cold
Chamber materials
SUS#304 stainless steel for Inner chamber with thickness 1.5mm
Steel plate for external chamber with thickness 1.5mm
Insulation
materials
Rigid polyurethane foam + ultrafine glass fiber with thickness of 100mm

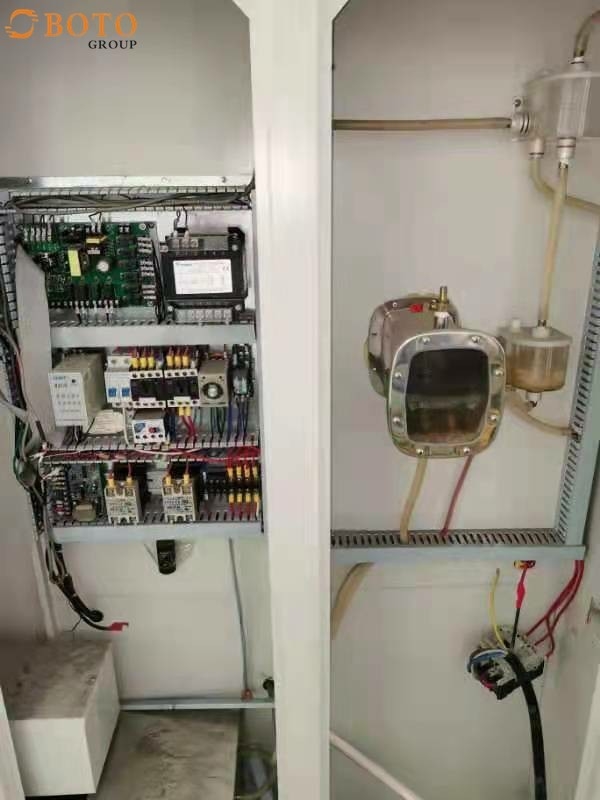

Mechanical Room
Refrigerating unit, water supply and drainage device, blower fan, power distributing Cabinet;
Humidifying and humidity measuring water utilization control device


Electronic Box
Heat emission blower fan
Distribution switchboard
Test terminal of sample
USB physical interface (need to be purchased together with centralized monitoring software)
Residual current circuit breaker of main power supply


Heating Device
Basin heating humidifying method
Stainless steel armored heater is adopted in basin humidification
Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state
relay)
Water level control device, dry heating prevention device of heater
Humidifier
1.Basin heating humidifying method
2.Control mode of heater: non contact equal period pulse-width modulation, SSR (solid state relay)
3.Water level control device, dry heating prevention device of heater

Control panel
Temperature (humidity) control display, over temperature protection setting device,emergency switch, run indicator, failure
indicator

Compressor
Imported Compressor
Fits wide range of pressure
Higher heating efficiency
Easy to maintain





Features
1.Unique design of the box within the wind circulation structure, to ensure that under the conditions of the test with the case of
uniformity within the box within ± 2 ℃

2.Unique design of the humidity test when the top of the box anti-drip design to ensure that live test from water short circuit,
surface water pollution

3.Using the latest environmentally friendly adsorption drying processor, effective control of the product when the surface
temperature condensation

4.The refrigeration room is fully sealed and soundproofed to reduce machine noise and box resonance, machine noise control within
75db./Other Contact us



Product structure



Constant High-Low Temperature And Humidity Climatic Test Chamber Price 1





Control system





Controller
Screen Size &Display
7" TFT-LCD
Down load data
By USB directly
Language
ENG (other language can be acceptable)
Number of Program Groups
120 Groups, each Group with 1200segments with 9999 cycles
Connected to PC
YES
Easy for Operation
YES



Constant High-Low Temperature And Humidity Climatic Test Chamber Price 2

Constant High-Low Temperature And Humidity Climatic Test Chamber Price 3

Constant High-Low Temperature And Humidity Climatic Test Chamber Price 4

Manufacturing Technique



Constant High-Low Temperature And Humidity Climatic Test Chamber Price 5

Constant High-Low Temperature And Humidity Climatic Test Chamber Price 6

Constant High-Low Temperature And Humidity Climatic Test Chamber Price 7



Factory Inspection
We control quality from the materials, electronic parts, controller,comppressor, solenoid valve, and many parts of the products.



Certification









Constant High-Low Temperature And Humidity Climatic Test Chamber Price 8

Cooperative partners



Constant High-Low Temperature And Humidity Climatic Test Chamber Price 9



BOTO ADVANTAGE







 Constant High-Low Temperature And Humidity Climatic Test Chamber Price 10

Customers photos



Constant High-Low Temperature And Humidity Climatic Test Chamber Price 11

Constant High-Low Temperature And Humidity Climatic Test Chamber Price 12



OUR TEAM

Constant High-Low Temperature And Humidity Climatic Test Chamber Price 13



Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

      Discussing testing requirements and technical details, suggested suitable products to customer to confirm.   Then quote most suitable price according to customer requirements.

2) Specifications customize process:

      Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

      We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

      After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

      Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

      Defines installing those products in the field and providing after-sales support.
