Product Name: | Temperature Schock Chamber | Usage: | Electronic Element Tester |
---|---|---|---|
Color: | White And Blue | Material: | Coating Or SUS#304Stainless Steel Plate |
Internal Dim: | 40x35x35 | External Dim: | 143x210x170 |
Test Temp Range: | -65℃~150℃ | High Temp Range: | 80℃~200℃ |
Power: | 19KW | Power Supply: | AC:380V 50/60Hz |
High Light: | Temperature Shock Chamber SUS304,Thermal Storage Type Temperature Shock Chamber,Electronic Element Thermal Shock Chamber 19KW |

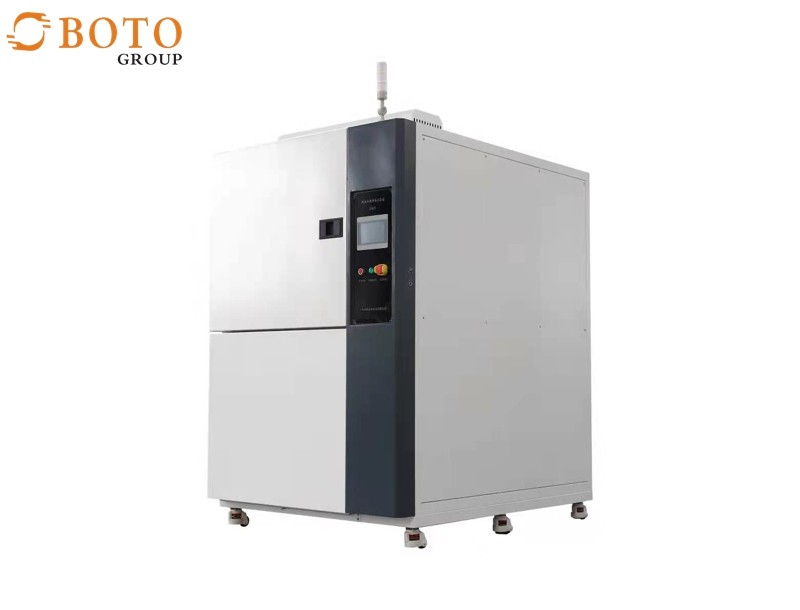

Electronic Element Tester Three Box-Type Hot And Cold Impact Temperature Shock Chamber Environmental Test Chambers
Product description
Use
It is mainly used in the research and development of national defense industry, aviation industry, automobile parts, electronic parts, plastic industry, food industry, pharmaceutical industry, and related products, as well as the test specification of quality management engineering. Thermal storage type cold and hot impact testing machine is a cold and hot alternate impact mode, widely used in electronic parts, semiconductor, metal, chemical, material and other testing equipment.
Features
1. Adopt touch type color man-machine interface +PLC+J inlet temperature controller;
2. Can set the cycle and defrost times;
3. Exceptions and failure points display, and a simple troubleshooting teaching reminder;
4. Complete system safety protection and power failure memory;
5. Multiple safety protection: refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection;
6. Air cooling or water cooling can be selected according to customer requirements.
Specification
Model | B-TS-401 | B-TS-402 | B-TS-403 | B-TS-501 | B-TS-502 | B-TS-503 | B-TS-601 | B-TS-602 | B-TS-603 |
Internal dim | 40X35X35 | 50X40X40 | 60X50X50 | 40X35X35 | 50X40X40 | 60X50X50 | 40X35X35 | 50X40X40 | 60X50X50 |
External dim | 143X210X170 | 154X212X170 | 166X220X180 | 143X210X170 | 154X212X170 | 166X220X180 | 143X210X170 | 154X212X170 | 166X220X180 |
Sample Weight | 5KG | 10KG | 20KG | 5KG | 10KG | 20KG | 5KG | 10KG | 20KG |
Low Temp Range | ’-10℃~-60℃ | ’-10℃~-70℃ | ’-10℃~-80℃ | ||||||
Test Temp Range | ’-40℃~-150℃ | ’-55℃~-150℃ | ’-65℃~-150℃ | ||||||
High Temp Range | 80℃~200℃(Trial of various specifications) | ||||||||
Recovery time | 3~5min | ||||||||
Temp Fluctudtiont | ±2℃ | ||||||||
Interior | SUS#304Stainless steel plate | ||||||||
Exterior | Coating or SUS#304Stainless steel plate | ||||||||
Power Source | AC:380V 50/60Hz | ||||||||
Power(KW) | 16KW | 19KW | 19KW | 19KW | 20.5KW | 22KW | 19KW | 26KW | 33KW |
Detail picture
Production Process
PACKAGE&DELIVERY
1.Standard exported package: Internal anticollision protection, external export wooden box packaging.
2.Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3. Responsible for the damage during the shipping process, will change the damage part for you for free.
4.15-20days after confirming order,detail delivery date should be decided according to production season and order quantity.
Factory introduction
BOTO GROUP LTD.Is a professional manufacturer of environmental test equipment and test service. Our company was established in 1998,the plant covers 55,000 square meters and a construction area of 6,800 square meters, existing 160 workers and we can provide operation video for machines.
Main equipment
Main market
The factory has the ability to calibrate, and the customer can also designate a ISO 17025 accredited third-party organization to calibrate and issue a calibration report.
Certification
The certificate is valid until June 17, 2024
Cooperative partners
BOTO ADVANTAGE
Customers photos
Our Team
Our Services
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.
3) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show production process.
After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
