| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO |
| Model Number: | BT-L Series |
| Minimum Order Quantity: | 1set |
| Price: | Negotiated |
| Packaging Details: | wooden package |
| Delivery Time: | 1-25 days,to be negotiated |
| Payment Terms: | L/C, T/T, Western Union, D/A, D/P |
| Supply Ability: | 100 Set/Sets per Month |
| Power:: | Electronic, 220V Or 380V AC±10% 50/60Hz | Fluctuation:: | ±0.5°C; ±2.5%RH |
|---|---|---|---|
| Temperature Range:: | -40/-70~150°C | Humidity Range:: | 10%/20%~98%RH |
| Test Hole:: | D50/100mm | Standard:: | ASTM ISO EN JS |
| Material:: | SUS 304# Stainless Steel | ||
| High Light: | Programmable Climatic Test Cabinet,High Temp Climatic Test Cabinet 1000L,Stainless Steel Environmental Simulation Chamber |
||

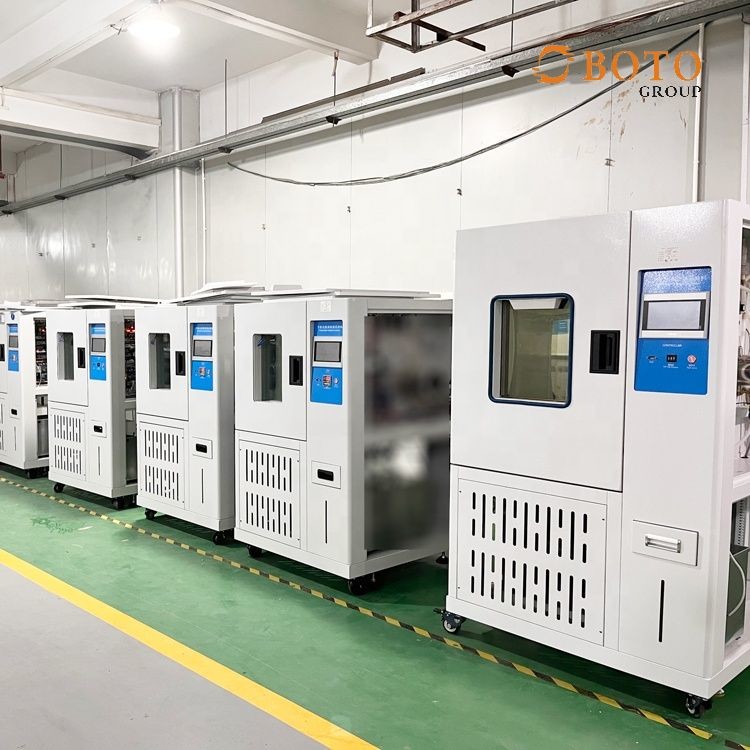

BOTO 50L~1000L Lab Environmental Programmable High Temp Temperature Humidity Test Thermal Chamber for Climatic Simulation
Application:This Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
| Model | BT-L-280 | BT-L-2150 | BT-L-2225 | BT-L-2408 | BT-L-2800 | |
|
Inner Size W×H×D(cm) |
40×50×40 | 50×60×50 | 50×75×50 | 60×85×80 | 100×100×80 | |
|
Outside Size W×H×D(cm) |
93×155×95 | 100×148×106 | 117×166×91 | 140×176×101 | 170×186×111 | |
| Volume (V) | 80 L | 150L | 225L | 408L | 800L | |
| Temp and Hum Range |
A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
|||||
| Function | Fluctuation | ±0.5°C ±2.5%RH | ||||
| Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) | |||||
|
Controller Analytical Accuracy |
±0.3°C ±2.5%RH | |||||
| Wind Cycling Way | Centrifugal fan-broadband type forced air circulation | |||||
| Refrigeration Way | Single stage compression refrigeration | |||||
| Refrigerator | French Tecumseh | |||||
| Refrigerants | R4O4A USA DuPont environmental protection refrigerant(R23+R404) | |||||
| Condensing Way | Air-cooled or water-cooled | |||||
| Water Supplying Way | Automatic cycling water supply | |||||
We're also vendor of TSLA, UL, SGS,etc.
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
