Name: BOTO Ip5x / Ip6x Sand Dust Resistance Weather Spraying Ip Rain Spray Test Chamber
Brand: BOTO GROUP LTD
Price: 120000.00 USD
Availability: InStock

BOTO Ip5x / Ip6x Sand Dust Resistance Weather Spraying Ip Rain Spray Test Chamber

Basic Information

Place of Origin:	China
Brand Name:	BOTO
Certification:	CE ISO

Minimum Order Quantity:	1set
Price:	Negotiated
Packaging Details:	Wooden case
Delivery Time:	1-25 days,to be negotiated
Payment Terms:	L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability:	100 Set/Sets per Month

Contact Now

Power::

Electronic

Power Supply::

220V 50Hz

Color::

Customer Required

Swiping Pipe Size::

R400mm/500mm/600mm

Sample Shelf Size::

D700mm

Dripping Board Size::

1000*1000mm

Controller::

English Touch Screen Controller

Standard::

IEC60529

Certification::

ISO

Highlight:

Sand Dust Resistance Rain Test Chamber

Weather Spraying Environmental Simulation Chamber

Rain Spray Test Environmental Control Chamber

BOTO Ip5x/Ip6x Sand Dust Resistance Weather Spraying Ip Rain Spray Test Chamber

Product Description

This Programmable rubber/ plastic Rain Test Chamber is used to simulating the lighting , auto parts , household appliances and other products in condition of moisture or rain , to see the influence of water to the products. Through this can test the resistance to the rain penetration and moisture proof ability of products.

Standards:

IEC60529 , ISO 20653 , GB2423.38 - 90 , GB5170.20 -90 , GB 4208-93, IPX4 waterproof test methods.

Characteristics:

Programmable rubber/ plastic Rain Test Chamber through a rigorous scientific design, making it can realistically simulate dripping rain , splashing water , water spray and other environment. It uses advanced controlling system and inverter technology , making the rotation angle of the specimen frame, the swing angle of the oscillating bar and the water swing rate can be automatically adjusted.

Product Parameters

Can costomized:

Model	BT-IPX34
Turntable size(LDH)mm	130013001300
Outer size(LDH)mm	180015201950
Pendulum size	R600mm(Additive matching R400mm,R200mm)
Nozzle size	Diameter 0.4mm
Pendulum diameter	15mm
Sample turntable diameter	Diameter 600mm(Additive matching R400mm,R200mm)
Rate of flow	0-3L/min
Turntable load bearing	50KG
Turntable height range	550-1000mm
Rotating speed of turntable	1-5r/min (precise adjustable)
Turntable rotation mode	Continuous positive / reverse rotation
Pendulum angle	120º (IPX3), 350º (IPX4) or custom
Swinging velocity	240 °roundtrip 4S , 720 °roundtrip 12s (precision control) or custom
Device power supply (DPS)	220V
Test sample power supply	220V
Device capacity	1.0KW
Safety protection function	Leakage protection, water shortage protection, short circuit protection Etc.

Basic drawing and structure

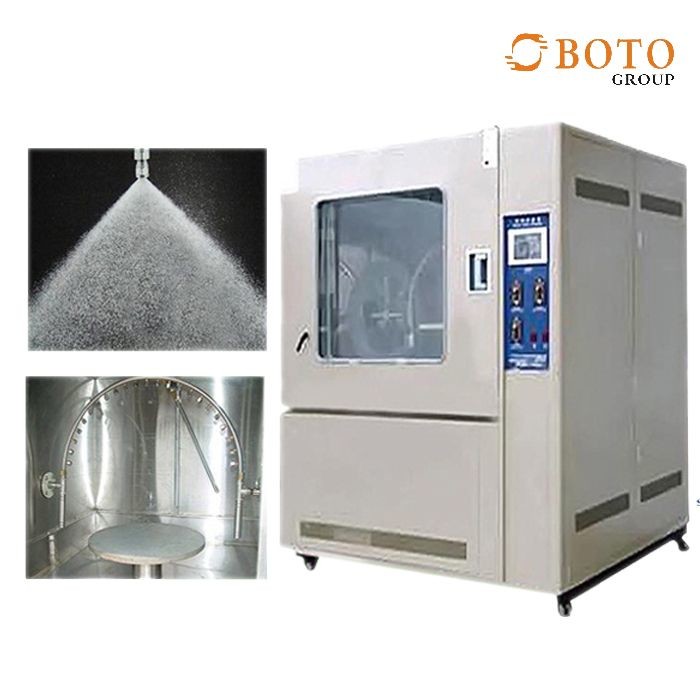

BOTO Ip5x / Ip6x Sand Dust Resistance Weather Spraying Ip Rain Spray Test Chamber 0

BOTO Ip5x / Ip6x Sand Dust Resistance Weather Spraying Ip Rain Spray Test Chamber 1

BOTO Ip5x / Ip6x Sand Dust Resistance Weather Spraying Ip Rain Spray Test Chamber 2

BOTO Ip5x / Ip6x Sand Dust Resistance Weather Spraying Ip Rain Spray Test Chamber 3

BOTO Ip5x / Ip6x Sand Dust Resistance Weather Spraying Ip Rain Spray Test Chamber 4

BOTO Ip5x / Ip6x Sand Dust Resistance Weather Spraying Ip Rain Spray Test Chamber 5
