| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1set |
| Price: | Negotiated |
| Packaging Details: | Wooden case |
| Delivery Time: | 1-25 days,to be negotiated |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/A, D/P |
| Supply Ability: | 100 Set/Sets per Month |
| Power:: | Electronic | Power Supply:: | 220V 50Hz |
|---|---|---|---|
| Color:: | Customer Required | Swiping Pipe Size:: | R400mm/500mm/600mm |
| Sample Shelf Size:: | D700mm | Dripping Board Size:: | 1000*1000mm |
| Controller:: | English Touch Screen Controller | Standard:: | IEC60529 |
| Certification:: | ISO | ||
| High Light: | Sand Dust Resistance Environmental Chamber,Weather Spraying Rain Test Chamber IP6x,Rain Test Chamber R400mm |
||

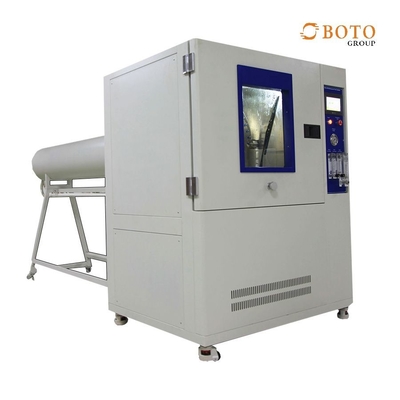

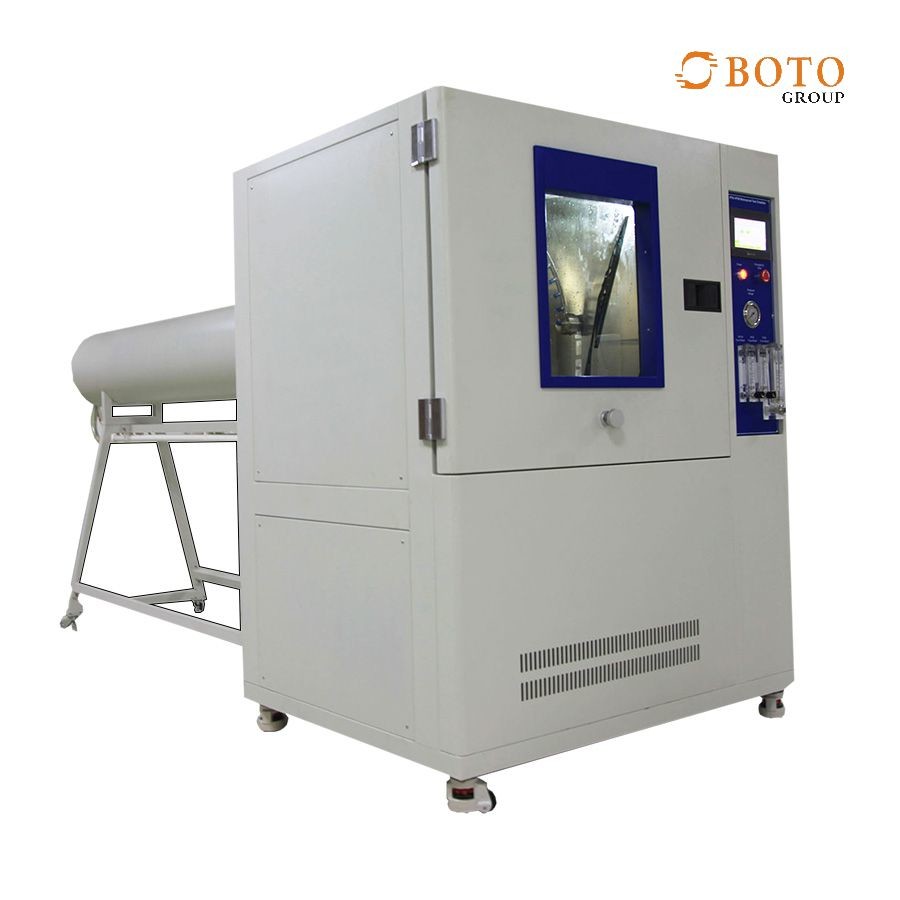

BOTO Sand Dust Resistance Weather Spraying Rain Test Chamber Ip5x/Ip6x
This Programmable rubber/ plastic Rain Test Chamber is used to simulating the lighting , auto parts , household appliances and other products in condition of moisture or rain , to see the influence of water to the products. Through this can test the resistance to the rain penetration and moisture proof ability of products.
Programmable rubber/ plastic Rain Test Chamber through a rigorous scientific design, making it can realistically simulate dripping rain , splashing water , water spray and other environment. It uses advanced controlling system and inverter technology , making the rotation angle of the specimen frame, the swing angle of the oscillating bar and the water swing rate can be automatically adjusted.
Can costomized:
| Model | BT-IPX34 |
| Turntable size(L*D*H)mm | 1300*1300*1300 |
| Outer size(L*D*H)mm | 1800*1520*1950 |
| Pendulum size | R600mm(Additive matching R400mm,R200mm) |
| Nozzle size | Diameter 0.4mm |
| Pendulum diameter | 15mm |
| Sample turntable diameter | Diameter 600mm(Additive matching R400mm,R200mm) |
| Rate of flow | 0-3L/min |
| Turntable load bearing | 50KG |
| Turntable height range | 550-1000mm |
| Rotating speed of turntable | 1-5r/min (precise adjustable) |
| Turntable rotation mode | Continuous positive / reverse rotation |
| Pendulum angle | 120º (IPX3), 350º (IPX4) or custom |
| Swinging velocity | 240 °roundtrip 4S , 720 °roundtrip 12s (precision control) or custom |
| Device power supply (DPS) | 220V |
| Test sample power supply | 220V |
| Device capacity | 1.0KW |
| Safety protection function | Leakage protection, water shortage protection, short circuit protection Etc. |
Basic drawing and structure
Our Services
During the whole business process, we offer Consultative Selling service.
1) Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2) Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.
3) Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show production process.
After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4) Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
