Name: IPX56 Simulation Rain Test Chamber Rainfall Simulator
Brand: BOTO GROUP LTD
SKU: BT-1000P
Price: 120000 USD
Availability: InStock

Home > Products > Environmental Test Chambers >

IPX56 Simulation Rain Test Chamber Rainfall Simulator

Simulation Rain Test Chamber

IPX56 Rainfall Simulator

Rainfall Environmental Test Chambers

Place of Origin:

China

Brand Name:

BOTO

Certification:

CE ISO

Model Number:

BT-1000P

Request A Quote

IPX56 Simulation Rain Test Chamber Rainfall Simulator

Product Details

Power::

Electronic

Working Temperature::

+5℃~+36℃

Controller::

Programmable LCD Touch Screen

Casters::

Easy Mobility,Safe And Sound

Swing Pipe Diameter::

375mm*2

Swing Pipe Arc Of Oscillation::

+/- 60 ° +/- 90° +/- 160°

Size::

100*146*184(CM)

Test Platform Size::

400mm

Test Bench Speed::

5r/min(adjustable)

Highlight:

Simulation Rain Test Chamber

IPX56 Rainfall Simulator

Rainfall Environmental Test Chambers

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Negotiated

Packaging Details

Wooden case

Delivery Time

1-25 days,to be negotiated

Payment Terms

L/C, D/P, T/T, Western Union

Supply Ability

250 Set/Sets per Month IPX56 Simulation Rain Test Chamber have stock

Made-To-Order Comprehensive Temperature,Humidity,Vibration Composite Test Chamber

Get Best Price

B-TH Walk-In High & Low Temperature Alternating Humidity Test Chamber For EV/Energy Storage

Get Best Price

High-Performance Made-To-Order PCT Benchtop High Pressure & High Humidity Environmental Test Chamber

Get Best Price

High-Performance Salt Spray Corrosion Test Chamber With SSR 1-2ml/80cm2/H And AC 220V50Hz

Get Best Price

Contact Now

Product Description

IPX56 Simulation Rain Test Chamber Rainfall Simulator

Introduction:

IPX56 Simulation Rain Test Chamber widely used in the lamps and electrical and electronic product certification testing institutions and for testing the waterproof of electrical and electronic products of shell protection level.

Description & Application

Rain spray test chamber simulates the watet drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.
This product uses the scientific design makes the device capable of realistic simulation drip, water spray, splashing water, environmental, water and so on. Into the overall control system and the use of inverter technology, making the rotation angle of rainfall in the test frame, spray angle and swing the pendulum swinging spray volume can automatically adjust the frequency.

Out case protection grade
1.IPX1, IPX2 test
IPX1, X2 Negative pressure to absorb design
Unique nozzle, not easy to block
2.IPX3, IPX4 test
Pipe swing-type designed with gear motor, angle and speed adjustable.
Nozzle Angle aiming at the circle center

Feature
1. Meet the requirement of IEC60529 standard IPX3 water pouring test and IPX4 water splash test.
2. The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. During test, the sample would spin around the center line.
3. Can manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.
4. PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
5. Servo drive mechanism, guarantee the pendulum pipe angle of precision, the overall pendulum tube structure for hang a wall.
6. Best after sales service: One year free parts maintenance.
7. Customization is available & welcomed.

Product images

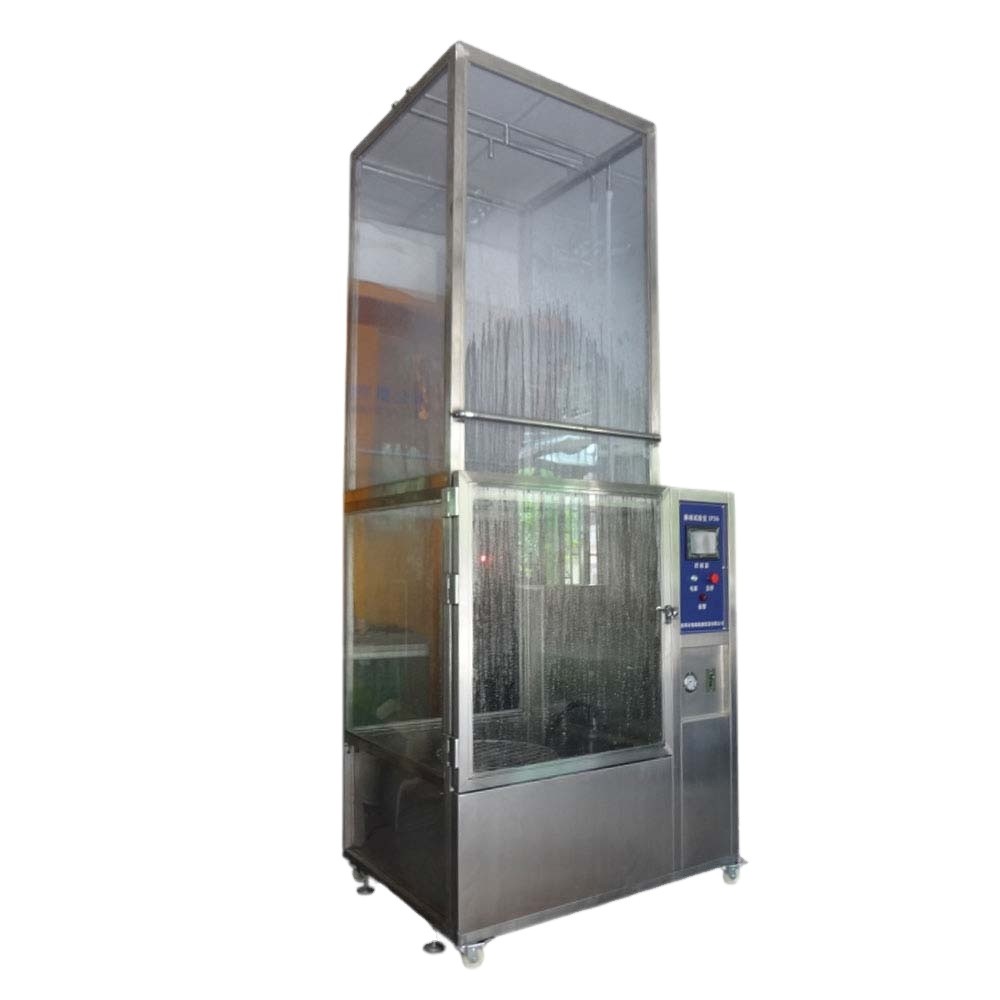

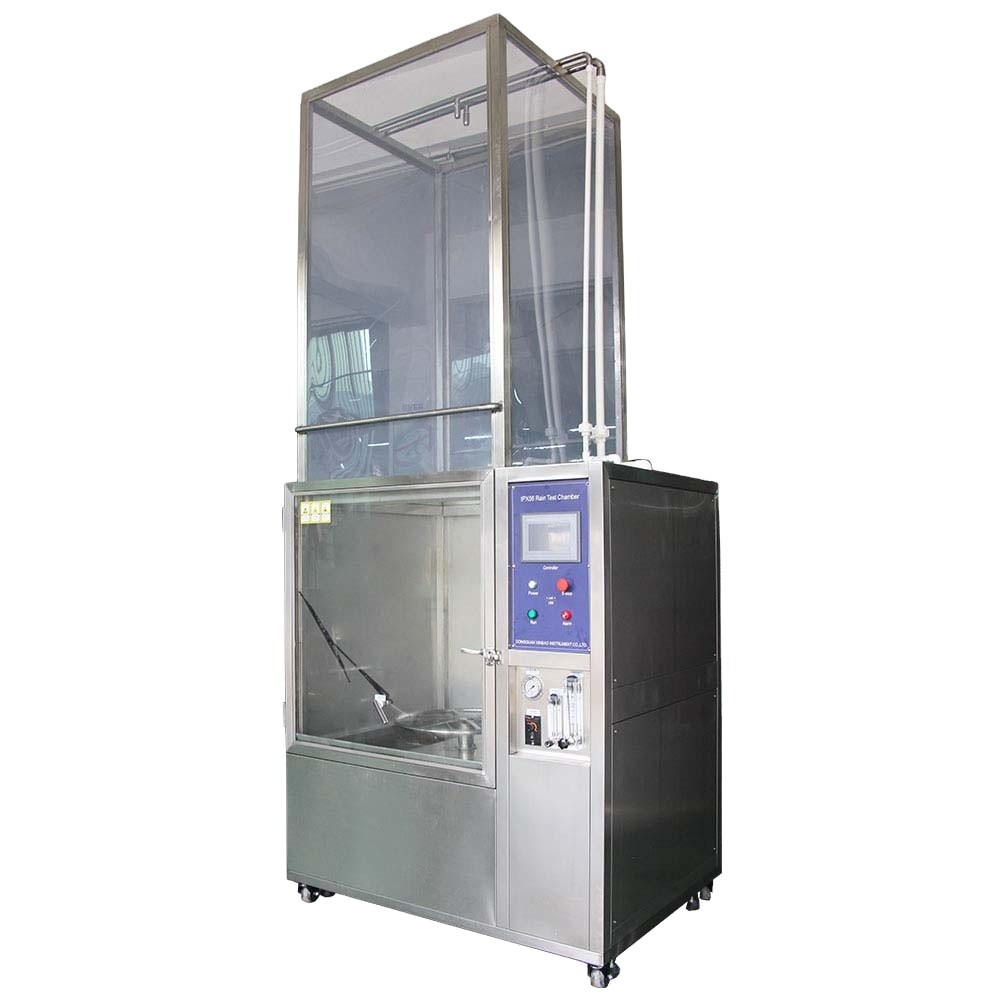

IPX56 Simulation Rain Test Chamber Rainfall Simulator 0

Package:

(1). Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
