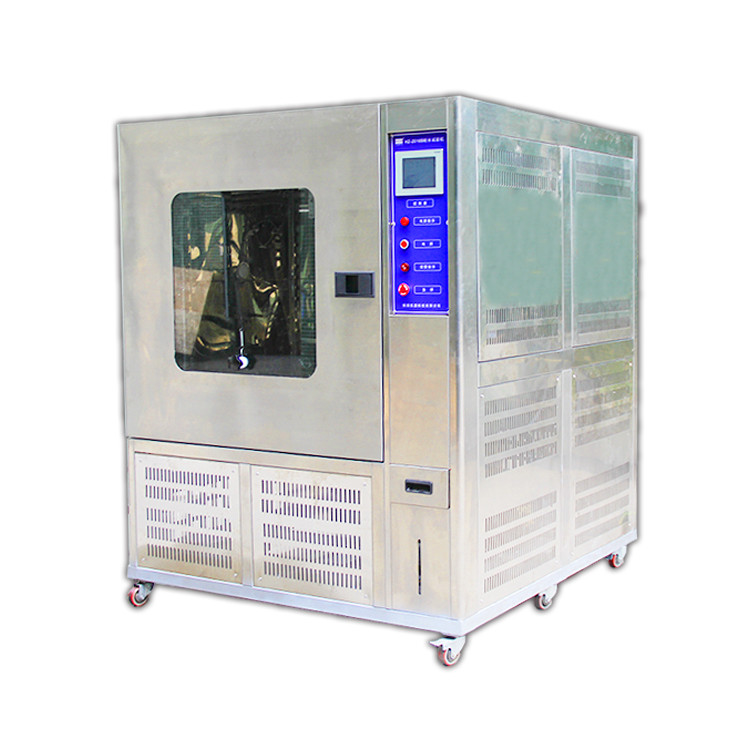

JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment

JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment
JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-2016
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: Wooden case
Delivery Time: 1-25 days,to be negotiated
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 200 Set/Sets per Month JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment
Contact Now
Power:: Electronic Certificate:: JIS D0203, D5500, SAE J585e, CNS 7138
Testing Temperature:: Room Temperature Or 85°C Specimen Rotative Speed:: 4~17rpm (Adjustable)
Nozzle Rotative Speed:: 23rpm Spray Nozzle Diameter:: 15mm Diameter, Stainless Steel Material
Inner Size:: 100(W)*100(D)*100(H) Cm Or Customized Pendulum Swing Tube Range:: About±180°(can Adjustable To ±45°±60°±90°)
Swing Speed:: 60°/s Adjustable Spray Pressure:: 0~400Kpa Adjustable
Controller:: LCD Display Color Touch Screen Controller
Highlight:

JIS D0203 Rain Test Chamber

,

Adjustable Rain Test Chamber

,

Water Spray Test Equipment 5KW

JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment



Product Description



Equipment summary:

This JIS D0203 Water Spray Test Equipment/Rian Test Room is used to test anti-rain and waterproof performance for products, the products such as steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.



Techincal parameter:

Model BT-2016A BT-2016B
Testing temperature Room temperature Rt~85°C
Inner size 100(W)*100(D)*100(H) cm or customize
Spray volume 0.07(1±5%)L/min (Every hole in average)
Spray nozzle Spherical laser drilling,direction: 360°adjustable,
make injection of rain fan, to spray the specimen
Hydraulic aperture φ0.8mm
Water spray hole spacing 50mm
Number of blowhole 16 or 25
Water ring radius R400mm
Spray nozzle diameter φ15mm stainless steel
Pendulum Swing tube range about ±180° (can adjust to ±45°, ±60°, ±90°)
Swing speed 60°/s adjustable
Spray pressure 0~400Kpa adjustable
Specimen rotative speed 4~17rpm (Adjustable)
Weight 350kgs
Power 1 phase,220V,5KW



Corresponding standard:

JIS D0203, D5500, SAE J585e, CNS 7138



Applicable industries:

Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control.





Detailed Images

JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment 0

JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment 1

JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment 2

JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment 3

JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment 4

JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment 5
