Name: SAE J585e Rain Test Chamber Water Spray Resistance Test Equipment
Brand: BOTO GROUP LTD
SKU: BT-2016
Price: 120000 USD
Availability: InStock

Home > Products > Environmental Test Chambers >

SAE J585e Rain Test Chamber Water Spray Resistance Test Equipment

Rain Water Spray Test Chamber

Electronic Rain Test Chamber

Rain Test Chamber Waterproof

Place of Origin:

China

Brand Name:

BOTO

Certification:

CE ISO

Model Number:

BT-2016

Request A Quote

SAE J585e Rain Test Chamber Water Spray Resistance Test Equipment

Product Details

Power::

Electronic

Certificate::

JIS D0203, D5500, SAE J585e, CNS 7138

Testing Temperature::

Room Temperature Or 85°C

Specimen Rotative Speed::

4~17rpm (Adjustable)

Nozzle Rotative Speed::

23rpm

Spray Nozzle Diameter::

15mm Diameter, Stainless Steel Material

Inner Size::

100(W)*100(D)*100(H) Cm Or Customized

Pendulum Swing Tube Range::

About±180°(can Adjustable To ±45°±60°±90°)

Swing Speed::

60°/s Adjustable

Spray Pressure::

0~400Kpa Adjustable

Controller::

LCD Display Color Touch Screen Controller

Highlight:

Rain Water Spray Test Chamber

Electronic Rain Test Chamber

Rain Test Chamber Waterproof

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Negotiated

Packaging Details

Wooden case

Delivery Time

1-25 days,to be negotiated

Payment Terms

L/C, D/P, T/T, Western Union

Supply Ability

200 Set/Sets per Month JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment

Made-To-Order Comprehensive Temperature,Humidity,Vibration Composite Test Chamber

Get Best Price

B-TH Walk-In High & Low Temperature Alternating Humidity Test Chamber For EV/Energy Storage

Get Best Price

High-Performance Made-To-Order PCT Benchtop High Pressure & High Humidity Environmental Test Chamber

Get Best Price

High-Performance Salt Spray Corrosion Test Chamber With SSR 1-2ml/80cm2/H And AC 220V50Hz

Get Best Price

Contact Now

Product Description

JIS D0203 Rain Test Chamber Water Spray Resistance Test Equipment

Product Description

Equipment summary:

This JIS D0203 Water Spray Test Equipment/Rian Test Room is used to test anti-rain and waterproof performance for products, the products such as steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.

Techincal parameter:

Model	BT-2016A	BT-2016B
Testing temperature	Room temperature	Rt~85°C
Inner size	100(W)100(D)100(H) cm or customize
Spray volume	0.07(1±5%)L/min (Every hole in average)
Spray nozzle	Spherical laser drilling,direction: 360°adjustable, make injection of rain fan, to spray the specimen
Hydraulic aperture	φ0.8mm
Water spray hole spacing	50mm
Number of blowhole	16 or 25
Water ring radius	R400mm
Spray nozzle diameter	φ15mm stainless steel
Pendulum Swing tube range	about ±180° (can adjust to ±45°, ±60°, ±90°)
Swing speed	60°/s adjustable
Spray pressure	0~400Kpa adjustable
Specimen rotative speed	4~17rpm (Adjustable)
Weight	350kgs
Power	1 phase,220V,5KW

Corresponding standard:

JIS D0203, D5500, SAE J585e, CNS 7138

Applicable industries:

Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control.

Detailed Images

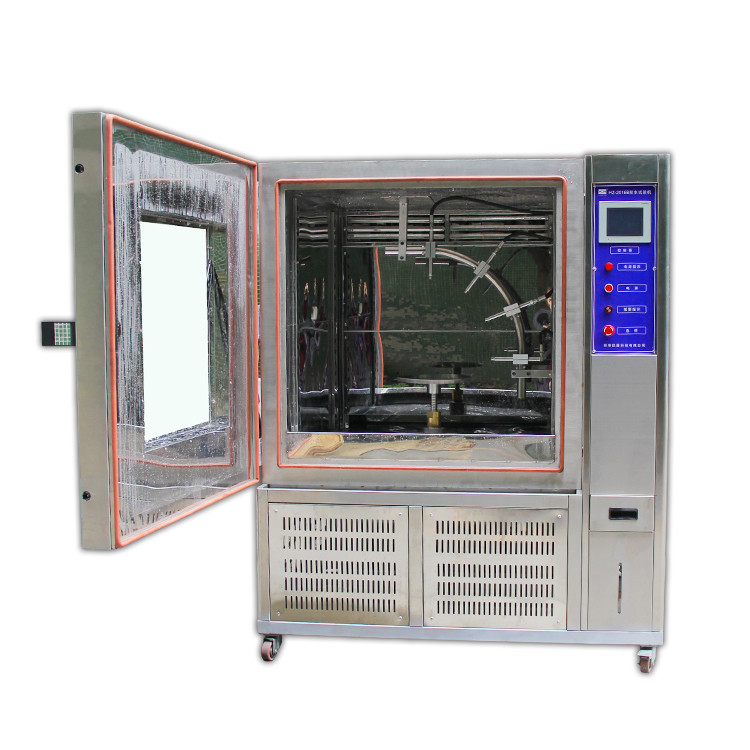

SAE J585e Rain Test Chamber Water Spray Resistance Test Equipment 0

SAE J585e Rain Test Chamber Water Spray Resistance Test Equipment 1

SAE J585e Rain Test Chamber Water Spray Resistance Test Equipment 2
