Home ProductsEnvironmental Test ChambersWater Waterproof Test Cabinet IPX3 IPX4 IPX5 IPX6 Rain Drop Tester Rain Simulation Chamber Environmental Rain Spray Test

Water Waterproof Test Cabinet IPX3 IPX4 IPX5 IPX6 Rain Drop Tester Rain Simulation Chamber Environmental Rain Spray Test

Water Waterproof Test Cabinet IPX3 IPX4 IPX5 IPX6 Rain Drop Tester Rain Simulation Chamber Environmental Rain Spray Test
Water Waterproof Test Cabinet IPX3 IPX4 IPX5 IPX6 Rain Drop Tester Rain Simulation Chamber Environmental Rain Spray Test
Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-IPX12-800
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: Wooden case
Delivery Time: 1-25 days,to be negotiated
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Set/Sets per Month
Contact Now
Power:: Electronic Drop Rain Area:: 400mm X 400mm (customizable)
Inner Box Size:: 800*800*800MM Diameter Of Turntable:: 350 Mm
The Drip Aperture:: 0.4mm Rainfall:: 1-5mm/Min(±0.5mm/min)
Turntable Bearing Capacity:: 50KG Turntable Speed:: 1 R/min
The Turntable Can Be Tilted:: 0° Or 15° Test Time:: 0-999 Min
Highlight:

Rain Environmental Simulation Chamber

,

Waterproof Climatic Test Cabinet

,

Environmental Water Spray Test Chamber

Water waterproof Test Cabinet IPX3 IPX4 IPX5 IPX6 Rain Drop Tester Rain Simulation Chamber Environmental Rain Spray Test



Product Description



Item Specification
Internal chamber size 800Wx800Dx800Hmm
External chamber size 1200Wx900Dx3300Hmm
IP Code IPX5 IPX6
Internal diameter of spray nozzle 6.3mm 12.5mm
Delivery rate 12.5l/min±5% 100l/min±5%
Core of the substantial stream Circle of approximately 40mm diameter at 2.5m distance from nozzle Circle of approximately 120mm diameter at 2.5m distance from nozzle
Chamber material Internal: SUS304 stainless steel, external: stainless steel
Test duration per square meter of enclosure surface area likely to be sprayed 1 min
Minimum test duration 3 min
Controller PLC touch screen
Turntable Diameter 300mm, rotate speed 3±1R/min
Distance from nozzle to enclosure surface Between 2.5m and 3m

,

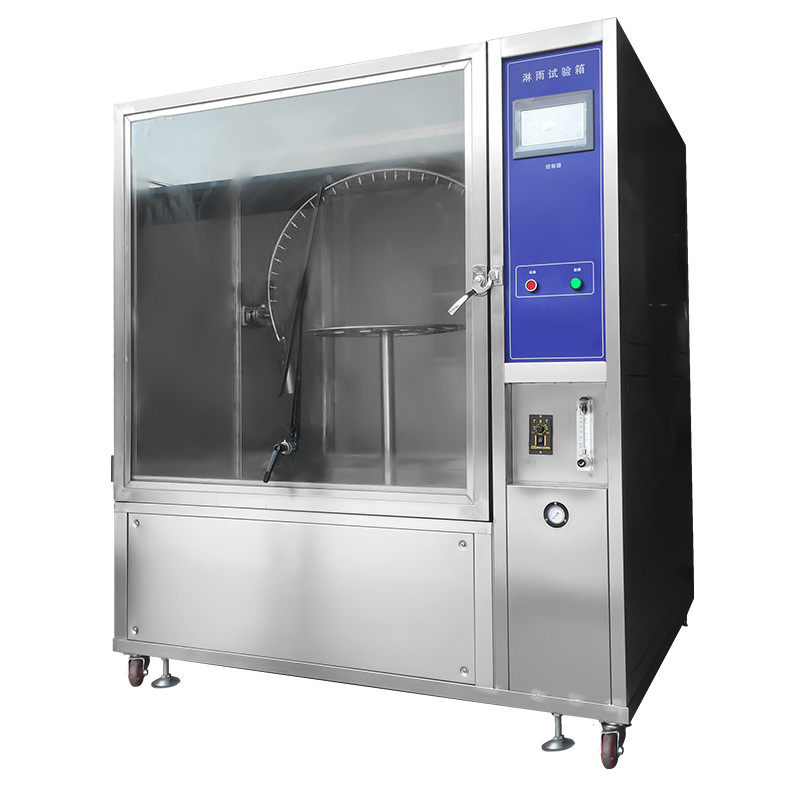

Rain Spray Testing Instrument
It is design according to the standard of IP6 & UL 1598, (shell protection grade).This machine is widely used in the lamps and electrical and electronic product certification testing institutions and for testing the waterproof of electrical and electronic products of shell protection level.



Structure of EN/ UL Rain test chambers:

1,The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.

2, Large area of visible glass door, easy to observe the test specimens in the testing chamber

3,The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.

4, With 270 degree swing pipe and 360 degrees whorl pole water jet device.

5, Adjustable speed samples stage.

Water Waterproof Test Cabinet IPX3 IPX4 IPX5 IPX6 Rain Drop Tester Rain Simulation Chamber Environmental Rain Spray Test 0

Water Waterproof Test Cabinet IPX3 IPX4 IPX5 IPX6 Rain Drop Tester Rain Simulation Chamber Environmental Rain Spray Test 1

Water Waterproof Test Cabinet IPX3 IPX4 IPX5 IPX6 Rain Drop Tester Rain Simulation Chamber Environmental Rain Spray Test 2

Water Waterproof Test Cabinet IPX3 IPX4 IPX5 IPX6 Rain Drop Tester Rain Simulation Chamber Environmental Rain Spray Test 3

Water Waterproof Test Cabinet IPX3 IPX4 IPX5 IPX6 Rain Drop Tester Rain Simulation Chamber Environmental Rain Spray Test 4
