| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | CE ISO |
| Model Number: | BT-IPX12-800 |
| Minimum Order Quantity: | 1set |
| Price: | Negotiated |
| Packaging Details: | Wooden case |
| Delivery Time: | 1-25 days,to be negotiated |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Set/Sets per Month |
| Power:: | Electronic | Drop Rain Area:: | 400mm X 400mm (customizable) |
|---|---|---|---|
| Inner Box Size:: | 800*800*800MM | Diameter Of Turntable:: | 350 Mm |
| The Drip Aperture:: | 0.4mm | Rainfall:: | 1-5mm/Min(±0.5mm/min) |
| Turntable Bearing Capacity:: | 50KG | Turntable Speed:: | 1 R/min |
| The Turntable Can Be Tilted:: | 0° Or 15° | Test Time:: | 0-999 Min |
| High Light: | Rain Drop Environmental Simulation Chamber,Waterproof Temperature Test Cabinet,Rain Spray Test Chamber IPX3 |
||
Water waterproof Test Cabinet IPX3 IPX4 IPX5 IPX6
Rain Drop Tester Rain Simulation Chamber Environmental Rain Spray Test
Product Description
| Item | Specification | |
| Internal chamber size | 800Wx800Dx800Hmm | |
| External chamber size | 1200Wx900Dx3300Hmm | |
| IP Code | IPX5 | IPX6 |
| Internal diameter of spray nozzle | 6.3mm | 12.5mm |
| Delivery rate | 12.5l/min±5% | 100l/min±5% |
| Core of the substantial stream | Circle of approximately 40mm diameter at 2.5m distance from nozzle | Circle of approximately 120mm diameter at 2.5m distance from nozzle |
| Chamber material | Internal: SUS304 stainless steel, external: stainless steel | |
| Test duration per square meter of enclosure surface area likely to be sprayed | 1 min | |
| Minimum test duration | 3 min | |
| Controller | PLC touch screen | |
| Turntable | Diameter 300mm, rotate speed 3±1R/min | |
| Distance from nozzle to enclosure surface | Between 2.5m and 3m | |
,

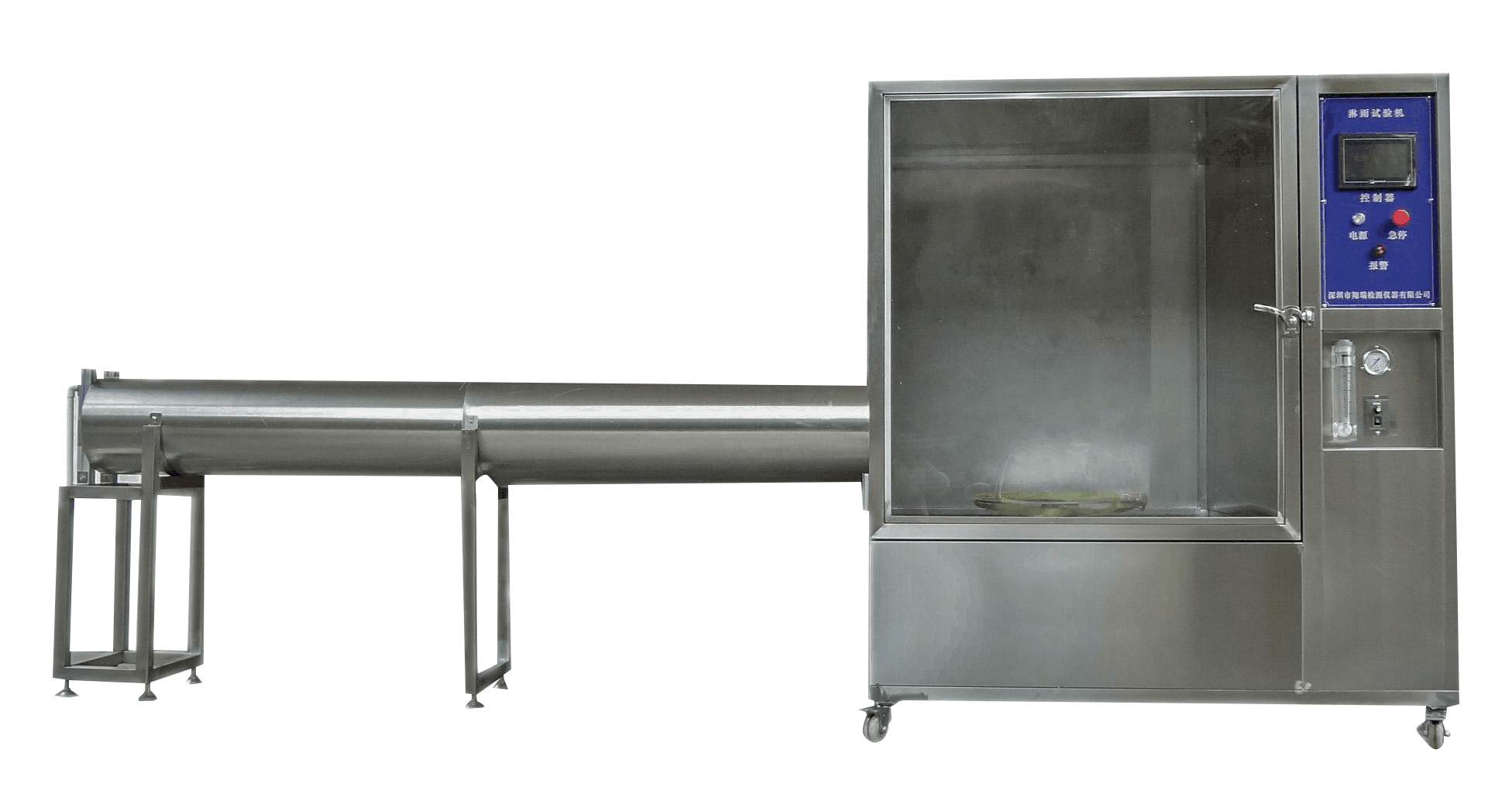

Rain Spray Testing Instrument
It is design according to the standard of IP6 & UL 1598, (shell protection grade).This machine is widely used in the lamps and electrical and electronic product certification testing institutions and for testing the waterproof of electrical and electronic products of shell protection level.
Structure of EN/ UL Rain test chambers:
1,The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.
2, Large area of visible glass door, easy to observe the test specimens in the testing chamber
3,The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.
4, With 270 degree swing pipe and 360 degrees whorl pole water jet device.
5, Adjustable speed samples stage.
