504L Environmental Test Chambers 304ss Temperature Humidity Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE, ISO9001
Model Number: B-TH-504E
Minimum Order Quantity: 1 set
Packaging Details: strong wooden case
Delivery Time: 15-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800 set/year
Internal Size: 70x90x80 Cm External Size: 100(W)x180(H)x103(D) Cm
Relative Humidity: 20%-98%RH Temp Range: -70℃~150℃
Temp Rising Time: About 3~5℃/min Temp Falling Time: About 0.7℃~1℃/min
Temp Fluctuation: ±0.5℃ Temp Uniformity: ±1℃
Temp&humidity Deviation: ±1℃ / ±3%RH Internal Material: 304 Stainless Steel Plate
Exteral Material: Coating Or 304 Stainless Steel Plate Voltage & Frequency: 380V 50/60Hz
Power: 4KW~10KW
High Light:

504L Environmental Test Chambers

,

10KW Environmental Test Chambers

,

304ss temperature humidity chamber

504L -70℃~150℃ Rapid temperature change Test Chamber



TH-XX-X series depends on different temperature and volume needs.

XX represents the volume of the chamber and it can be 80,120,225,408,504,800 and 1000.

X represents the low temperature of the temp range and it can be A 0℃,B -20℃, C -40℃,D -60℃ and E -70℃.



Model B-TH-80 B-TH-120 B-TH-225 B-TH-408 B-TH-504 B-TH-800 B-TH-1000
Volume (V) 80 L 120L 225L 408L 504L 800L 1000L
Temperature range

A: 0°C ~150°C

B:-20°C~150°C

C: -40°C~150°C

D: -60°C~150°C

E: -70°C~150°C

Customized temperature is available.

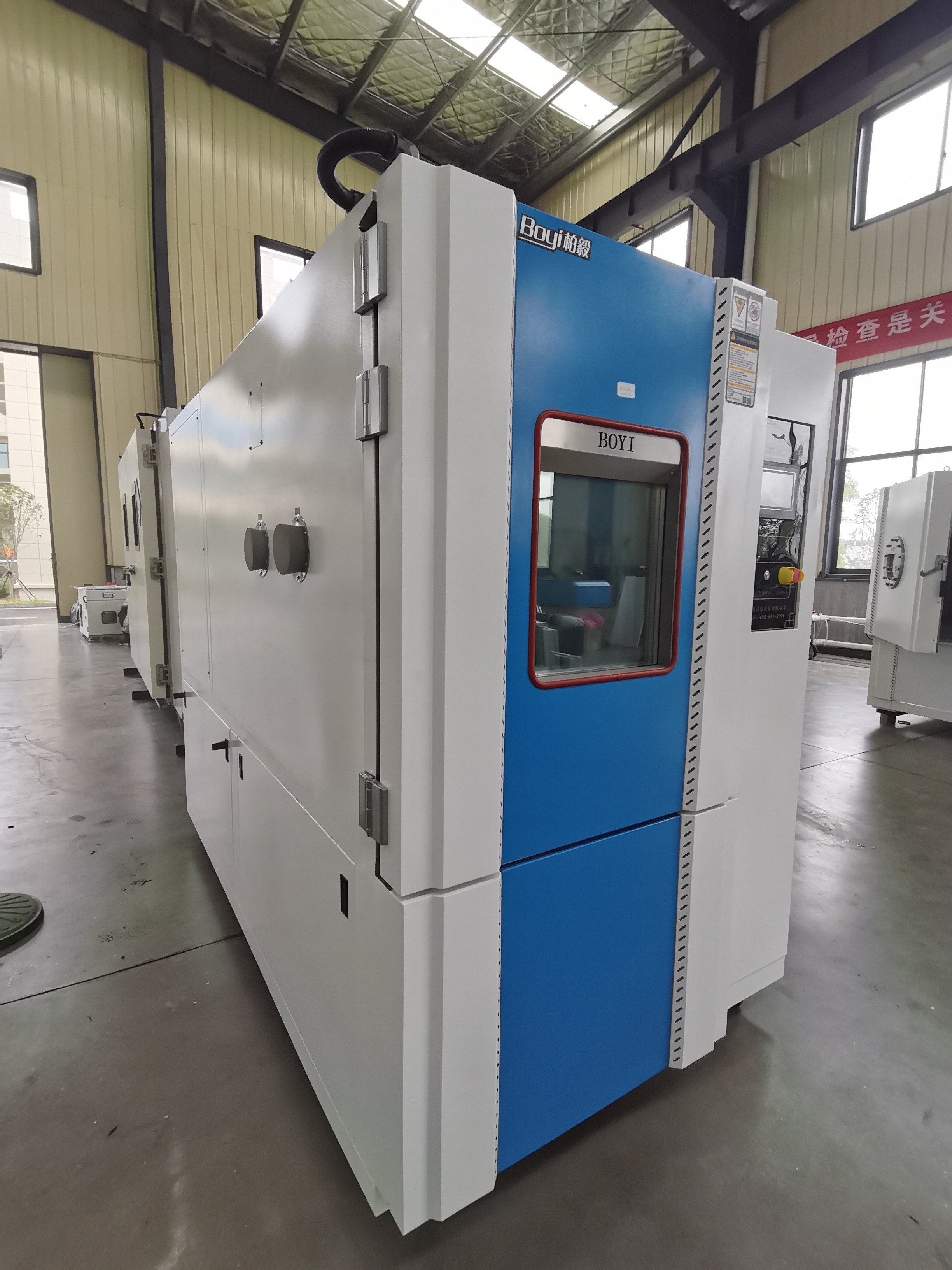

504L Environmental Test Chambers 304ss Temperature Humidity Chamber 0





BOTO product characteristics:

1.The import of compressors and refrigeration accessories by the well-know brands in the national boundaries ensures the stability of the refrigeration system.

2.The cause of the faults can be displayed and the reason is easy to exclude.

3.The special air supply cycle design, the temperature and humidity distribution uniformity is good.

4.The whole series of imported microcomputer controllers are colored. Color touch screen, Chinese and English system, can be used as a function of setting the city value. It can show the cause of the trouble, exclude easy, super quiet design, effectively reduce the running noise of the equipment, and

5.Super quiet design, effectively reduce the running noise of the equipment.

6.Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, over temperature protection, leakage protection.

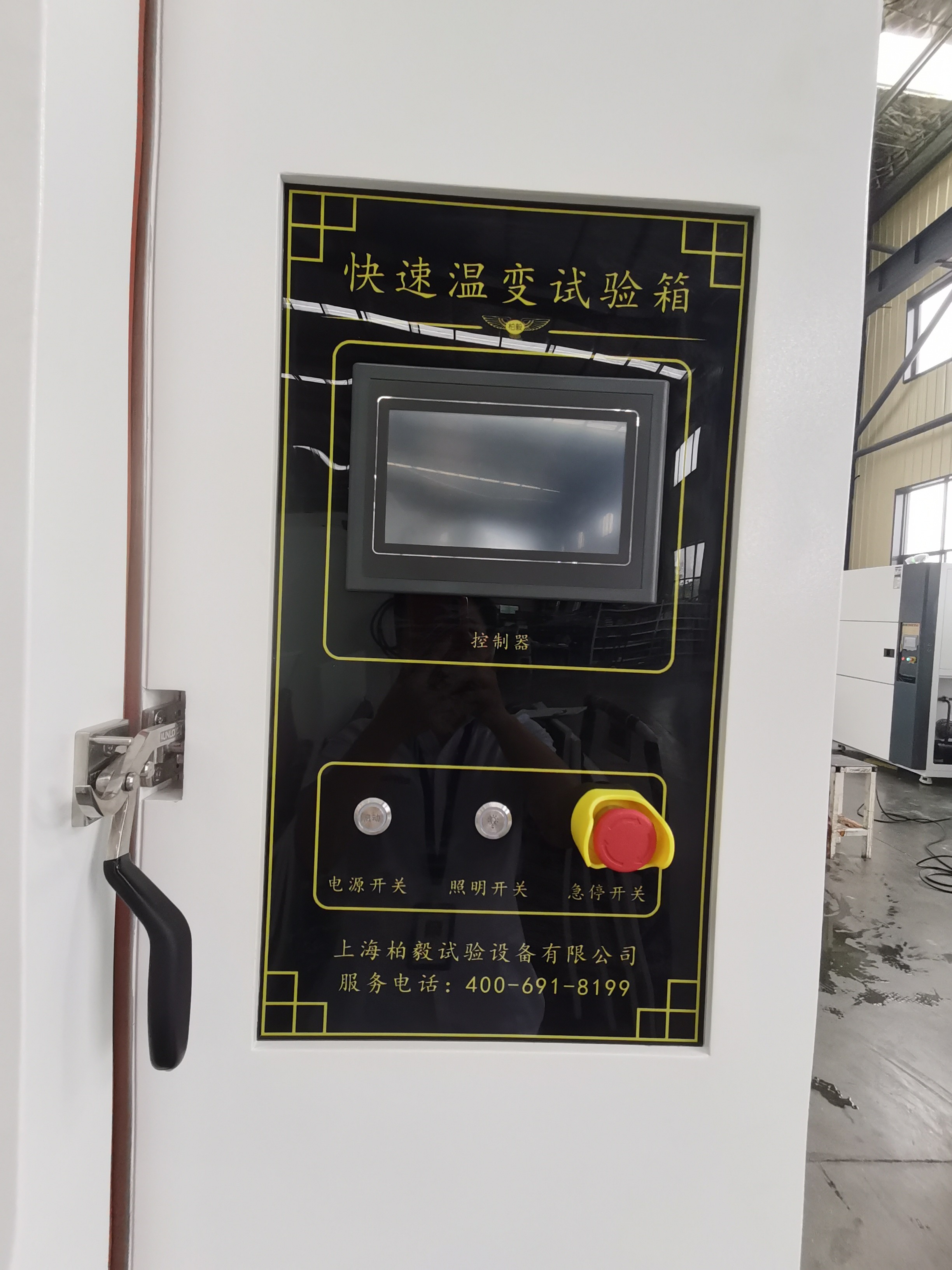

504L Environmental Test Chambers 304ss Temperature Humidity Chamber 1

Standards: GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566



Technical specification:

Model B-TH-504

Inner chamber size

W×H×D(cm)

70×90×80

Outside Size

W×H×D(cm)

100X180X103
Volume (V) 504L
Temperature range

A: 0°C ~150°C

B:-20°C~150°C

C: -40°C~150°C

D: -60°C~150°C

E: -70°C~150°C

Customized temperature is available.

Humidity range

RH20%-98%

Customized humidity is available.

Function Fluctuation ±0.5°C ±2.5%RH
Deviation ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH)

Controller

Analytical

Accuracy

±0.3°C ±2.5%RH
Wind Cycling Way Centrifugal fan-broadband type forced air circulation
Refrigeration Way Single stage compression refrigeration
Refrigerator French Tecumseh
Refrigerants R4O4A USA DuPont environmental protection refrigerant(R23+R404)
Condensing Way Air-cooled or water-cooled
Water Supplying Way Automatic cycling water supply
Safety device

Non- fuse-switch(compressor overload,

refrigerant high low voltage,

over-humidity and temperature protection,

Protection switch,fuse stoppage warning system



Heating and cooling rate: can be customized.

Factory tour:

504L Environmental Test Chambers 304ss Temperature Humidity Chamber 2

504L Environmental Test Chambers 304ss Temperature Humidity Chamber 3

Detail display:

504L Environmental Test Chambers 304ss Temperature Humidity Chamber 4

504L Environmental Test Chambers 304ss Temperature Humidity Chamber 5

504L Environmental Test Chambers 304ss Temperature Humidity Chamber 6

504L Environmental Test Chambers 304ss Temperature Humidity Chamber 7

504L Environmental Test Chambers 304ss Temperature Humidity Chamber 8





504L Environmental Test Chambers 304ss Temperature Humidity Chamber 9



BOTO ADVANTAGE

504L Environmental Test Chambers 304ss Temperature Humidity Chamber 10

Customers photos

504L Environmental Test Chambers 304ss Temperature Humidity Chamber 11

504L Environmental Test Chambers 304ss Temperature Humidity Chamber 12

504L Environmental Test Chambers 304ss Temperature Humidity Chamber 13

504L Environmental Test Chambers 304ss Temperature Humidity Chamber 14





Looking forward to your cooperation and welcome to join us!

504L Environmental Test Chambers 304ss Temperature Humidity Chamber 15



We're also vendor of TSLA, UL, SGS,etc.



Our Services

During the whole business process, we offer Consultative Selling service.

1) Customer inquiry process:

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2) Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the products appearance. Then, confirm the final solution and confirm final price with customer.

3) Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photos to show production process.

After finish production, offer photos to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

4) Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
