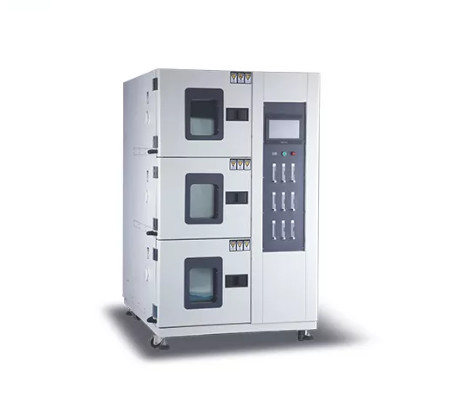

Plc Controlled Temperature Chamber Constant Temperature And Independent Test

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: CE ISO
Model Number: BT-G-300
Minimum Order Quantity: 1set
Price: Negotiated
Packaging Details: Wooden case
Delivery Time: 1-25 days,to be negotiated
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Set/Sets per Month Temperature Humidity Chamber
Temperature Control Range: 0℃~60℃ Gas Flow Control: 0~100ml/min
Gas Type: O2 CO2 N2 C2H4, Etc Refrigeration Type: Modified Atmosphere Refrigeration
Test Range: O2: 0%~100%; CO2: 0%~5%;C2H4:0~100ppm (optional); The Rest Is N2 Temperature Deviation: ±1℃
Temperature Accuracy: ±0.1% Humidity Range: Normal ~ 95%RH
High Light:

Plc controlled temperature chamber

,

C2H4 controlled temperature chamber

,

Plc environmental temperature chamber

Professional Energy Saving Constant Temperature And Independent Test Chamber Plc Control Humidity Cabinet





PRODUCT DESCRIPTION

BTG300 Modified Atmosphere Refrigerator, with microelectronics technology,

is for making preservation experiment on fruits, vegetables,

flowers and plants in modified atmosphere conditions,

and keeps them fresh by controlling concentration of O2, N2, CO2, and C2H4 and the temperature and humidity in the boxes. It is widely used in industries of microorganisms, environmental, food, research institute, and so on.





Product Detail

Temperature control range 0℃~60℃
Gas flow control 0~100ml/min
Gas type O2 CO2 N2 C2H4, etc
Refrigeration type Modified atmosphere refrigeration
Warranty 12 Months
Power supply AC 220V 50Hz
Payment Term T/T, L/C
MOQ 1 Set
Product Keywords constant temperature and humidity cabinet,plc control cabinet


Technical Parameter

Test range O2: 0%~100%; CO2: 0%~5%;C2H4:0~100ppm (optional); the rest is N2
Resolution ratio O2: 0.01%; CO2: 0.01%; C2H4: 0.01ppm(optional)
Gas flow control O2: 0~100ml/min, CO2: 0~100ml/min; N2: 0~100ml/min
Temperature control range 0~60(3~50when humidifying)
Temperature deviation ±1
Temperature accuracy ±0.1%
Humidity range normal ~ 95%RH
Humidity deviation ±5%RH
Humidification power 15W
Sterilizer power 200W
Lighting power 100W
Capacity Totally 300L
Material color steel
Power 2000w
Power supply AC 220V, 50Hz
Environment temperature 0~40
Gas purity ≥99.9%
