Temperature Air Cylinder:: | NSS.ACSS 47℃±1℃/CASS 63℃±1℃ | Temperature Test Chamber:: | NSS.ACSS 35℃±1℃/CASS 50℃±1℃ |
---|---|---|---|
Spray Quantity:: | 1.0~2.0ml/80cm2/h | PH:: | 6.5~7.2 / 3.0~3.2 |
Salt Spray Test:: | NSS, ACSS | Meet The Standards:: | ASTM B117 |
Power Supply:: | AC220V 50HZ | Power:: | Electronic |
High Light: | ASTM B117 Environmental Test Chambers,Salt Mist Environmental Test Chambers,ACSS Salt Spray Corrosion Test Apparatus |

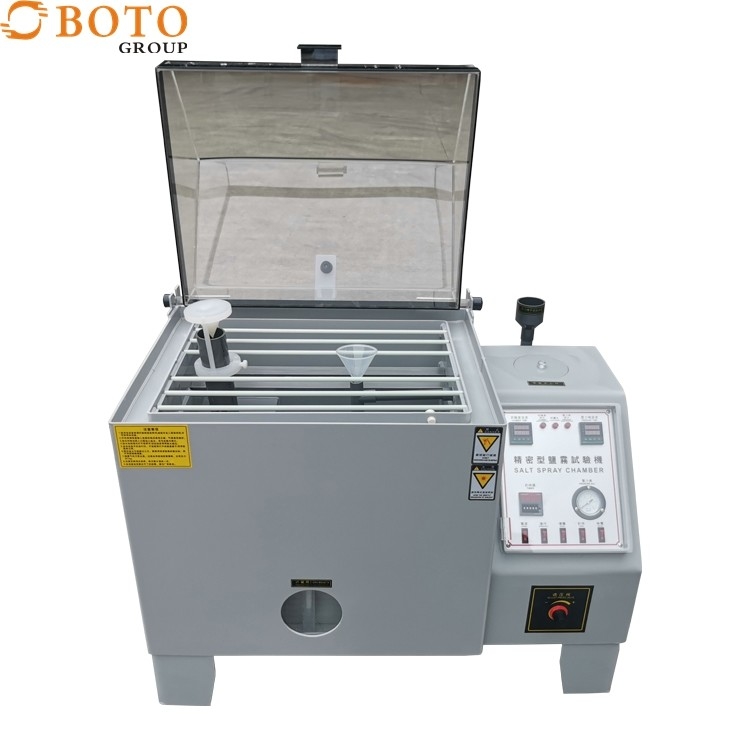

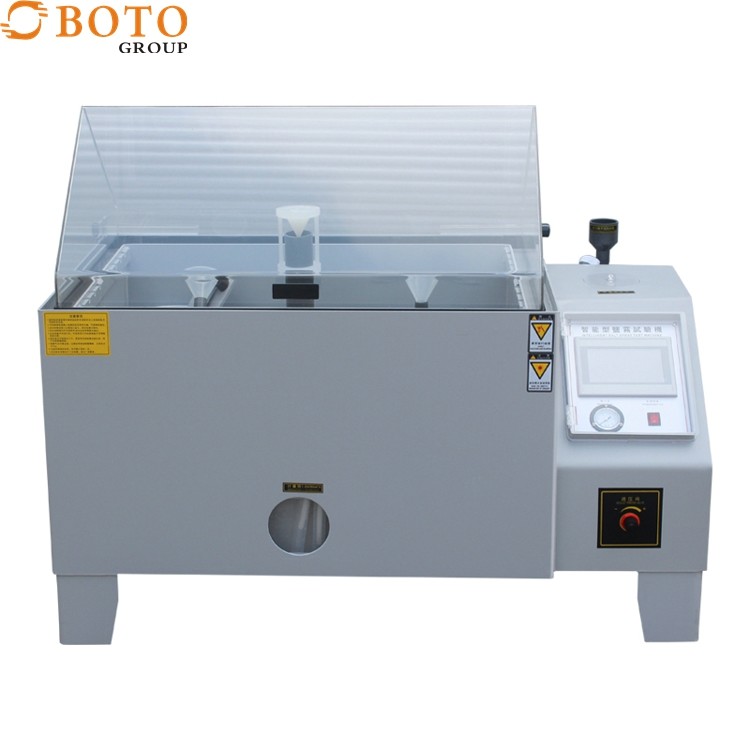

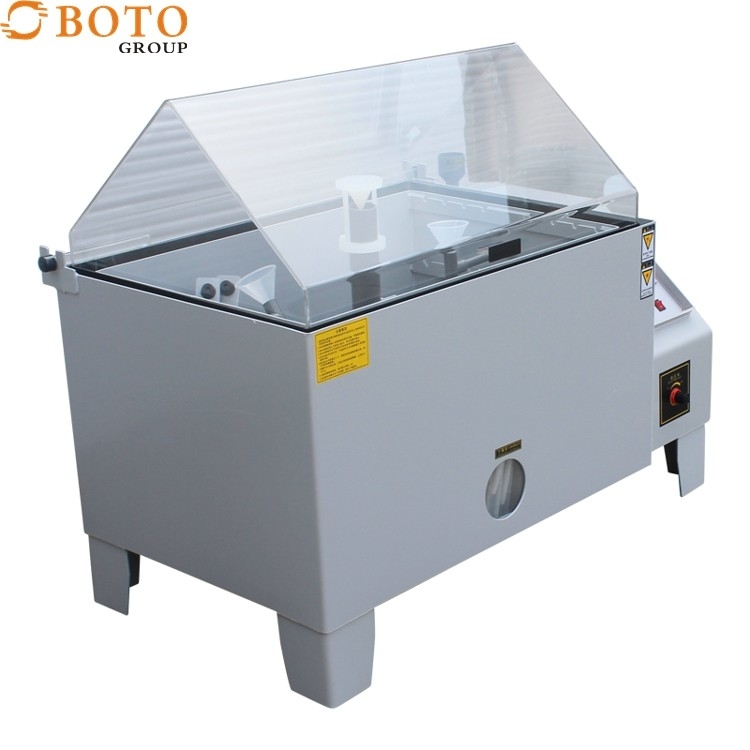

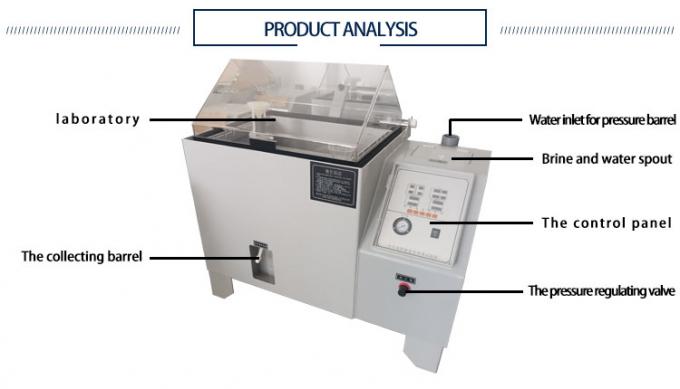

ASTM B117 Apparatus Fog Salt Mist Spray Chamber Salt Spray Corrosion Test Apparatus
Application: The salt spray test machine is used for the surface treatment of various materials, including coatings, electroplating, organic and inorganic coatings, anodizing, anti-rust oil and other anti-corrosion treatments to test its corrosion resistance, thus establishing the quality of the product.
Standard
1. GB/T2423.18 Sodium chloride alternating salt spray test method
2. GB/T6461 Grade evaluation of metal or other inorganic covering layers on metal base layer after corrosion
3.ASTM.B117 Salt spray test
4.JISH8502 Salt spray test method
5.IEC60068-2-11 salt spray test
6.IEC68-2-52 salt spray test
7. GB/T-6461 salt spray test evaluation standard
8. ISO9227 salt spray test method
9. GB/T12967.3 CASS Accelerated Acetic Acid Salt Spray Test
10. QB/T3828 Copper salt accelerated acetic acid salt spray test CASS
11. GB/T5170.8 Test method for environmental test equipment for electrical and electronic products - salt spray test equipment
12.GB/T5170.11 Inspection method for corrosive gas test equipment
13.GJB150.11A Military Equipment Laboratory Environmental Test Method Salt Spray Test
14.GB/T2423.17 Salt spray test method
15.GB/T10587 Technical conditions of salt spray test chamber
Model | BT-JY-60A | BT-JY-90A | BT-JY-120A | BT-JY-200A |
Design Standards |
GB/T 10587-2006,GB/T 10125-1997, JISD0201,H8502,H8610,K5400,Z2371 |
|||
Test chamber capacity (L) | 108L | 270L | 600L | 1440L |
Temperature |
Test chamber | NSS.ACSS 35°C±1°C/CASS 50°C±1°C | ||
Air cylinder | NSS.ACSS 47°C±1°C/CASS 63°C±1°C | |||
Test chamber size LxWxD(cm) |
60*45*40
|
90*60*50
|
120*100*50
|
200*120*60
|
Max volum of test liquid (L) |
15 | 25 | 40 | 40 |
Volume LxWxD(cm) | 107*60*118 | 141*88*128 | 190*130*140 | 270*150*150 |
Power | AC220V,10A | AC220V,15A | AC220V,30A | AC220V,30A |
Spray quantity | 1.0~2.0ml/80cm2/h | |||
PH | 6.5~7.2 3.0~3.2 |
