| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-120(A~E) |
| Minimum Order Quantity: | 1 platform |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000PC/Month |
| Name: | Programmable High Temperature Chamber | Model: | Dry Heat |
|---|---|---|---|
| Heat-up Time: | About3~5℃/min | Interior: | SUS#304Stainless Steel Plate |
| Exterior: | Coating Or SUS#304Stainless Steel Plate | Internal Dim: | 45x60x45 |
| High Light: | 220VAC Humidity Environmental Chamber,Programmable Constant Temperature Humidity Chamber,SUS304 Temperature And Humidity Cabinet |
||
Temperature&Humidity Chamber Programmable High Temperature Chamber Test Chamber
This test equipment is suitable for:
Electrical, electronic products, components, components and materials are stored in high and low temperature environments
Adaptability tests for storage, transportation and use.
The following actions are prohibited:
*Testing or storage of flammable, explosive, volatile materials
*Testing or storage of corrosive substance samples
*Testing or storage of biological samples
*Testing or storage of samples of strong electromagnetic emission sources
*Testing or storage of radioactive material samples
*Testing or storage of highly toxic substances
*Testing or storage of specimens that may cause flammable, explosive, volatile, highly toxic, corrosive and radioactive materials during testing or storage
Temperature&Humidity Chamber Programmable High Temperature Chamber Test Chamber
| Model | B-T-120 | B-T-225 | B-T-504 | B-T-1000 |
| (A~D) | (A~D) | (A~D) | (A~D) | |
| Inside size WxHxD (cm) | 45x60x45 | 60x75x50 | 70x90x80 | 100x100x100 |
| Humidity deviation | ± 2.5% RH | |||
| Temperature range | -70 degree ~ +100(150) degree | |||
| (A:-40 degree B:-50 degree C:-60 degree D:-70 degree) | ||||
| Humidity range | 20%~98%R.H. | |||
| Temperature fluctuations | ± 0.5 ℃ | |||
| Temperature deviation | ± 2.0 ℃ | |||
| Heating / cooling time | About 3.0/min(heat), about 1.0/min(cool) | |||
| Inside material | SUS#304Stainless steel plate | |||
| Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, | |||
| Program capacity | (touch type) 1. Program: 10 groups maximum 2. Number of segments: up to 120 segments 3. Number of cycles: maximum infinite loop |
|||
| Protection | 1. Fault alarming, showing the reason of fault and how to solve the problem 2. Power failure protection function 3. Upper and lower temperature protection function 4. Calendar timing function (automatic start and automatic stop operation) 5. Self-diagnosis function |
|||
| Power | 220VAC±10% 50/60Hz & 380VAC±10% 50/60Hz | |||
Details:

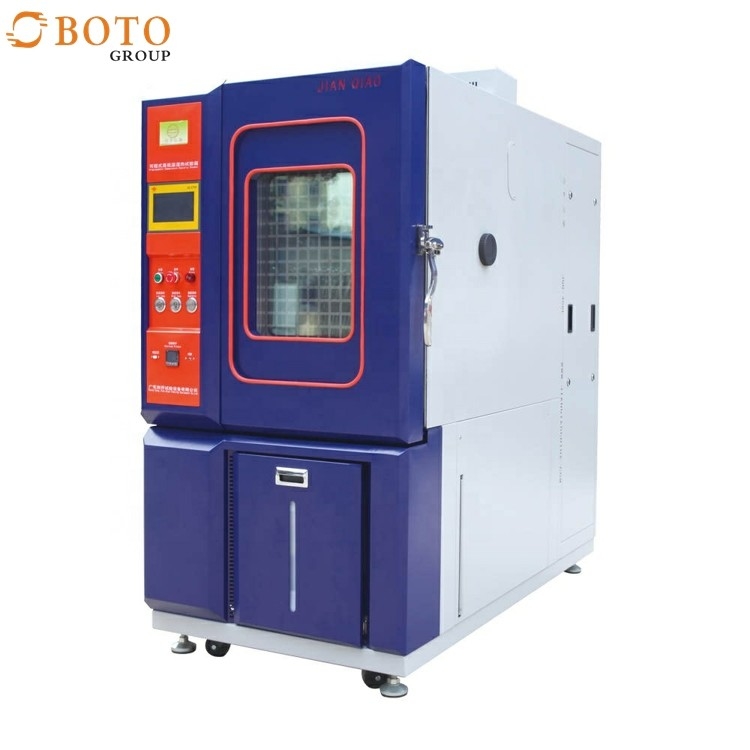

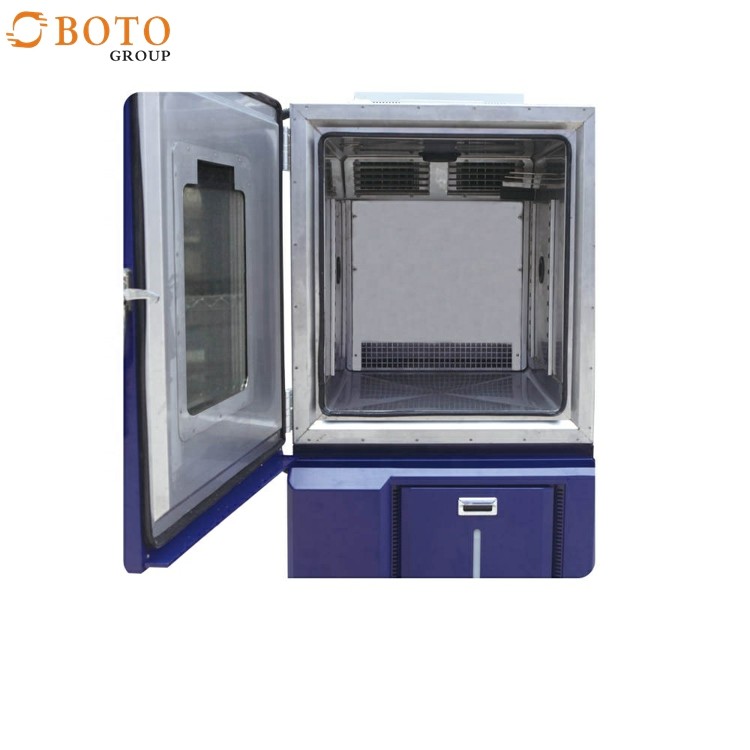

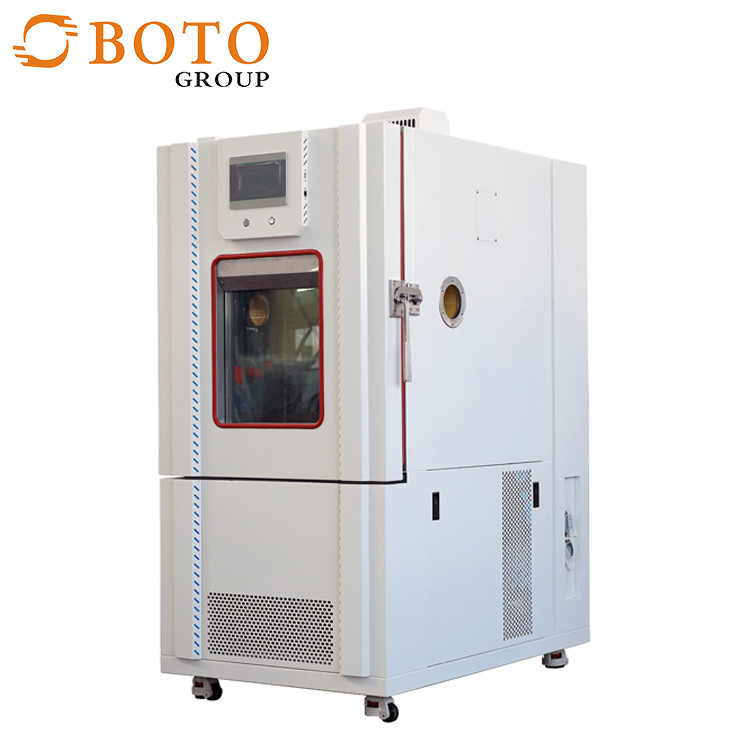

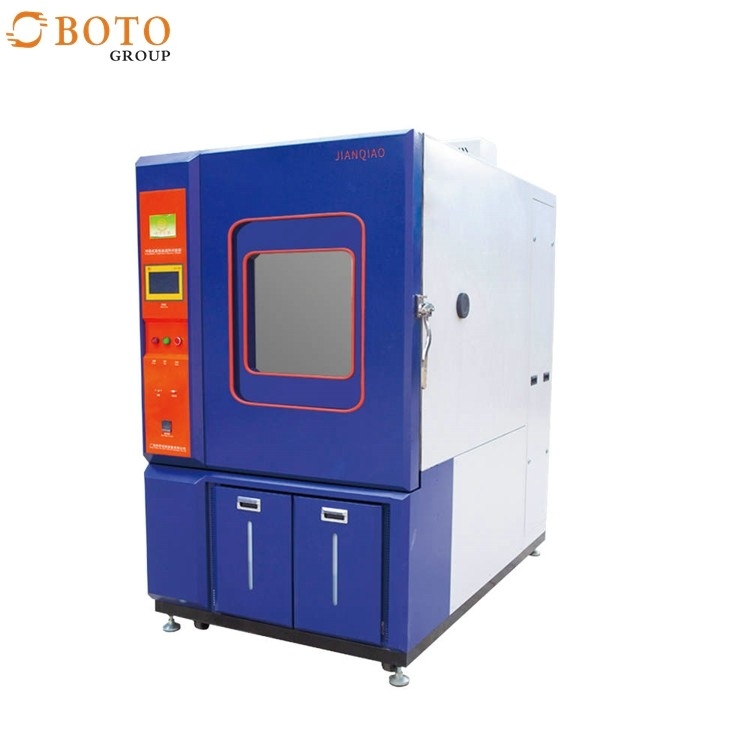

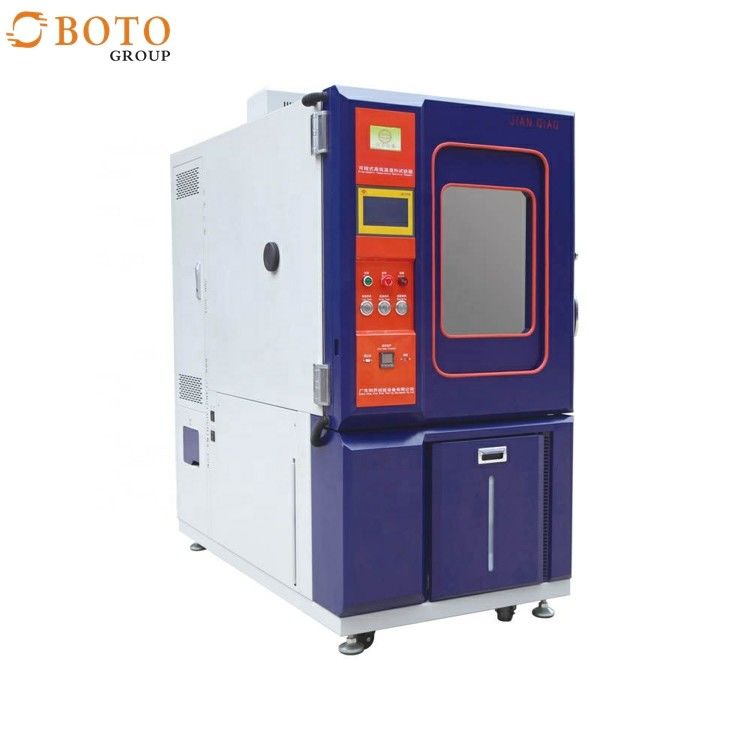

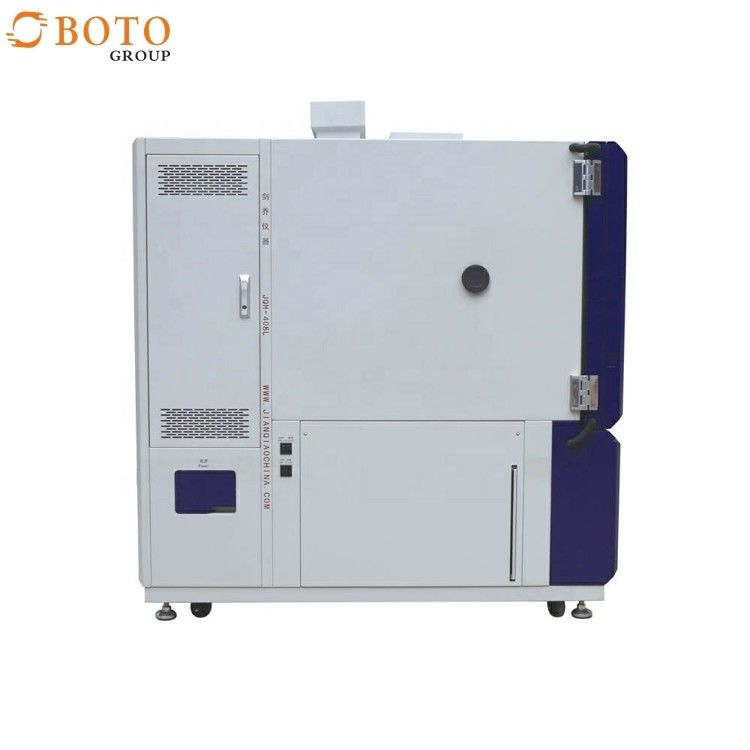

Below more photo of Programmable Constant Temperature Humidity Test Chamber/High-low Temperature Test Chamber Manufacturer for reference
Each set protected with film, then put into Strong wooden case with English operation manual.
Customer: What about the transportation?
Answer: It depends on your requirement. We can delivery by air to your airport, or by sea to your seaport, and we can also delivery to your office address by express courier, and we also accept to co-operate with your ship agent or forwarder.
Customer: What about the after-sale service?
Answer: Guarantee period is 12 months, after the warranty, we also provide life-long paid repair or service. Response within 24 hours for any problems. Overseas training, installation is available.
Customer: What about the delivery date?
Answer: Usually we offer 15workdays after order confirmed and payment received, and we can also accept urgent order for prompt shipment.
All machine quality guarantee for one year and lift-time technical support for customer. On line response to customers technical problems.and life-time technical support for customer.
Shanghai BOTO GROUP LTD is a high technology company specializing in integrated incubation systems. We are conveniently located in Shanghai City.
With 20+ years of incubator R&D experience from our technical team, we have developed several series of the advanced integrated hatchery system.
Also we have gained the Authorized Poultry Industry R&D Center and been awarded the High-tech Enterprise by Chinese government. Also, both our company and products are approved by ISO9001, ISO14001, ISO45001, ISO50001
Shipping&Packing
