| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-107(A-D) |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 16days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Internal Dim: | 30.5x23x29 | External Dim: | 53x68x72 |
|---|---|---|---|
| Relative Humidity: | -40℃(-60℃)-130℃(100℃) | Relative Humidity Range: | 20%~98%RH |
| Power Source: | AV：220V/380V 50/60Hz | Power: | 1KW~2KW |
| High Light: | Environmental Chambers BT-107,1KW Low Temperature Test Chamber,Compact Environmental Simulation Chamber |
||

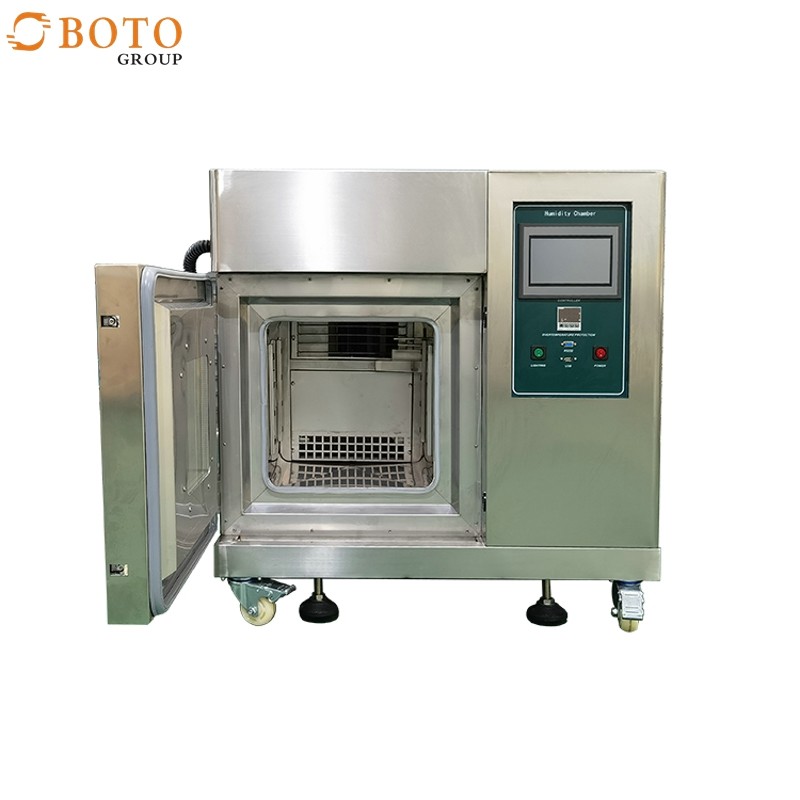

Environmental Test Chambers Small High And Low Temperafure Test Chamber
Product Description:
Small high and low temperature test box is used to examine and determine the adaptability of electrical and electronic products or materials in the temperature cycle change, the product surface produces high temperature or low temperature environment conditions storage and use. The equipment adopts forced air circulation to maintain the uniformity of temperature in the working room. In order to limit the effect of radiation, the difference between the temperature of each part of the inner wall of the equipment and the temperature specified in the test shall not be more than 8%, and the test samples shall not be exposed to the direct radiation of the heating and cooling elements in the equipment.
Application:
Small High And Low Temperature Test Chamber provides a compact footprint and multi-function test performance. It is very popular for labs and product manufacturers to test various small electronic product, electronic components and materials with simulating temperature and humidity environment condition.
Standard Compliance:
1. IEC 68-2-1 Test A: Low temperature test method.
2. IEC 68-2-2 Test B: High temperature test method.
3. IEC 68-2-3 Test CA: Constant damp heat test method.
4. IEC 68-2-30 Test CB: Alternating damp heat test method.
5. IEC 68-2-14 Test NB: Temperature cycling test method.
6. MIL-STD-810D High temperature test method.
7. MIL-STD-810D Low temperature test method.
8. MIL-STD-810D Damp heat test method.
Product specification:
| Name | Small high and low temperature test chamber | Table type constant temperature and humidity test chamber | ||||
| Model | dry heat | B-T-107(A-D) | B-T-48L (A~D) | |||
| damp and hot | B-TH-48L (A-D) | |||||
| Internal Dim | 30.5x23x29 | 40x40x30 | ||||
| External Dim(W*H*D) | 53x68x72 | 60x80x107 | ||||
| Relative Humidity | ‘-40℃(-60℃)-130℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃) | ’7.081- -60℃~150℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ |
||||
| Relative humidity Range | 20%~98%RH | |||||
| heat-up time | About3℃/min | |||||
| Pull down time | About0.7~1℃/min | |||||
| Temp Fluctudtiont | ±0.5℃ | |||||
| Temp Uniformity | ±1.0℃ | |||||
| Temp Deviation | ±1.0℃ | |||||
| Power Source | AV:220V/380V 50/60Hz | |||||
| Power(KW) | 1KW~2KW | 1.5KW~2.5KW | ||||
About us:
Shanghai BOTO GROUP LTD is a high technology company specializing in integrated incubation systems. We are conveniently located in Shanghai City.
With 20+ years of incubator R&D experience from our technical team, we have developed several series of the advanced integrated hatchery system.
Also we have gained the Authorized Poultry Industry R&D Center and been awarded the High-tech Enterprise by Chinese government. Also, both our company and products are approved by ISO9001, ISO14001, ISO45001, ISO50001
Certifications:
Packaging & Shipping
Packing:
1. Fully packed with PE film;
2. Wooden box;
3. Machine is fastened to the corners of the containers;
4. If export to European countries, the wooden box will be fumigated;
5. Customized package is available.
Shipping:
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Small High And Low Femperafure Fest Chamber. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.
4.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
