| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-107(A-D) |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Internal: | 40x35x35 | External Dim: | 17x23x20 |
|---|---|---|---|
| Model: | B-OIL-01 | Low Temp Range: | -10℃--60℃ |
| Test Temp Rang: | -40℃-150℃ | HighTemp Rang: | ＋80℃～200℃ |
| Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| High Light: | B-T-107 PCB Test Chamber,Lab PCB Test Chamber,380V Laboratory Test Equipment |
||

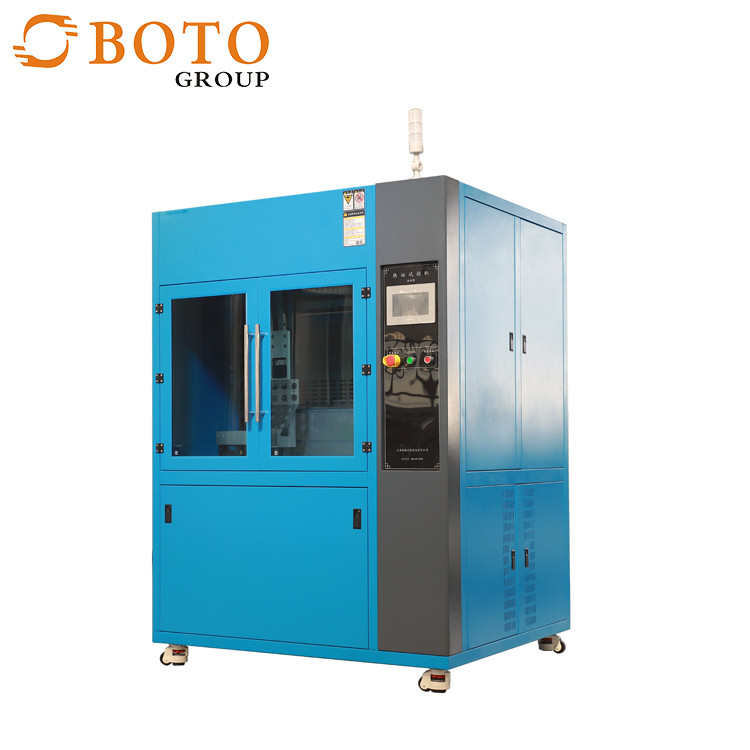

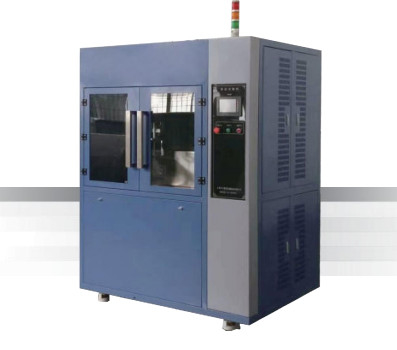

Heat Of Oil Test Chamber GJB150.5 B-T-107(A-D) Machine Laboratory Equipment
The machine realizes the cold and heat cycle test by alternately using two independent fluid baths. It is a special testing instrument for the production process control of printed circuit board, which is used for the cold and heat shock test of printed circuit board. It can also be connected to the low resistance test system for on-line resistance test.
1.Applicable test plate specification: 350mm x 210mm;
2.Sanyo stepping motor and precision module are adopted for Transmission, with small vibration and low voice;
3.The equipment is divided into high and low temperature chamber;
4.Quickly change the temperature of the test room to make the test sample accept cold and hot shock.
It has the following performance characteristics:
■ The shell is made of high-quality thin steel plate, the surface is sprayed with plastic;
■The liner is stainless steel sheet;
■Fujifilm temperature controller;
■Wide temperature test range;
■ Pt100 platinum resistance as sensor;
■ High temperature control sensitivity, good temperature uniformity;
■ With leakage protection, overtemperature alarm, overtemperature protection function.
| model | B-OIL-01 | B-OIL-02 | B-OIL-03 | ||
| basic configuration | Looding baskets Dimensions(CM) | 17x23x20 | 23x29x30 | 28x34x35 | |
| External Dim(W*H*D) | |||||
| Operator interface | With 5.7color LCD touch screen and P.C control system |
||||
| Control mode | Japan's imports of time/temperature cortroler,high precision temperature control, heating,cooing PID operation are used |
||||
| PLC | Jpanese Mesubishi |
||||
| Heaters | Imports of nickel wire heater |
||||
| Carriageway mobile means | Stepping drive control |
||||
| Crriageway Component Contiguration | Impart modules |
||||
| Cooling mode | Imported compressor |
||||
| Hot oil cylinder temperature range (℃) | RT+40℃-260℃ Room+40℃---260℃ |
||||
| Heat oil cylinder temperature control accuracy(℃) | ±5℃ | ||||
| Cold oil cylinder temperature range(℃) | 20-25℃ | ||||
| Counting display range (times) | 1-199 | ||||
Time display range (S) |
Hot cylinder 1-199.9 |
||||
Input Power: |
380V 50Hz | ||||
Weight [KGI |
450 | 550 | 800 | ||
Power (W) |
15KW | 18KW | 21KW | ||
Our Company:
Packing/Shipping:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
