| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | HSZD-225A |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-TCT-401 | Internal Dim （CM）: | 30x30x30 |
|---|---|---|---|
| External Dim（CM）: | 118x185x180 | Sample Weight: | 5KG |
| Low Temp Range: | -10℃--60℃ | HighTemp Rang: | ＋80℃～200℃ |
| Recovery Time: | Within 3 Minutes | Interior: | SUS#304Stainless Steel Plate |
| High Light: | Humidity Vibration Test Chamber,SUS304 Temperature Vibration Test Chamber,Composite Climate Test Chamber |
||

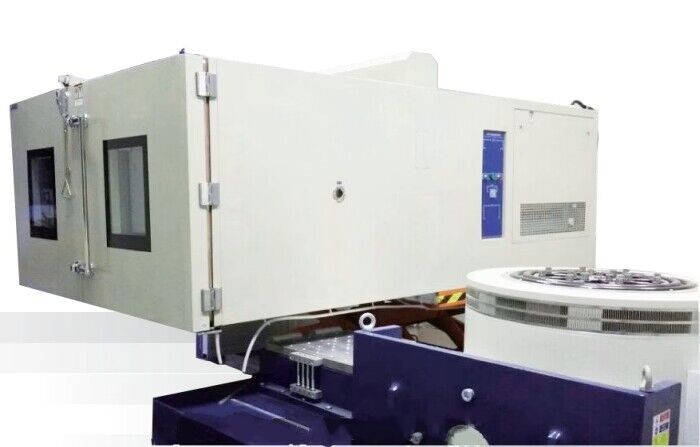

Temperature,Humidity,Vibration Composite Test Chamber HSZD-225A GB/T2423.2
Three comprehensive test box combined with temperature, humidity, vibration function in one, suitable for aerospace products, information electronic instruments, materials, electrical, electronic products, all kinds of electronic components in a comprehensive harsh environment to test its performance indicators.
Three comprehensive test box mainly for aerospace, aviation, petroleum, chemical, electronics, communications and other scientific research and production units to provide temperature and humidity change environment, at the same time can be in the test box will be electric vibration stress according to the specified period to the test products, for the user of the whole machine (or components), electrical appliances, instruments, materials for temperature and humidity, vibration comprehensive stress screening test, In order to assess the adaptability of the test product or to evaluate the behavior of the test product. Compared with the effect of a single factor, it can more truly reflect the adaptability of electrical and electronic products to the changes of temperature, humidity and vibration compound environment in the process of transportation and actual use, and expose the defects of products. It is an essential and important test means for the whole process of new product development, prototype test and product qualification test.
Removable USB Smart Stick memory gives users easy access to data, programs, alerts and indexes.
Model:
| model | Air-cooled condenser Water-cooled condenser |
BTHV225-704 BTHV225-70W |
BTHV512-704 BTHV512-70W |
BTHV000-70A BTHV1000-70W |
|
| Interior capacity(L) | 216 | 512 | 1000 | ||
| Interior Dimension(CM) | Width | 60 | 80 | 100 | |
| Height | 60 | 80 | 100 | ||
| Depth | 60 | 80 | 100 | ||
| Exterior dimension (mm) | Depends on the model | ||||
Performance parameter |
Temperature | ‘-70℃-+150℃ | |||
| Humidity range | 20%-98%RH | ||||
| Temperature deviation | ±2℃ | ||||
Temperature fluctuation |
±0.5℃ | ||||
Relative Humidity fuctuation |
±5%RH(≤75%RH) ±3%RH(≤75%RH) | ||||
Heating rate |
1-15℃／min | ||||
Cooling rate |
1-15℃／min | ||||
Refrigeration method |
Mechanical double-stage refrigeration system |
||||
Compressor |
Semi-Hermetic/Hermetic compressor |
||||
Cooling pattern |
Air/Water-cooled condenser |
||||
Controller |
TFT fouch screen |
||||
Language |
Chinese or English |
||||
