| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-LY |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-LY | Internal Dim （CM）: | 30x30x30 |
|---|---|---|---|
| External Dim（CM）: | 118x185x180 | Sample Weight: | 5KG |
| Low Temp Range: | -10℃--60℃ | HighTemp Rang: | ＋80℃～200℃ |
| Recovery Time: | Within 3 Minutes | Interior: | SUS#304Stainless Steel Plate |
| High Light: | Stainless Steel Simulation Rain Test Chamber,Automatic Rain Test Chamber 5KG,IEC 60529 Climatic Test Chamber |
||
Rain Test Chamber Automatic Laboratory Instrument Simulation Environmental Test Chamber
The rain test box is suitable for external lighting and signal devices and automobile lamp shell protection, can provide realistic simulation of electronic products and components during transportation and use may be subjected to a variety of environment such as water and spray test. In order to detect the waterproof performance of various products.
Rain test box is mainly used in electronic, electrical, aerospace, military and other scientific research units of external lighting, signal devices and car lamp shell protection test.
Waterproofing test class:
There are waterproof testing requirements for portable, outdoor and automotive electronics. IEC, MIL, ETSI and SAE have formulated corresponding testing requirements internationally.
IEC/EN60529 Waterproofing is divided into 9 classes (Class 0 to Class 8), waterproofing classes (e.g. IPX4- Waterproofing class 4) :
Level 0: completely waterproofing without protection
Level 1: Vertical dripping should have no harmful effect
Level 2: When each vertical plane of the case is tilted within the range of 15°, the vertical dripping shall have no harmful effect
Level 3: Water is sprayed within 60° of each vertical plane, without harmful effects
Level 4: Splashing the shell in all directions has no harmful effect
Level 5: Spraying water in all directions to the enclosure has no harmful effect
Level 6: Spraying water strongly in all directions to the enclosure has no harmful effect
Level 7: The water intake into the shell will not reach the harmful degree after immersion in the water under the specified pressure for the specified time
Level 8: The water intake of the casing will not reach harmful Level after continuous diving under conditions agreed by the manufacturer and the user (which shall be harsher than Level 7)
Level 9: High voltage test
| Model | B-LY | ||
Internal Dim(mm) |
custom | ||
| SOT(mm) | undetermined | ||
| structural features | Radius of arc pendulum tube | 400mm | |
| Right Angle pendulum tube length | 500mm | ||
| Water jet pressure | 50-400kpa | ||
| Right Angle swing pipe spray diameter | 16mm | ||
| Water tank material | High-grade stainless steel plate | ||
The main technical parameters:
IP6 &UL1598, the external structure: a closed chamber
Inside diameter (L×W× H): 1960 x 1960 x 1900mm
Accessories:
Structure of EN/ UL Rain test chambers:
1,The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.

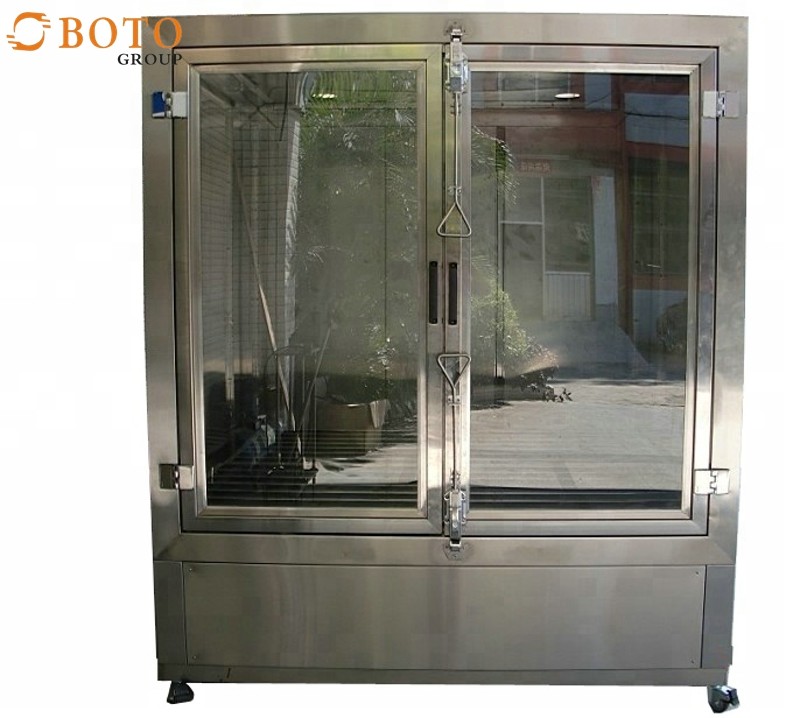

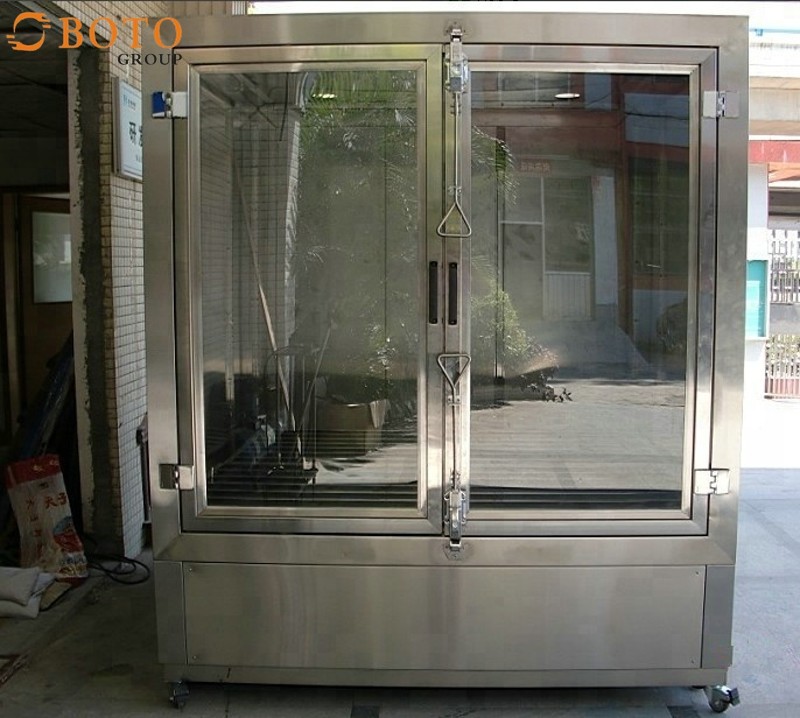

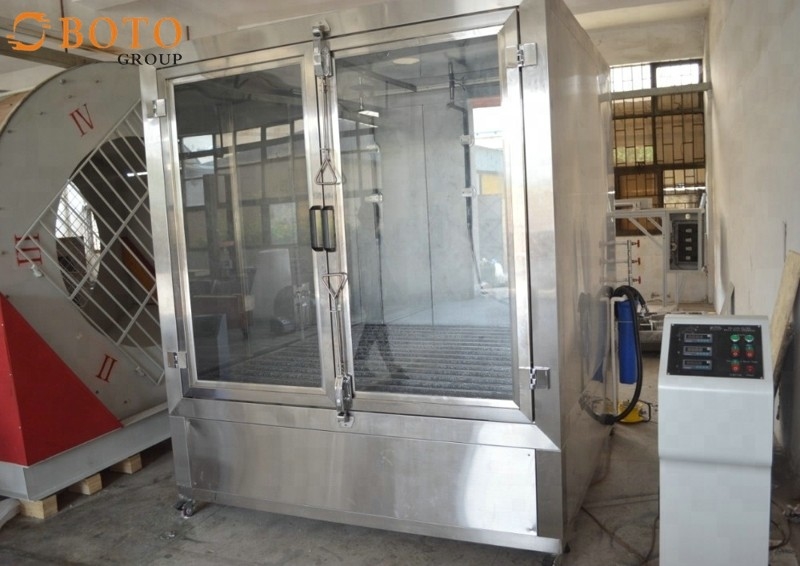

2, Large area of visible glass door, easy to observe the test specimens in the testing chamber
3,The button is made of high quality of tank, can be fixed PU activities wheel, it is convenient for user moved.

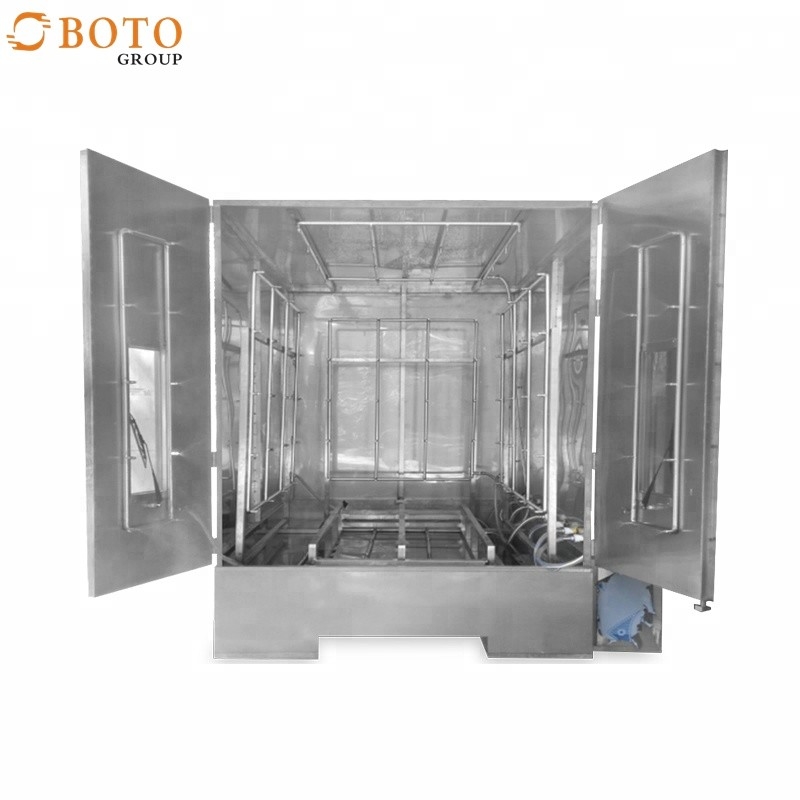

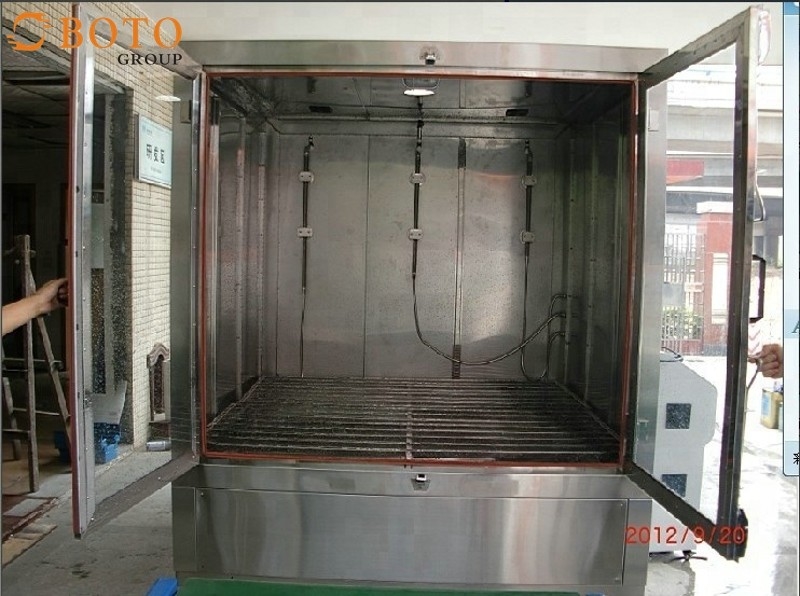

4, With 270 degree swing pipe and 360 degrees whorl pole water jet device.
5, Adjustable speed samples stage.
Features of EN/ UL Rain test chambers:
Other sizes and capabilities available upon request. Please contact us with your application.
