| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | DHG-9030A 101A-0S |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | DHG-9030A 101A-0S | Internal: | 350*350*350 |
|---|---|---|---|
| External Dim: | 480*470*685 | Low Temp Range: | -10℃--60℃ |
| Test Temp Rang: | -40℃-150℃ | HighTemp Rang: | ＋80℃～200℃ |
| Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| Temperature Fluctuation: | ±0.3℃ | Temperature Departure: | ±1.0℃ |
| High Light: | Overtemperature Protection Climatic Test Chamber,DHG-9030A Environmental Test Chambers,Pt100 Climatic Test Chamber |
||

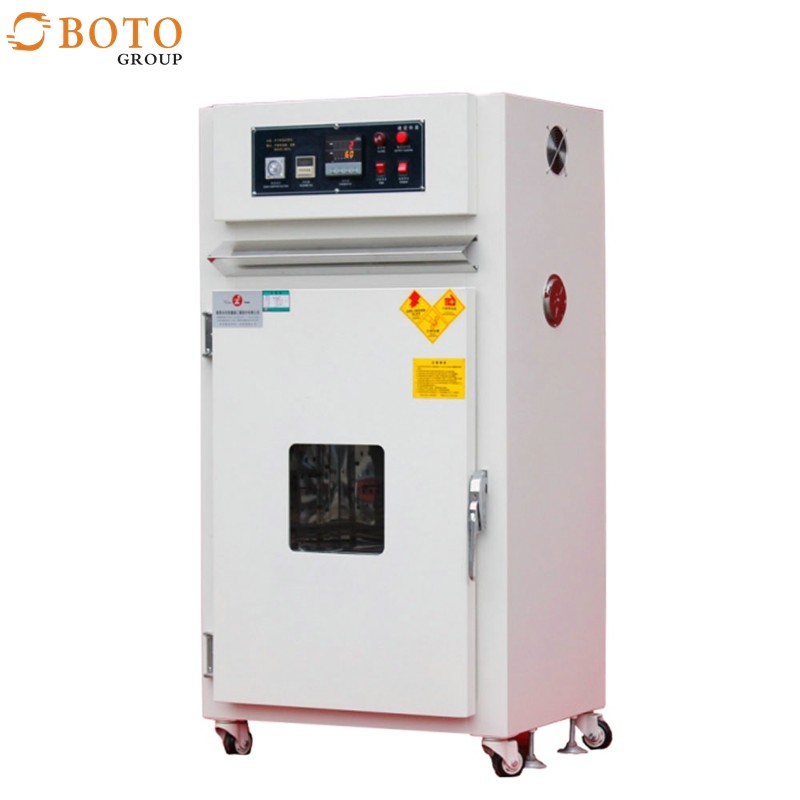

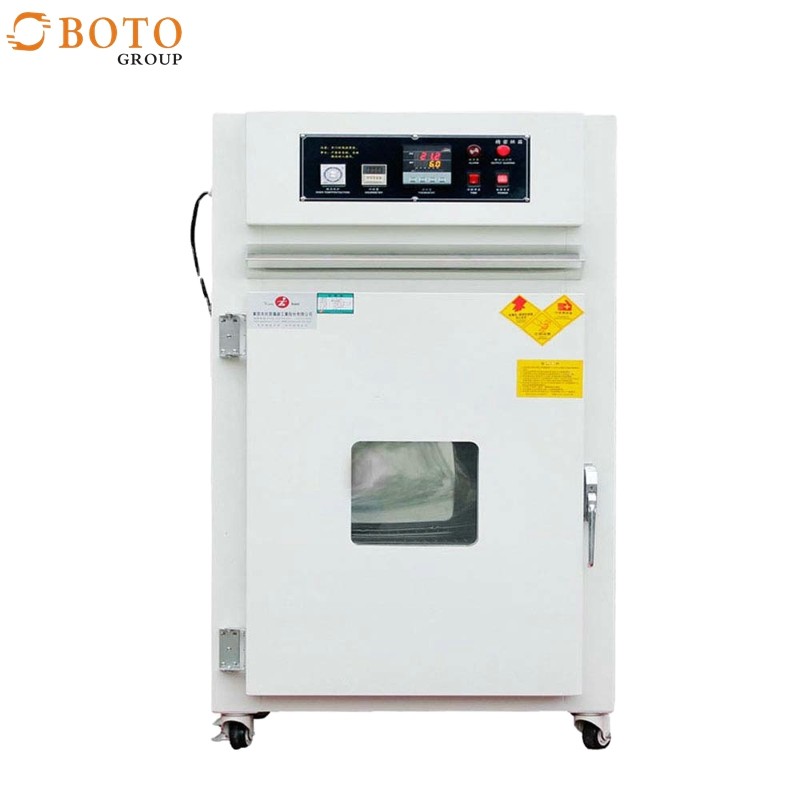

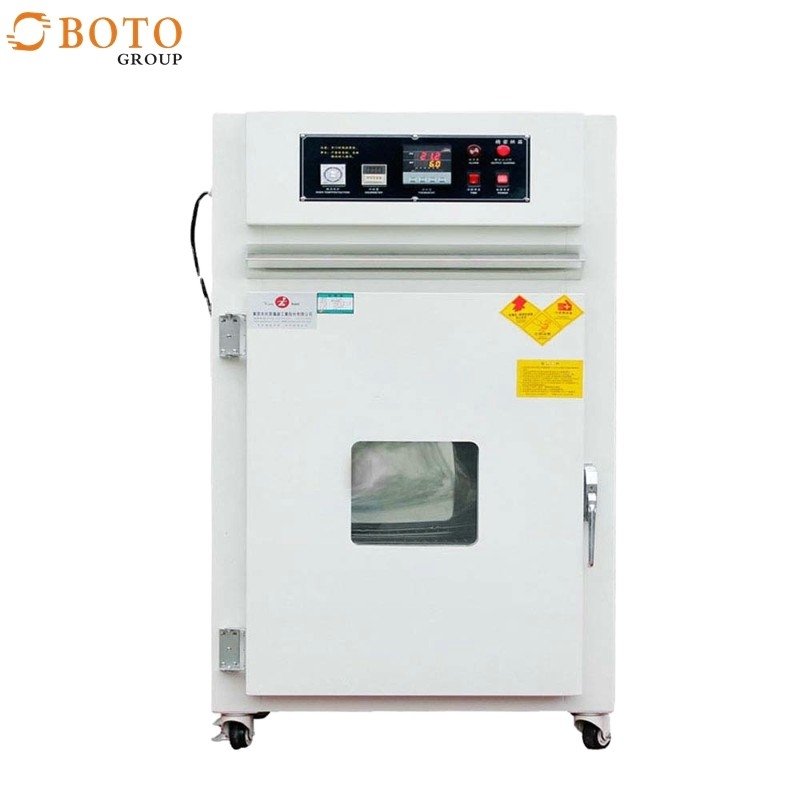

Environmental Test Chambers High Temperature Chamber High-Performance DHG-9030A 101A-0S Test Machine
High temperature test chamber (high and low temperature test chamber) is one of the simulation of climate environment test equipment, suitable for various products or materials under high temperature conditions performance test. It can be used in the laboratory of scientific research units, product quality control centers and industrial and mining enterprises. Digital display temperature control, PID self-regulation, and has the function of overtemperature protection.
This product is suitable for testing according to the national standard GB/T2423.2 "Environmental Test of Electrical and electronic products Test B: High temperature test Method". Meet GB/T2423.2 test method standard requirements.
Applications:
High Temperature Thermal Aging Test Chamber NuOven LS-100A is used in laboratory, hospitals and industry.
Main Features
SECC steel plate and fine powder baking paint are used. SUS stainless steel new high temperature resistant long shaft motor turbofan high temperature resistant fiber overtemperature protection: strong load automatic power off system circulation mode: forced horizontal air supply circulation heating mode: PID+S.S.R Temperature range: room temperature +20~500℃ Temperature controller: PID microcomputer control timer: temperature to time; Time to cut off the heating current this machine is equipped with 400℃ oven for choice
| model | DHG-9030A 101A-0S |
DHG-9070A 101A-1S |
DHG-9140A 101A-2S |
DHG-9240A 101A-3S |
DHG-9420A 101A-4S |
||||
| volume | 30L | 70L | 136L | 220L | 420L | ||||
| W*D*H Interior dimension | 350*350*350 | 450*350*450 | 550*450*550 | 600*500*750 | 640*585*1355 | ||||
|
W*D*H carton size |
480*470*685 | 580*470*785 | 680*590*885 | 730*640*1085 | 780*750*1880 | ||||
| temperature fluctuation | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ||||
| temperature resolution | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | ||||
| temperature control range | RT+10-250℃ | RT+10-250℃ | RT+10-250℃ | RT+10-250℃ | RT+10-200℃ | ||||
| mains input | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ | ||||
| input powe | 650W | 1500W | 2000W | 2400W | 4000W | ||||
| volume | 30L | 70L | 136L | 220L | 420L | ||||
Our Company:
Packing/Shipping:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
