| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-SST-120 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Internal: | 60x45x40 | External Dim: | 108x63x119 |
|---|---|---|---|
| Model: | B-SST-60 | Cabinet Material: | Corrosion-resistant Polymer Material |
| TLaboratory Temperature: | A:25℃~70℃ B:0℃-70℃ C:-20℃-70℃ D:-40℃-70℃ | HighTemp Rang: | ＋80℃～200℃ |
| Saturated Air Pressure: | 0.8-2.0±0.01 | Power Source: | AC:220V 50Hz/AC:380V 60Hz |
| High Light: | Salt Spray Corrosion Test Chamber B-SST-120,Polymer Salt Spray Corrosion Test Chamber,DIN50021 Environmental Test Chambers |
||

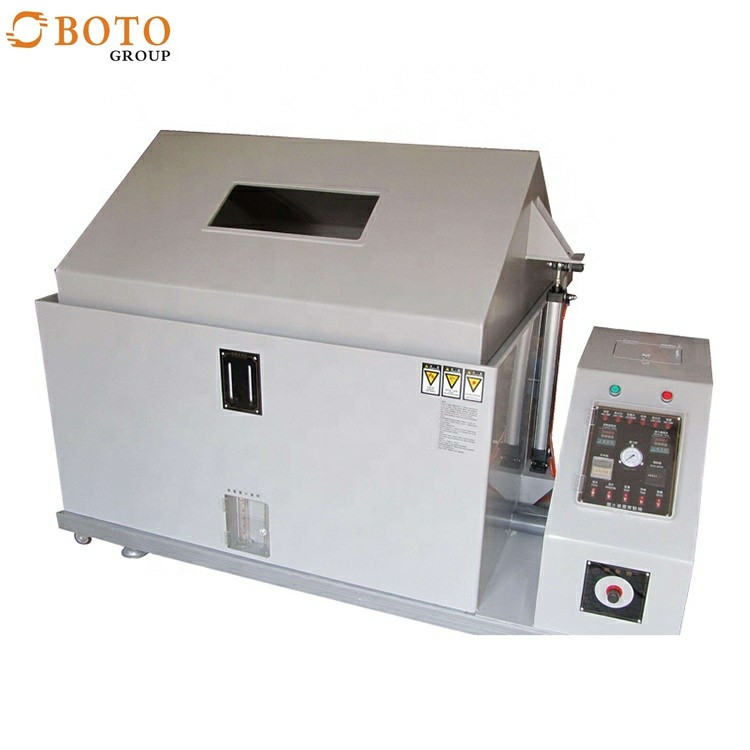

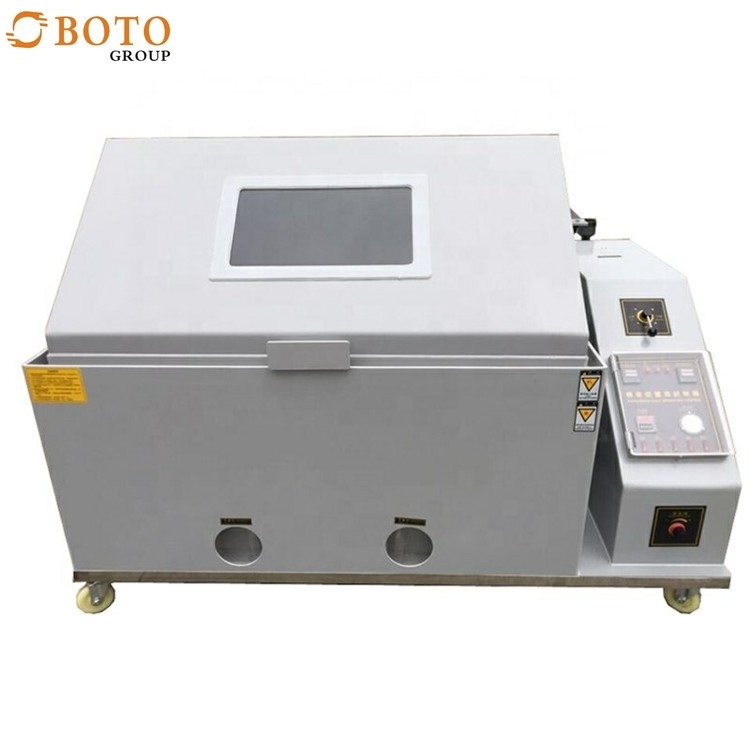

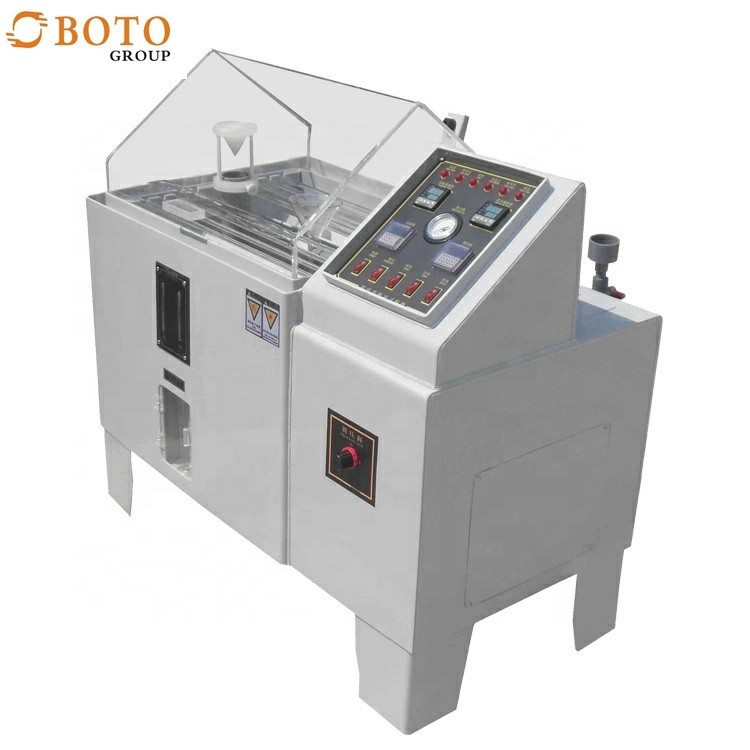

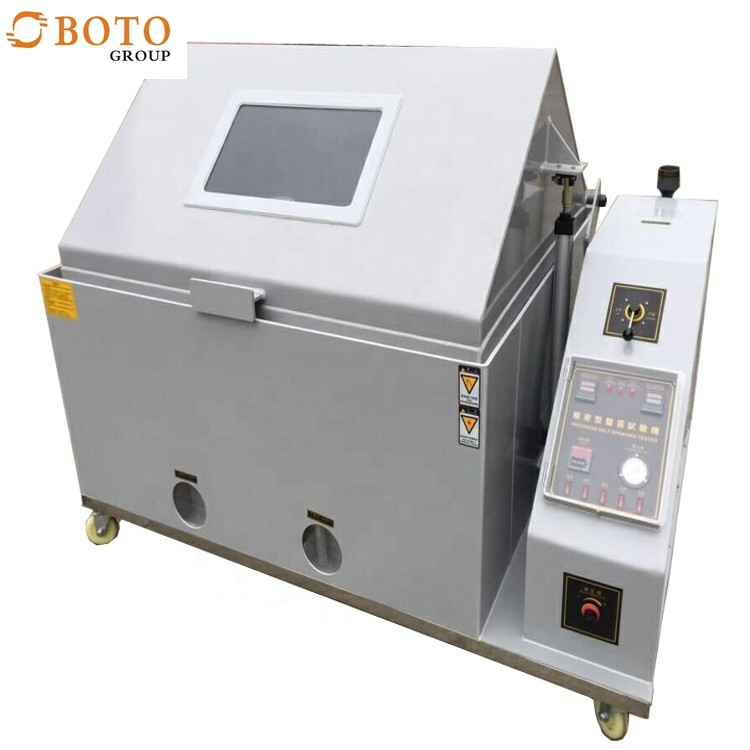

Corrosion-Resistant Equipment Salt Spray Corrosion Test Chamber B-SST-120 DIN50021
Salt spray test machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.
Salt salt spray test machine is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion.
Different coatings have different behaviour in salt spray test and
consequently, test duration will differ from one type of coating to another.
Standard
1.ISO9227
2.CNS3627,3885,4159,7669,8886,
3.JIS D-0201
4.H-8502
5.H-8610
6.K-5400
7.Z-2371
8.ISO 3768,3769,3770
9.ASTM B-117
10.B-268 11.GJB 150
Model |
B-SST-60 | B-SST-90 | B-SST-120 | B-SST-160 | B-SST-200 | |
Internal Dim(W*H*D) |
60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 | |
External Dim(W*H*D) |
108x63x119 | 140x80x139 | 178x120x149 | 230x130x149 | 270x130x159 | |
Cabinet Material |
Corrosion-resistant polymer material |
|||||
Laboratory temperature (℃) |
A:25℃~70℃ B:0℃-70℃ C:-20℃-70℃ D:-40℃-70℃ | |||||
Saturated air barrel temperature(℃) |
35±1℃50±1℃ Saline test method:35±1℃/Corrosion test method:50±1℃ |
|||||
Saturated air pressure (kg/c㎡) |
0.8-2.0±0.01 | |||||
| (ml／80c㎡.h) Salt spray sedimentation rate (ml/80c㎡.h) |
1-2ml/80 cm2.h(Controllable) | |||||
PH value |
Salt water test method:6.5～7.2／Test method for corrosion resistance:3.0-3.2 Saline test method:6.5-7.2/Corrosion test method:3.0-3.2 |
|||||
Power Source |
AC:220V 50Hz/AC:380V 60Hz | |||||
