| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-48L (A~D) |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-T-48L (A~D) | Internal Dim: | 40x40x30 |
|---|---|---|---|
| External Dim: | 60x80x107 | Relative Humidity: | -60℃~150℃(100℃) |
| Relative Humidity Range: | 20%~98%RH | Power Source: | AV：220V/380V 50/60Hz |
| Power: | 1.5KW~2.5KW | Heat-up Time: | About3℃/min |
| High Light: | 1.5KW High Temperature Test Chamber,Low Temperature Test Chamber B-T-48L,Climate Control Chamber ISO |
||

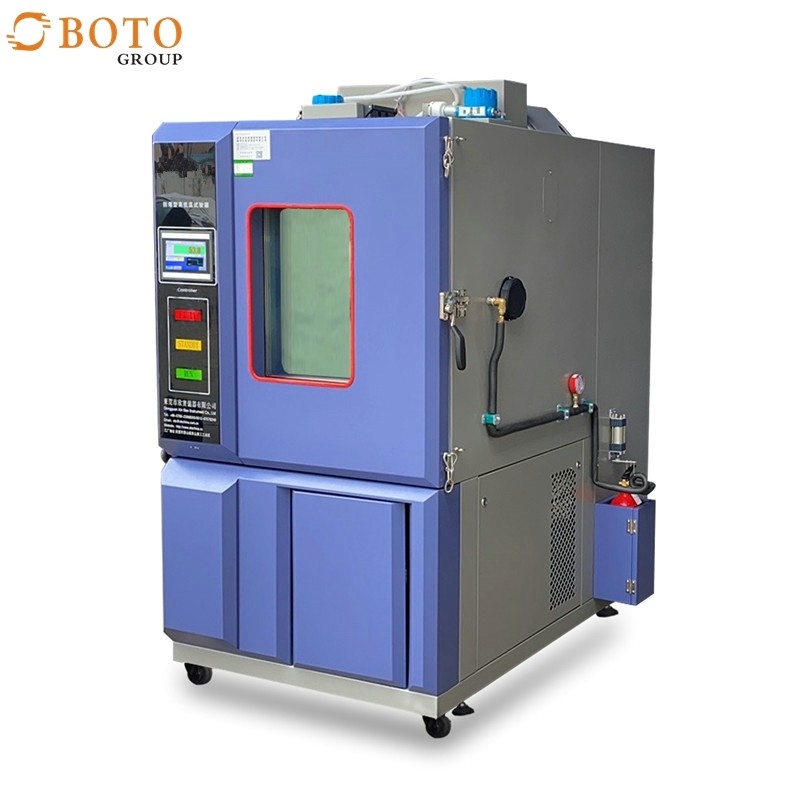

ISO Small High And Low Temperature Test Chamber GJBl50.9-86 B-T-48L (A~D)
Application:
Table type constant temperature and humidity test box box using CNC machine processing molding, beautiful and elegant, novel and adopt no reaction handle, easy to operate.

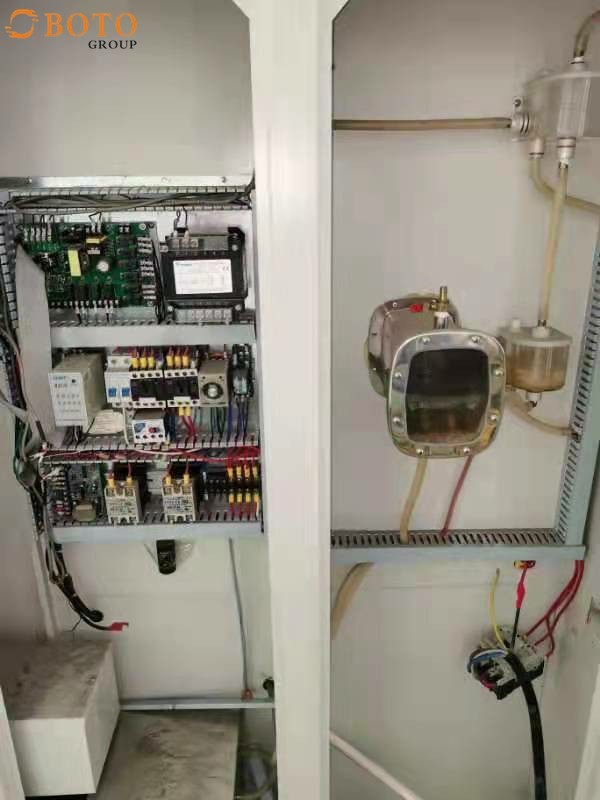

The inner chamber is made of imported advanced stainless steel (SUS304) mirror plate or 304B argon arc welding, and the outer chamber is sprayed with A3 steel plate. Microcomputer temperature and humidity controller, temperature and humidity control accurate and reliable.

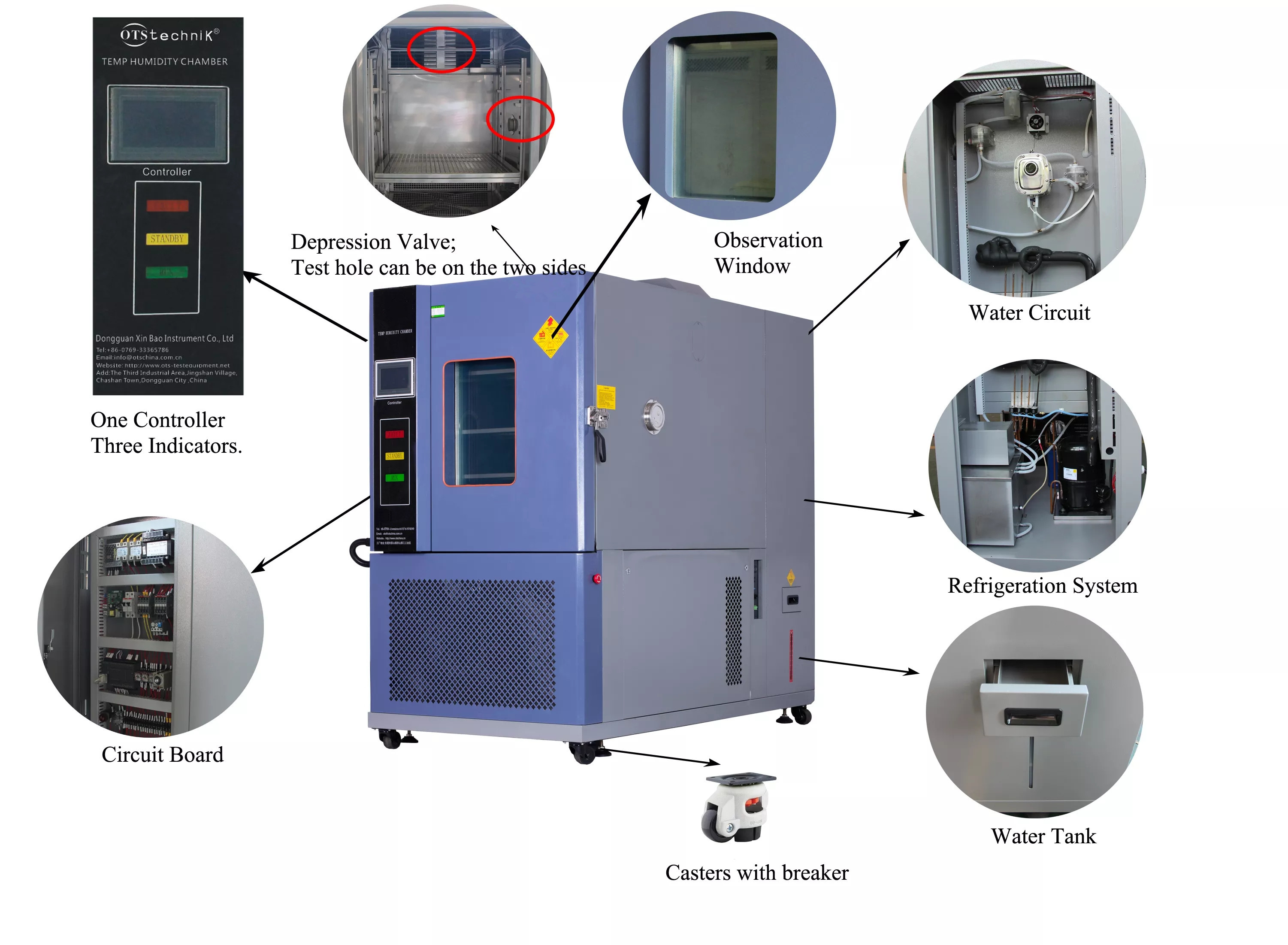

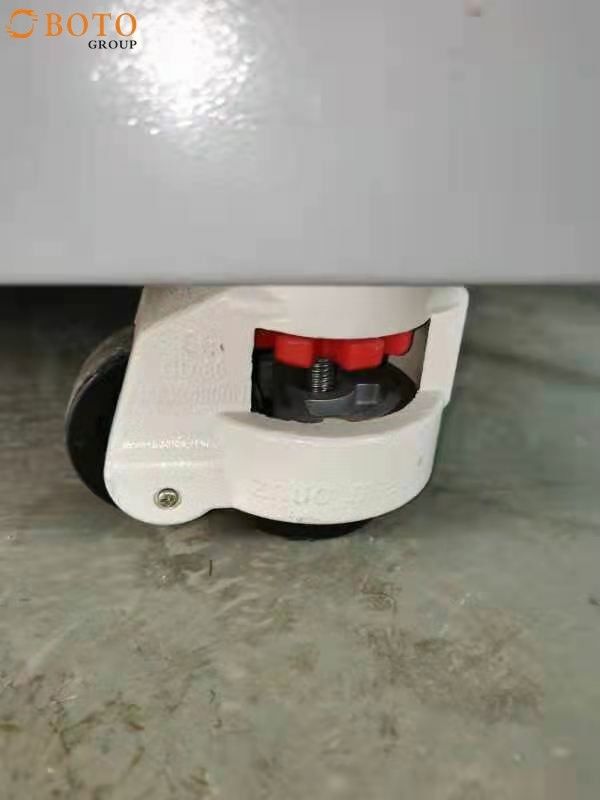

Large observation window with lights to keep the box bright, and the use of double glass, clear observation box at any time. An independent temperature limit alarm system is set, which automatically interrupts when the temperature exceeds the limit, ensuring the safe operation of the experiment without accidents. The left side of the table type constant temperature and humidity test box is equipped with a test hole with a diameter of 50mm, which can be used for external test power cable or signal cable. The bottom of the machine adopts high quality fixed PU movable wheel.
Standard Compliance:
This product meets the requirements of GB/T2423.1-2001 GB/T2423.3-1993 GB/T2423.2-2001 and other national standards, as well as other relevant standards.
Product specification:
| Name | Small high and low temperature test chamber | Table type constant temperature and humidity test chamber | ||||
| Model | dry heat | B-T-107(A-D) | B-T-48L (A~D) | |||
| damp and hot | B-TH-48L (A-D) | |||||
| Internal Dim | 30.5x23x29 | 40x40x30 | ||||
| External Dim(W*H*D) | 53x68x72 | 60x80x107 | ||||
| Relative Humidity | ‘-40℃(-60℃)-130℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃) | ’7.081- -60℃~150℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ |
||||
| Relative humidity Range | 20%~98%RH | |||||
| heat-up time | About3℃/min | |||||
| Pull down time | About0.7~1℃/min | |||||
| Temp Fluctudtiont | ±0.5℃ | |||||
| Temp Uniformity | ±1.0℃ | |||||
| Temp Deviation | ±1.0℃ | |||||
| Power Source | AV:220V/380V 50/60Hz | |||||
| Power(KW) | 1KW~2KW | 1.5KW~2.5KW | ||||
About us:
Shanghai BOTO GROUP LTD is a high technology company specializing in integrated incubation systems. We are conveniently located in Shanghai City.
With 20+ years of incubator R&D experience from our technical team, we have developed several series of the advanced integrated hatchery system.
Also we have gained the Authorized Poultry Industry R&D Center and been awarded the High-tech Enterprise by Chinese government. Also, both our company and products are approved by ISO9001, ISO14001, ISO45001, ISO50001
Certifications:
Packaging & Shipping
Packing:
1. Fully packed with PE film;
2. Wooden box;
3. Machine is fastened to the corners of the containers;
4. If export to European countries, the wooden box will be fumigated;
5. Customized package is available.
Shipping:
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of Small High And Low Femperafure Fest Chamber. Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. what about the products' quality?
-Each batch of parts is done quality sampling inspection before into the warehouse, and Each product before delivery is tested by the national authoritative third-party inspection agency.
4.what about the packing of equipment?
-We use Standard Export Plywood Case to Protect it from rust during the long time shipping with the plastic film and protect its corners with the foam.
