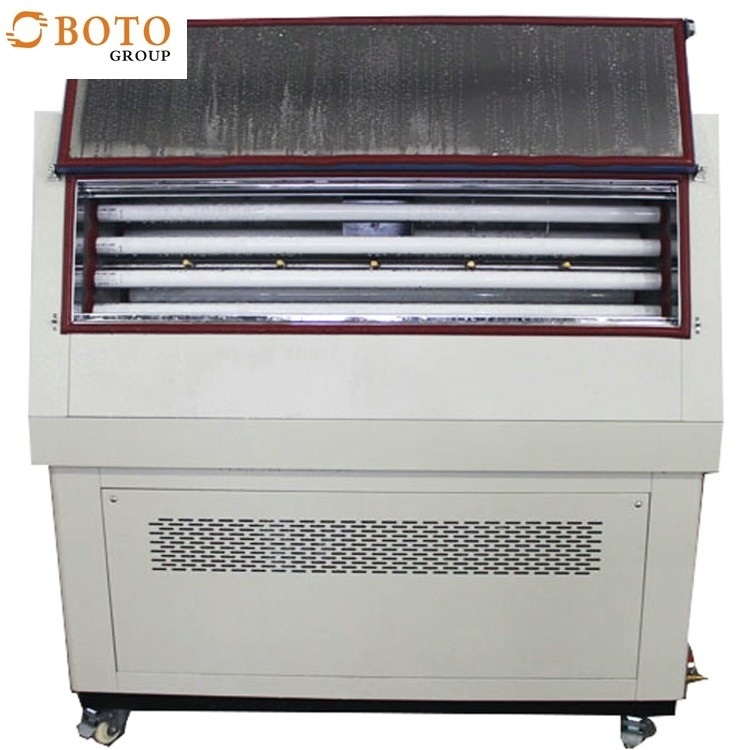

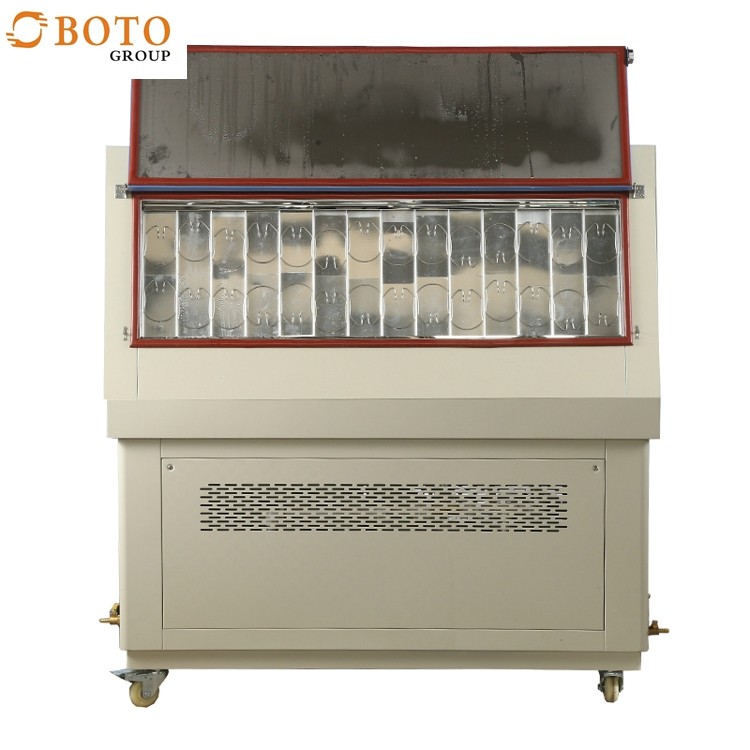

B-ZW UV Aging Test Chamber Machine VG95218-2 58x128x135 Climatic Chamber

Product Description:

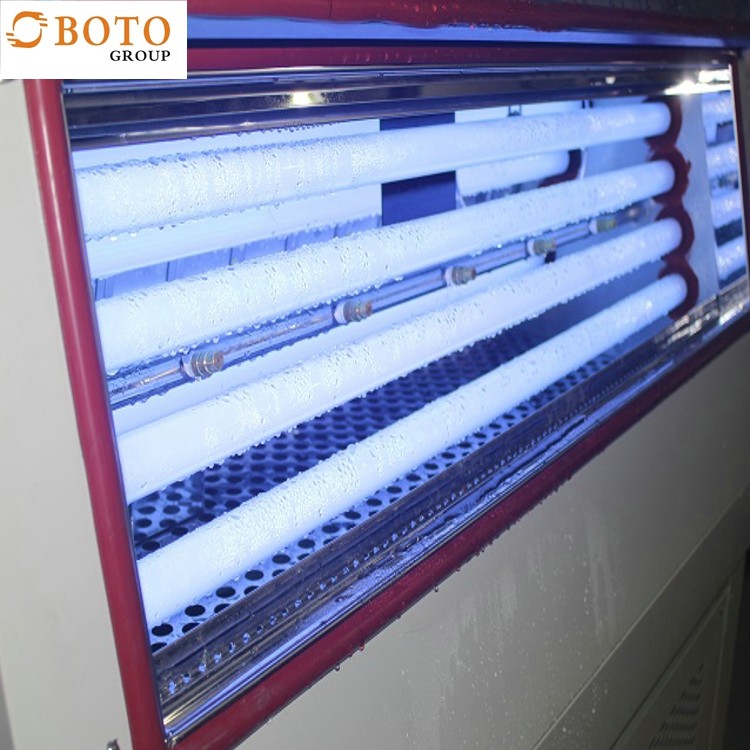

The UV weather resistance test box uses fluorescent ultraviolet lamps and condensed water to simulate sunlight and dew conditions respectively. For example: fading, discoloration, loss of light, cracking, turbidity, blistering, embrittlement, strengthening, recession and oxidation, etc.

Chamber Material:

Inner container use SUS304# stainless steel plate;

Outer shell use SUS304# stainless steel plate;

Specimen frame use stainless steel and aluminum alloy net frame,easy access to samples;

Features:

TheUV accelerated aging test chamber can simulate environmental conditions such as self-climate ultraviolet rays, rain, high temperature, high humidity, dew condensation, darkness, etc. By reproducing these conditions, it is merged into a cycle, and it automatically executes the number of cycles completed. In this process, the equipment can be used for automatic monitoring of blackboard temperature and water tank temperature; by configuring irradiance measurement and control device (optional), the irradiance can be measured and controlled, and the irradiance is stable at 0.76W/m2/340nm or specified setting. Fixed value, greatly extending the service life of lamps.

Mainframe Working Environment

*Power requirement:220V±5%,single-phase three-wire,50Hz,8A,request 10A slow-blow fuse;

*Environment:5~35℃,0~80%RH,good ventilation,Indoor environment cleaning;

*Area of work about 234*353cm;

*Water draining:A drain is needed on the floor near the main engine ease movement,foot wheel is installed at the bottom of the instrument,After the position is fixed, the position of the test machine is fixed with a U-ring;

*For the convenience of heat dissipation and maintenance,The installation of the equipment must meet the following conditions;

*Adequate maintenance space should be maintained between the equipment and walls or other equipment after installation and adjustment;

*The environmental temperature of the installation site should not change sharply；

*It should be installed on horizontal ground(Use a level meter to confirm the level on the ground during installation)；

*It should be installed in places without direct sunlight；

*It should be installed in a well-ventilated place；

*Should be installed away from combustible materials,explosive and High temperature source；

*It should be installed in a little dusty place ;

*Install close to the power source;
