Internal: | 40x35x35 | External Dim: | 143x210x170 |
---|---|---|---|
Model: | B-TCT-401 | Low Temp Range: | -10℃--60℃ |
Test Temp Rang: | -40℃-150℃ | HighTemp Rang: | +80℃~200℃ |
Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |

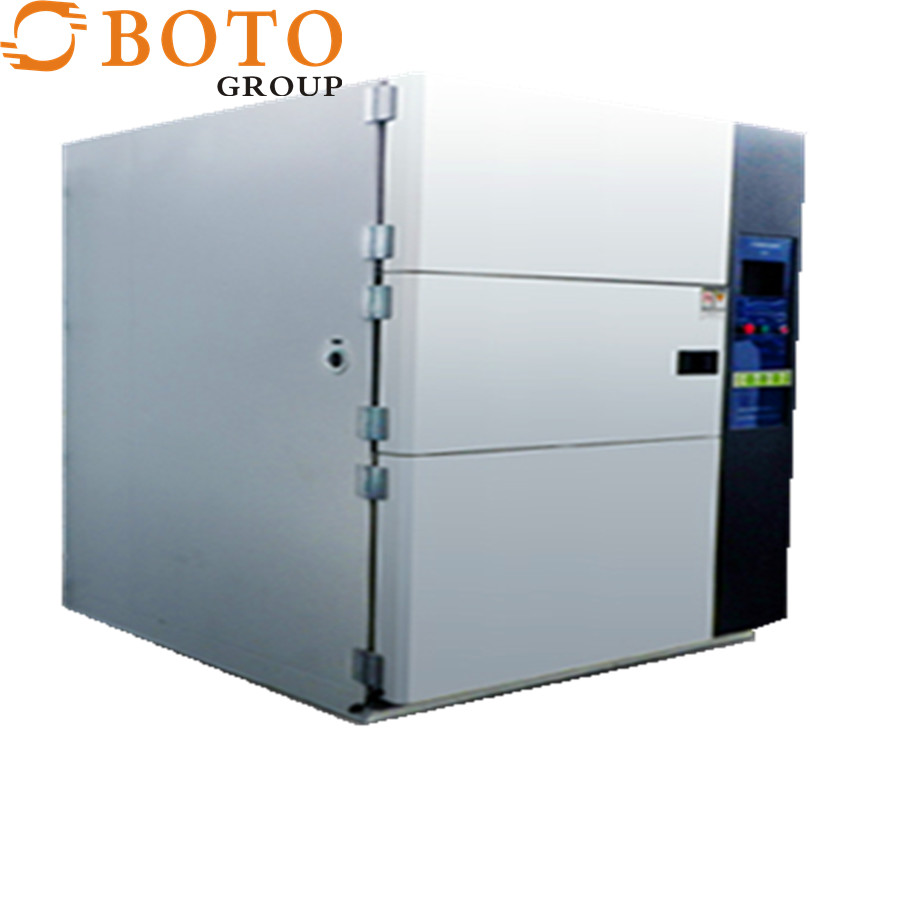

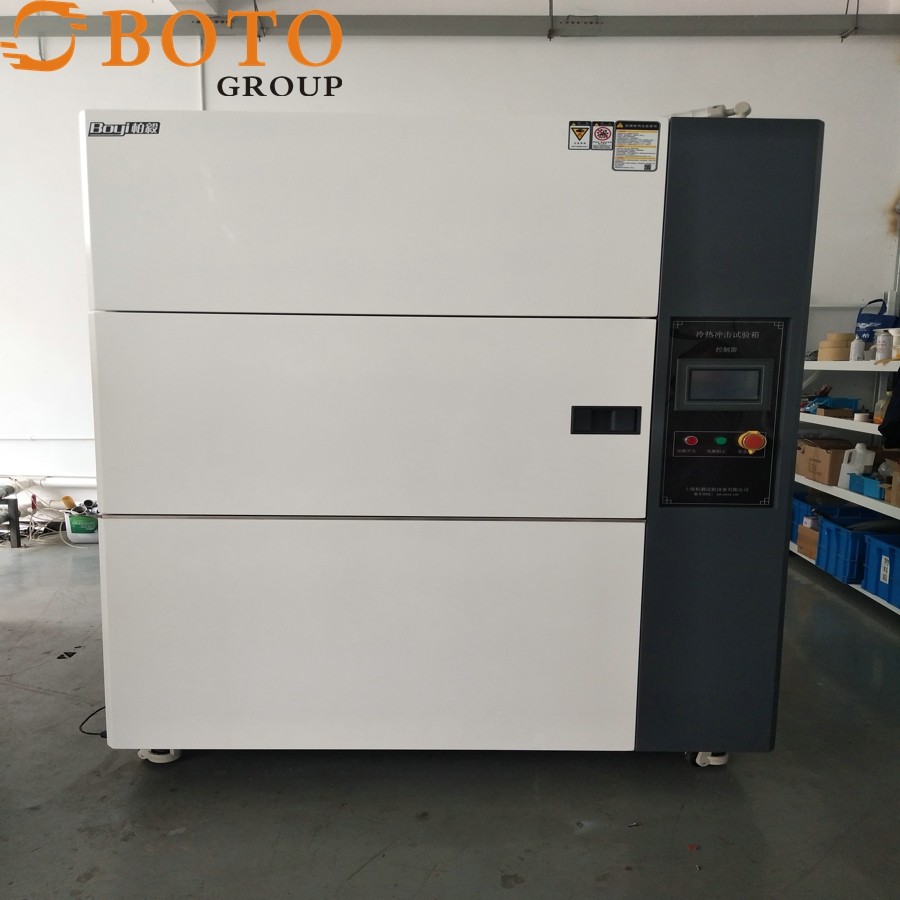

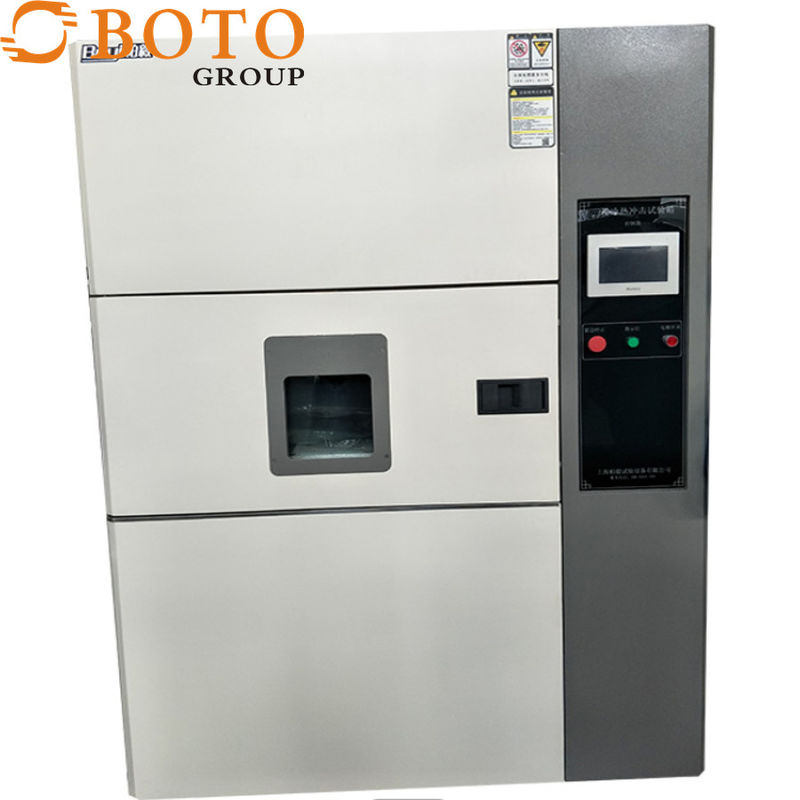

GB/T2423.1.2-2001 Three Box-Type Hot And Cold Impact Chamber B-TCT-402 -40℃-150℃
Product Description
Mainly used in national defense industry, aviation industry, automotive parts, electronic components, plastics industry, food industry and other related product development, straightening management engineering test specifications. The regenerative cold and hot shock tester is widely used in electronic parts, semiconductors, metals, chemicals, materials and other testing equipment. Its characteristics are as follows:

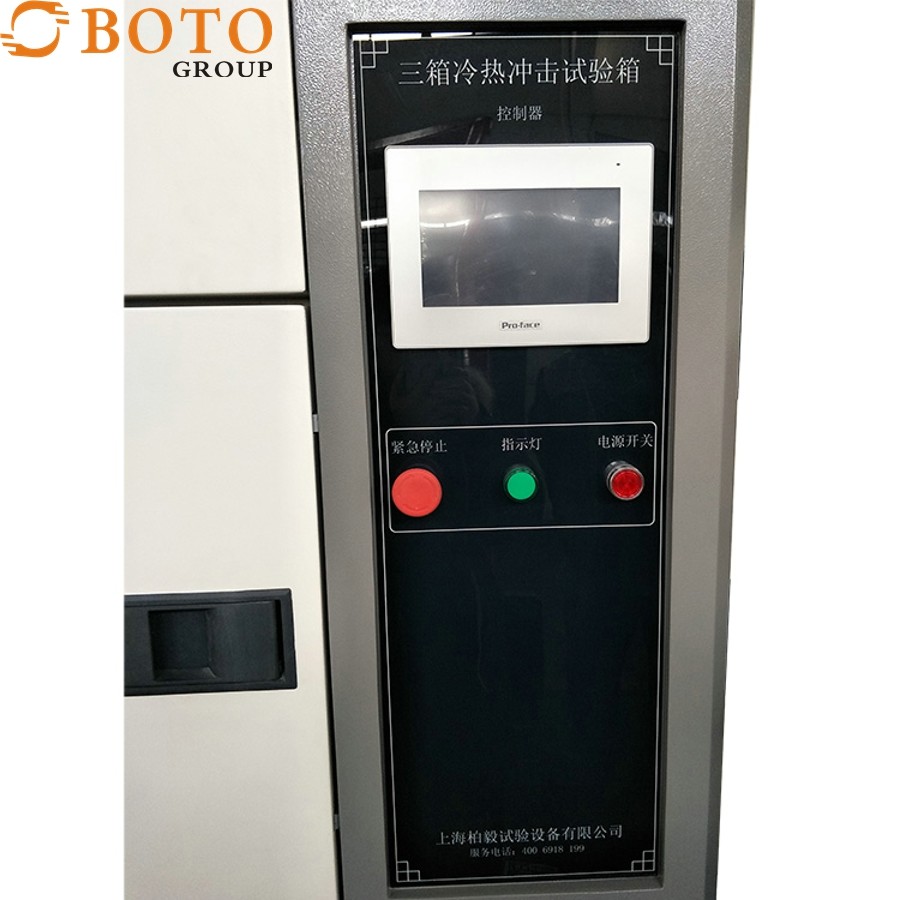

1. Touch-controlled color man-machine interface + PLC + J import temperature controller
2. Setting cycle and defrosting times;
3. Display of abnormal and fault points with simple teaching reminders for troubleshooting;
4. Comprehensive system safety protection and power outage memory;
5. Multiple safety protection: refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection
6. Air-cooled or water-cooled cooling can be selected according to customer's requirements.
Features:
1.Thermal shork chamber in each zone for peak demand of heating and cooling. Provides extra thermal energy to efficiently meet the MIL-STD 883 requirements.
2.Temperature recorder provides 24 hour part temperature recording as the load travels from zone to zone. Using touch-control graph control as operation interface, easy to operate.
3.The system can be used for automatic Circulation Shock or manual selective shock, capable of setting two zones or three zones shocks as well as cold and thermal shock start-up.
4.Custom-made and optional accessories available.
Corresponding Standard:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735 EIA - 364-59
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
productive process:
product description:
Model | B-TCT-401 | B-TCT-402 | B-TCT-403) | B-TCT-501 | B-TCT-502 | B-TCT-503 | B-TCT-601 | B-TCT-602 | B-TCT-603 | |
Internal (CM) | 40x35x35 | 50x40x40 | 60x50x50 | 40x35x35 | 50x40x40 | 60x50x50 | 40x35x35 | 40x50x40 | 60x50x50 | |
External Dim(CM) | 143x210x170 | 154x212x170 | 166x220x180 | 143x210x170 | 156x210x170 | 166x220x180 | 143x210x170 | 156x210x190 | 166x220x180 | |
Low Temp Range | -10℃--60℃ | -10℃~-70℃ | -10℃--80℃ | |||||||
Test Temp Rang | -40℃-150℃ | -55℃~150℃ | -65℃~150℃ | |||||||
HighTemp | +80℃-200 ℃ lvarious specifications applicablel | |||||||||
Recovery time | 3 to 5 minutes | |||||||||
Temp Fluctudtiont | ±2 ℃(various specifications applicable) | |||||||||

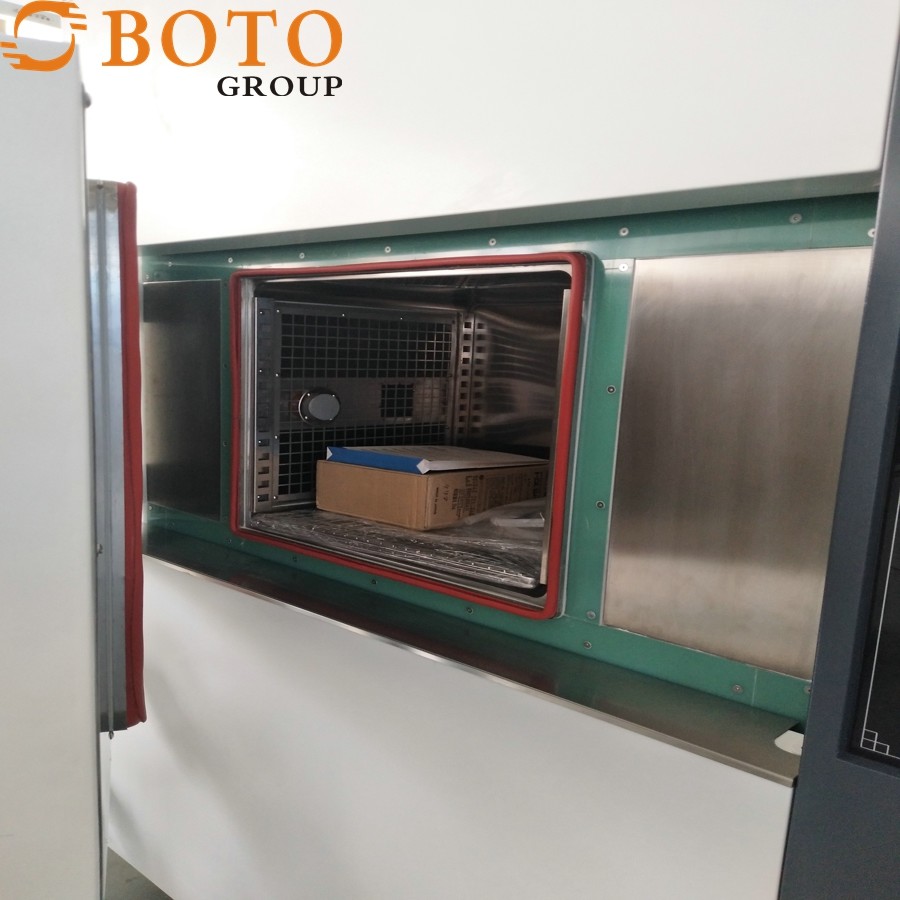

Interior | SUS#304Stainless steel plate | |||||||||
Exterior | Coating or SUS#304Stainless steel plate | |||||||||
Power Source | AV:380V 50/60Hz | |||||||||
Power(KW) | 16KW | 19KW | 19KW | 19KW | 20.5KW | 22KW | 19KW | 26KW | 33KW |
