| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-LY |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-LY | Internal Dim （CM）: | 30x30x30 |
|---|---|---|---|
| External Dim（CM）: | 118x185x180 | Sample Weight: | 5KG |
| Low Temp Range: | -10℃--60℃ | HighTemp Rang: | ＋80℃～200℃ |
| Right Angle Swing Pipe Spray Diameter: | 16mm | Water Tank Material: | High-grade Stainless Steel Plate |

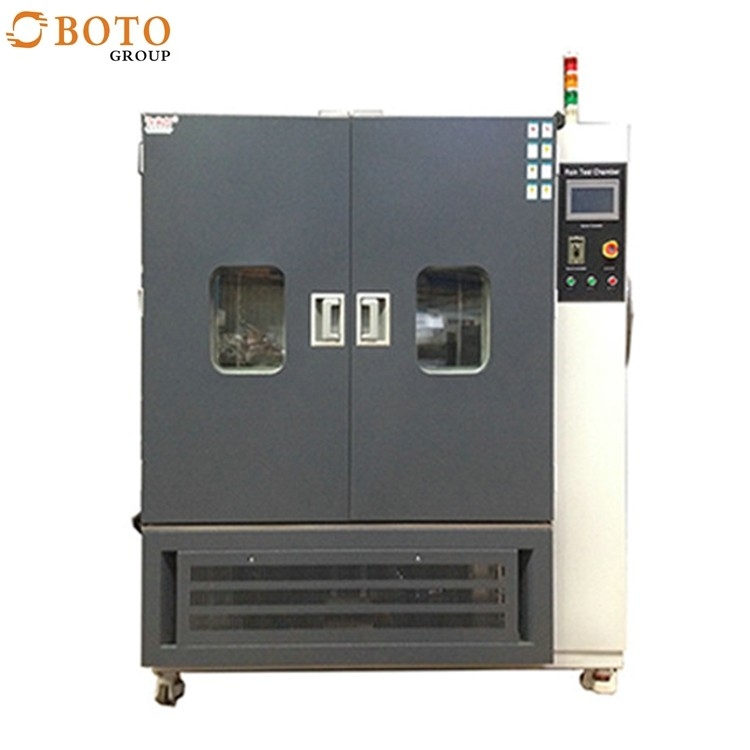

Environmental Test Chambers Automatic Laboratory Machine Rain Test Chamber B-LY Simulation Chamber IEC 60529
Advantage of IPX4 IP Waterproof Water Resistance Test Rain Spray Chamber

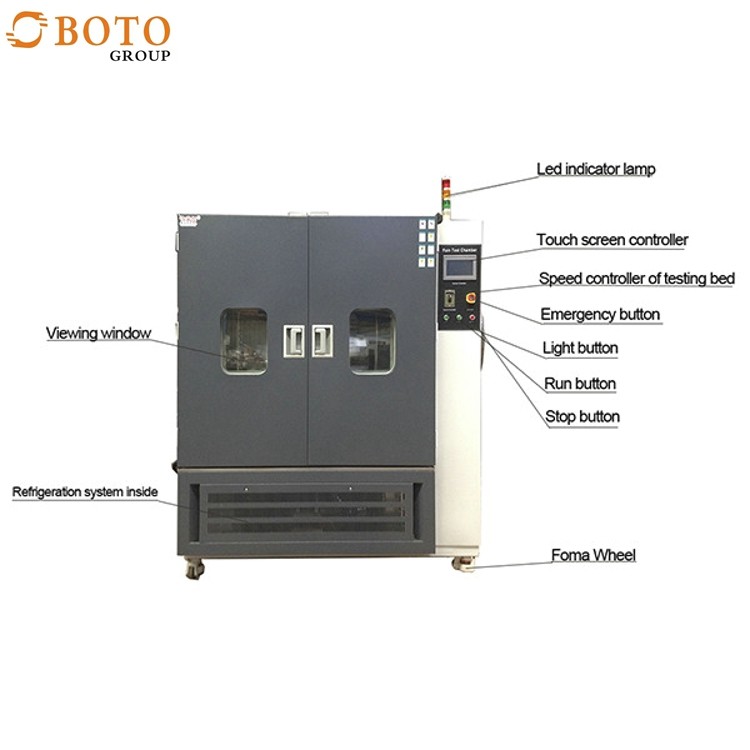

● Large viewing window with Interior lighting, easy to observe.
● Standard and Custom, We have different types for different sizes of samples.
● Water circulation system to save water and cost.
Waterproofing test class:
There are waterproof testing requirements for portable, outdoor and automotive electronics. IEC, MIL, ETSI and SAE have formulated corresponding testing requirements internationally.
Rain test box is mainly used in electronic, electrical, aerospace, military and other scientific research units of external lighting, signal devices and car lamp shell protection test.
Aboout product:
Features of EN/ UL Rain test chambers:

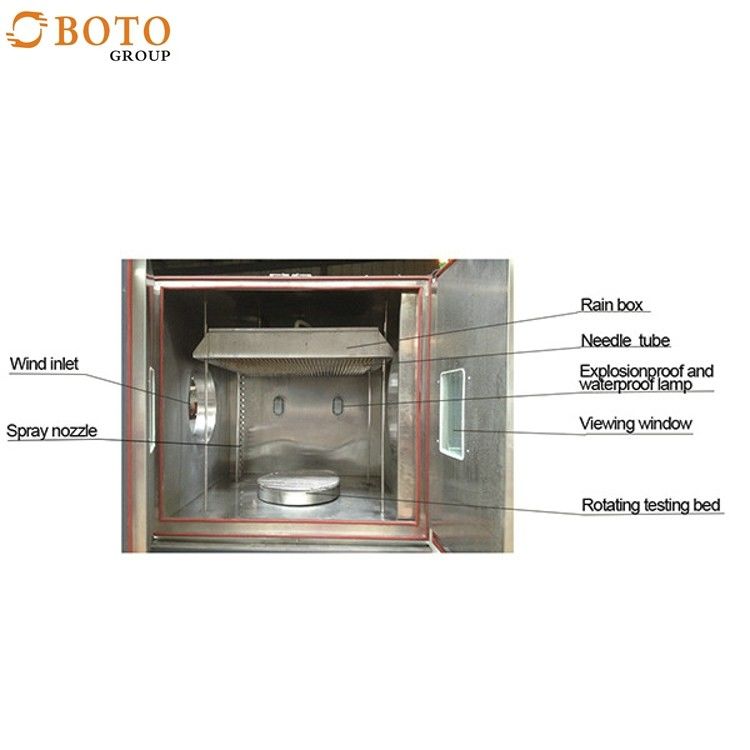

Rotating rain and spray nozzles designed to JIS specifications
Speed control for the rotating spray nozzles
Stationary product shelf - A rotating shelf is optional: see options
Water pressure regulators, gauges and flow meters
Special high-volume floor drain system to rapidly drain water out of the chamber
Interior chamber size is the smallest possible area using the JIS specified nozzles
Other sizes and capabilities available upon request. Please contact us with your application.
| Model | B-LY | ||
| Internal Dim(mm) | custom | ||
| SOT(mm) | undetermined | ||
| structural features | Radius of arc pendulum tube | 400mm | |
| Right Angle pendulum tube length | 500mm | ||
| Water jet pressure | 50-400kpa | ||
| Right Angle swing pipe spray diameter | 16mm | ||
| Water tank material | High-grade stainless steel plate | ||
1. After-sales service commitment:
Transport method and packaging instructions
• Package:Wooden cases.
