| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-107(A-D) |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| External Dim: | 143x210x170 | Interior: | SUS#304Stainless Steel Plate |
|---|---|---|---|
| Model: | B-TCT-401 | Low Temp Range: | -10℃--60℃ |
| Test Temp Rang: | -40℃-150℃ | HighTemp Rang: | ＋80℃～200℃ |
| Internal: | 40x35x35 | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| High Light: | SUS304 Lab Drying Oven,Intelligent Lab Drying Oven,32bit Environmental Test Chambers |
||

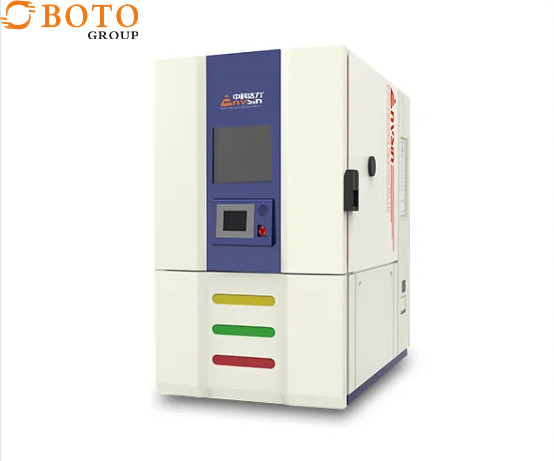

Lab Drying Environmental Test Chambers GB/T2423.1.2-2001 Three Box-Type Hot And Cold Impact Chamber
This test chamber is suitable for assessing the ability of the whole device, components, parts to withstand sudden changes in temperature. The thermal test can understanding of the influence of the test sample on the temperature change one time or several times.
Features:
1.Thermal shork chamber in each zone for peak demand of heating and cooling. Provides extra thermal energy to efficiently meet the MIL-STD 883 requirements.

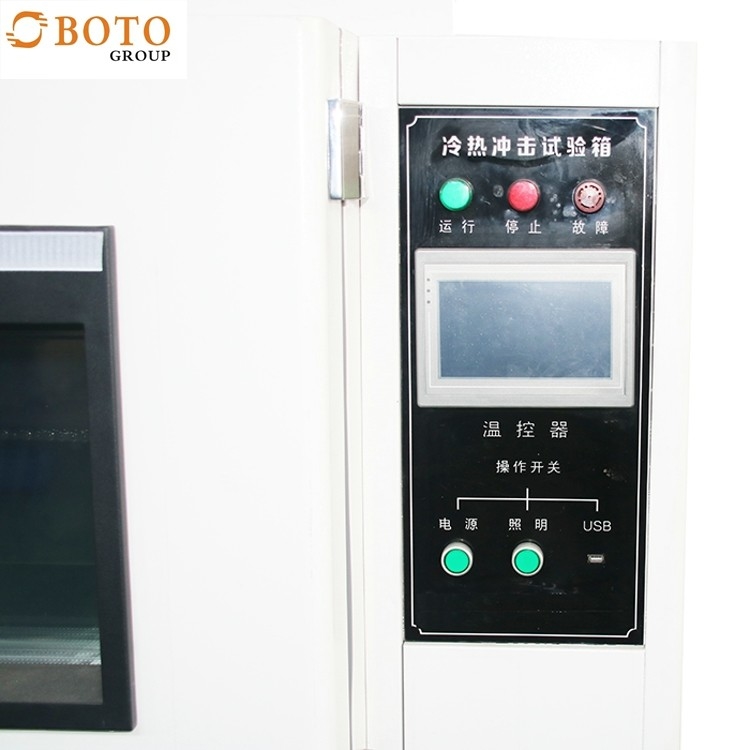

2.Temperature recorder provides 24 hour part temperature recording as the load travels from zone to zone. Using touch-control graph control as operation interface, easy to operate.
3.The system can be used for automatic Circulation Shock or manual selective shock, capable of setting two zones or three zones shocks as well as cold and thermal shock start-up.
4.Custom-made and optional accessories available.
Corresponding Standard:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735 EIA - 364-59
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
| Model | B-TCT-401 | B-TCT-402 | B-TCT-403) | B-TCT-501 | B-TCT-502 | B-TCT-503 | B-TCT-601 | B-TCT-602 | B-TCT-603 | |
| Internal (CM) | 40x35x35 | 50x40x40 | 60x50x50 | 40x35x35 | 50x40x40 | 60x50x50 | 40x35x35 | 40x50x40 | 60x50x50 | |
| External Dim(CM) | 143x210x170 | 154x212x170 | 166x220x180 | 143x210x170 | 156x210x170 | 166x220x180 | 143x210x170 | 156x210x190 | 166x220x180 | |
| Low Temp Range | -10℃--60℃ | -10℃~-70℃ | -10℃--80℃ | |||||||
| Test Temp Rang | -40℃-150℃ | -55℃~150℃ | -65℃~150℃ | |||||||
| HighTemp | +80℃-200 ℃ lvarious specifications applicablel |
|||||||||
| Recovery time | 3 to 5 minutes | |||||||||
| Temp Fluctudtiont | ±2 ℃(various specifications applicable) | |||||||||
| Interior | SUS#304Stainless steel plate | |||||||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||||||
| Power Source | AV:380V 50/60Hz | |||||||||
| Power(KW) | 16KW | 19KW | 19KW | 19KW | 20.5KW | 22KW | 19KW | 26KW | 33KW | |
Our Company:
Packing/Shipping:
FAQ:
Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally,
we offer 12 months for the FREE maintenance, while considering of sea transportation,
we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find
the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
