| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-ZW |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-ZW | Ultraviolet Wavelength: | 290nm-400nm UV-A、UV-B、UV-C |
|---|---|---|---|
| Internal: | 45x117x50 | External Dim: | 58x128x135 |
| Humidity Range: | ≥95%R.H | Distance Between Tubes: | 35mm |
| Distance Between Sample And Tube: | 50mm | Material: | 304 Stainless Steel Plate |
| Lamp Wattage: | 40W | Safety Protection: | Leakage, Short Circuit, Over Temperature, Water Shortage, Over Current Protection/controller Power Failure Memory |

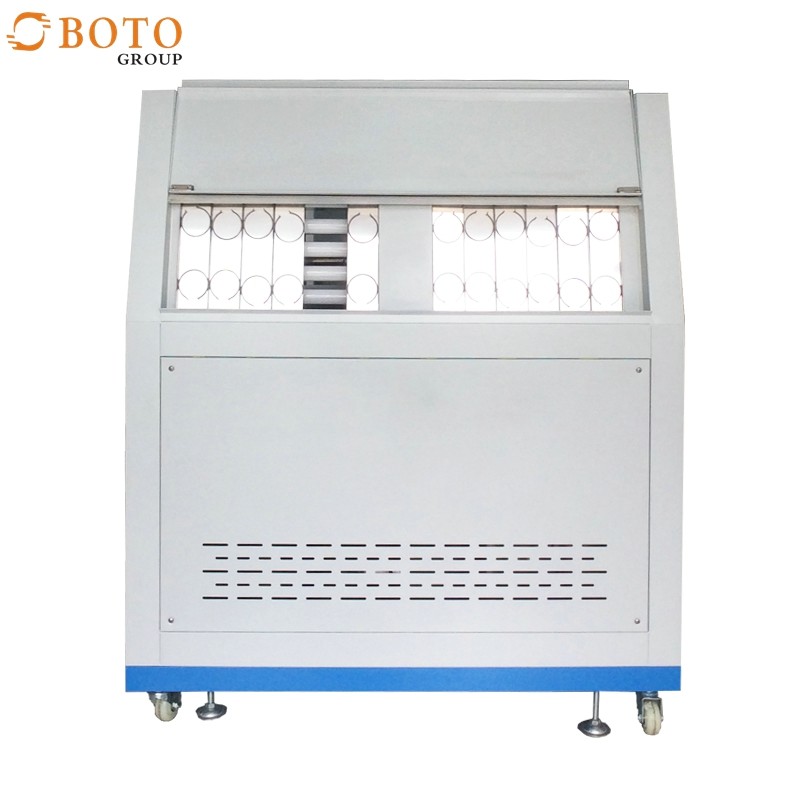

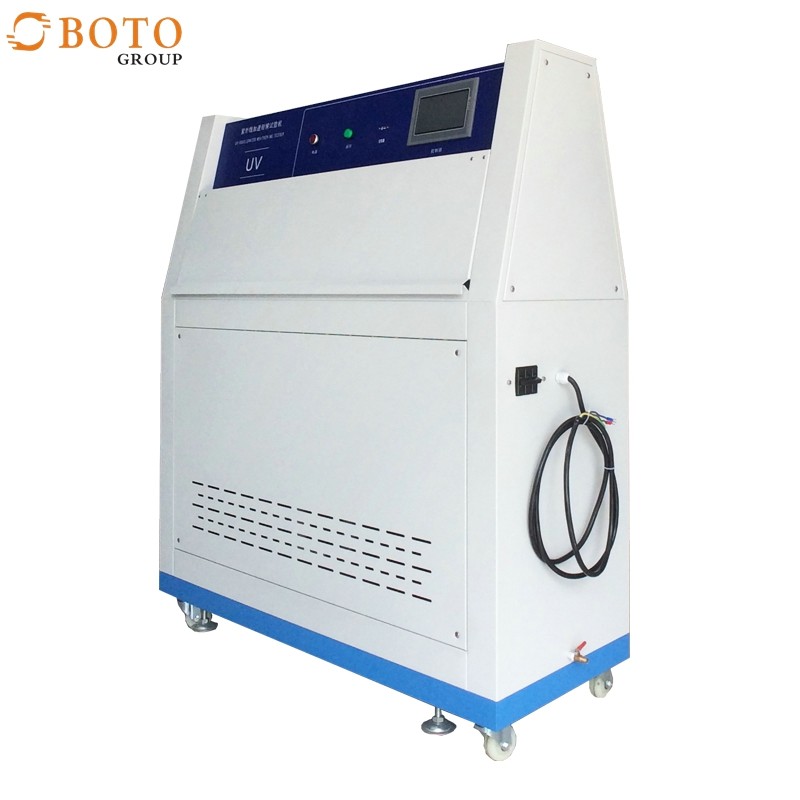

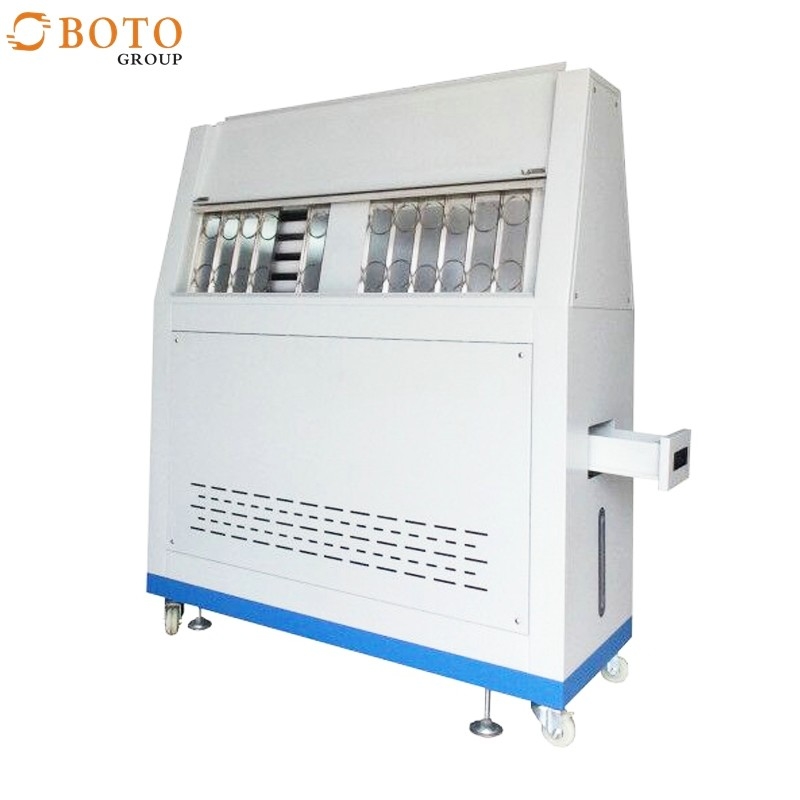

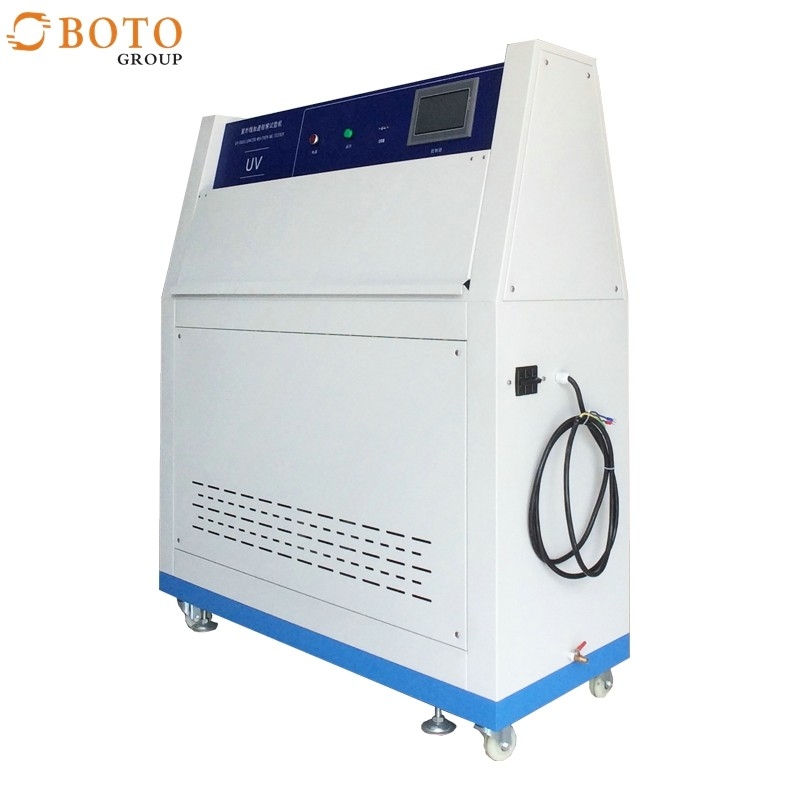

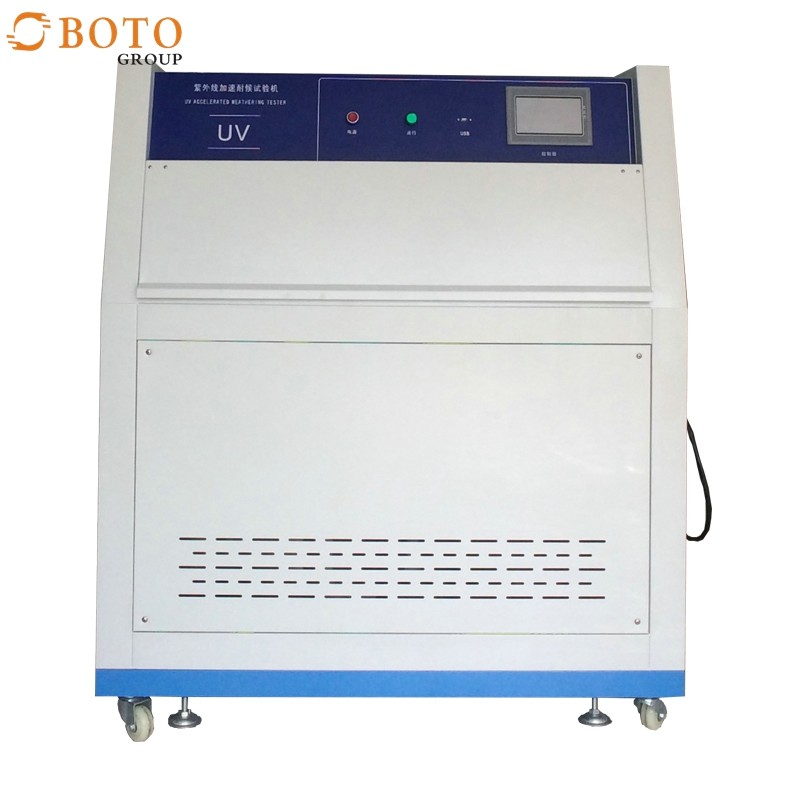

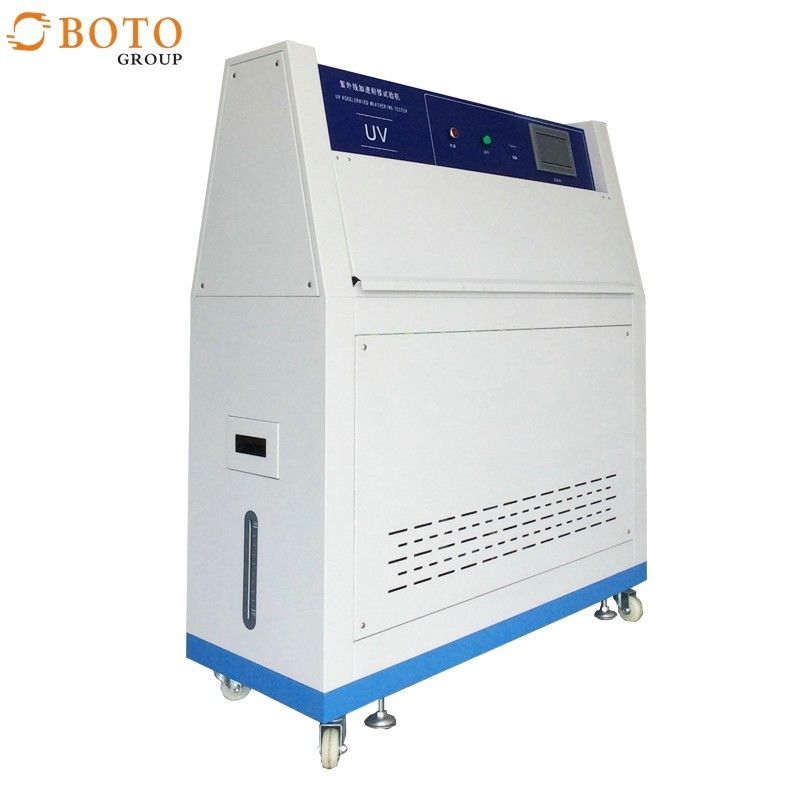

Environmental Test Chambers VG95218-2 UV Aging Test Chamber B-ZW Climatic Chamber UV-A Mathine
UV weathering test chamber is to simulate the sun lighting, and it’ s specialized in the simulation of products in outdoors for a long time. The ultraviolet radiation in the sun is destructive on its exposure, only a few days or weeks, the equipment can
reproduce the destruction outdoors for months or years. And then to see whether the product has fading, discoloration, brightness decline, powder, cracking, blurred,brittle, decreased strength and oxidation phenomena, while it can reproduce the
destruction of rain and dew.
user-friendly design:

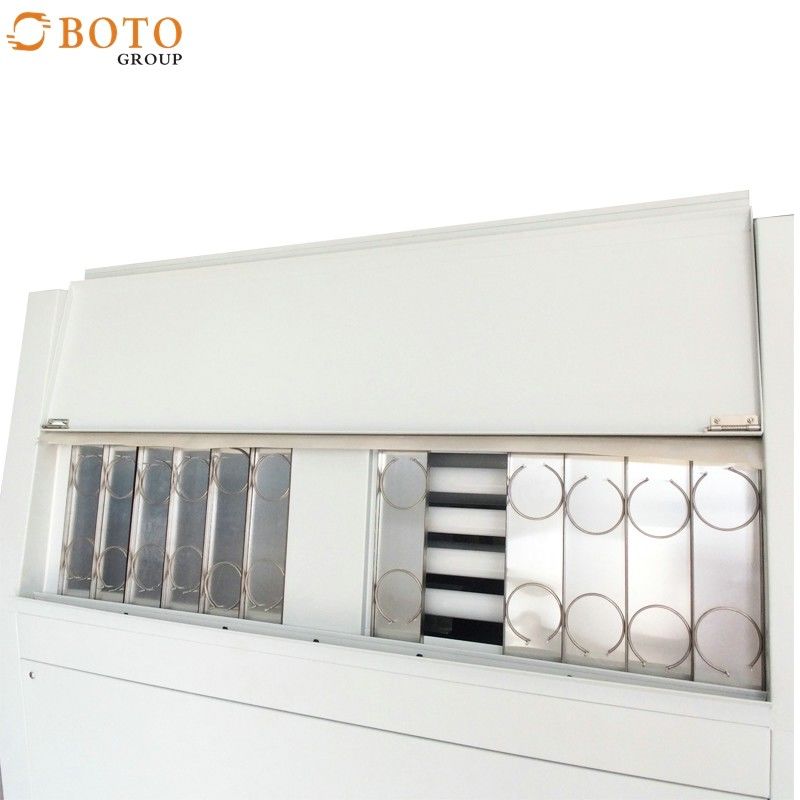

Unique design mirror reflection system to ensure a large and sufficiently uniform in exposure, also can enhance light irradiance and shorter sample exposure time.
Slides out of sample tray for easy placement of multiple samples, it can be placed on the bottles, test tubes, petri dishes and other special samples.
Can be interchanged the Xenon lamp with U.S brand, the life of lamp up to 1500 hours.
Adopt PLC touch screen controller from SIEMENS, easy to observe and operate.
Touch screen controller (SIEMENS)
It has the following performance characteristics:
The heating mode is the inner tank heating, fast heating and uniform temperature distribution
The drainage system uses reflux type and U-type sedimentation device to drain water
The distance between the sample surface and the UV lamp plane is 50 mm and parallel
The actual studio consists of test samples and supports to form the inner wall of the box, trapezoidal
Automatic water refill of tank water level
The lid is bidirectional clamshell type, easy to open and close
High quality fixed PU movable wheel is used at the bottom of the test chamber
Model |
B-ZW | ||||
| Internal Dim(DxWxH) | 50x75 | ||||
| External Dim(DxWxH) | 58x128x135 | ||||
| power(kw) | 4KW/3.2kW | ||||
| performance index | Temperature range | RT+10℃-70℃ | |||
| Humidity range | ≥95%R.H | ||||
| Distance between tubes | 35mm | ||||
| Distance between sample and tube | 50mm | ||||
| ultraviolet wavelength | 290nm-400nm UV-A,UV-B,UV-C | ||||
| Lamp wattage | 40W | ||||
| safety protection | Leakage, short circuit, over temperature, water shortage, over current protection/controller power failure memory | ||||
Our company:
Packing/Shipping:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
