| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-107(A-D) |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-TCT-401 | Internal Dim （CM）: | 30x30x30 |
|---|---|---|---|
| External Dim（CM）: | 118x185x180 | Sample Weight: | 5KG |
| Low Temp Range: | -10℃--60℃ | HighTemp Rang: | ＋80℃～200℃ |
| Recovery Time: | Within 3 Minutes | Interior: | SUS#304Stainless Steel Plate |

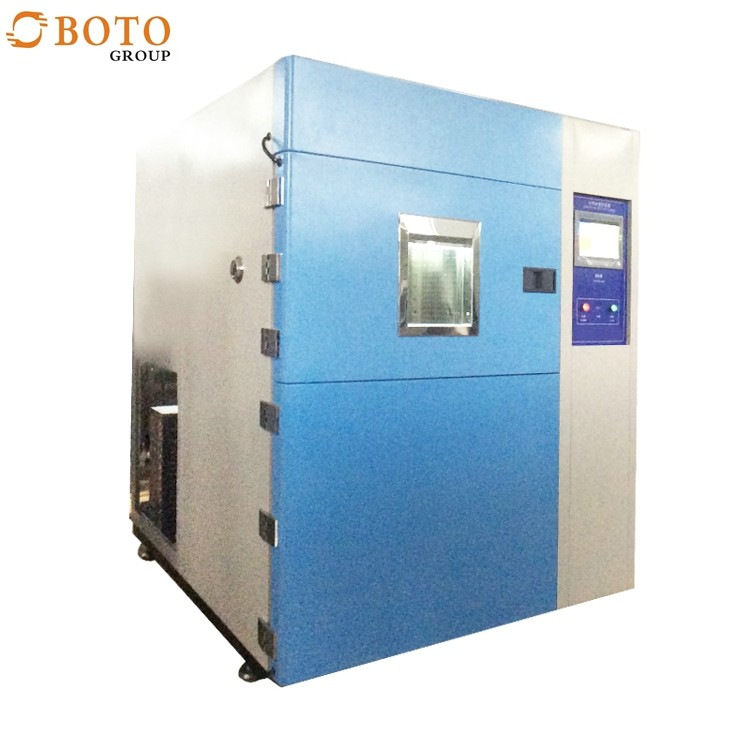

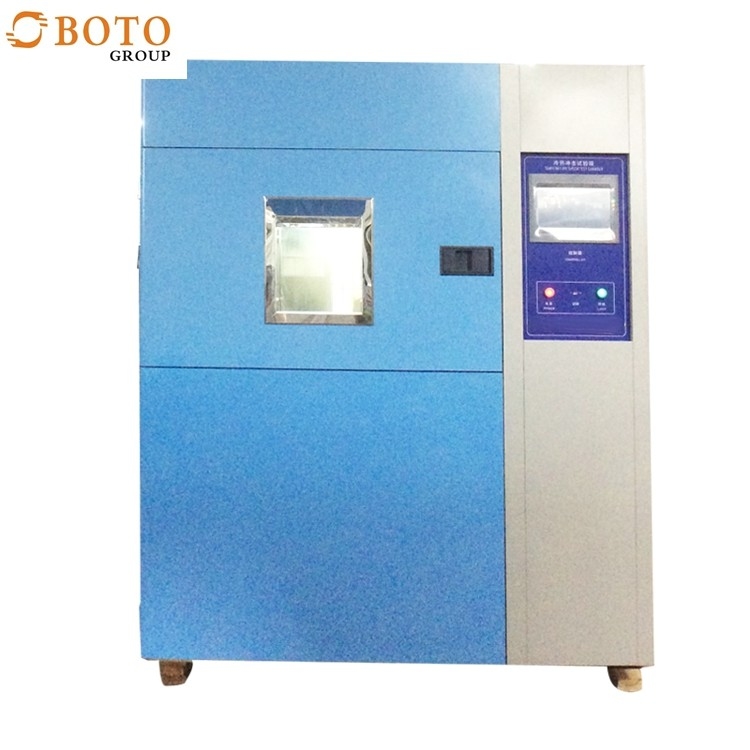

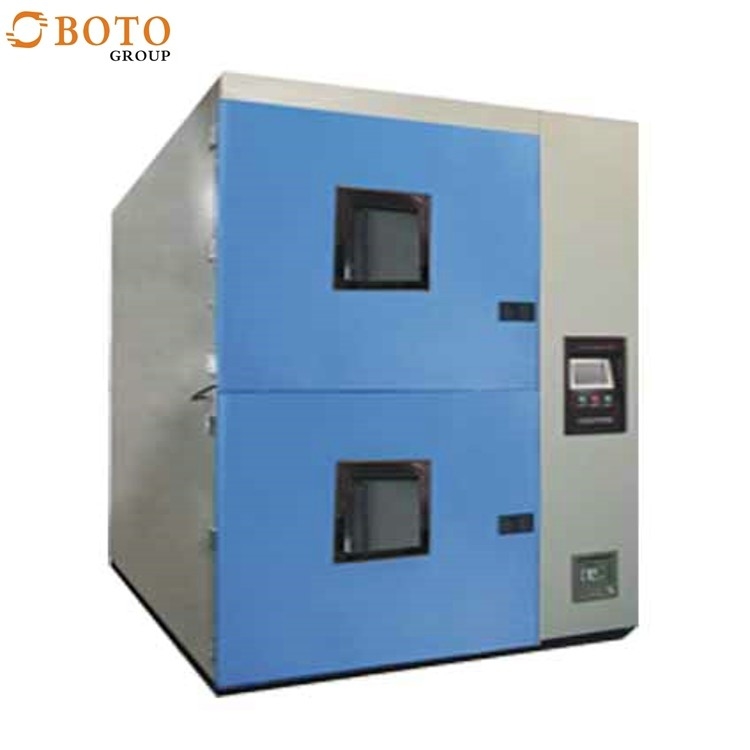

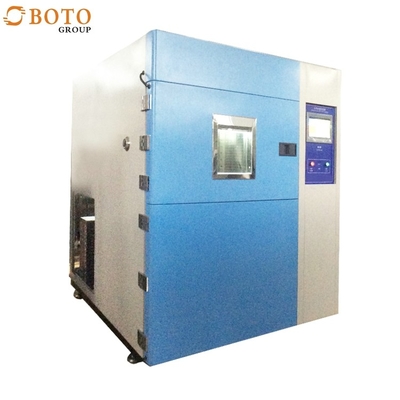

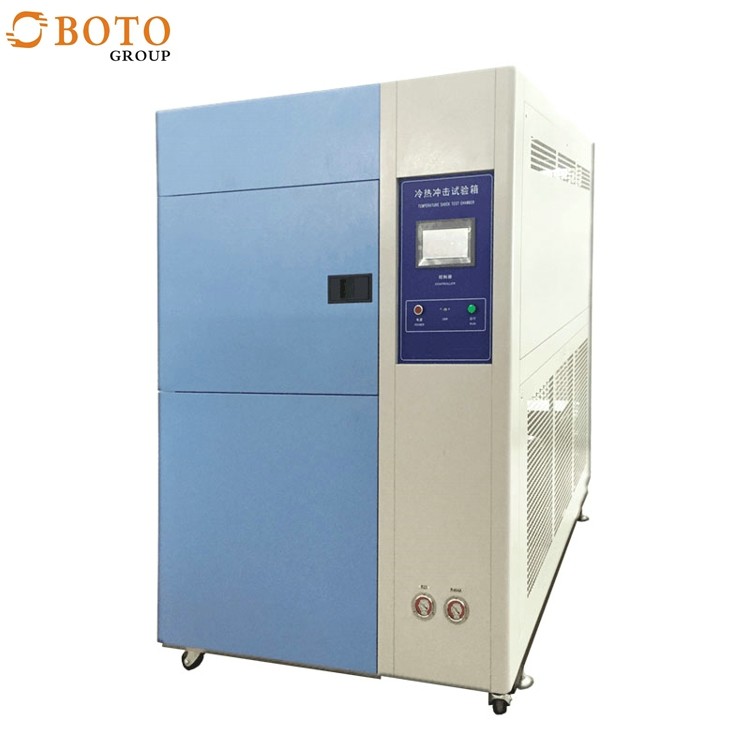

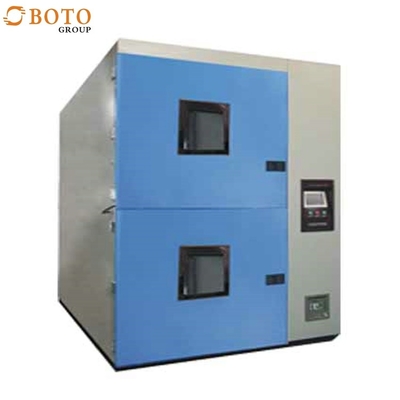

Environmental Test Chambers Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Laboratory Equipment B-TCT-401
The two-box temperature impact test box is suitable for the safety performance test of electronic components to provide reliability test, product screening test, and so on. At the same time, through this equipment test, the reliability of products and product quality control can be improved.
Two-box temperature impact test box adopts upper and lower boxes (upper box high temperature, lower box low temperature). In the middle is blue extraction, which is the place where samples can be placed. Blue extraction switches up and down through the transmission device, and makes rapid conversion between high and low temperature two boxes, so as to realize temperature impact.
The product is suitable for the safety performance test of electronic components to provide reliability test, product screening test and so on. At the same time, through this equipment test, the reliability of the product and the quality control of the product can be improved. High and low temperature impact test box is aviation, automobile, household appliances, scientific research and other fields of necessary testing equipment, assessment and determination of electrical, electronic, automotive electrical appliances, materials and other products, in the high and low temperature test of the temperature environment impact changes after the parameters and performance, the use of adaptability, suitable for schools, factories, military, research, and other units.
◆ Beautiful appearance, reasonable structure, advanced technology, exquisite material selection, with simple and convenient operation performance and reliable equipment performance.
◆ The equipment is divided into high temperature box, low temperature box, test box three parts, adopt the unique heat breaking structure and heat storage cold storage effect, the test object to be measured is completely static, the application of cold and hot air circuit switch will be cold, hot temperature into the test area to achieve the purpose of cold and hot impact test.
Adopting the most advanced measuring device, the controller adopts the large color LCD man-machine touch dialogue LCD man-machine interface controller, simple operation, easy to learn, stable and reliable, Chinese and English display the complete system operation status, implementation and setting program curve.
With 96 test specifications independent setting, impact time 999 hours 59 minutes, cycle cycle 1~999 times can be set, can realize the automatic operation of the refrigerator, the maximum degree of automation, reduce the workload of the operator, can automatically start, stop running at any time;
The left side of the box has a test hole with a diameter of 50mm, which can be used for external power load wiring test parts.
◆ Can independently set the function of high temperature, low temperature and hot and cold impact three different conditions, and in the execution of hot and cold impact conditions, you can choose two or three trough type and cold, hot impact function, with high and low temperature testing machine.
◆ With full automatic, high precision system loop, any part action, fully P.L.C locking processing, all using P.I.D automatic calculation control, high precision temperature control.
◆ Advanced scientific air circulation circulation design, so that indoor temperature uniformity, avoid any dead corners; Complete safety protection device, avoid any potential safety risks, ensure the long-term reliability of the equipment
Automatic (manual) defrosting can be set the number of cycles and defrosting times.
Model:
| (Model) | B-TCT-401 | B-TCT-402 | B-TCT-403) | B-TCT-501 | B-TCT-502 | B-TCT-503 | B-TCT-601 | B-TCT-602 | B-TCT-603 | |
| Internal Dim (CM) | 30x30x30 | 40x40x40 | 50x50x50 | 30x30x30 | 40x40x40 | 50x50x50 | 30x30x30 | 40x40x40 | 50x50x50 | |
| External Dim(CM) | 118x185x180 | 128x195x190 | 138x205x200 | 118x185x180 | 128x195x190 | 138x205x200 | 118x185x180 | 128x195x190 | 138x205x200 | |
| Sample Weight | 5KG | 10KG | 20KG | 5KG | 10KG | 20KG | 5KG | 10KG | 20KG | |
| Low Temp Range | -10℃--60℃ | -10℃~-70℃ | -10℃--80℃ | |||||||
| Test Temp Rang | -40℃-150℃ | -55℃~150℃ | -65℃~150℃ | |||||||
| HighTemp Rang | +80℃-200 ℃ lvarious specifications applicablel |
|||||||||
| Recovery time | Within 3 minutes |
|||||||||
| Interior | SUS#304Stainless steel plate | |||||||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||||||
| Power Source | AV:380V 50/60Hz | |||||||||
| Power(KW) | 13.5KW | 15KW | 19KW | 13.5KW | 15KW | 19KW | 15KW | 19KW | 22KW | |
