| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-SST-160 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-SST-160 | Internal: | 160x100x50 |
|---|---|---|---|
| External Dim: | 230x130x149 | Low Temp Range: | -10℃--60℃ |
| Test Temp Rang: | -40℃-150℃ | HighTemp Rang: | ＋80℃～200℃ |
| Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| PH Value: | Saline Test Method:6.5-7.2/Corrosion Test Method:3.0-3.2 | Power Source: | AC:220V 50Hz/AC:380V 60Hz |

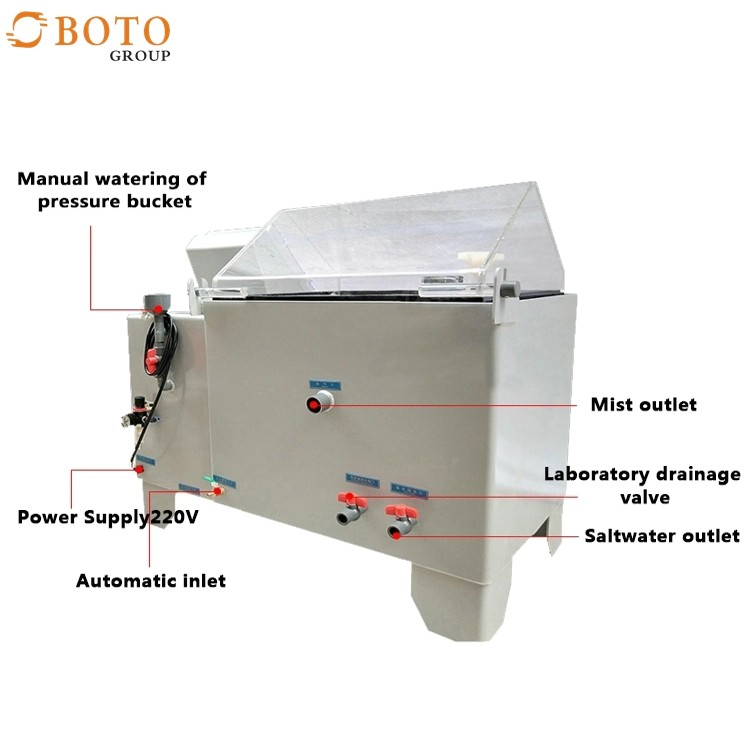

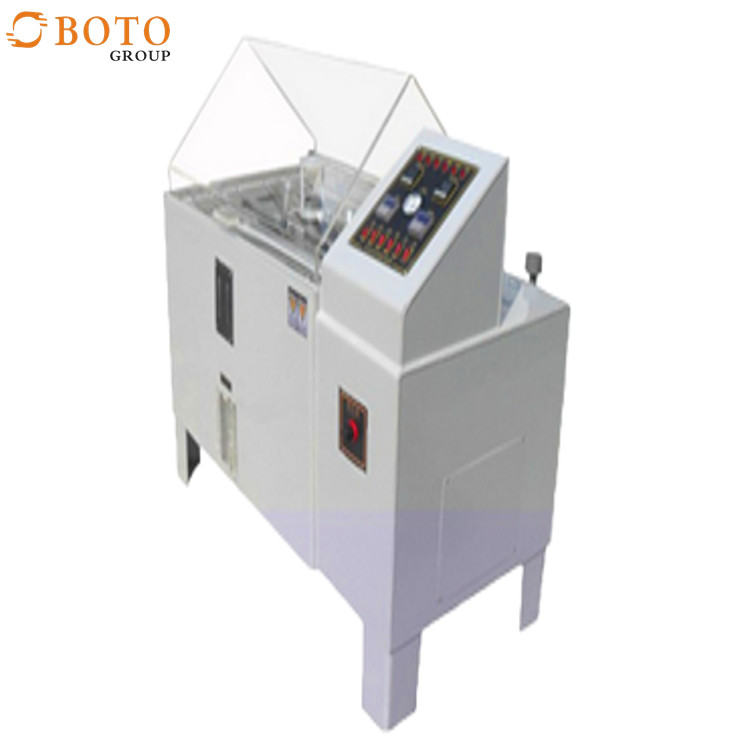

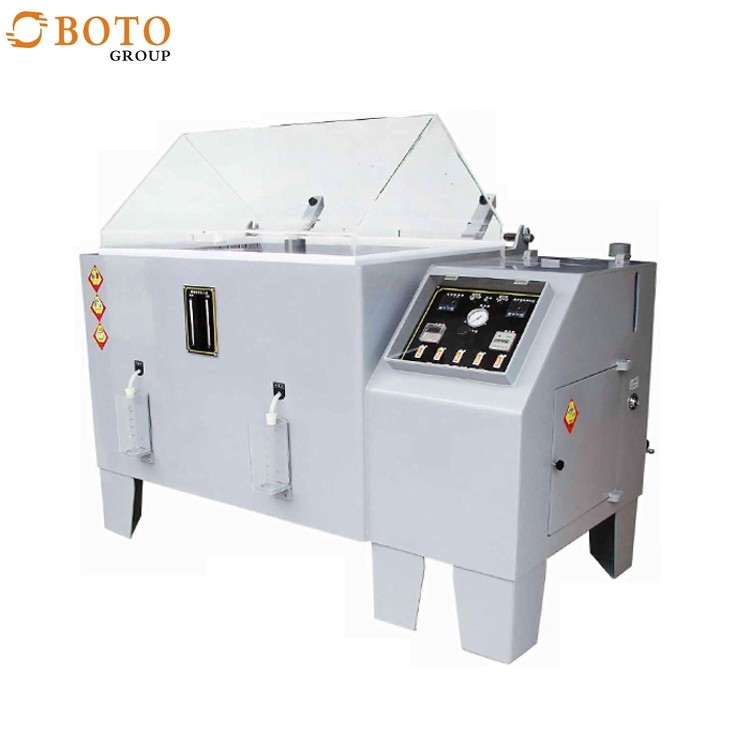

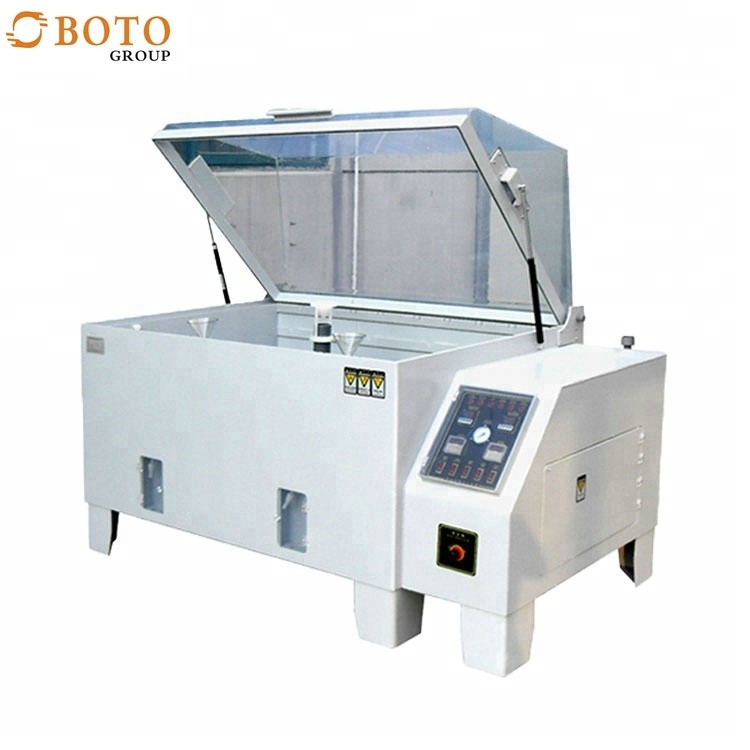

GB10485-89 ISO Climatic Chamber Manufacturer Salt Spray Corrosion Test Chamber Machine
Description:
Salt spray corrosion test chamber is used surface treatment of various material including mechanical, national defense, light industry, electronic, instruments etc. after these anti-corrosive treatment to test the corrosion resistance of their products.
This tester can be used to execute solution as NSS (Neutral Salt Spray), as well as ASS (Acetic acid Salt Spray).
The products comply with :CNS, ASTM, JIS, ISO standard saltwater spray test is aimed at the surface of various materials by coating, electroplating, anode treatment, corrosion prevention oil and other anti-corrosion treatment, test the corrosion resistance of its products.
Feature:
Rotating rain and spray nozzles designed to JIS specifications
Speed control for the rotating spray nozzles
Stationary product shelf - A rotating shelf is optional: see options
Water pressure regulators, gauges and flow meters
Special high-volume floor drain system to rapidly drain water out of the chamber
Interior chamber size is the smallest possible area using the JIS specified nozzles
Standard:
1.GB10485-89
2.GB4208-93
3.GB/T4942
4.Corresponding IEC ISO & ASTM standards
Model |
B-SST-60 | B-SST-90 | B-SST-120 | B-SST-160 | B-SST-200 | |
| Internal Dim(W*H*D) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 | |
| External Dim(W*H*D) | 108x63x119 | 140x80x139 | 178x120x149 | 230x130x149 | 270x130x159 | |
| Cabinet Material | Corrosion-resistant polymer material | |||||
| Laboratory temperature (℃) | A:25℃~70℃ B:0℃-70℃ C:-20℃-70℃ D:-40℃-70℃ | |||||
| Saturated air barrel temperature(℃) | 35±1℃50±1℃ Saline test method:35±1℃/Corrosion test method:50±1℃ |
|||||
| Saturated air pressure (kg/c㎡) | 0.8-2.0±0.01 | |||||
| (ml／80c㎡.h) Salt spray sedimentation rate (ml/80c㎡.h) |
1-2ml/80 cm2.h(Controllable) | |||||
| PH value | Salt water test method:6.5～7.2／Test method for corrosion resistance:3.0-3.2 Saline test method:6.5-7.2/Corrosion test method:3.0-3.2 |
|||||
| Power Source | AC:220V 50Hz/AC:380V 60Hz | |||||
