DIN50021 ISO Climate Test Chambers Salt Spray Corrosion Test Chamber Machine
The salt spray test chamber is a climate simulation device that tests the corrosion of electronic equipment, metallic material, as well as some surface treatment--coating, galvanizing, organic/inorganic coating, anodizing treatment, rust-proof oil coating, etc. Performance indicators in line with requirements of GB / T5170.8 Electrical and Electronic Products, Environmental Testing Equipment, the Basic Parameters of the Test Method. The salt spray corrosion test chamber according to GB / T2423.17 Electronic and Electrical Products Basic Environmental Test Procedures Test: Salt Spray Test Method for neutral salt spray test can also be used for acetic acid salt test.
Advantages of Salt Spray Environment Test Chamber
● Heater strip housed in base of chamber, effectively & evenly heating, Easy to exchange.
● Brine in high uniformity, not easy to caking, not blocking atomizer system
● Quartz nozzle, high temperature resistant, no blocking, easy to clean.
The products comply with :CNS, ASTM, JIS, ISO standard saltwater spray test is aimed at the surface of various materials by coating, electroplating, anode treatment, corrosion prevention oil and other anti-corrosion treatment, test the corrosion resistance of its products.
- Features
* Fine workmanship, beautiful appearance, high transparency, pneumatic open cover.
* PVC plate, special treatment corrosion resistance, plastic steel V-shaped frame and stainless steel pipe Angle.
* With low water level, over temperature safety protection device, overload short circuit protection.

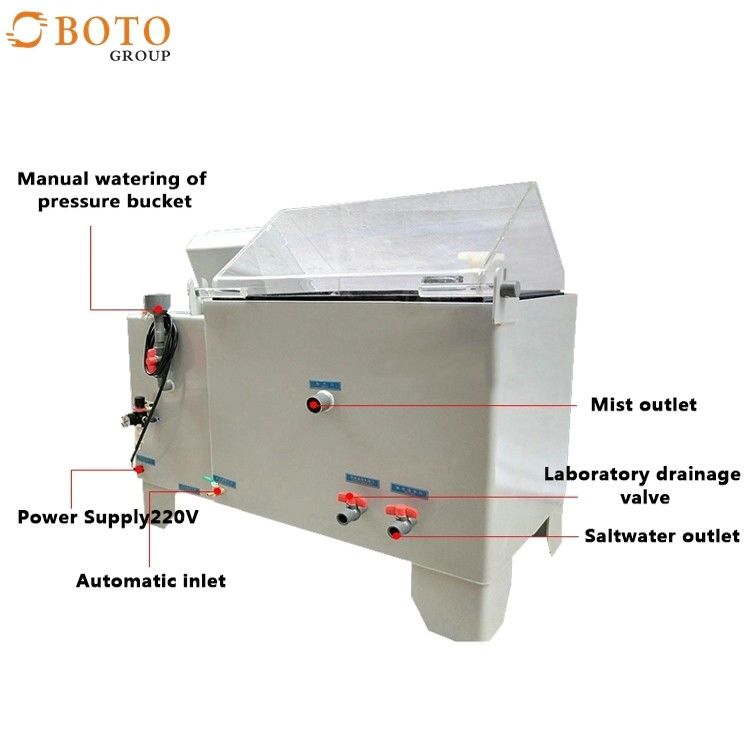

* Adopt automatic/manual water adding system, with automatic/manual water replenishment function when the water level is insufficient.
* Test time can be set multi-functional, with power failure memory function.
* Temperature controller using digital display, PID control.
* The test refill bottle adopts hidden type with water level perspective window, which is easy to clean and not easy to break.
product description:
Model |
B-SST-60 |
B-SST-90 |
B-SST-120 |
B-SST-160 |
B-SST-200 |
Internal Dim(W*H*D) |
60x45x40 |
90x60x50 |
120x100x50 |
160x100x50 |
200x100x50 |
External Dim(W*H*D) |
108x63x119 |
140x80x139 |
178x120x149 |
230x130x149 |
270x130x159 |
Cabinet Material |
Corrosion-resistant polymer material |
Laboratory temperature (℃) |
A:25℃~70℃ B:0℃-70℃ C:-20℃-70℃ D:-40℃-70℃ |
Saturated air barrel temperature(℃) |
35±1℃50±1℃
Saline test method:35±1℃/Corrosion test method:50±1℃ |
Saturated air pressure (kg/c㎡) |
0.8-2.0±0.01 |
(ml／80c㎡.h)
Salt spray sedimentation rate (ml/80c㎡.h) |
1-2ml/80 cm2.h(Controllable) |
PH value |
Salt water test method:6.5～7.2／Test method for corrosion resistance:3.0-3.2
Saline test method:6.5-7.2/Corrosion test method:3.0-3.2 |
Power Source |
AC:220V 50Hz/AC:380V 60Hz |
Our Company:
Shanghai BOTO GROUP LTD is a high technology company specializing in integrated incubation systems. We are conveniently located in Shanghai City.
With 20+ years of incubator R&D experience from our technical team, we have developed several series of the advanced integrated hatchery system.
Also we have gained the Authorized Poultry Industry R&D Center and been awarded the High-tech Enterprise by Chinese government. Also, both our company and products are approved by ISO9001, ISO14001, ISO45001, ISO50001
Packing/Shipping:
FAQ:
1. Are a manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
-Yes, we are manufacturer of 1000L Touch Screen Laboratory Equipment Constant Temperature Humidity Climatic Test Chamber/Equipment/Machine/Cabinet . Every machine from our factory has a 12 months product warranty.If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
-If there is no stock, normally, the delivery time is 15-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
-Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine
