| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-TH-48L (A-D) |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-TH-48L (A-D) | Internal Dim: | 30.5x23x29 |
|---|---|---|---|
| External Dim: | 53x68x72 | Relative Humidity: | -40℃(-60℃)-130℃(100℃) |
| Relative Humidity Range: | 20%~98%RH | Power Source: | AV：220V/380V 50/60Hz |
| Power: | 1KW~2KW | Temp Fluctudtiont: | ±0.5℃ |
| Temp Uniformity: | ±1.0℃ | Temp Deviation: | ±1.0℃ |

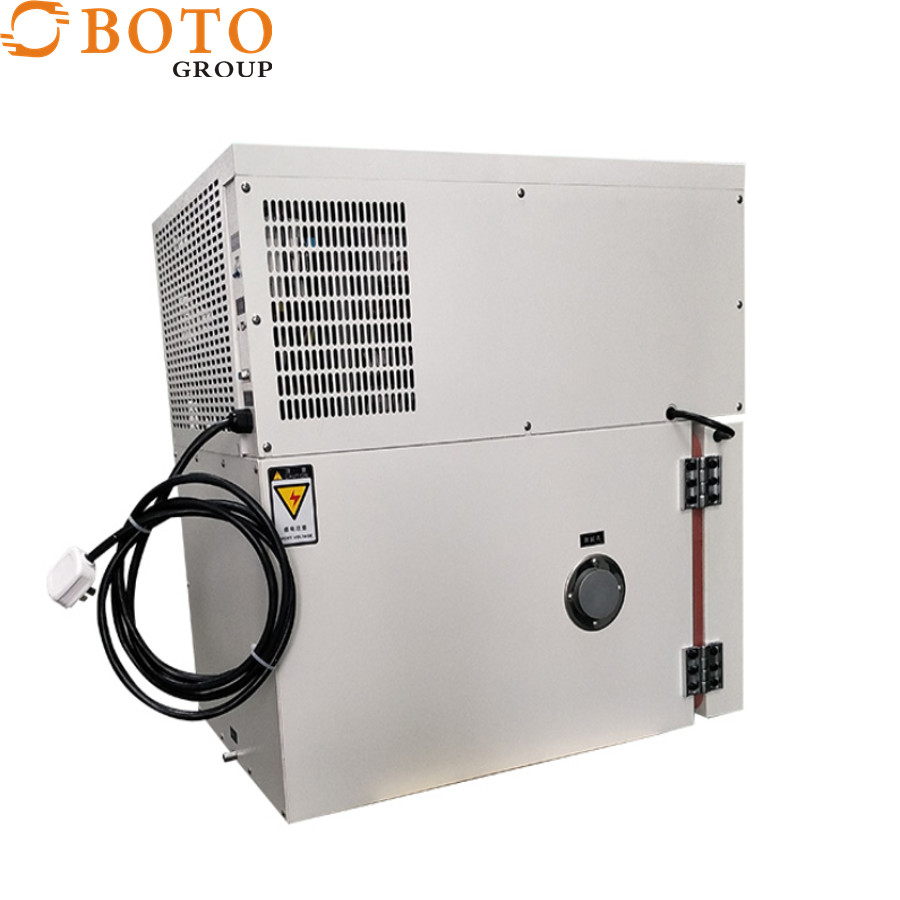

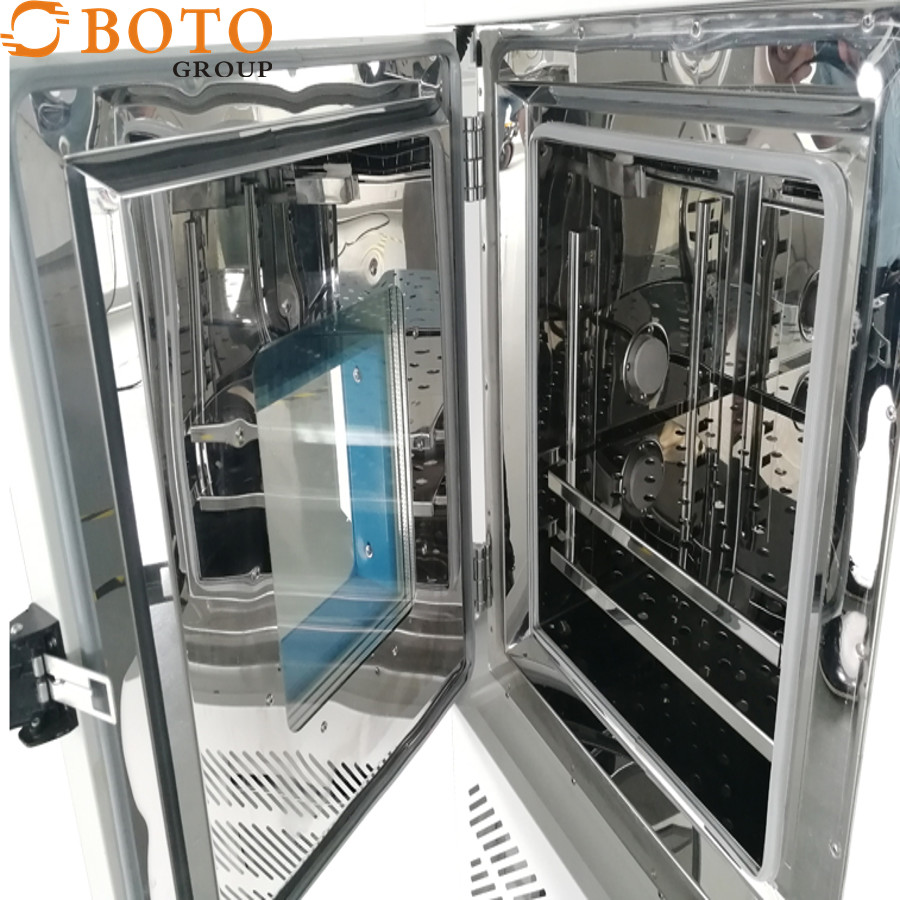

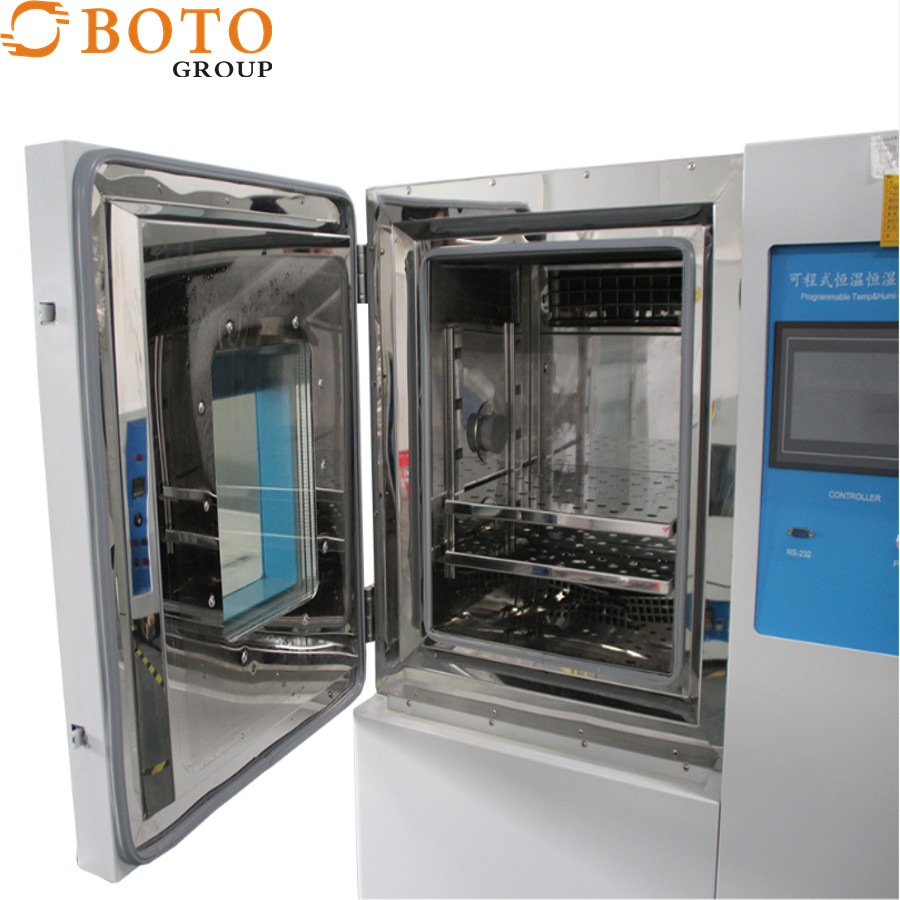

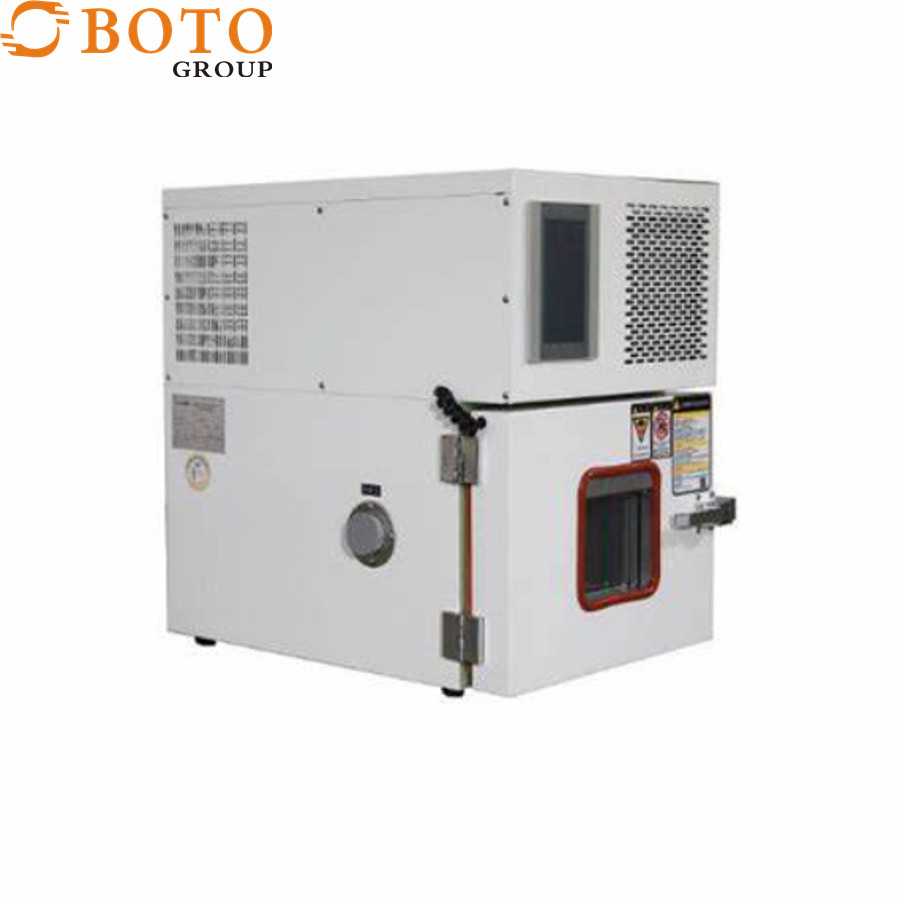

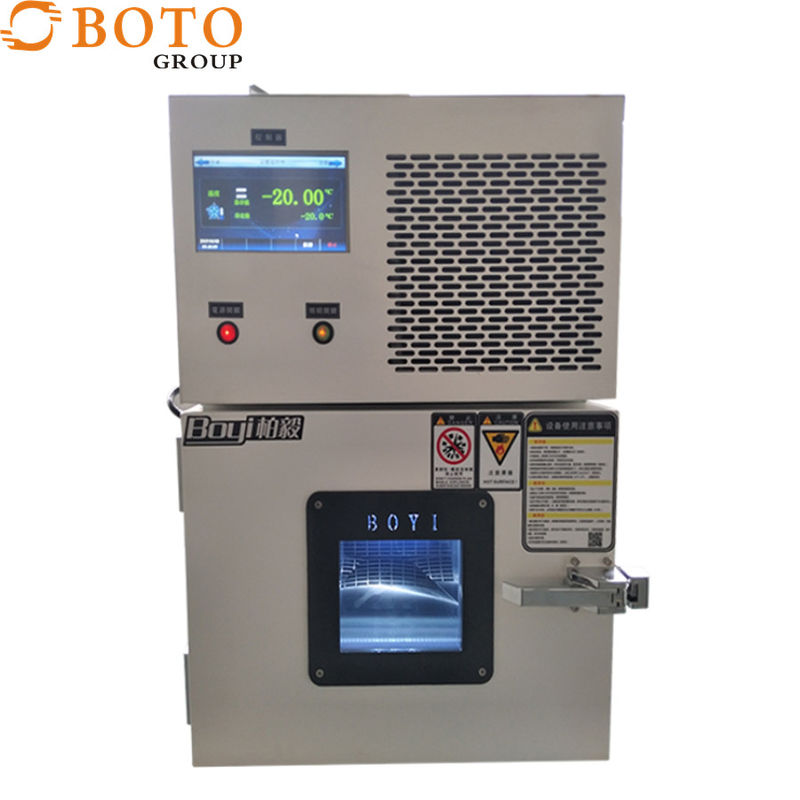

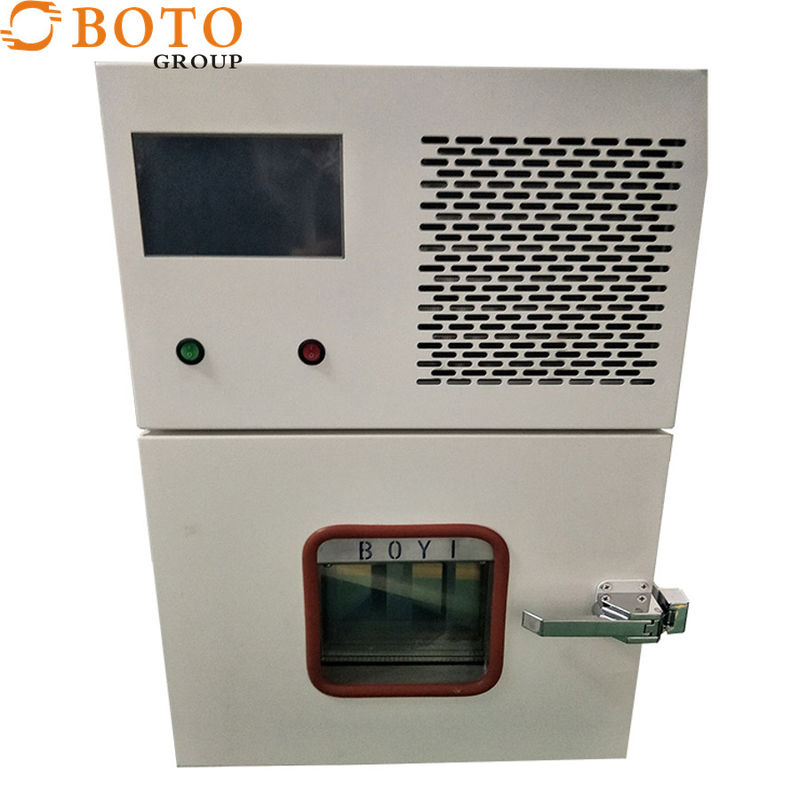

G82423.22—87Nb Environmental Test Chambers ASTM Table Type Constant Temperature And Humidity
Product Description:
Temperature humidity test chamber is use to test material heat,cold,dry resistance, humidity resistance.Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.
Small high and low temperature test box is used to examine and determine the adaptability of electrical and electronic products or materials in the temperature cycle change, the product surface produces high temperature or low temperature environment conditions storage and use. The equipment adopts forced air circulation to maintain the uniformity of temperature in the working room. In order to limit the effect of radiation, the difference between the temperature of each part of the inner wall of the equipment and the temperature specified in the test shall not be more than 8%, and the test samples shall not be exposed to the direct radiation of the heating and cooling elements in the equipment.
Application:
Small High And Low Temperature Test Chamber provides a compact footprint and multi-function test performance. It is very popular for labs and product manufacturers to test various small electronic product, electronic components and materials with simulating temperature and humidity environment condition.
Standard Compliance:
1. IEC 68-2-1 Test A: Low temperature test method.
2. IEC 68-2-2 Test B: High temperature test method.
3. IEC 68-2-3 Test CA: Constant damp heat test method.
4. IEC 68-2-30 Test CB: Alternating damp heat test method.
5. IEC 68-2-14 Test NB: Temperature cycling test method.
6. MIL-STD-810D High temperature test method.
7. MIL-STD-810D Low temperature test method.
8. MIL-STD-810D Damp heat test method.
Product specification:
| Name | Small high and low temperature test chamber | Table type constant temperature and humidity test chamber | ||||
| Model | dry heat | B-T-107(A-D) | B-T-48L (A~D) | |||
| damp and hot | B-TH-48L (A-D) | |||||
| Internal Dim | 30.5x23x29 | 40x40x30 | ||||
| External Dim(W*H*D) | 53x68x72 | 60x80x107 | ||||
| Relative Humidity | ‘-40℃(-60℃)-130℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃) | ’7.081- -60℃~150℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ |
||||
| Relative humidity Range | 20%~98%RH | |||||
| heat-up time | About3℃/min | |||||
| Pull down time | About0.7~1℃/min | |||||
| Temp Fluctudtiont | ±0.5℃ | |||||
| Temp Uniformity | ±1.0℃ | |||||
| Temp Deviation | ±1.0℃ | |||||
| Power Source | AV:220V/380V 50/60Hz | |||||
| Power(KW) | 1KW~2KW | 1.5KW~2.5KW | ||||
About us:
Packing/shipping:
FAQ:
1.what can you buy from us?
Fire Testing Equipment,Environmental Test Chamber,Textile Testing Equipment,Toys Testing Equipment,Wire and Cable Test Machine
2. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.
3. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
