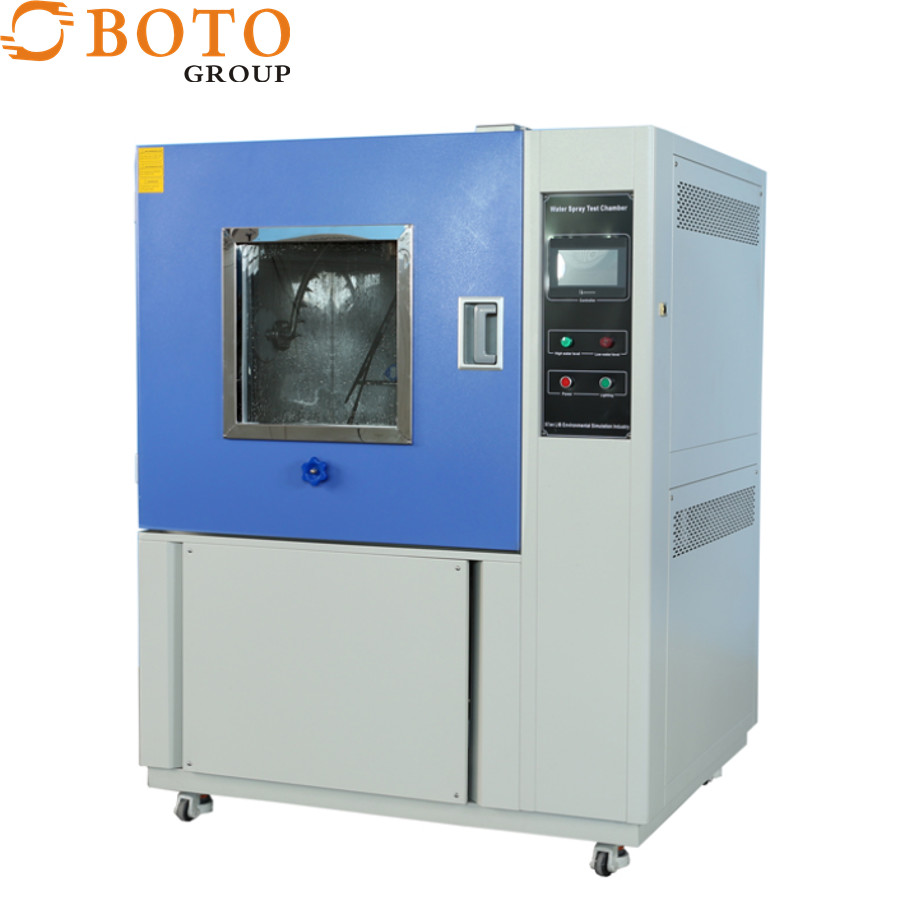

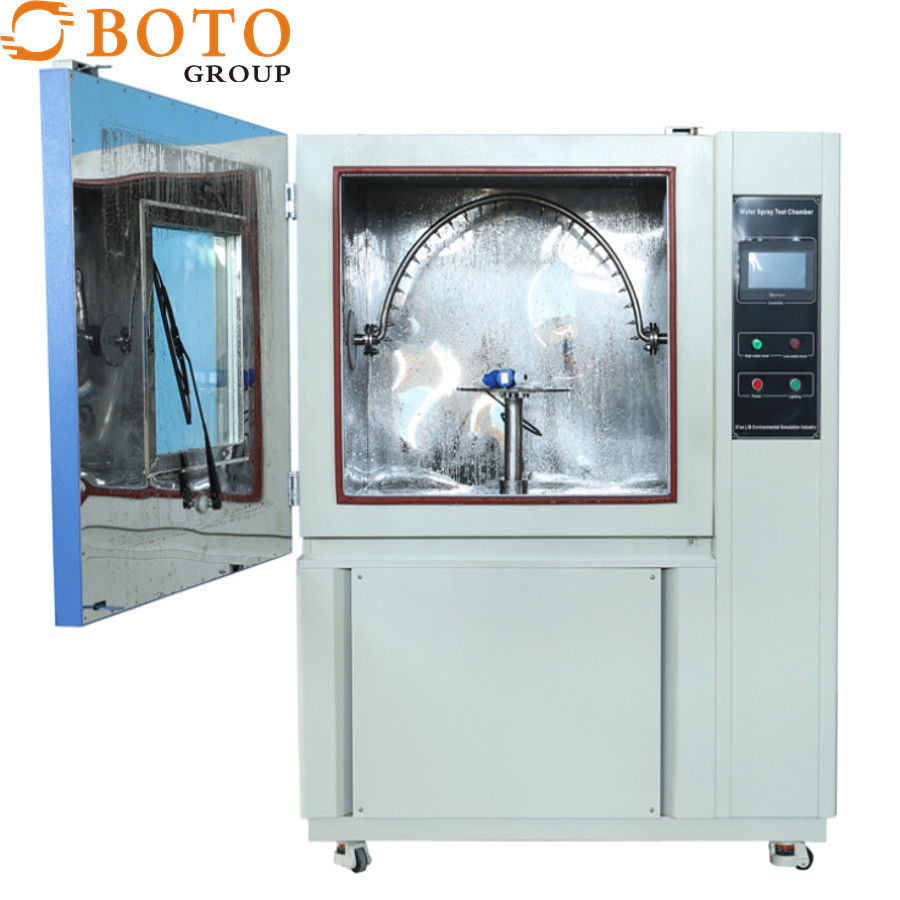

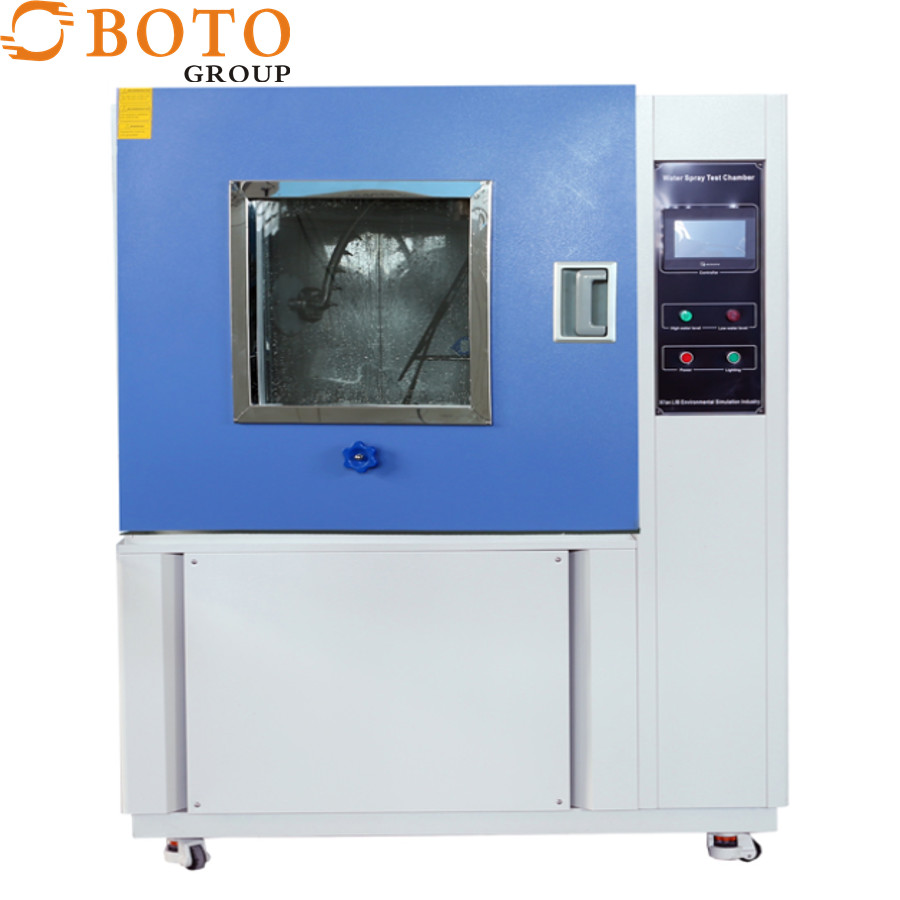

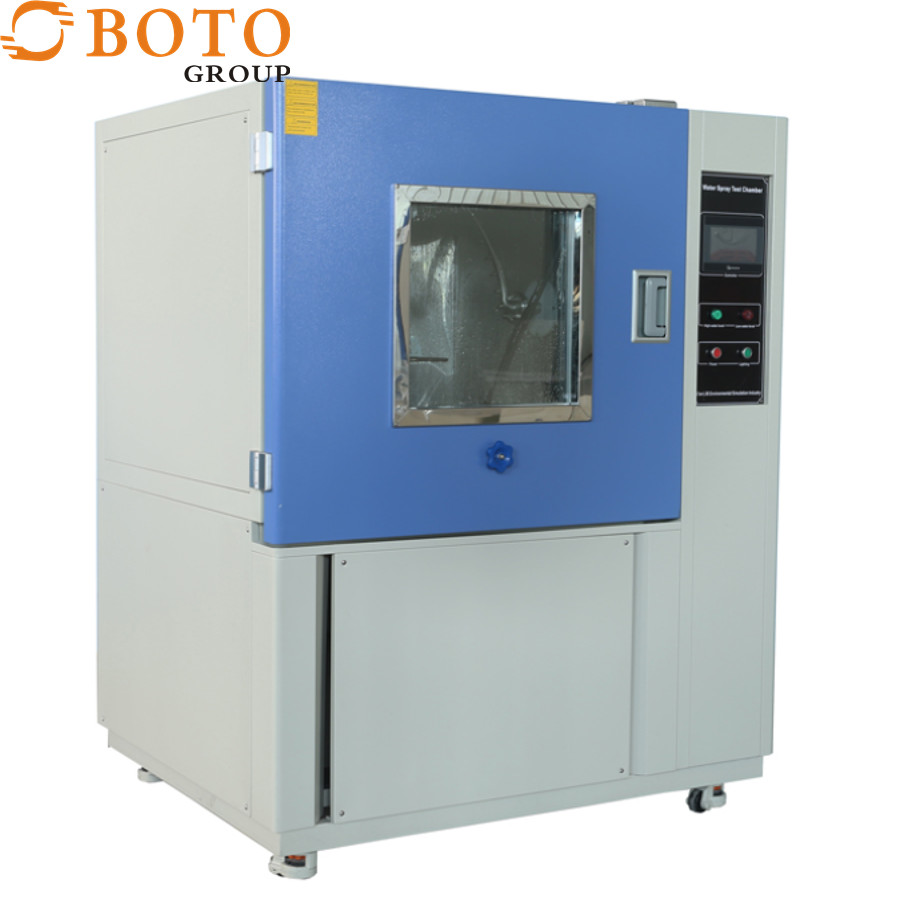

Automatic Laboratory Environmental Test Chambers Machine Rain Test Chamber Simulation Chamber MIL 60529
Product Description
This product meets GB 2423.38-90 “Basic Environmental Test Regulations for Electrical and Electronic Products Test R: Water Test Method ”, GB / T10485-2007, strictly according to the protection of IPX3...IPX4...IPX5...IPX6... grades of GB / T4942.2-93, GB 4208—93, GB 4706, GB 7000 and other corresponding national standards and other relevant technical parameters.Can carry out water test specified by corresponding standards.
In accordance with IEC60529: 2001 “Degrees of protection provided by enclosures (IP Code),GB4208-2008 "Enclosure protection level (IP code)" 14.2.5, 14.2.6 clauses and Figure 6 and GB7000.1 "Lamps Part 1: General Requirements and Tests "9.2.6, 9.2.7 and Figure 9.5 requirements.
Safety protection system
1. Self-protection, three voltage phase loss, phase sequence protection to prevent the pump from reversing.
2. Time accumulator to prevent accidental interruption of the test and to know the interruption time .
3. Motor overload protection device.
4. Equipment overcurrent protection device.
5. With fuse-free protection switch.
6. When the temperature is over, the water level is low, the machine warning light will indicate, and it will automatically stop.
7. Water pressure overload protection switch.
8. Pump overload protection switch.
9. The motor is equipped with an overcurrent protector.
10. Alarm buzzer.
11. Chinese indication screen of failure point.
Waterproofing test class:
There are waterproof testing requirements for portable, outdoor and automotive electronics. IEC, MIL, ETSI and SAE have formulated corresponding testing requirements internationally.
Rain test box is mainly used in electronic, electrical, aerospace, military and other scientific research units of external lighting, signal devices and car lamp shell protection test.
Aboout product:
Features of EN/ UL Rain test chambers:
Rotating rain and spray nozzles designed to JIS specifications
Speed control for the rotating spray nozzles
Stationary product shelf - A rotating shelf is optional: see options
Water pressure regulators, gauges and flow meters
Special high-volume floor drain system to rapidly drain water out of the chamber
Interior chamber size is the smallest possible area using the JIS specified nozzles
Other sizes and capabilities available upon request. Please contact us with your application.
Model:
| Model |
B-LY |
| Internal Dim(mm) |
custom |
| SOT(mm) |
undetermined |
| structural features |
Radius of arc pendulum tube |
400mm |
| Right Angle pendulum tube length |
500mm |
| Water jet pressure |
50-400kpa |
| Right Angle swing pipe spray diameter |
16mm |
| Water tank material |
High-grade stainless steel plate |
Packing/Shipping:
1. After-sales service commitment:
Transport method and packaging instructions
• Package:Wooden cases.
2. Transport method: Per customer’s request.
Equipped with technical data and accessories:
• Technical data:product qualification certificate,operating manual,warranty card.
3. Training:
• If customers have representatives in China, can arrange users come to factory.Our side conduct on-site technical training, to avoid fault improper operation.
4. After-sale service:
• To provide users with the necessary maintenance and consulting.
• Provide users with vulnerable parts and spare parts in time.
• Each machine will be equipped with enough spare parts.
• After-sales Service Manual provides you direct access to responsible service engineer of Baoyt After-sales Service Center and guarantees immediate availability of servicemen.
• 12 months of guarantee period.
