| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-TH-48L |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-TH-48L | Power Source: | AV：220V/380V 50/60Hz |
|---|---|---|---|
| Internal Dim: | 40x40x30 | External Dim: | 60x80x107 |
| Power: | 1.5KW~2.5KW | Relative Humidity: | -60℃~150℃(100℃) |
| Relative Humidity Range: | 20%~98%RH | Heat-up Time: | About3℃/min |
| Temp Deviation: | ±1.0℃ | Temp Fluctudtiont: | ±0.5℃ |
| High Light: | 1.5KW Climatic Chamber,87Nb Temperature Humidity Test Chamber,LCD Temperature Humidity Test Chamber |
||

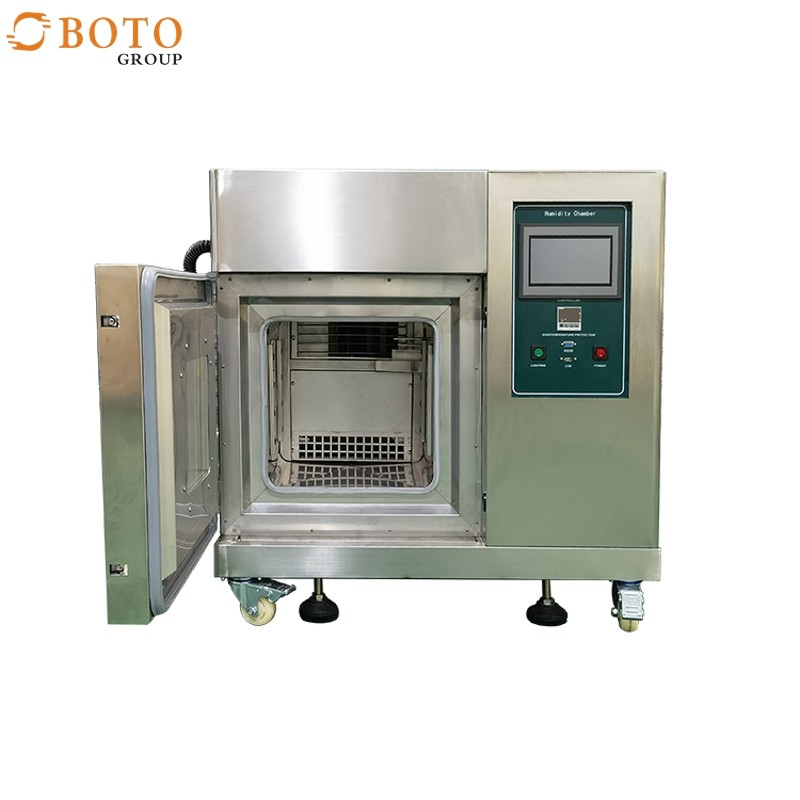

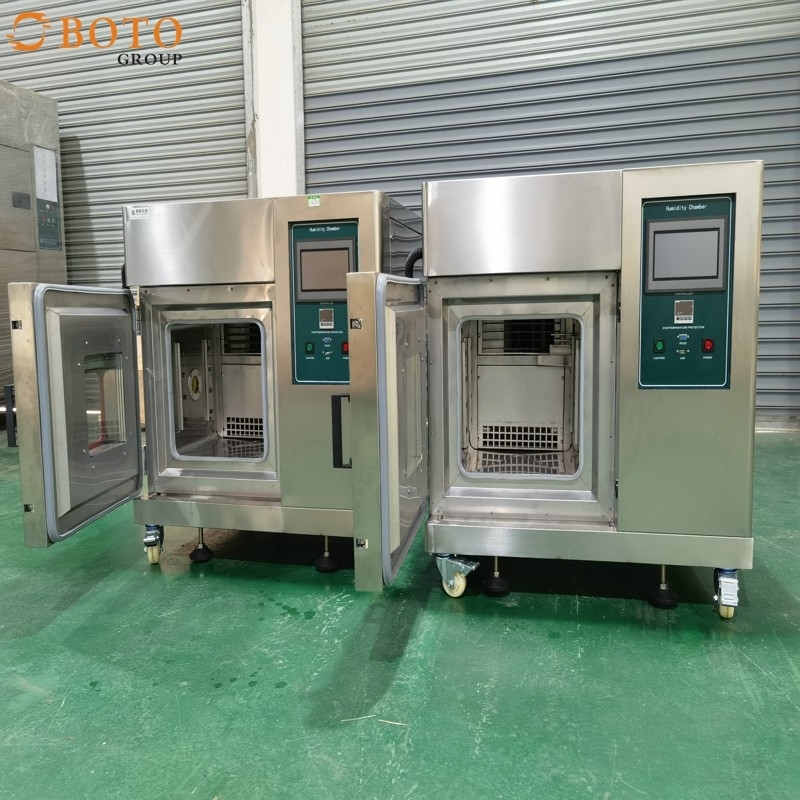

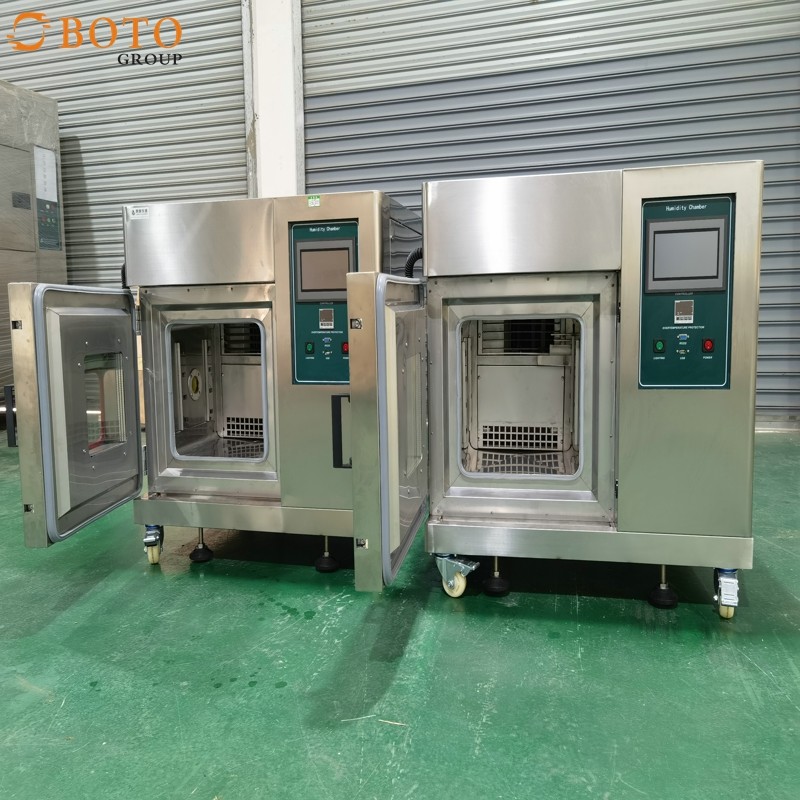

Temperature Climatic Chamber G82423.22 87Nb Manufacturer Small High And Low Temperature Test Chamber
Introduction:
Temperature humidity test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from battery, communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Temperature and humidity testing help to determine the behavior of the components in severe test conditions and environments that involve fluctuating environment, high temperature, and different relative humidity. The tests can be done with constant temperature and humidity in a static state and can bedone in a dynamic state where the moisture is used to induce a failure of the components or materials.
Features:

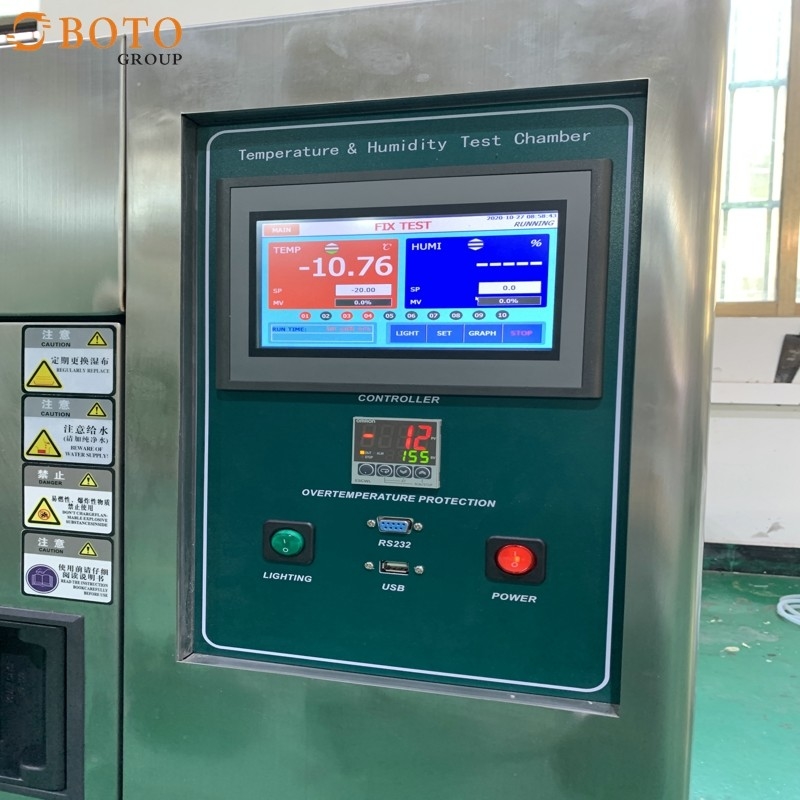

1. Available in Chinese and English LCD touch screen, easy operation and program.
2. Able to display the relative date and information of the whole operating system in running mode, graphic display, precautions, maintenance and troubleshooting appear on the screen instantly.
3. Temperature humidity Test chamber The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity.
4. The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operation life of the machine and decrease the failure rate.
5. Water supply adopts automatic watering system, circulating water supply together with water filter
Application:
Table type constant temperature and humidity test box box using CNC machine processing molding, beautiful and elegant, novel and adopt no reaction handle, easy to operate.
The inner chamber is made of imported advanced stainless steel (SUS304) mirror plate or 304B argon arc welding, and the outer chamber is sprayed with A3 steel plate. Microcomputer temperature and humidity controller, temperature and humidity control accurate and reliable.
Large observation window with lights to keep the box bright, and the use of double glass, clear observation box at any time. An independent temperature limit alarm system is set, which automatically interrupts when the temperature exceeds the limit, ensuring the safe operation of the experiment without accidents.
Standard Compliance:
This product meets the requirements of GB/T2423.1-2001 GB/T2423.3-1993 GB/T2423.2-2001 and other national standards, as well as other relevant standards.
Features:
1. Small size, special design and overlapping, not occupying planar space, suitable for laboratory use.
2. Low power consumption, energy saving and consumption reduction; low noise, low radiation, green environmental protection.
3. High efficiency, communication mode using Qualcomm software F4 controller to complete a variety of tests at the same time.
4. Both sides are equipped with side tests. Holes, easy to operate.
5. Multiple safety protection, refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection.
Product specification:
| Name | Small high and low temperature test chamber | Table type constant temperature and humidity test chamber | ||||
| Model | Dry Heat | B-T-107(A-D) | B-T-48L (A~D) | |||
| Damp and Hot | B-TH-48L (A-D) | |||||
| Internal Dim | 30.5x23x29 | 40x40x30 | ||||
| External Dim(W*H*D) | 53x68x72 | 60x80x107 | ||||
| Relative Humidity | ‘-40℃(-60℃)-130℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃) | ’7.081- -60℃~150℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ |
||||
| Relative humidity Range | 20%~98%RH | |||||
| Heat-up time | About3℃/min | |||||
| Pull down time | About0.7~1℃/min | |||||
| Temp Fluctudtiont | ±0.5℃ | |||||
| Temp Uniformity | ±1.0℃ | |||||
| Temp Deviation | ±1.0℃ | |||||
| Power Source | AV:220V/380V 50/60Hz | |||||
| Power(KW) | 1KW~2KW | 1.5KW~2.5KW | ||||
