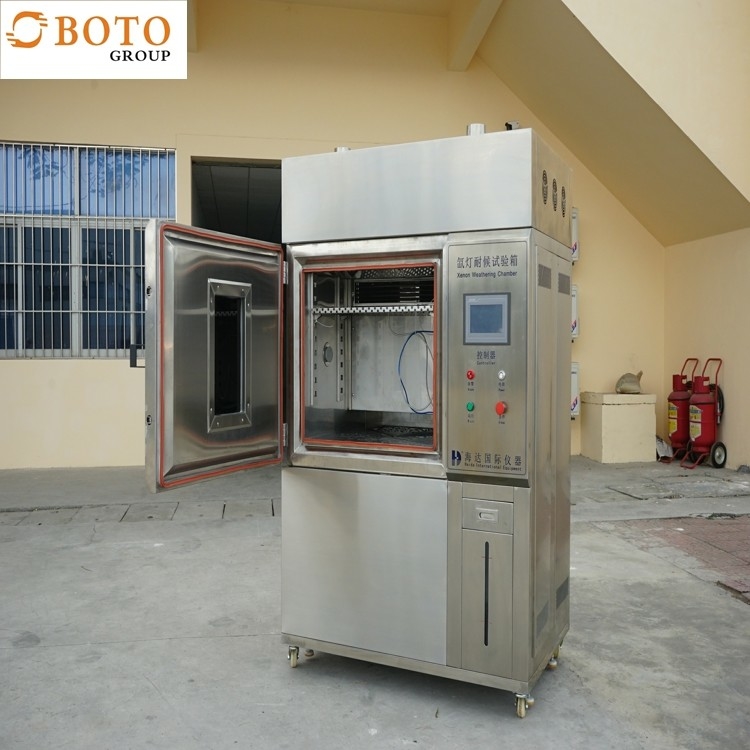

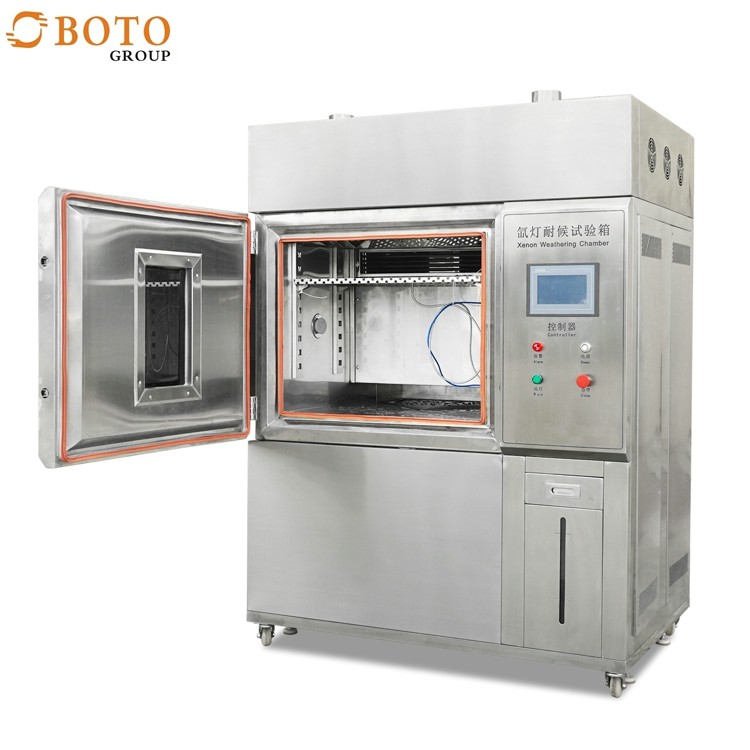

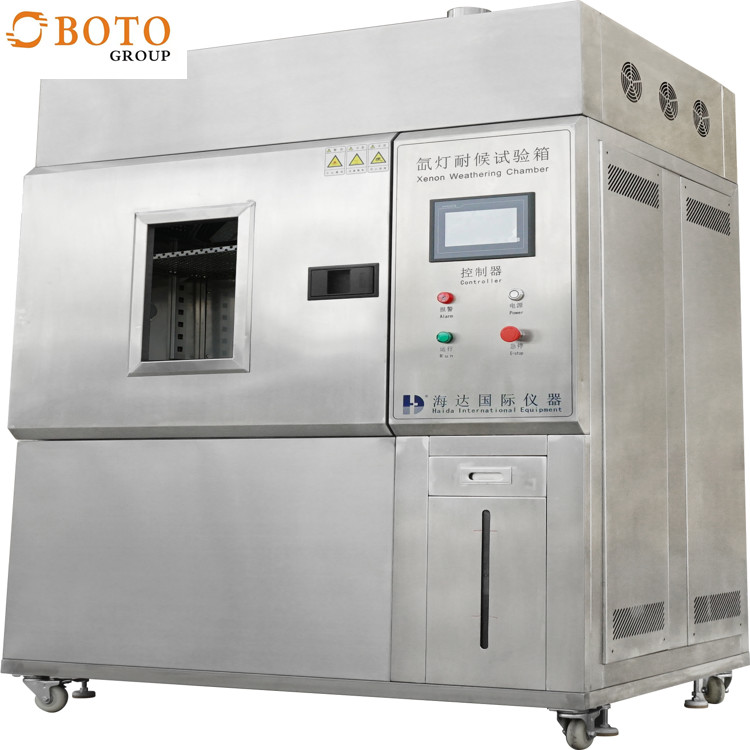

Environmental Test Chambers Xenon Lamp Aging Chamber B-XD-800 Lab Test Instrument

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: MIL STD GB JIS JEDEC IEC ISO
Model Number: B-XD-800
Minimum Order Quantity: 1PCS
Price: Discussible
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PC/Month
Model: B-XD-800 Internal: 40x35x35
HighTemp Rang: +80℃~200℃ Test Temp Rang: -40℃-150℃
External Dim: 162x184x112 Low Temp Range: -10℃--60℃
Spectral Wavelength Region: 290nm-800nm Exterior: Coating Or SUS#304Stainless Steel Plate
Radiation Intensity Of Xenon Lamp: 550W/m² Interior: SUS#304Stainless Steel Plate
High Light:

Xenon Arc Lab Test Instrument

,

Environmental Xenon Aging Test Chamber

,

B-XD-800 Environmental Test Chambers

Environmental Test Chambers Xenon Lamp Aging Chamber B-XD-800 Lab Test Instrument



Main functions:

Make the samples exposed to the high temperature and alternating back to the circle of light and moisture environment to test the materials. This machine use xenon lamp tube to simulate the sunlight radiation, and use condensation water and spray water to simulate the dew and rain. This instrument only use a few days or weeks time, to realize the condition or the parts aging damage state in outside environment in few months or years. Including fade, color change, fracture, crack, wrinkle, foaming, embrittlement, strength reduction, oxidization and so on.

Applicable industries:

Applied to control the product quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.

Unversal Standard:
IEC 68-2-9, Basic Environmental Testing Procedures
ISO 4892-1, Plastics-Methods of exposure to laboratory light sources
ASTM G151,General Guidelines for Exposure of Nonmetallic Materials
ASTM G155, Xenon-Arc Test Apparatus for Exposure of Nonmetallic Materials

Environmental Test Chambers Xenon Lamp Aging Chamber B-XD-800 Lab Test Instrument 0

Environmental Test Chambers Xenon Lamp Aging Chamber B-XD-800 Lab Test Instrument 1







Automobile Parts
SAE J2412, Accelerated Exposure of Automotive Interior Trim Components Using a Controlled Irradiance Xenon-Arc Apparatus SAE J2527, Accelerated Exposure of Automotive Exterior Materials Using a Controlled Irradiance Xenon-Arc Apparatus QB/T 2727, ASTM D7356, Standard Test Method for Accelerated Acid Etch Weathering of Automotive Clearcoats
Environmental Test Chambers Xenon Lamp Aging Chamber B-XD-800 Lab Test Instrument 2
Fabric
AATCC TM 16, Colorfastness to Light AATCC TM 169,Weather Resistance of Textiles: Xenon Lamp Exposure GB/T-8430, IS: 2454, Indian Standard- Method for Determination of Colour Fastness Artificial Light(Xenon Lamp) • GB/T 8427,GB/T 8431,GB/T 8432,GB/T 16991,FZ/T 75002,GB/T-8430, Textiles - Tests for colorfastness - Colorfastness to artificial weathering: Xenon arc fading lamp test ISO 105 B02, Textiles-Tests for colour fastness-Part B02.
Environmental Test Chambers Xenon Lamp Aging Chamber B-XD-800 Lab Test Instrument 3



Environmental Test Chambers Xenon Lamp Aging Chamber B-XD-800 Lab Test Instrument 4

It has the following performance characteristics:

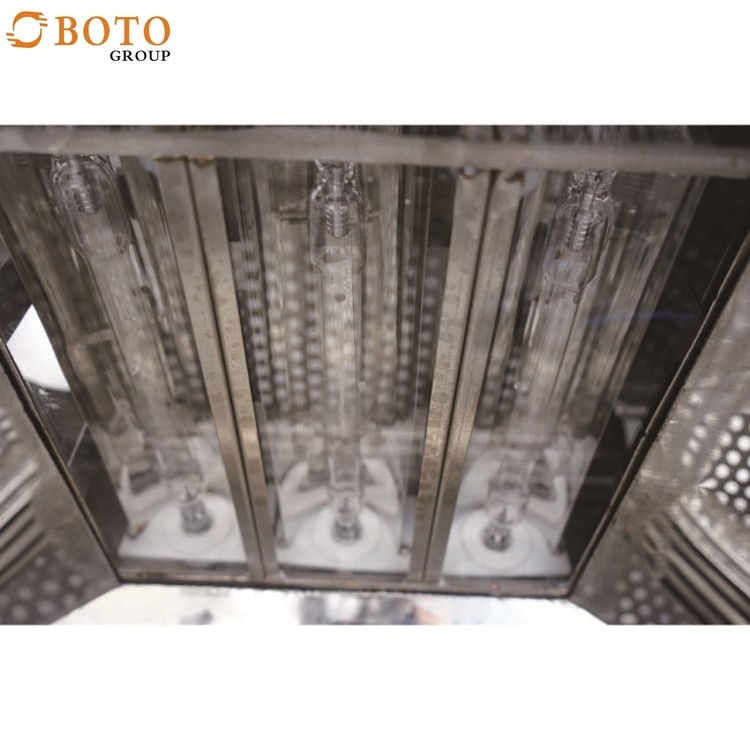

1. Adopt full-spectrum xenon lamp luminescent tube;

2, a variety of filter system for choice;

3, rain spraying function;

4. Relative humidity control.

5, test chamber air temperature control system;

product description:




Model
B-XD-120 B-XD-225 B-XD-408 B-XD-800

Internal Dim(W*H*D)
45x60x45 50x75x60 60x85x80 100x100x80
 External Dim(W*H*D) 107x145x68 120x164x92 122x169x112 162x184x112
 Temperature range RT+10℃~70℃
Humidity range 50%~90%RH
 Radiation intensity of xenon lamp 550W/m²
 Spectral wavelength region 290nm-800nm
 rainfall time 0-9999/min
Total power xenon lamp 2KW/6KW
type of cooling forced air coolingwater-cooling
Interior SUS#304Stainless steel plate
External material Coating or SUS#304Stainless steel plate

Power Source
AV:220V/380V 50/60Hz



Corresponding standard:

ASTM G155-05a Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials1
GB12831-86 Vulcanized rubber artificial climate (xenon lamp) Aging Test Method
GB/T1644.2-1999Plastics laboratory light exposure test method
GB/T8427-89 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T8430-98 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T1865-97 Paints, varnishes, artificial weather aging and artificial radiation exposure
GB/T16991-97 textile color fastness test,
GB/T5137.3-96 simulated climate test method of resistant to radiation, heat, humidity, burning
GB/T16259-96 color building materials, artificial climate accelerated aging test method.
GB/T2423.24-95 Electronic and Electrical Products Environmental Testing Part II: test method, testing SQ: Simulation of solar radiation on the ground.

Our company:

Environmental Test Chambers Xenon Lamp Aging Chamber B-XD-800 Lab Test Instrument 5

Environmental Test Chambers Xenon Lamp Aging Chamber B-XD-800 Lab Test Instrument 6

Environmental Test Chambers Xenon Lamp Aging Chamber B-XD-800 Lab Test Instrument 7

Environmental Test Chambers Xenon Lamp Aging Chamber B-XD-800 Lab Test Instrument 8

Environmental Test Chambers Xenon Lamp Aging Chamber B-XD-800 Lab Test Instrument 9

FAQ
Q1: What is your warranty ?
A: 12 months product warranty, but lifetime for services. Free Non-consumable components will be provided if any performance failure occurs within 12 months, caused by non-human damage.

Q2: How-to video provided ?
A: Yes. If required, our engineers will record a specialized how-to video for you.

Q3: Are your company a trading one or a factory?
A: Yes, we are a manufactured factory & trade (integration).15 years focusing on test instruments field. Six years exporting experience, warmly welcome to visit our plant (factory), we also support OEM and ODM.

Q4: After an order is placed, when to deliver?
A: Generally about 15 days. If we have inventory, we can arrange shipment within 7 days. Please be aware that our production lead times depend on specific items and item quantities.

Q5: What about the after-sales service and product’s quality?
A: 12 months warranty. After the warranty, the professional after-sale service team will provide perfect technical support. And help the customer solve problems encountered while using our product, handles problems and complaints professionally and timely.Each of the instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. Engineers would be to go abroad for training and repairing.

Q6: What about the packing of equipment?
A: Covered with air bubble film before put the machine into the standard exporting wooden case, which not only has good shock absorption, impact resistance, heat SSO has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
