Environmental Test Chambers GB/T2423.2 Programmable High Temperature Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: MIL STD GB JIS JEDEC IEC ISO
Model Number: B-T-1000(A~E)
Minimum Order Quantity: 1PCS
Price: Discussible
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PC/Month
Model: B-T-1000(A~E) Internal: 60x75x50
External Dim: 90X177X130 Heat-up Time: ±1.0℃/±3.0℃RH
Temp&Humi.Deviation: -40℃-150℃ HighTemp Rang: +80℃~200℃
Interior: SUS#304Stainless Steel Plate Exterior: Coating Or SUS#304Stainless Steel Plate
Relative Humidity: 20%~98%RH Power Source: AV:220V/380V 50/60Hz
High Light:

Programmable Environmental Test Chambers

,

GB/T2423.2 High Temperature Chamber

,

SUS304 Lab High Temperature Chamber

Environmental Test Chambers GB/T2423.2 Programmable High Temperature Chamber



Product Usage
The simulated products are tested under the combination of temperature and humidity in the climatic environment high and low temperature operation & storage, temperature cycle, high temperature and high humidity, low temperature and low humidity,condensation test, etc.) to check whether the adaptability and characteristics of the product itself change.

Test limit
This test equipment is suitable for:
Electrical, electronic products, components and materials are stored in high and low
temperature environments Adaptability tests for storage, transportation and use.

Use of this test equipment is prohibited:
1.Testing or storage of flammable, explosive, volatile materials
2.Testing or storage of samples of corrosive substances
3.Testing or storage of biological samples
4.Testing or storage of samples from sources of strong electromagnetic radiation

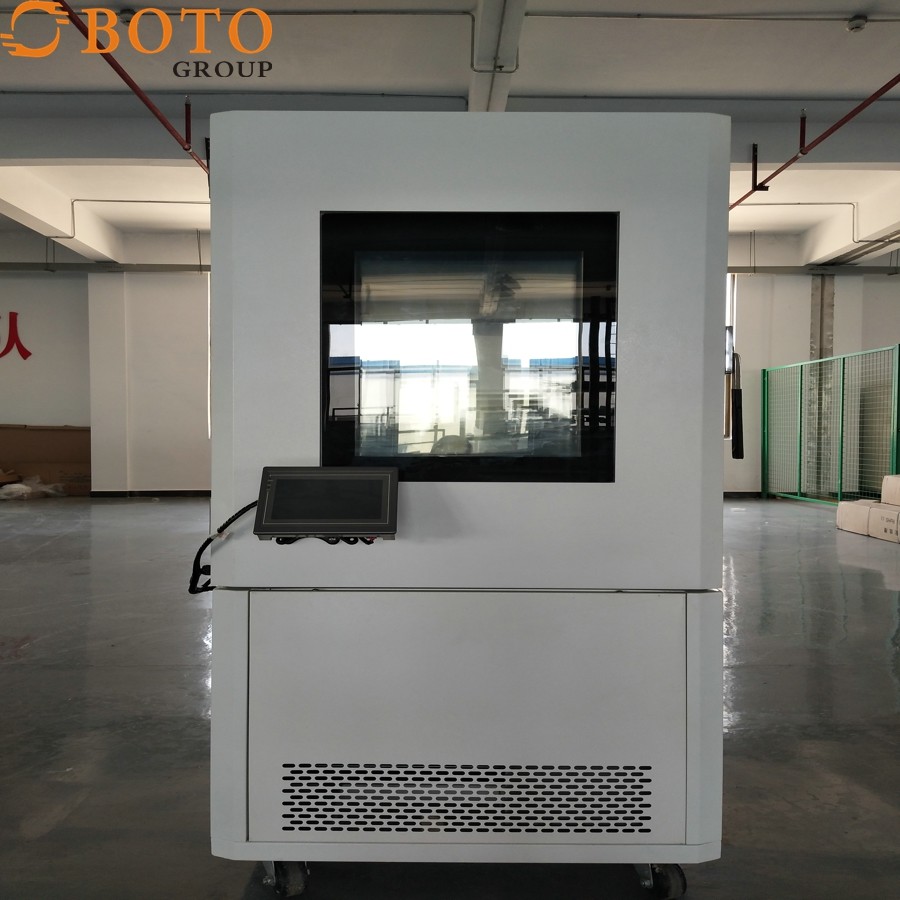

Environmental Test Chambers GB/T2423.2 Programmable High Temperature Chamber 0

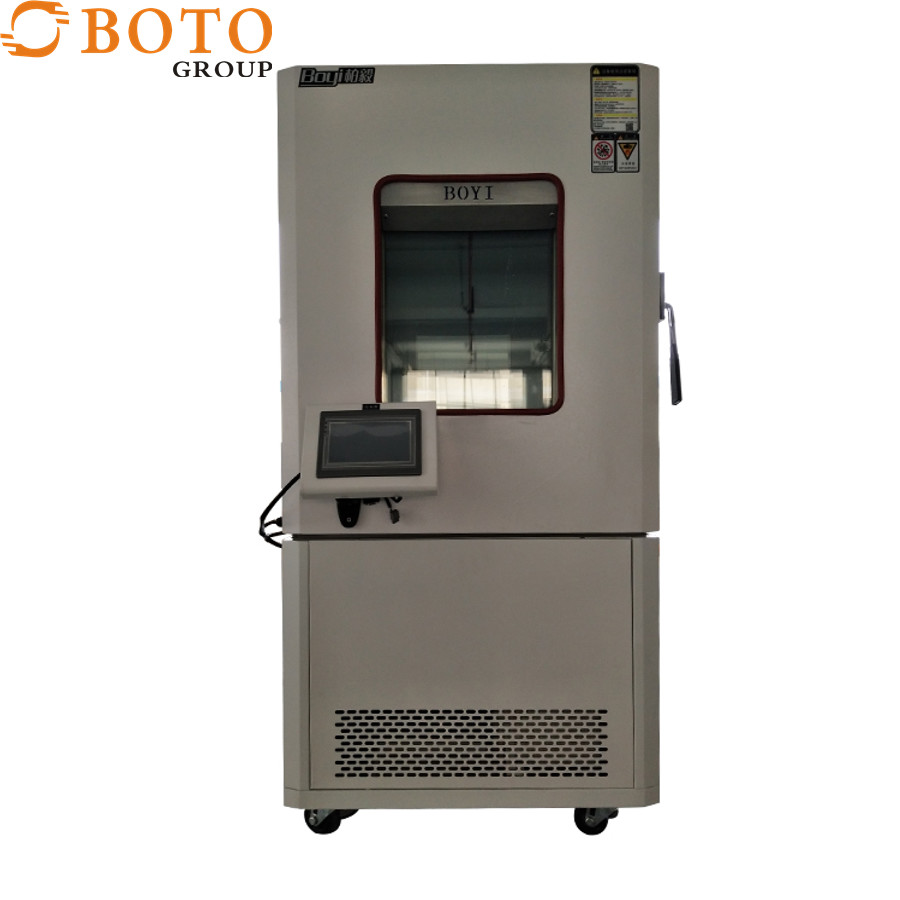

Environmental Test Chambers GB/T2423.2 Programmable High Temperature Chamber 1

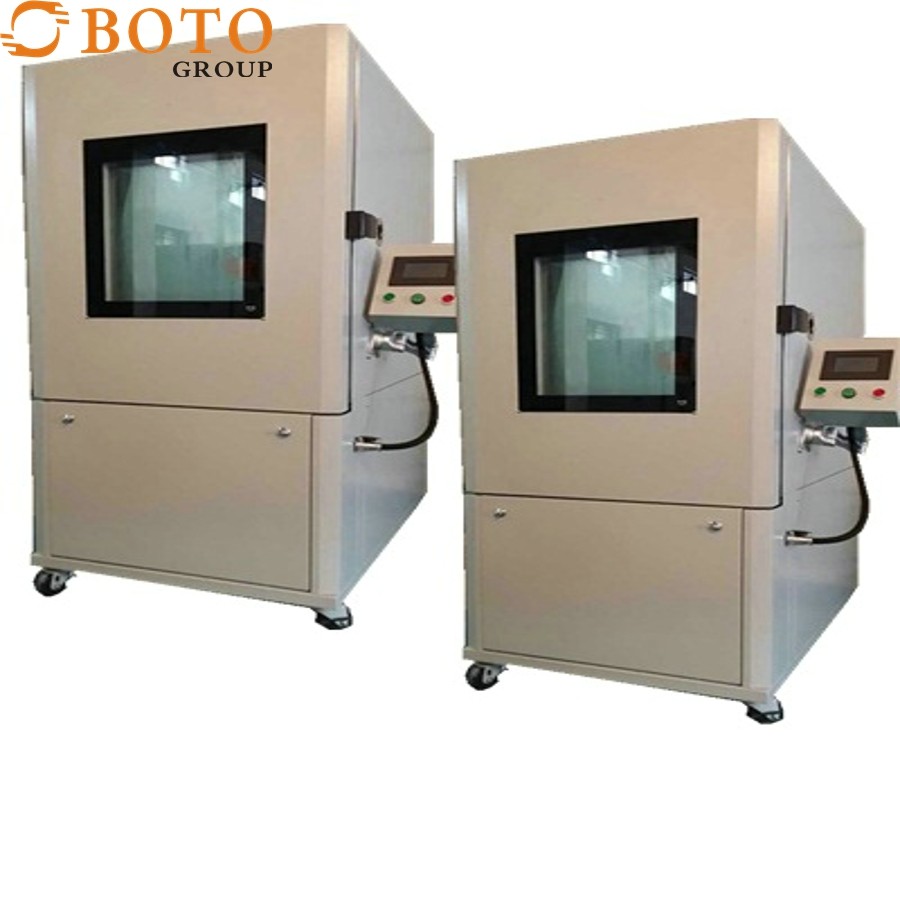

Environmental Test Chambers GB/T2423.2 Programmable High Temperature Chamber 2

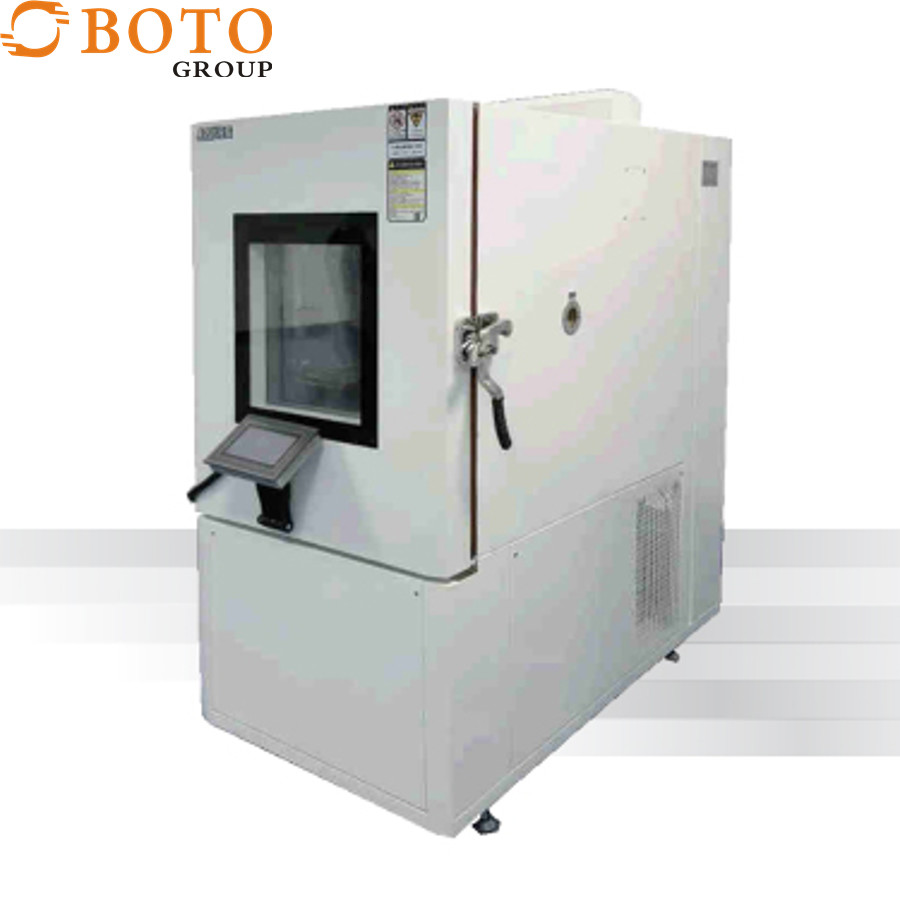

Environmental Test Chambers GB/T2423.2 Programmable High Temperature Chamber 3

product feature:

The constant temperature and humidity test chamber is composed of two parts: temperature regulation (heating, cooling) and humidification. Through the rotating fan installed in the top of the box, the air is discharged into the box to achieve gas circulation and balance the temperature and humidity inside the box. The data collected by the built-in temperature and humidity sensor of the box is transmitted to the temperature and humidity controller (micro information processor) for editing and processing, and the temperature and humidity control instructions are issued. Through the air heating unit, condensing pipe and the tank heating and evaporation unit.



Constant temperature and humidity box temperature regulation is through the box built-in temperature sensor, data collection, temperature controller (micro information processor) adjustment, connected to the air heating unit to increase the temperature or adjust the refrigeration solenoid valve to reduce the temperature in the box, in order to achieve the required temperature control. Constant temperature and humidity box humidity regulation is through the body set humidity sensor, data collection, humidity controller (micro information processor) adjustment, connected to the tank heating element, through the evaporation of water in the tank to increase the humidity in the box or adjust the refrigeration solenoid valve to achieve dehumidification, in order to control the required humidity.

Environmental Test Chambers GB/T2423.2 Programmable High Temperature Chamber 4

Operation:

Through three interconnected systems: refrigerant circulation system, air circulation system, electrical automatic control system.

Refrigerant circulation system of constant temperature and humidity test chamber: The liquid refrigerant in the evaporator absorbs the heat of the air (the air is cooled and dehumidified) and begins to evaporate. Finally, a certain temperature difference is formed between the refrigerant and the air. The liquid refrigerant also completely evaporates into the gas phase, and is then inhaled and compressed by the compressor (pressure and temperature increase). After being throttled through the expansion valve (or capillary), low temperature and low pressure refrigerant enters the evaporator to complete the refrigerant circulation process.

product description:



  • PD-SO
model B-RUL-45 B-RUL--60 B-RUL-80 B-RUL-100
design dimension 45x45x45 60x60x60 80x80x80 100x100x100
carton size 103x123x77 118x138x92 138x158x112 158x178x132
  RT+10℃-200℃(1300°℃)
economy

model



DHG-9030A
101A-0S
DHG-9070A
101A-1S
DHG-9140A
101A-2S
DHG-9240A
101A-3S
DHG-9420A
101A-4S
DHG-9620A
volume 30L 70L 136L 220L 420L 620L
 Interior dimension 350*350*350 450*350*450 550*450*550 600*500*750 640*585*1355 840*600*1355
mmW*D*H carton size 480*470*685 580*470*785 680*590*885 730*640*1085 780*750*1880 980*800*1880
temperature fluctuation ±1℃ ±1℃ ±1℃ ±1℃ ±1℃ ±1℃
temperature resolution 0.1℃ 0.1℃ 0.1℃ 0.1℃ 0.1℃ 0.1℃
temperature control range RT+10-250℃ RT+10-250℃ RT+10-250℃ RT+10-250℃ RT+10-200℃ RT+10-200℃
mains input 220V 50HZ 220V 50HZ 220V 50HZ 220V 50HZ 220V 50HZ 220V 50HZ
input powe 650W 1500W 2000W 2400W 4000W 4800W
volume 30L 70L 136L 220L 420L 620L



Our Company:



Environmental Test Chambers GB/T2423.2 Programmable High Temperature Chamber 5

Environmental Test Chambers GB/T2423.2 Programmable High Temperature Chamber 6



Environmental Test Chambers GB/T2423.2 Programmable High Temperature Chamber 7

Environmental Test Chambers GB/T2423.2 Programmable High Temperature Chamber 8



Packing/Shipping:

Environmental Test Chambers GB/T2423.2 Programmable High Temperature Chamber 9

Environmental Test Chambers GB/T2423.2 Programmable High Temperature Chamber 10

Environmental Test Chambers GB/T2423.2 Programmable High Temperature Chamber 11
Environmental Test Chambers GB/T2423.2 Programmable High Temperature Chamber 12
