| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-CY-500 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-CY-500 | Internal: | 45x45x60 |
|---|---|---|---|
| External Dim: | 143x210x170 | Low Temp Range: | -10℃--60℃ |
| Test Temp Rang: | -40℃-150℃ | HighTemp Rang: | ＋80℃～200℃ |
| Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| Ozone Generator: | Silent Discharge Tube Type | Time Controller: | Precision Hours,minutes,seconds Time Controller |
| High Light: | Ozone Aging Test Chamber Lab Instrument,304 Stainless Steel Plate Climate Chamber,Ozone Aging Test Machine |
||

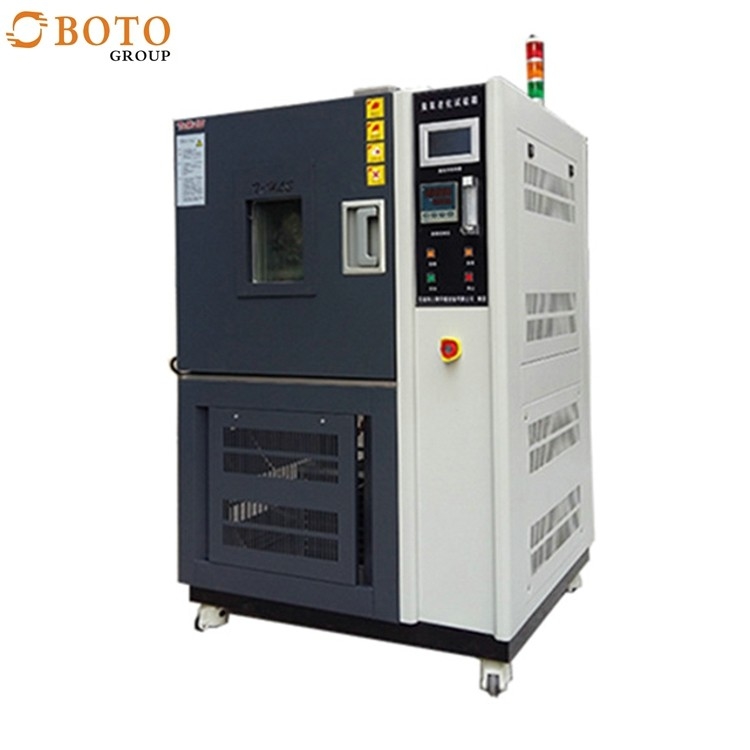

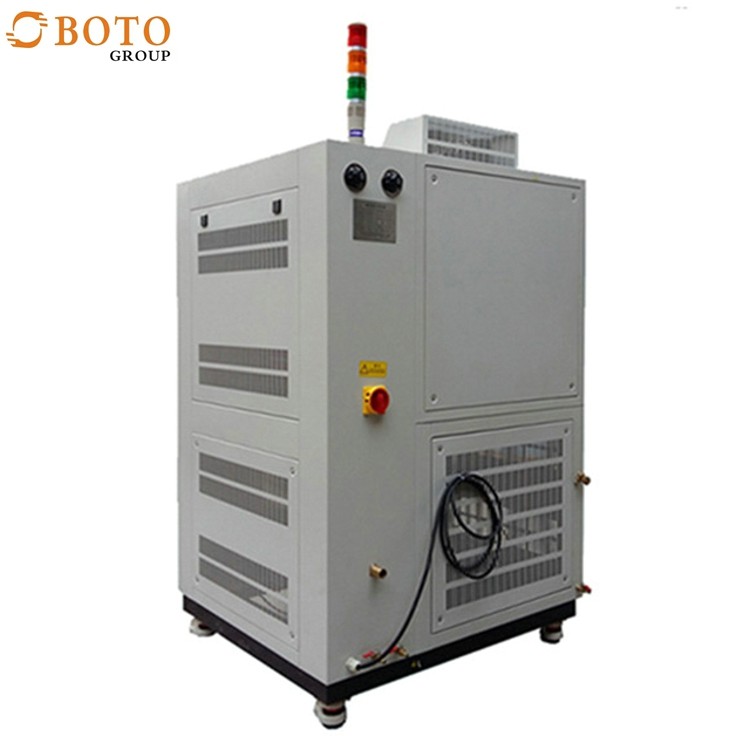

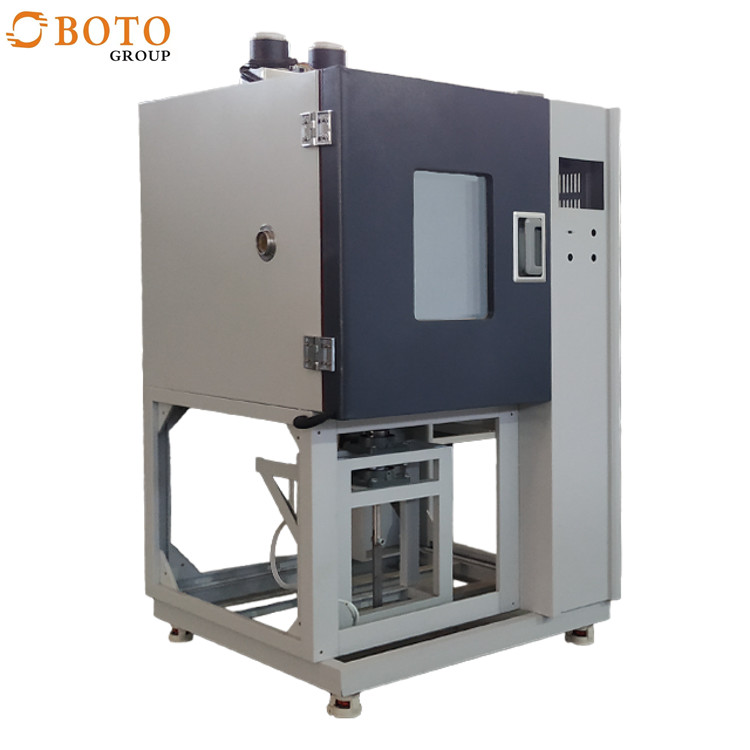

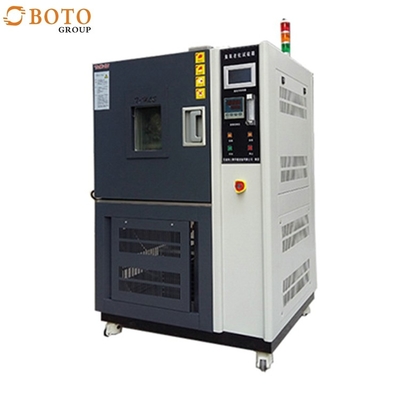

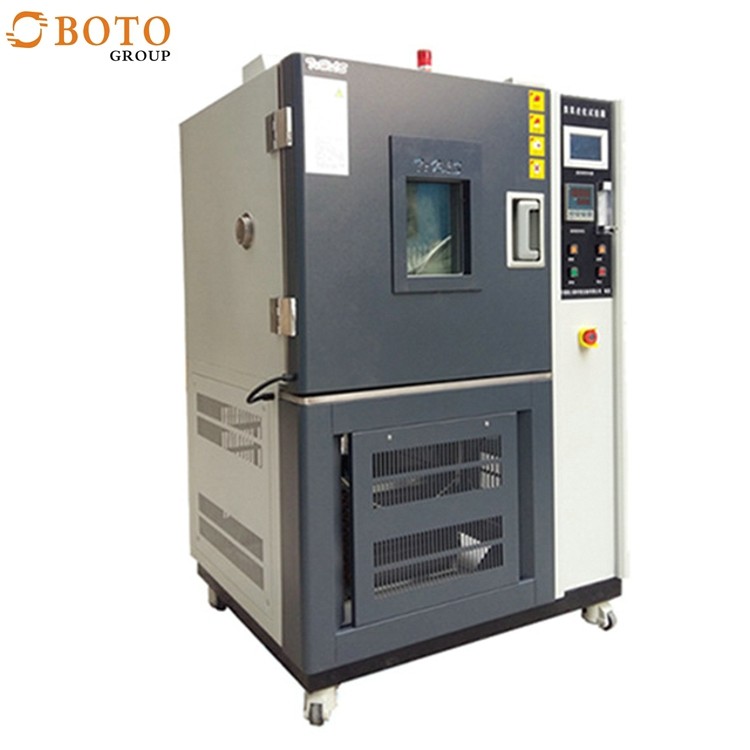

GB/T136421992 Test Machine Climate Chambe Ozone Aging Test Chamber Lab Instrument GB/T7762-2008
Product use:
This ozone aging test equipment can be used for rubber products such as vulcanized rubber, thermoplastic rubber, cable insulation sheaths and other products, under static tension or continuous dynamic tension deformation, or intermittent dynamic tension and static tension alternate deformation After exposing to a closed, non-illuminated air containing constant ozone concentration and a constant temperature test box, the sample is tested for a predetermined time, and the degree of cracking or other performance changes on the surface of the sample is evaluated to assess the resistance of the rubber Ozone aging performance. With advanced processing equipment, superb manufacturing technology, strict management system, strong technical strength and good after-sales service, it is the preferred supplier of major scientific research institutes, famous enterprises and universities.
GB/T7762-2003 static test method and GB/T136421992 dynamic test method; ASTM D-3041,ASTM D-1171,ASTM D-1149
Technical parameters:
1. Temperature range: 0~70, RT+10~70
2. Humidity range: 40%~98%R.H, 65%~98%R.H
3. Temperature fluctuation degree: ±0.5
4. Temperature uniformity: 2
5. Temperature deviation: ±1.5
6.Humidity fluctuation: +2, -3%R.H
7. Heating rate: 0.7~1.0/min
8. Cooling rate: normal temperature drops to 10 20min / unlimited
9. Ozone concentration: 10~1000pphm
10. Gas flow rate: 12~16mm/S
11. Ozone sample rack: static and dynamic tensile test sample rack (specify when ordering)
12. Sample rack rotation speed: 360 degree rotating sample rack (rotation speed 1r/min)
13. Time setting range: 0~9999 hours
14. Power requirements: AC380 (±10%) V/50HZ three-phase five-wire system
Ozone aging test chamber, as the name suggests, is a kind of test equipment to identify the weatherability of products by simulating or accelerating the aging situation of ozone in the atmosphere to rubber. So, for ozone aging test box in today's society market situation, its market value and reflected in where. The market value and application prospect of ozone aging test chamber are discussed here.
Today, both at home and abroad, the idea of environmental testing is gaining momentum. In order to meet the growing needs of today's society, people's research and development of new materials is on the rise. At the same time, in order to test the weatherability of new materials and the adaptability of special environment, more and more test equipment has been put on the stage of scientific development. We are familiar with UV aging test chamber, salt spray test chamber, high and low temperature test chamber, vibration test bench, ozone aging test chamber and so on. Today we will talk separately about the market value and application prospects of ozone testing in terms of gas corrosion.
Rubber problems have temperature, moisture, light, ozone, etc., in order to test the weatherability of ozone products, the damage of temperature and moisture to materials has been concerned by people, increasingly developed industry caused by a variety of corrosive gases mixed in the air, such as ozone, its destruction of materials or products is a very severe test, It can lead to cracking, degradation, pulverization, hardening and other damage of rubber products. With the development of industry, the application of ozone weather test will increase. Today, ozone aging test chamber can be used for rubber products such as vulcanized rubber, thermoplastic rubber, cable insulation sheath and other products, under static tensile deformation, exposed to closed without light containing constant ozone concentration of air and constant temperature test chamber, according to the scheduled time to test the sample, from the surface of the sample cracking or other performance changes, Ozone aging test chamber is used to scientifically and reasonably realize the aging cracking test of non-metallic materials and rubber products, in order to evaluate the ozone aging resistance of rubber, and to provide a solid scientific basis for human screening and improvement of new materials.
Model |
B-CY-120 | B-CY-250 | B-CY-500 | B-CY-1000 | |
Internal Dim(DxWxH) |
45x45x60 | 50x60x75 | 70x80x90 | 100x100x100 | |
| Temperature range | 0℃-70℃ | ||||
| Humidity range | >65%R·H | ||||
Ozone concentration |
0-200PPm.0-300PPm | ||||
Temperature fluctuation |
±0.5℃ | ||||
test apparatus |
Dynamic and static (optional) |
||||
Sample rack rotation speed |
360 degree rotating sample holder (1 rpm per minute) |
||||
Gas flow rate |
12-16mm/s | ||||
Temperature Controller |
Imported LED digital display P.L. D+5.5, R microcomputer integrated controller |
||||
Time controller |
Precision hours,minutes,seconds time controller |
||||
Ozone concentration analysis |
Imported concentration analysis regulator 4-20mA outputs,RS232 communication port |
||||
Ozone generator |
Silent discharge tube type |
||||
Security protection |
Leakoge,short circuit,over temperature,motor overheating.over-current protection |
||||
