| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-107(A-D) |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Internal: | 40x35x35 | External Dim: | 143x210x170 |
|---|---|---|---|
| Model: | B-TCT-401 | Low Temp Range: | -10℃--60℃ |
| Test Temp Rang: | -40℃-150℃ | HighTemp Rang: | ＋80℃～200℃ |
| Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| High Light: | B-TCT-402 Lab Drying Oven,Three Box Type Hot Cold Chamber,SUS304 Laboratory Environmental Test Chambers |
||

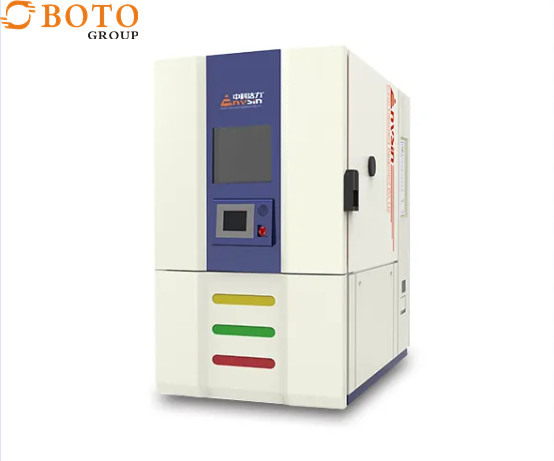

Lab Drying Oven Environmental Test Chambers GB/T2423.1.2-2001 Three Box-Type Hot And Cold Impact Chamber B-TCT-402
Product Description
Mainly used in national defense industry, aviation industry, automotive parts, electronic components, plastics industry, food industry and other related product development, straightening management engineering test specifications. The regenerative cold and hot shock tester is widely used in electronic parts, semiconductors, metals, chemicals, materials and other testing equipment. Its characteristics are as follows:
1. Touch-controlled color man-machine interface + PLC + J import temperature controller
2. Setting cycle and defrosting times;
3. Display of abnormal and fault points with simple teaching reminders for troubleshooting;
4. Comprehensive system safety protection and power outage memory;
5. Multiple safety protection: refrigerant high voltage protection, compressor overload protection, current overload protection, overtemperature protection, leakage protection
6. Air-cooled or water-cooled cooling can be selected according to customer's requirements.
Features:
1.Thermal shork chamber in each zone for peak demand of heating and cooling. Provides extra thermal energy to efficiently meet the MIL-STD 883 requirements.
2.Temperature recorder provides 24 hour part temperature recording as the load travels from zone to zone. Using touch-control graph control as operation interface, easy to operate.
3.The system can be used for automatic Circulation Shock or manual selective shock, capable of setting two zones or three zones shocks as well as cold and thermal shock start-up.
4.Custom-made and optional accessories available.
Corresponding Standard:
GB11158 GB10589-89 GB10592-89 GB/T10586-89 GB/T2423.22-2001 GB/T2423.1-2001 GB/T2423.2-2001 GB/T2423.3-93 GB/T2423.4-93 ASTM D1735 EIA - 364-59
IEC60068-2-1.1990 IEC60068-2-2.1974 IEC 68-2-30 IEC68-2-03 EIA - 364-31C
Model:
| Model | B-TCT-401 | B-TCT-402 | B-TCT-403) | B-TCT-501 | B-TCT-502 | B-TCT-503 | B-TCT-601 | B-TCT-602 | B-TCT-603 | |
| Internal (CM) | 40x35x35 | 50x40x40 | 60x50x50 | 40x35x35 | 50x40x40 | 60x50x50 | 40x35x35 | 40x50x40 | 60x50x50 | |
| External Dim(CM) | 143x210x170 | 154x212x170 | 166x220x180 | 143x210x170 | 156x210x170 | 166x220x180 | 143x210x170 | 156x210x190 | 166x220x180 | |
| Low Temp Range | -10℃--60℃ | -10℃~-70℃ | -10℃--80℃ | |||||||
| Test Temp Rang | -40℃-150℃ | -55℃~150℃ | -65℃~150℃ | |||||||
| HighTemp | +80℃-200 ℃ lvarious specifications applicablel |
|||||||||
| Recovery time | 3 to 5 minutes | |||||||||
| Temp Fluctudtiont | ±2 ℃(various specifications applicable) | |||||||||
| Interior | SUS#304Stainless steel plate | |||||||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||||||
| Power Source | AV:380V 50/60Hz | |||||||||
| Power(KW) | 16KW | 19KW | 19KW | 19KW | 20.5KW | 22KW | 19KW | 26KW | 33KW | |
Our Company:
Packing/Shipping:
FAQ
1. Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally,
we offer 12 months for the FREE maintenance, while considering of sea transportation,
we can extend 2 months for our customers.
If your machine doesn’t work, you can send E-mail to us and we will try our best to find
the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly.
