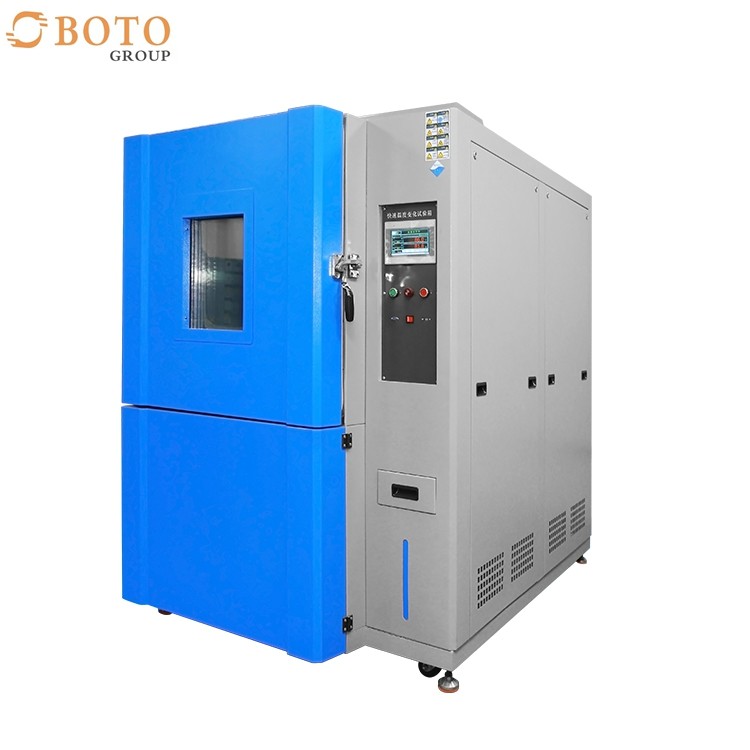

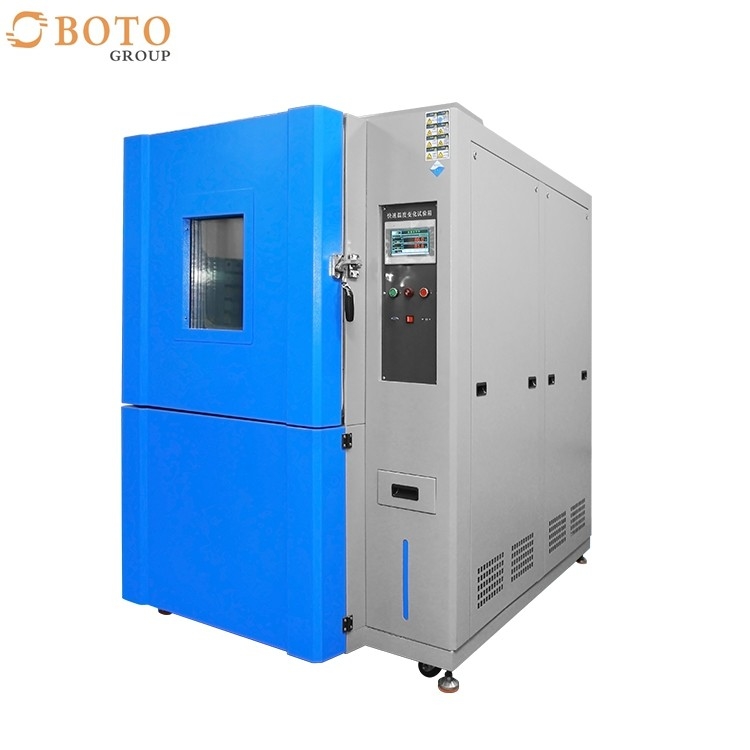

Lab Drying Oven Rapid Temperature Test Chamber Test Machine MIL-2164A-19

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: MIL STD GB JIS JEDEC IEC ISO
Model Number: B-T-225(A~E)
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PC/Month
Internal Dim: 60x75x50 Model: B-T-225(A~E)
Power(KW): 1KW~2KW Interior: SUS#304Stainless Steel Plate
Exterior: Coating Or SUS#304Stainless Steel Plate Power Source: AV:220V/380V 50/60Hz
External Dim(CM: 90X177X130 Name: Rapid Temperature Test Chamber
Temp Fluctudtiont: ±0.5℃ Temp Uniformity: ±1.0℃
High Light:

MIL-2164A-19 Lab Drying Oven

,

SUS304 Lab Rapid Temperature Test Chamber

Lab Drying Oven Rapid Temperature Test Chamber Test Machine MIL-2164A-19



Description:

Lab Equipment Temperature Rapid Testing Chamber is developed and manufactured to match the ESS (Environment Stress Screen) test. It is an ideal reliability testing and validation equipment to find out the product failure with high accelerate environment condition. Our test chambers help you to make safe and reliable products before delivering to the people who use them.



Standard:

IEC60068-2-1:2007 (GB/T2423.1-2008) Environmental testing - Part 2: Test methods - Tests A: Cold IEC60068-2-2:2007 (GB/T2423.2-2008) Environmental testing for electric and electronic products Test methods - Tests B:Dry Heat IEC 60068-2-14 2009 Environmental testing - Part 2-14: Tests -Test N: Change of temperature

GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
B/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
B/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
IEC60068-2-1.1990 low-temperature testing method
IEC60068-2-2.1974 high-temperature testing method
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 humid testing


Lab Drying Oven Rapid Temperature Test Chamber Test Machine MIL-2164A-19 0

Lab Drying Oven Rapid Temperature Test Chamber Test Machine MIL-2164A-19 1

Lab Drying Oven Rapid Temperature Test Chamber Test Machine MIL-2164A-19 2

Lab Drying Oven Rapid Temperature Test Chamber Test Machine MIL-2164A-19 3

Details:

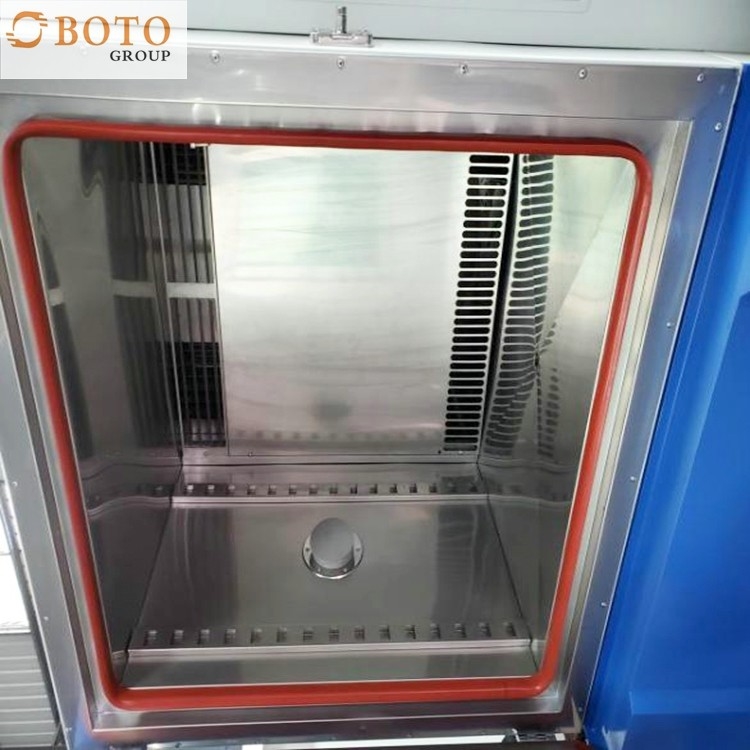

1 The whole box adopts the integral structure. Box structure

2 The inside of the box is made of 1.0mm imported SUS304B stainless steel plate, the outside is made of 1.0mm cold rolled steel spray, and the thermal insulation material is made of ultra-fine glass thermal insulation cotton.

3 The door is sealed with double-layer silicone rubber sealing material.

4 The observation window is made of multi-layer conductive film tempered insulating glass with a size of 350×500mm. In order to prevent frosting of the glass at low temperature, the built-in special safety voltage heating wire is specially built to surround the heating belt with a power supply voltage of 36V, and a lamp is set up to provide illumination for observation.

5 A φ50mm test hole with a plug is arranged on the side of the box body. The plug material is silicone rubber with low foaming, high and low temperature resistance, with thermal insulation effect.

Lab Drying Oven Rapid Temperature Test Chamber Test Machine MIL-2164A-19 4

Rapid temperature change test chamber refrigeration system and compressor:

In order to ensure the cooling rate of the test chamber and the minimum temperature requirements, the test chamber uses a set of Taikang fully enclosed compressor composed of binary overlapping air cooling refrigeration system. The overlapping refrigeration system consists of a high temperature refrigeration cycle and a low temperature refrigeration cycle, and its connecting vessel is the evaporative condenser. The evaporative condenser also plays the role of energy transfer, transferring the heat energy in the working room through the two-stage refrigeration system to achieve the purpose of long temperature. Refrigeration system design application of energy regulation technology, an effective treatment can ensure that in the normal operation of the refrigeration unit and the refrigeration system of energy consumption and cooling capacity for effective regulation, so that the refrigeration system operating costs and failure rate down to a more economic state.



Manufacturer:



Model dry heat B-T-80(A-E) B-T-120(A~E) B-T-225(A~E) B-T-504(A~E) B-T-1000(A~E)
damp and ho B-TH-80(A-E) B-T-120(A~E) B-T-225(A~E) B-T-504(A~E) B-T-1000(A~E)
 Internal Dim (CM) 40x50x40 45x60x45 60x75x50 70x90x80 100x100x100
 External Dim(CM) 75x203x203 75X189X110 90X177X130 100X180X103 130X190X123
 Relative Humidity 20%-98%RH

Temp Range
-70℃~180℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ E:-70℃)
heat-up time
1℃-15℃/min
Pull down time 1℃-15℃/min
Temp Fluctudtiont ±0.5℃
Temp Uniformity ±1.0℃
Temp&Humi.Deviation ±1.0℃/±3.0℃RH
 Interior SUS#304Stainless steel plate
Exterior Coating or SUS#304Stainless steel plate
 Power Source AV:220V/380V 50/60Hz
Power(KW) The technical proposal shall prevail

Our company:

Lab Drying Oven Rapid Temperature Test Chamber Test Machine MIL-2164A-19 5

Lab Drying Oven Rapid Temperature Test Chamber Test Machine MIL-2164A-19 6

Lab Drying Oven Rapid Temperature Test Chamber Test Machine MIL-2164A-19 7

Lab Drying Oven Rapid Temperature Test Chamber Test Machine MIL-2164A-19 8

Lab Drying Oven Rapid Temperature Test Chamber Test Machine MIL-2164A-19 9

Packing/Shipping:



Lab Drying Oven Rapid Temperature Test Chamber Test Machine MIL-2164A-19 11



Lab Drying Oven Rapid Temperature Test Chamber Test Machine MIL-2164A-19 12
