Lab Drying Oven UV-A Climatic Chamber Manufacturer VG95218-2 UV Aging Test Chamber

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: MIL STD GB JIS JEDEC IEC ISO
Model Number: B-ZW
Minimum Order Quantity: 1PCS
Price: Discussible
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PC/Month
Model: B-ZW Safety Protection: Leakage, Short Circuit, Over Temperature, Water Shortage, Over Current Protection/controller Power Failure Memory
Lamp Wattage: 40W Ultraviolet Wavelength: 290nm-400nm UV-A、UV-B、UV-C
Material: 304 Stainless Steel Plate Internal: 45x117x50
External Dim: 58x128x135 Humidity Range: ≥95%R.H
Distance Between Tubes: 35mm Distance Between Sample And Tube: 50mm
High Light:

Climatic UV Aging Test Chamber

,

Lab Uv Aging Chamber

,

40W Lab Drying Oven

Lab Drying Oven UV-A Mathine Climatic Chamber Manufacturer VG95218-2 UV Aging Test Chamber



Description:

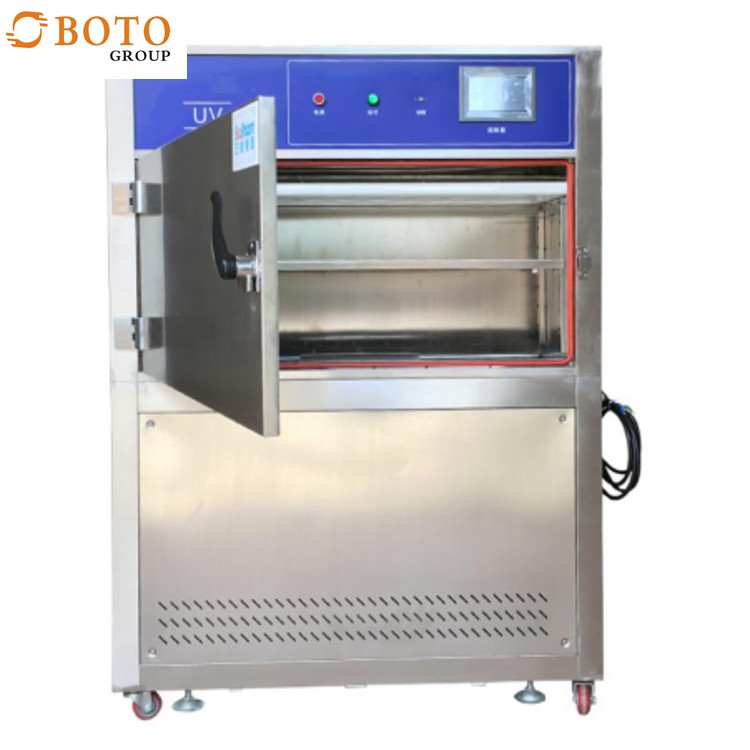

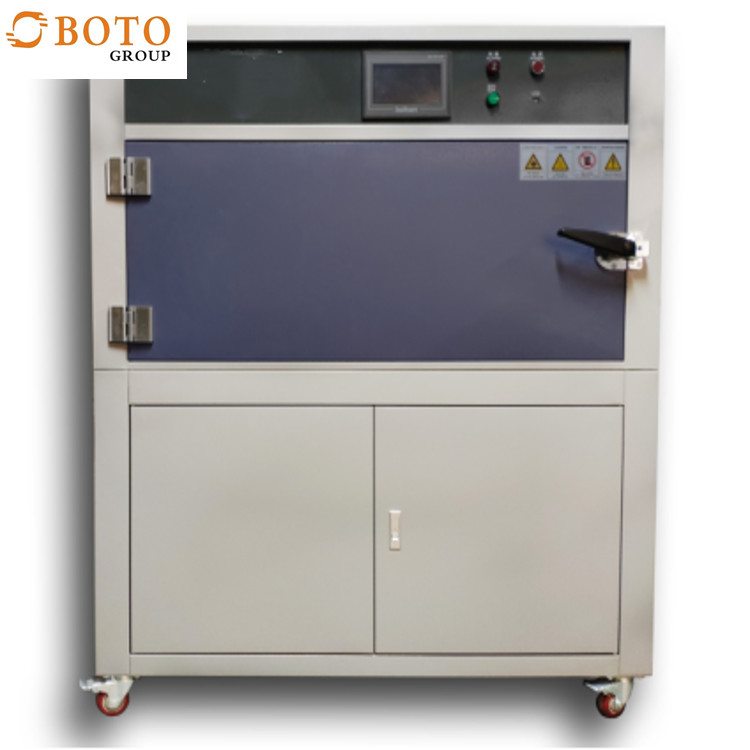

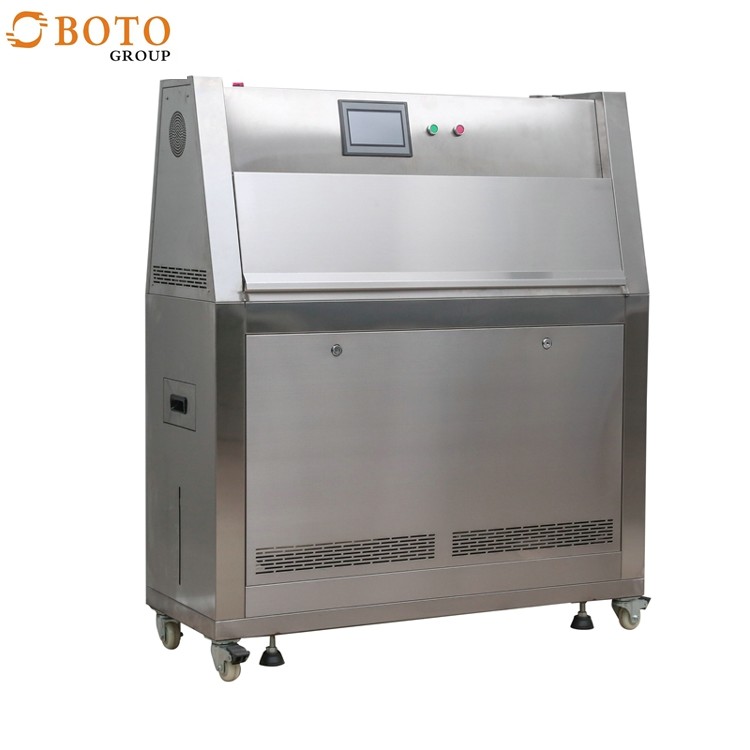

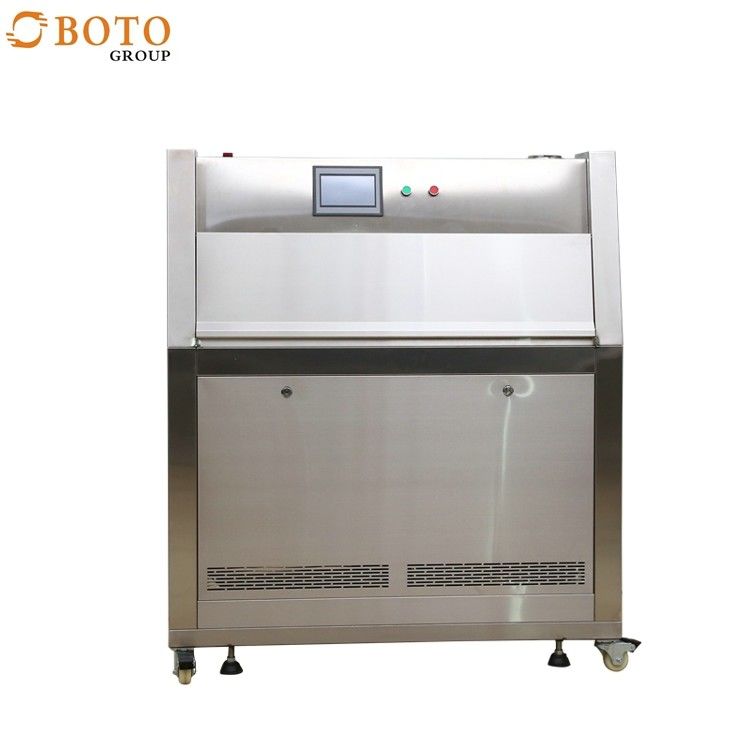

UV Aging Test Chamber simulates damaging effects of long term outdoor exposure of sunlight, heat, moisture on materials and coatings. It exposes specimen to varying conditions of weathering- ultraviolet radiation, moisture and heat to test the performance and improve the quality.

User-friendly design:

Unique design mirror reflection system to ensure a large and sufficiently uniform in exposure, also can enhance light irradiance and shorter sample exposure time.

Slides out of sample tray for easy placement of multiple samples, it can be placed on the bottles, test tubes, petri dishes and other special samples.

Can be interchanged the Xenon lamp with U.S brand, the life of lamp up to 1500 hours.

Adopt PLC touch screen controller from SIEMENS, easy to observe and operate.



Lab Drying Oven UV-A Climatic Chamber Manufacturer VG95218-2 UV Aging Test Chamber 0

Lab Drying Oven UV-A Climatic Chamber Manufacturer VG95218-2 UV Aging Test Chamber 1

Lab Drying Oven UV-A Climatic Chamber Manufacturer VG95218-2 UV Aging Test Chamber 2

Lab Drying Oven UV-A Climatic Chamber Manufacturer VG95218-2 UV Aging Test Chamber 3

Features:
1. UV aging test machine can do two kinds of testing: aging and anti-yellowing.
2. Aging: the machine can promote the increase of sulfur rubber deterioration, to calculate the change rate of tensile and elongation before and after heat. It’s generally thought that test for one day at 70°C, in theory as exposed to the atmosphere for 6 months.
3. Anti-yellowing: the machine stimulate the atmosphere environment, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50°C for 9 hours, in theory as exposed to atmosphere for 6 months.

Lab Drying Oven UV-A Climatic Chamber Manufacturer VG95218-2 UV Aging Test Chamber 4

It has the following performance characteristics:



The heating mode is the inner tank heating, fast heating and uniform temperature distribution



The drainage system uses reflux type and U-type sedimentation device to drain water



The distance between the sample surface and the UV lamp plane is 50 mm and parallel

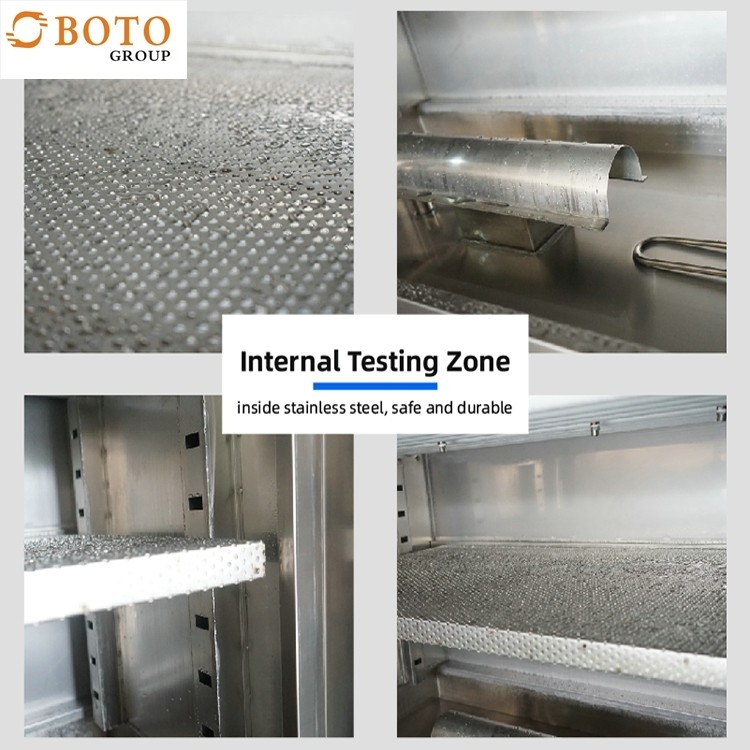

The actual studio consists of test samples and supports to form the inner wall of the box, trapezoidal



Automatic water refill of tank water level



The lid is bidirectional clamshell type, easy to open and close



High quality fixed PU movable wheel is used at the bottom of the test chamber



product description:




Model
B-ZW
Internal Dim(DxWxH) 50x75
 External Dim(DxWxH) 58x128x135
power(kw) 4KW/3.2kW
performance index Temperature range RT+10℃-70℃
Humidity range ≥95%R.H
Distance between tubes 35mm
Distance between sample and tube 50mm
ultraviolet wavelength 290nm-400nm UV-A,UV-B,UV-C
Lamp wattage 40W
safety protection Leakage, short circuit, over temperature, water shortage, over current protection/controller power failure memory
