| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-107(A-D) |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| External Dim: | 17x23x20 | Interior: | SUS#304Stainless Steel Plate |
|---|---|---|---|
| Model: | B-OIL-01 | Low Temp Range: | -10℃--60℃ |
| Internal: | 40x35x35 | Test Temp Rang: | -40℃-150℃ |
| Exterior: | Coating Or SUS#304Stainless Steel Plate | HighTemp Rang: | ＋80℃～200℃ |
| High Light: | PCB Test Chamber GJB150.5,PCB Test Lab Drying Oven Machine,SUS304 PCB Test Chamber |
||

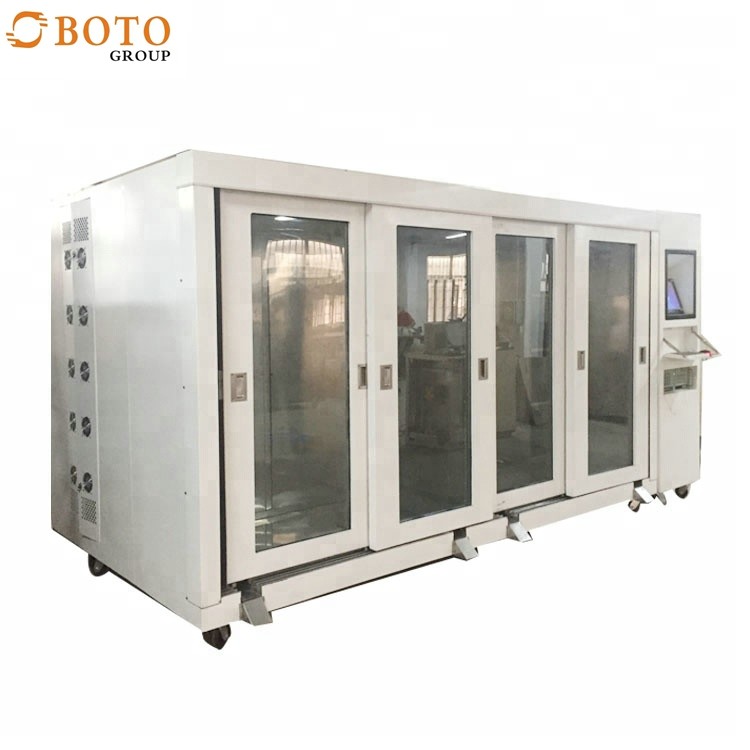

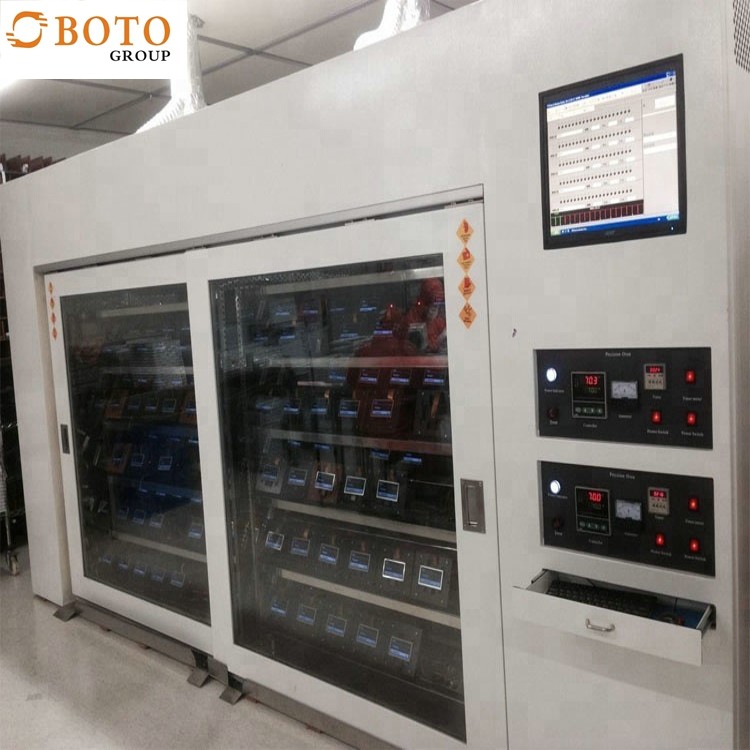

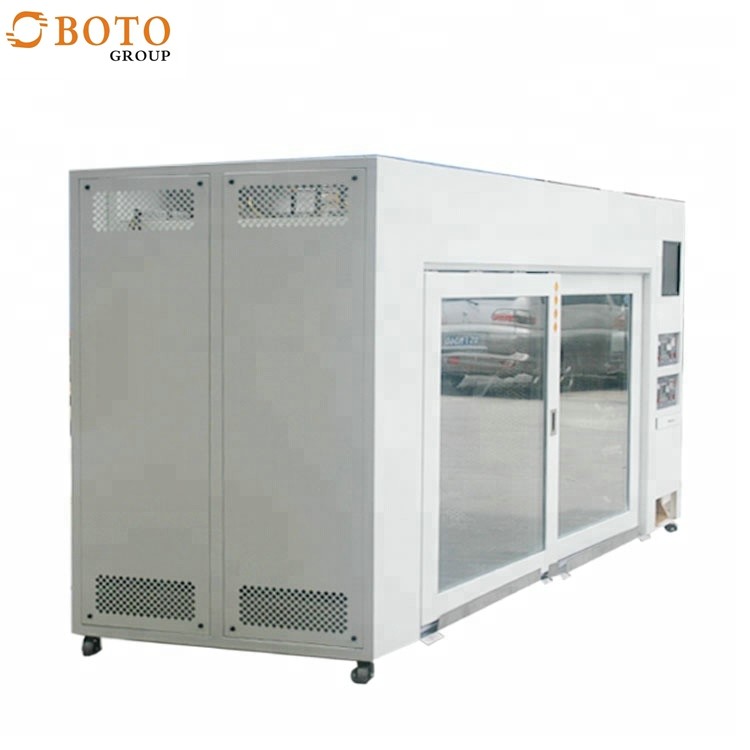

Test Equipment PCB Test Chamber GJB150.5 Lab Drying Oven Machine Laboratory Equipment
The machine realizes the cold and heat cycle test by alternately using two independent fluid baths. It is a special testing instrument for the production process control of printed circuit board, which is used for the cold and heat shock test of printed circuit board. It can also be connected to the low resistance test system for on-line resistance test.
1.Applicable test plate specification: 350mm x 210mm;
2.Sanyo stepping motor and precision module are adopted for Transmission, with small vibration and low voice;
3.The equipment is divided into high and low temperature chamber;
4.Quickly change the temperature of the test room to make the test sample accept cold and hot shock.
It has the following performance characteristics:
■The shell is made of high-quality thin steel plate, the surface is sprayed with plastic;
■The liner is stainless steel sheet;
■Fujifilm temperature controller;
■Wide temperature test range;
■ Pt100 platinum resistance as sensor;
■ High temperature control sensitivity, good temperature uniformity;
■ With leakage protection, overtemperature alarm, overtemperature protection function.
| model | B-OIL-01 | B-OIL-02 | B-OIL-03 | ||
| basic configuration | Looding baskets Dimensions(CM) | 17x23x20 | 23x29x30 | 28x34x35 | |
| External Dim(W*H*D) | |||||
| Operator interface | With 5.7color LCD touch screen and P.C control system |
||||
| Control mode | Japan's imports of time/temperature cortroler,high precision temperature control, heating,cooing PID operation are used |
||||
| PLC | Jpanese Mesubishi |
||||
| Heaters | Imports of nickel wire heater |
||||
| Carriageway mobile means | Stepping drive control |
||||
| Crriageway Component Contiguration | Impart modules |
||||
| Cooling mode | Imported compressor |
||||
| Hot oil cylinder temperature range (℃) | RT+40℃-260℃ Room+40℃---260℃ |
||||
| Heat oil cylinder temperature control accuracy(℃) | ±5℃ | ||||
| Cold oil cylinder temperature range(℃) | 20-25℃ | ||||
| Counting display range (times) | 1-199 | ||||
Time display range (S) |
Hot cylinder 1-199.9 |
||||
Input Power: |
380V 50Hz | ||||
Weight [KGI |
450 | 550 | 800 | ||
Power (W) |
15KW | 18KW | 21KW | ||
