| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-CY-500 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| External Dim: | 70x80x90 | HighTemp Rang: | ＋80℃～200℃ |
|---|---|---|---|
| Model: | B-CY-1500 | Test Apparatus: | Dynamic And Static (optional) |
| Gas Flow Rate: | 12-16mm/s | Temperature Range: | 0℃-70℃ |
| Ozone Generator: | Silent Discharge Tube Type | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| High Light: | Environmental Ozone Aging Test Chamber,SUS304 Environmental Chamber,Static Ozone Aging Test Chamber |
||

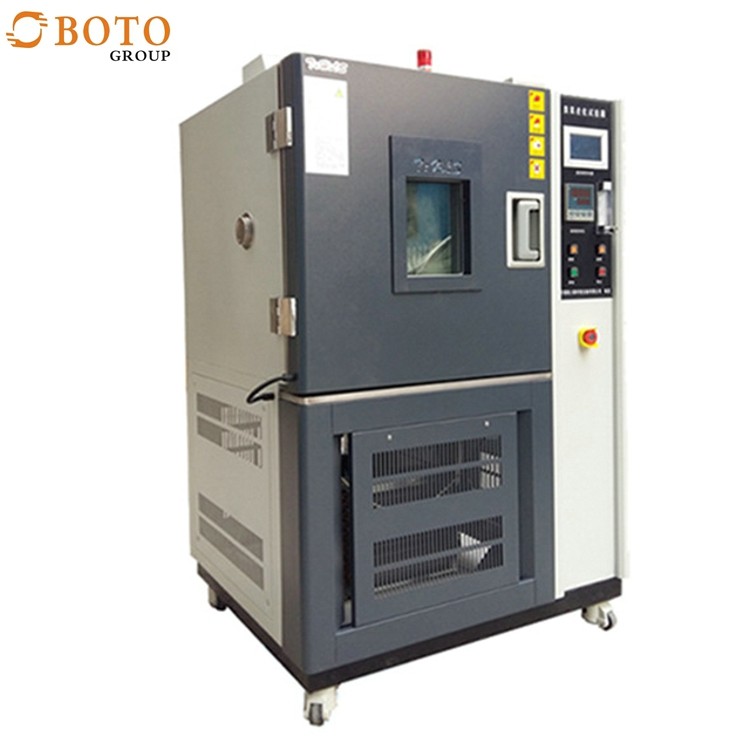

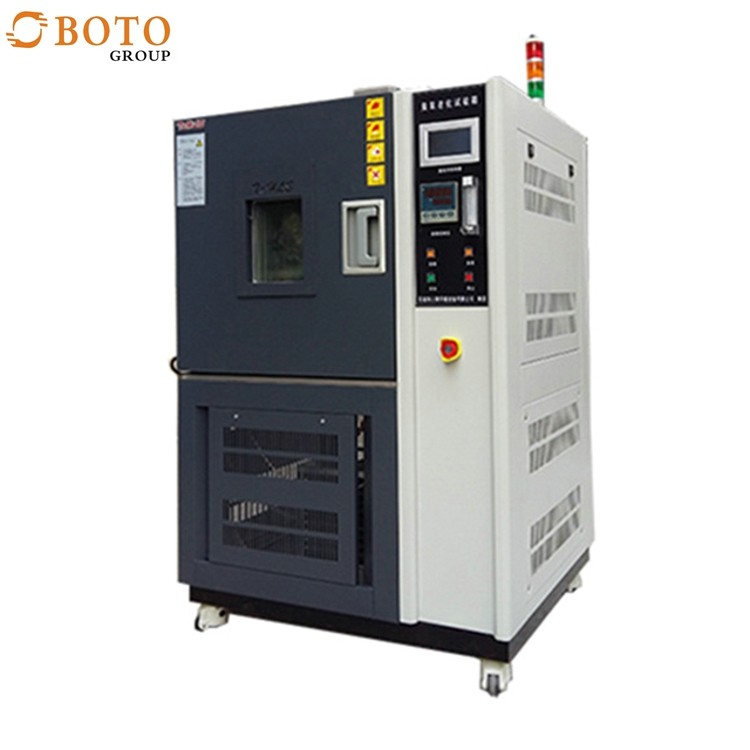

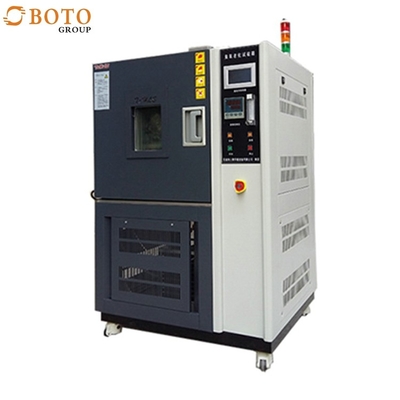

Lab Drying Oven Ozone Aging Test Chamber Lab Test Machine GB/T2951.21-2008 Environmental Chamber
Description:
The reverse Carro cycle is adopted in the refrigeration cycle, which consists of two isothermal processes and two adiabatic processes. The process is as follows: The refrigerant is adiabatic compressed to a higher pressure by the compressor, and the work is consumed to increase the exhaust temperature. Then the refrigerant is heat exchanged by the condenser and other media to the surrounding media. After the refrigerant through the closure valve adiabatic expansion work, the refrigerant temperature decreases. Finally, the refrigerant absorbs heat from the higher temperature object through the evaporator, so that the temperature of the cooled object is reduced. The cycle is repeated to cool the temperature. Refrigeration system design application of energy regulation technology, a kind of effective treatment can ensure that the refrigeration unit in the normal operation of the case and the refrigeration system of energy consumption and cooling capacity for effective regulation, so that the refrigeration system operating costs down to a more economic state.
reference standard:
GB/T7762-2003 Vulcanized rubber or thermoplastic rubber - static tensile test method for ozone cracking resistance;
GB/T2951.21-2008 General test methods for insulating and sheathing materials for cables,
GB/T 11206-2009 rubber aging test surface cracking method;
And test methods specified in other relevant standards.
Main material of equipment:
1, the shell cold plate spray/inner stainless steel.
2, AI digital display intelligent program control regulator. 3, gas flowmeter, precise control of gas flow at all levels. Equipped with "QUA" non-dispersive ultraviolet ozone detector (the most reliable and popular method for ozone detection in the world).
4. Beer-lambert Principle measurement application software (internationally recognized).
5, equipped with gas purifier, constant temperature tank, active carbon absorption and silica gel drying tower.
6, the ozone air flow is parallel to the sample.
7, optional remote monitoring software (available PC print test data).
8. Interfaces for classical chemical testing of ozone concentration are provided.
9, the test box is provided with a regulated power supply.
Model |
B-CY-120 | B-CY-250 | B-CY-500 | B-CY-1000 | |
Internal Dim(DxWxH) |
45x45x60 | 50x60x75 | 70x80x90 | 100x100x100 | |
| Temperature range | 0℃-70℃ | ||||
| Humidity range | >65%R·H | ||||
Ozone concentration |
0-200PPm.0-300PPm | ||||
Temperature fluctuation |
±0.5℃ | ||||
test apparatus |
Dynamic and static (optional) |
||||
Sample rack rotation speed |
360 degree rotating sample holder (1 rpm per minute) |
||||
Gas flow rate |
12-16mm/s | ||||
Temperature Controller |
Imported LED digital display P.L. D+5.5, R microcomputer integrated controller |
||||
Time controller |
Precision hours,minutes,seconds time controller |
||||
Ozone concentration analysis |
Imported concentration analysis regulator 4-20mA outputs,RS232 communication port |
||||
Ozone generator |
Silent discharge tube type |
||||
Security protection |
Leakoge,short circuit,over temperature,motor overheating.over-current protection |
||||
Our Company:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
