| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-TCT-403 |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Internal Dim （CM）: | 50x50x50 | External Dim（CM）: | 138x205x200 |
|---|---|---|---|
| Power Source: | 19KW | Low Temp Range: | -10℃--60℃ |
| HighTemp Rang: | ＋80℃～200℃ | Model: | B-TCT-403 |
| Recovery Time: | Within 3 Minutes | Interior: | SUS#304Stainless Steel Plate |
| Sample Weight: | 5KG | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| High Light: | Two Box Hot Cold Impact Chamber,SUS304 Hot And Cold Chamber,B-TCT-403 Lab Drying Oven |
||

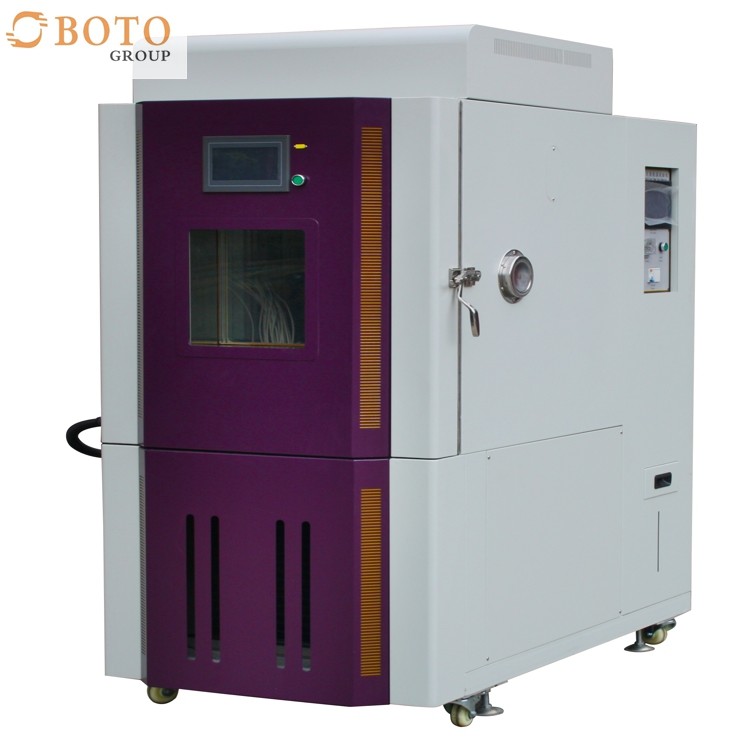

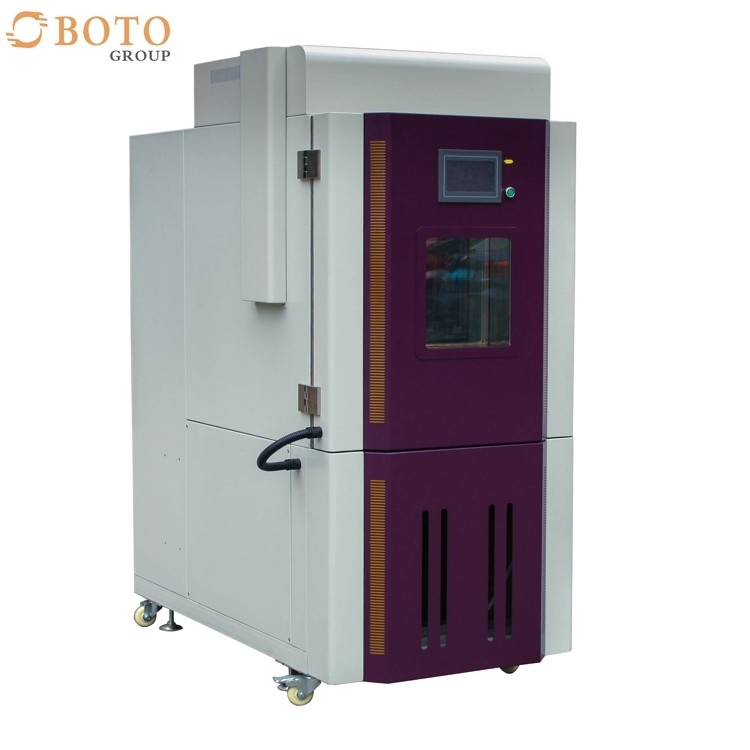

Lab Drying Oven Two Box-Type Hot And Cold Impact Chamber GB/T2423.1.2-2001 Environment Test Machine
Description:
Temperature and Humidity Test Chamber is used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. Suitable for testing the quality of products such as electronics, electrical appliances, mobile phones, communications, meters, vehicles, plastic products, metals,food, chemicals, building materials, medical care, aerospace, etc.
Main Features:
1. Large color LCD touch interactive microcomputer control system, easy to understand, running at a glance;
2. Closed imported compressor + environmental refrigerant, cold plate heat exchanger and dual-type ultra-low temperature
refrigeration systems;
3. A LAN network communication interfaces to computer remote control, easy to use.
4. Independently set the heat, cold and hot and cold conditions, the impact of three different function, the impact of the
implementation of hot and cold conditions, with high and low temperature testing machine functions.
5. Operation at boot time automatically make an appointment ahead of pre-cooling, preheating, standby.
6. Defrost cycles can be set and the number of automatic (manual) defrost.
7. Controller friendly interface and easy procedure setting, abnormal and troubleshooting display complete.
TEST CHAMBER APPLICATIONS
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
Model:
| (Model) | B-TCT-401 | B-TCT-402 | B-TCT-403) | B-TCT-501 | B-TCT-502 | B-TCT-503 | B-TCT-601 | B-TCT-602 | B-TCT-603 | |
| Internal Dim (CM) | 30x30x30 | 40x40x40 | 50x50x50 | 30x30x30 | 40x40x40 | 50x50x50 | 30x30x30 | 40x40x40 | 50x50x50 | |
| External Dim(CM) | 118x185x180 | 128x195x190 | 138x205x200 | 118x185x180 | 128x195x190 | 138x205x200 | 118x185x180 | 128x195x190 | 138x205x200 | |
| Sample Weight | 5KG | 10KG | 20KG | 5KG | 10KG | 20KG | 5KG | 10KG | 20KG | |
| Low Temp Range | -10℃--60℃ | -10℃~-70℃ | -10℃--80℃ | |||||||
| Test Temp Rang | -40℃-150℃ | -55℃~150℃ | -65℃~150℃ | |||||||
| HighTemp Rang | +80℃-200 ℃ lvarious specifications applicablel |
|||||||||
| Recovery time | Within 3 minutes | |||||||||
| Interior | SUS#304Stainless steel plate | |||||||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||||||
| Power Source | AV:380V 50/60Hz | |||||||||
| Power(KW) | 13.5KW | 15KW | 19KW | 13.5KW | 15KW | 19KW | 15KW | 19KW | 22KW | |
