| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-1000(A~E) |
| Minimum Order Quantity: | 1 PCS |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Name: | Rapid Temperature Test Chamber | Model: | B-T-1000(A~E) |
|---|---|---|---|
| Interior: | SUS#304Stainless Steel Plate | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| Power Source: | AV：220V/380V 50/60Hz | Power（KW）: | 1KW~2KW |
| Internal Dim: | 60x75x50 | External Dim（CM: | 90X177X130 |
| Temp Uniformity: | ±1.0℃ | Temp&Humi.Deviation: | ±1.0℃/±3.0℃RH |
| High Light: | Rapid Temperature Lab Drying Oven 380V,SUS304 Rapid Temperature Test Chamber |
||

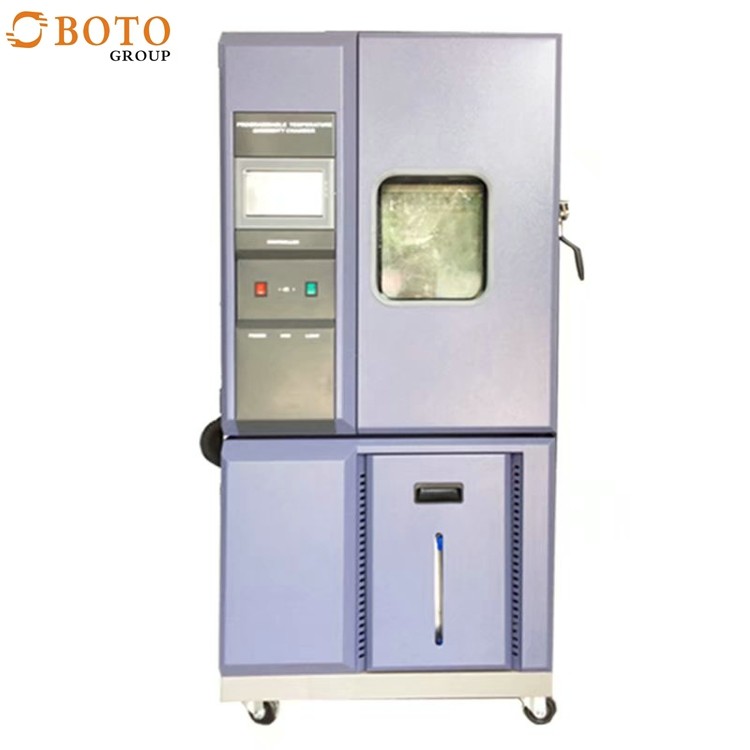

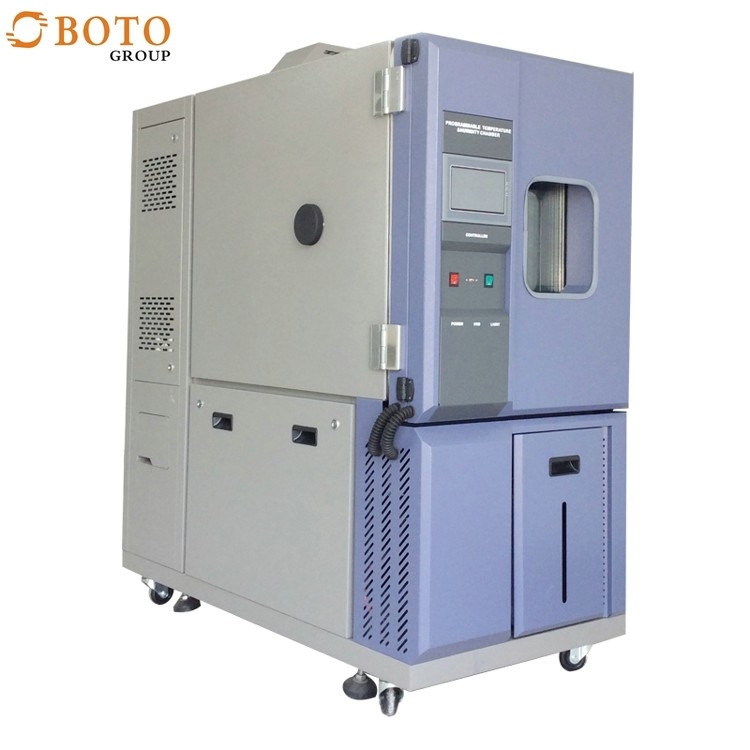

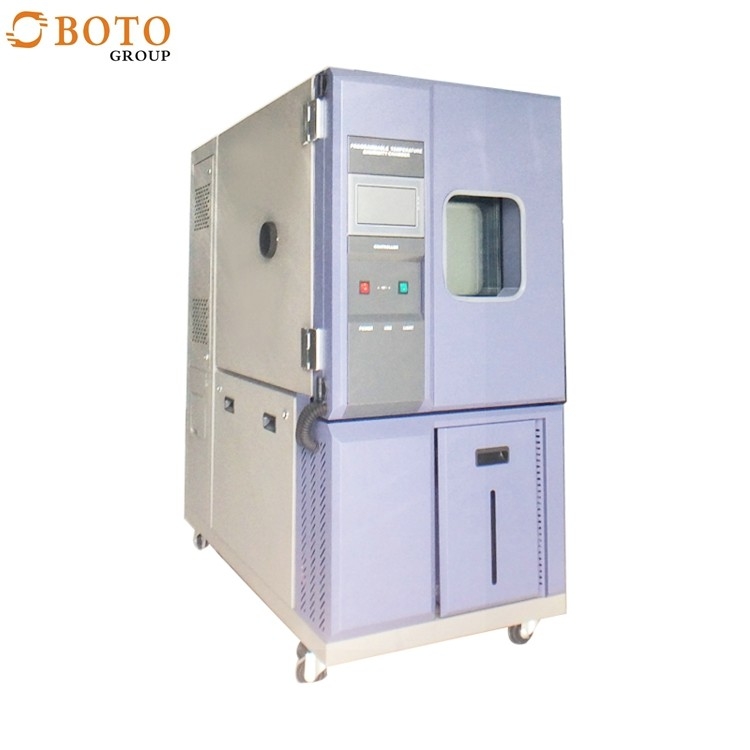

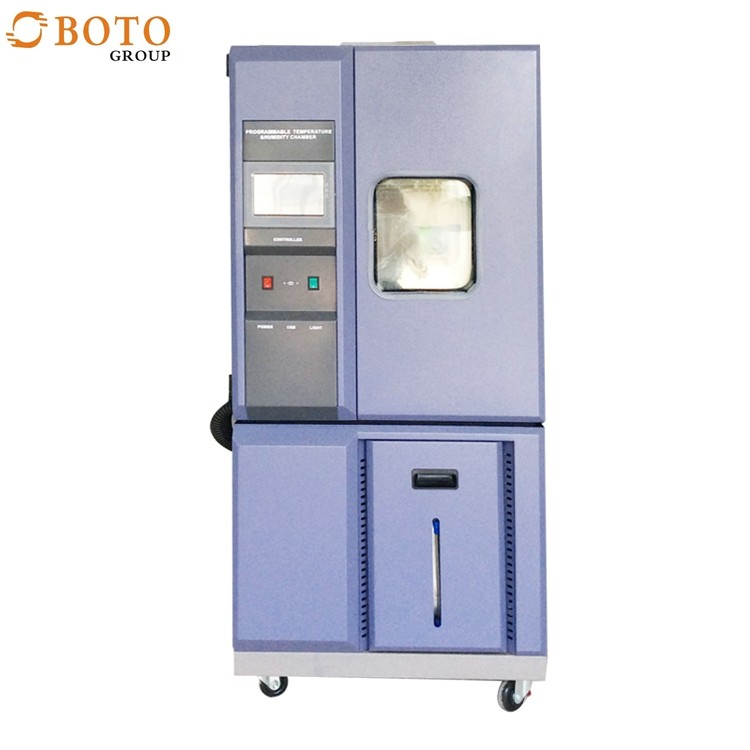

Rapid Temperature Test Chamber Lab Test Machine Climatic Chamber Manufacturer
Product Description
APPLICATIONS
1.To simulate test environment with different temperature and humidity
2.Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test
3.Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
CHAMBER DESIGN FEATURES
1.High performance and quiet operation (68 dBA)
2.Space-saving designed for flush installation to wall
3.Full thermal break around doorframe
4.One 50mm diameter cable port o left, with flexible silicone plug
5.Accurate wet/dry-bulb humidity measurement system for easy maintain
Standard:
China Machine Rapid Rate Change Temperature High Low Temperature Cycle Test Chamber
GB/Bb T2423.2-89 high temperature test method GB2423.1-89 test A: low temperature test method 6
Ab IEC60068-2-1 low temperature test method GJB150.4-1986 test at low temperature
EIA - 364-59 test at low temperature IEC60068-2-38 temperature cycle
IEC60068-2-78 constant temperature IEC60068-2-30 temperature cycle
Characteristics:
1.High and Low temperature chamber test machineUse the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2.High and Low temperature chamber test machinecontrol temperature&humidity well-distributed, precisely and steady.
3.High and Low temperature chamber test machine Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
Manufacturer:
| Model | dry heat | B-T-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) |
| damp and ho | B-TH-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) | |
| Internal Dim (CM) | 40x50x40 | 45x60x45 | 60x75x50 | 70x90x80 | 100x100x100 | |
| External Dim(CM) | 75x203x203 | 75X189X110 | 90X177X130 | 100X180X103 | 130X190X123 | |
| Relative Humidity | 20％-98％RH | |||||
Temp Range |
-70℃~180℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ E:-70℃) | |||||
| heat-up time | 1℃-15℃／min |
|||||
| Pull down time | 1℃-15℃／min | |||||
| Temp Fluctudtiont | ±0.5℃ | |||||
| Temp Uniformity | ±1.0℃ | |||||
| Temp&Humi.Deviation | ±1.0℃/±3.0℃RH | |||||
| Interior | SUS#304Stainless steel plate | |||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||
| Power Source | AV:220V/380V 50/60Hz | |||||
| Power(KW) | The technical proposal shall prevail | |||||

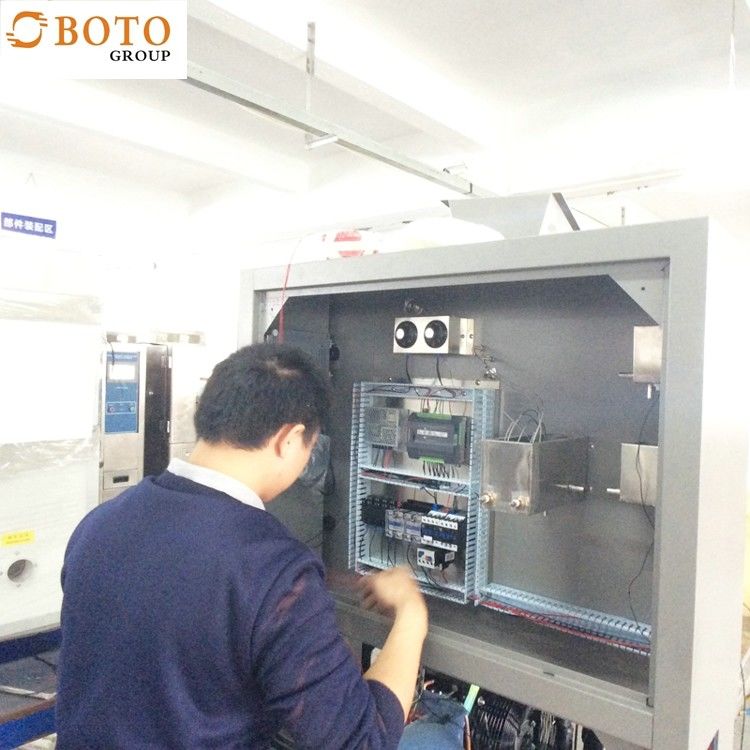

Our company:
Packing/Shipping:
FAQ
1.What's your MOQ?
At present we haven't strict policy for this, so welcome orders with any quantity.
2. Are you a factory or trade company?
We are a manufacturer located in Hunan. You will be welcomed to visit our factory or we also can share our factory vedio for you at any time.
3. We are not professional for operation and installation of your machine?
While it is not a stumbling block, our machine is easy to operate, no need to professional training, and the instruction manual and video sent to you are enough. What's more, we have professional engineers and they can solve all questions.
