Climatic Chamber DIN50021 Xenon Lamp Aging Chamber Lab Machine Manufacturer

Basic Information
Place of Origin: China
Brand Name: BOTO
Certification: MIL STD GB JIS JEDEC IEC ISO
Model Number: B-XD-120
Minimum Order Quantity: 1PCS
Price: Discussible
Packaging Details: wooden case
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000PC/Month
Internal: 40x35x35 Model: B-XD-120
External Dim: 107x145x68 Low Temp Range: -10℃--60℃
Test Temp Rang: -40℃-150℃ HighTemp Rang: +80℃~200℃
Interior: SUS#304Stainless Steel Plate Exterior: Coating Or SUS#304Stainless Steel Plate
Temperature Range: 'RT+10℃~70℃ Name: Xenon Lamp Aging Chamber

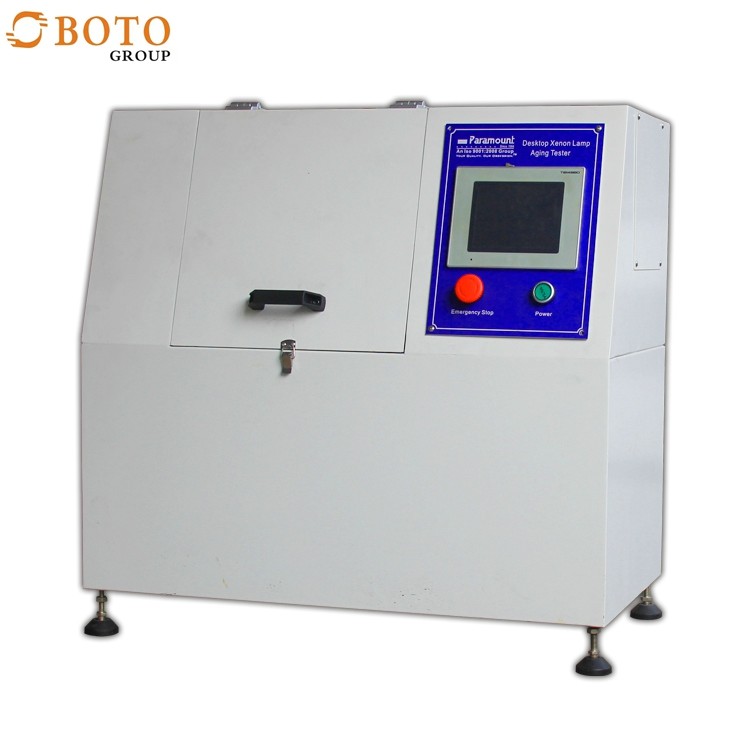

Climatic Chamber DIN50021 Xenon Lamp Aging Chamber Lab Machine Manufacturer



Product Description

This Xenon equipment is a comprehensive climate testing machine, can do climatic aging test and the lightfastness test of polymer materials which exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition.



Machine Summary:

Xenon Accelerated Aging Test Chamber is a kind of comprehensive climate test equipment, support climate

aging test,polymer light fastness test(Polymer materials exposed to simulated solar spectrum of artificial

lightthrough the glass to assess the light resistance of materials). From the light, temperature, rain

orcondensation, humidity and so on to do the simulation and strengthen test; use simulating full sunlight

spectrum xenon arc lamp to simulate the destructive waves of different environment. Can be used for

theselection of new materials, improvement of existing materials or evaluate the material durability

Aftermaterial composition changes and other testing.

Climatic Chamber DIN50021 Xenon Lamp Aging Chamber Lab Machine Manufacturer 0

Climatic Chamber DIN50021 Xenon Lamp Aging Chamber Lab Machine Manufacturer 1

Corresponding Chinese standard:
GB12831-86 Vulcanized rubber artificial climate (xenon lamp) Aging Test Method
GB/T1644.2-1999Plastics laboratory light exposure test method
GB/T8427-89 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T8430-98 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T1865-97 Paints, varnishes, artificial weather aging and artificial radiation exposure
GB/T16991-97 textile color fastness test,
GB/T5137.3-96 simulated climate test method of resistant to radiation, heat, humidity, burning
GB/T16259-96 color building materials, artificial climate accelerated aging test method.
GB/T2423.24-95 Electronic and Electrical Products Environmental Testing Part II: test method, testing SQ: Simulation of solar radiation on the ground.

Climatic Chamber DIN50021 Xenon Lamp Aging Chamber Lab Machine Manufacturer 2

Features:

1 equipped with blackboard thermometer to adjust the test temperature in the chamber.

2 can control xenon arc lamp light time.

3 Control water spray cycle.

4 Water circulation.

5 automatic constant temperature(circulating water cooling)

6 LCD touch screen controller can independantly control water spray, light, temperature, humidity, rotary table.

7 large glass observation window

8 water shortage and over temperature faulty alarm.

9 irradiation meter displays light intensity in the chamber.

10 Customization is welcomed and available.

11 Equipped with castors and feet, which helps users to move the test chamber easily.

12 One year free accessories maintenance.

product description:




Model
B-XD-120 B-XD-225 B-XD-408 B-XD-800

Internal Dim(W*H*D)
45x60x45 50x75x60 60x85x80 100x100x80
 External Dim(W*H*D) 107x145x68 120x164x92 122x169x112 162x184x112
 Temperature range RT+10℃~70℃
Humidity range 50%~90%RH
 Radiation intensity of xenon lamp 550W/m²
 Spectral wavelength region 290nm-800nm
 rainfall time 0-9999/min
Total power xenon lamp 2KW/6KW
type of cooling forced air coolingwater-cooling
Interior SUS#304Stainless steel plate
External material Coating or SUS#304Stainless steel plate

Power Source
AV:220V/380V 50/60Hz

our company:

Climatic Chamber DIN50021 Xenon Lamp Aging Chamber Lab Machine Manufacturer 3

Climatic Chamber DIN50021 Xenon Lamp Aging Chamber Lab Machine Manufacturer 4



Climatic Chamber DIN50021 Xenon Lamp Aging Chamber Lab Machine Manufacturer 5

Climatic Chamber DIN50021 Xenon Lamp Aging Chamber Lab Machine Manufacturer 6

Climatic Chamber DIN50021 Xenon Lamp Aging Chamber Lab Machine Manufacturer 7

Climatic Chamber DIN50021 Xenon Lamp Aging Chamber Lab Machine Manufacturer 8

Climatic Chamber DIN50021 Xenon Lamp Aging Chamber Lab Machine Manufacturer 9

Climatic Chamber DIN50021 Xenon Lamp Aging Chamber Lab Machine Manufacturer 10Climatic Chamber DIN50021 Xenon Lamp Aging Chamber Lab Machine Manufacturer 11Climatic Chamber DIN50021 Xenon Lamp Aging Chamber Lab Machine Manufacturer 12



Our Services

Q:After an order is placed, when to deliver?

A:Generally about 15~20 days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.



Q:What about the product' services and quality?

A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate.

We can arrange engineer to train the operation of equipment to customer’s company when you need.



Q:How to choose the most suitable products?

A: Our professional team will give you the best suggestion,when you need some products to make the test,just be patiently to tell us the information about your test sample,the parameters your required.Our team may help you to find the best one.
