| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-T-225(A~E) |
| Minimum Order Quantity: | 1 PCS |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Name: | Rapid Temperature Test Chamber | Model: | B-T-225(A~E) |
|---|---|---|---|
| Interior: | SUS#304Stainless Steel Plate | Power Source: | AV：220V/380V 50/60Hz |
| Internal Dim: | 60x75x50 | Exterior: | Coating Or SUS#304Stainless Steel Plate |
| External Dim（CM: | 90X177X130 | Power（KW）: | 1KW~2KW |
| Temp Fluctudtiont: | ±0.5℃ | Temp Uniformity: | ±1.0℃ |

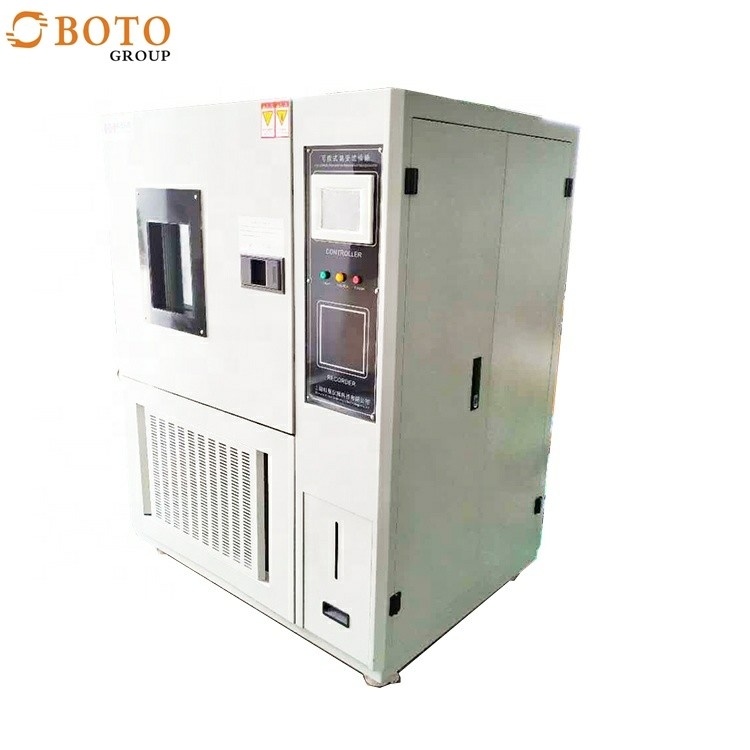

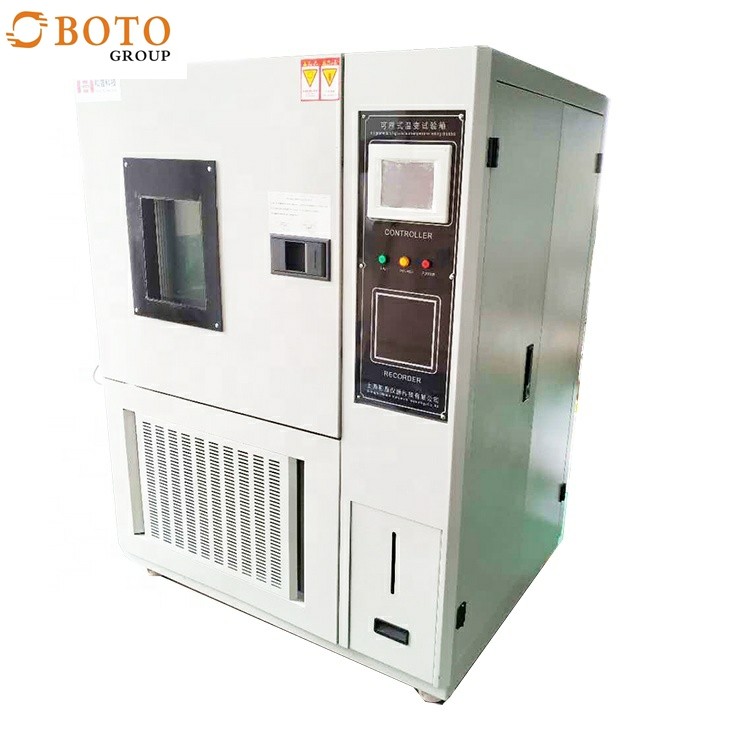

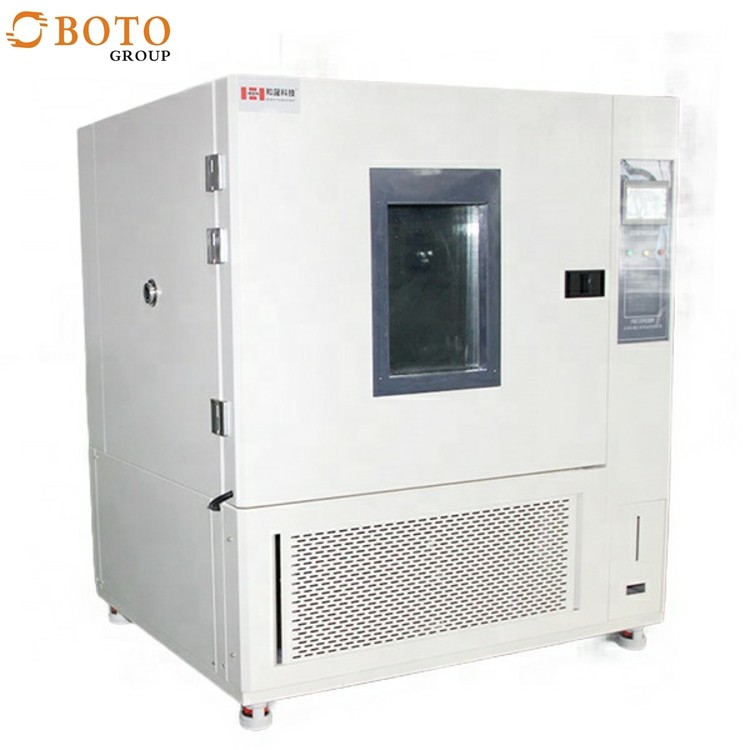

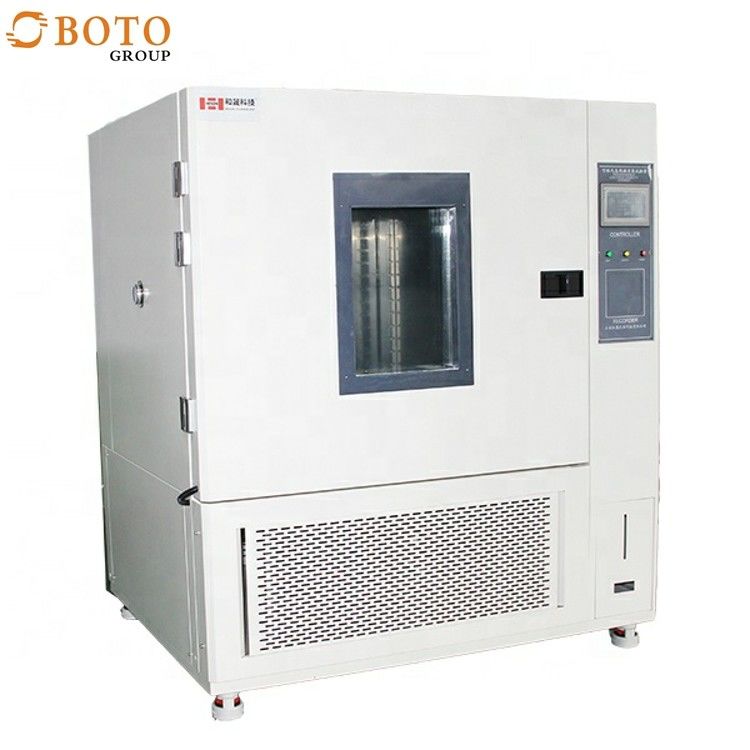

Environmental Test Chambers MIL-2164A-19 Rapid Temperature Test Chamber Climatic Chamber
Product:
Appliance:
Programable thermal shock test chamber is used to test the change of material under extremely high temperature and extremely low temperature environment that continue alternation in the shortest time,Testing the chemical changes or physical damage of material caused by the thermal expansion and contraction. Testing box divided two parts, one is hightemperature region, another is low-temperatureregion, the testing sample placed on the
moving basket, using unique heat storage and cool storage,the cylinder taking basket
moves up and down in the hot and cold region to complete the hot and cold temperature
impact testing;
Standards:
The performance index meets the requirements of GB5170, 2, 3, 5, 6-95 verification methods for basic parameters of environmental test equipment for electrical and electronic products low temperature, high temperature, constant humidity and alternating humidity heat test equipment
Basic environmental test procedures for electrical and electronic products test a: low temperature test method GB 2423.1-89 (IEC68-2-1)
Basic environmental test procedures for electrical and electronic products test B: high temperature test method GB 2423.2-89 (IEC68-2-2)
Basic environmental test procedures for electrical and electronic products test CA: constant damp heat test method GB/T2423.3-93 (IEC68-2-3)
Basic environmental test procedures for electrical and electronic products test Da: alternating damp heat test method GB/T2423.4-93 (IEC68-2-30)
1 The whole box adopts the integral structure.
2 The inside of the box is made of 1.0mm imported SUS304B stainless steel plate, the outside is made of 1.0mm cold rolled steel spray, and the thermal insulation material is made of ultra-fine glass thermal insulation cotton.
3 The door is sealed with double-layer silicone rubber sealing material.
4 The observation window is made of multi-layer conductive film tempered insulating glass with a size of 350×500mm. In order to prevent frosting of the glass at low temperature, the built-in special safety voltage heating wire is specially built to surround the heating belt with a power supply voltage of 36V, and a lamp is set up to provide illumination for observation.
5 A φ50mm test hole with a plug is arranged on the side of the box body. The plug material is silicone rubber with low foaming, high and low temperature resistance, with thermal insulation effect.
Manufacturer:
| Model | dry heat | B-T-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) |
| damp and ho | B-TH-80(A-E) | B-T-120(A~E) | B-T-225(A~E) | B-T-504(A~E) | B-T-1000(A~E) | |
| Internal Dim (CM) | 40x50x40 | 45x60x45 | 60x75x50 | 70x90x80 | 100x100x100 | |
| External Dim(CM) | 75x203x203 | 75X189X110 | 90X177X130 | 100X180X103 | 130X190X123 | |
| Relative Humidity | 20％-98％RH | |||||
Temp Range |
-70℃~180℃(100℃) (A:0℃ B:-20℃ C:-40℃ D:-60℃ E:-70℃) | |||||
| heat-up time | 1℃-15℃／min |
|||||
| Pull down time | 1℃-15℃／min | |||||
| Temp Fluctudtiont | ±0.5℃ | |||||
| Temp Uniformity | ±1.0℃ | |||||
| Temp&Humi.Deviation | ±1.0℃/±3.0℃RH | |||||
| Interior | SUS#304Stainless steel plate | |||||
| Exterior | Coating or SUS#304Stainless steel plate | |||||
| Power Source | AV:220V/380V 50/60Hz | |||||
| Power(KW) | The technical proposal shall prevail | |||||
