| Place of Origin: | China |
|---|---|
| Brand Name: | BOTO |
| Certification: | MIL STD GB JIS JEDEC IEC ISO |
| Model Number: | B-ZW |
| Minimum Order Quantity: | 1PCS |
| Price: | Discussible |
| Packaging Details: | wooden case |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000PC/Month |
| Model: | B-ZW | Ultraviolet Wavelength: | 290nm-400nm UV-A、UV-B、UV-C |
|---|---|---|---|
| Internal: | 45x117x50 | Humidity Range: | ≥95%R.H |
| Distance Between Sample And Tube: | 50mm | Material: | 304 Stainless Steel Plate |
| External Dim: | 58x128x135 | Distance Between Tubes: | 35mm |
| Lamp Wattage: | 40W | Safety Protection: | Leakage, Short Circuit, Over Temperature, Water Shortage, Over Current Protection/controller Power Failure Memory |

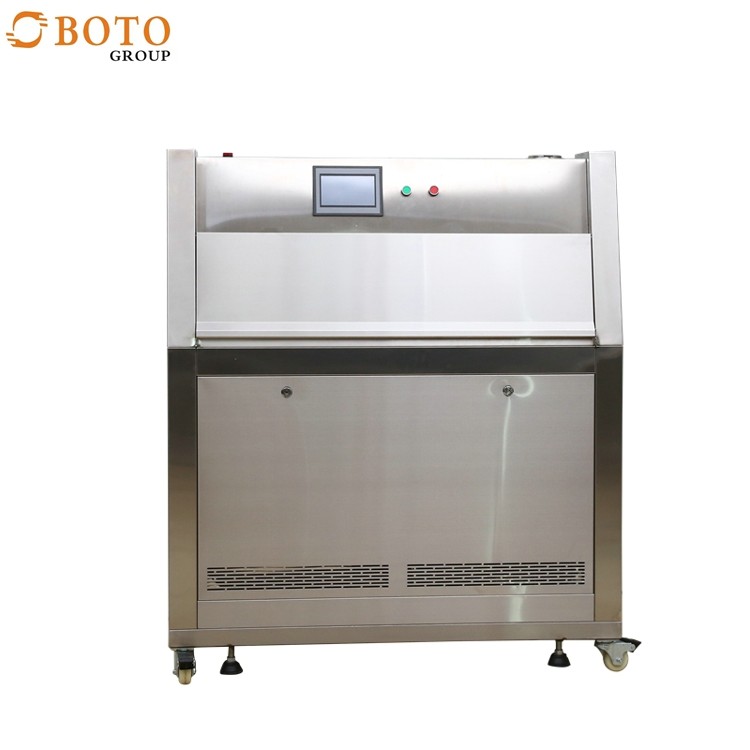

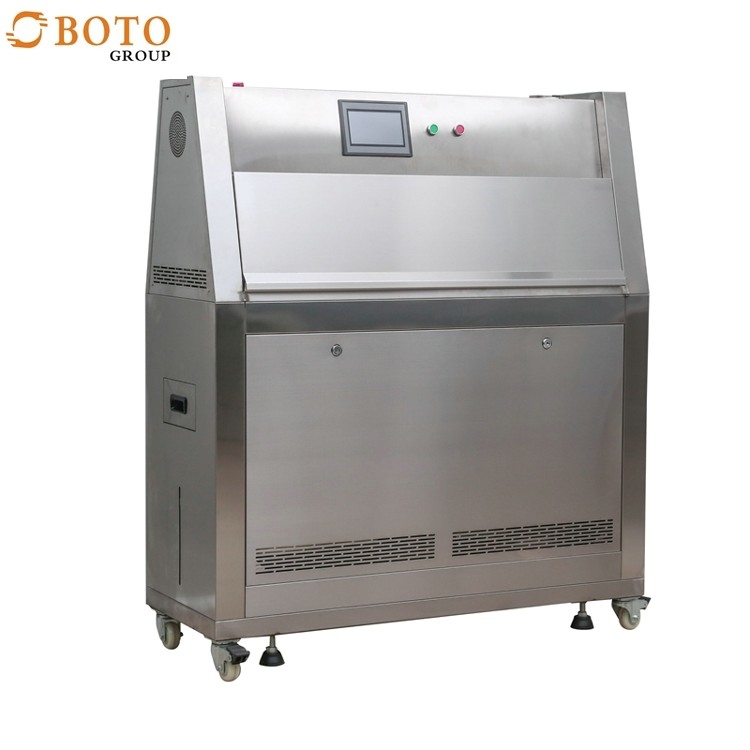

UV Aging Test Chamber VG95218-2 Climatic Chamber UV-A Machine Environmental Test Chambers
Description:
UV aging testing machine is By simulating UV radiation and condensation in natural sunlight, the material was subjected to an accelerated weathering test to obtain the results of weatherability of the material. It can simulate the environmental conditions of UV, rain, high temperature, high humidity, condensation, and darkness in the natural climate. By reproducing these conditions, they are combined into a loop and it is automatically executed to complete the cycle times.
User-friendly design:
1.Unique design mirror reflection system to ensure a large and sufficiently uniform in exposure, also can enhance light irradiance and shorter sample exposure time.
2.Slides out of sample tray for easy placement of multiple samples, it can be placed on the bottles, test tubes, petri dishes and other special samples.
3.Can be interchanged the Xenon lamp with U.S brand, the life of lamp up to 1500 hours.
Adopt PLC touch screen controller from SIEMENS, easy to observe and operate.
Touch screen controller (SIEMENS)
Model |
B-ZW | ||||
| Internal Dim(DxWxH) | 50x75 | ||||
| External Dim(DxWxH) | 58x128x135 | ||||
| power(kw) | 4KW/3.2kW | ||||
| performance index | Temperature range | RT+10℃-70℃ | |||
| Humidity range | ≥95%R.H | ||||
| Distance between tubes | 35mm | ||||
| Distance between sample and tube | 50mm | ||||
| ultraviolet wavelength | 290nm-400nm UV-A,UV-B,UV-C | ||||
| Lamp wattage | 40W | ||||
| safety protection | Leakage, short circuit, over temperature, water shortage, over current protection/controller power failure memory | ||||
Our company:
Packing/Shipping:
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
4)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
